Technical Data 6001
Effective October 2018
Supersedes August 2018

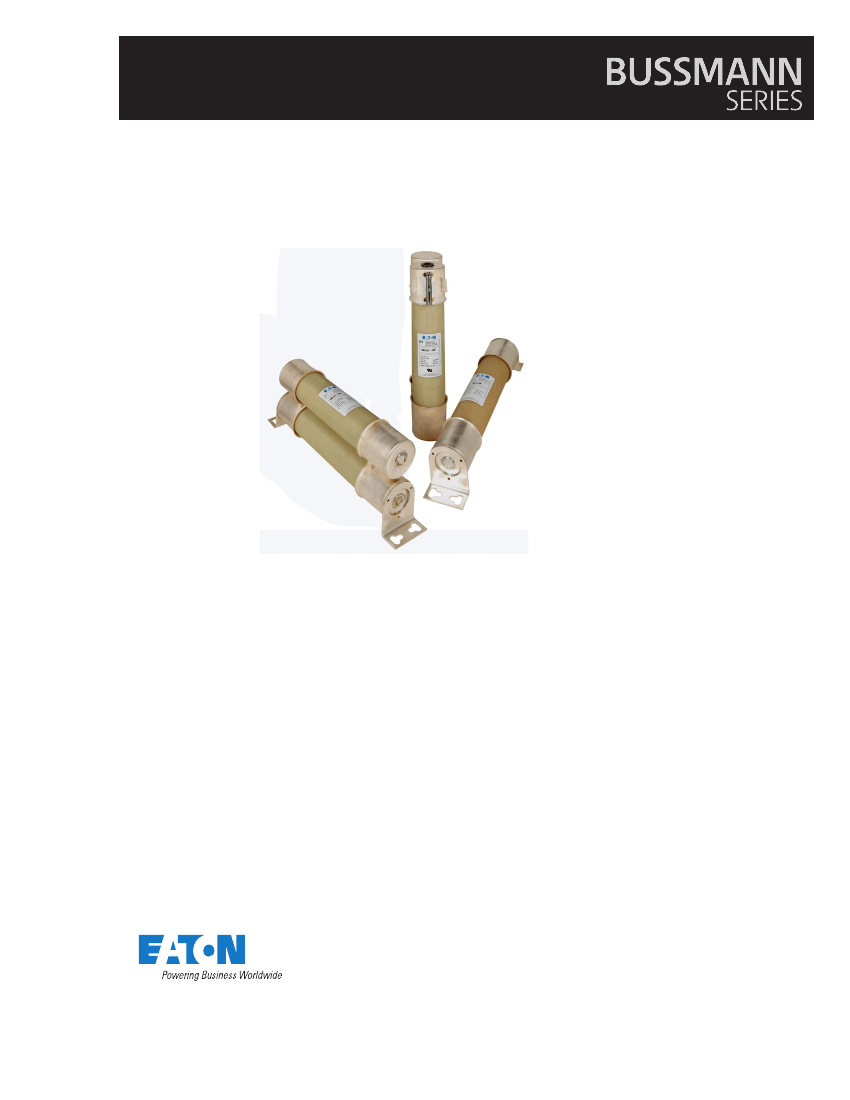

R-Rated medium voltage fuses for motor
circuit protection
Features and benefits
•
Current-limiting R-Rated fuses will safely
interrupt all currents between their minimum
and maximum interrupting ratings and will melt
in a range of 15 to 35 seconds at a value of 100
times the “R” number per ANSI C37
.46.
R-Rated fuses are physically dimensioned for
easy installation in existing hardware.
Available in standard, AMPGARD Hookeye and
hermetically sealed, and bolt-on mounting styles
to meet application needs.
4.8 kV Limitamp
®
bolt-on constructions available
in ratings from 2R to 24R.
2.4 kV and 4.8 kV AMPGARD hermetically
sealed constructions are suitable for Class I,
Group D, Div. 2 hazardous locations.
Open fuse indicator on all mounting styles
speeds troubleshooting.
Classified as backup fuses for current-limiting
protection of medium voltage motor controllers
(short-circuit performance only).
These fuses are in a self-contained, non-venting
package for installation indoors or outdoors in
an enclosure.
Medium voltage motors and controllers
•
•
•
•
•
•
Description:
•
•
Indoor/enclosure, R-Rated medium voltage,
current-limiting fuses for motor circuit
protection.
Typical applications:
•
Contents
Description
Page
Description
Page
2.4 kV R-Rated fuses . . . . . . . . . . . . . . . . . . . . 2-7
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Catalog numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
4.8 kV R-Rated fuses . . . . . . . . . . . . . . . . . . . 8-17
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Catalog numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-17
7.2 kV R-Rated fuses . . . . . . . . . . . . . . . . . . 18-22
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Catalog numbers . . . . . . . . . . . . . . . . . . . . . . . . . 18
Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22
Technical Data 6001
Effective October 2018
R-Rated medium voltage fuses
for motor circuit protection
Dimensions - in [mm]
Construction
Standard -
short
AMPGARD
Hookeye*
Bolt-on
Amp
range
25-230A
390-450A
70-230A
390-450A
25-230A
390-450A
19.2 (488)
17 (455)
.9
3 (76)
10.8 (274)
3 (76)
3 (76)
Dimension
A
B
C
D
—
3.3 (84)
—
3.3 (84)
—
3.3 (84)
2.4 kV R-Rated fuses
Catalog symbols:
Code-(amps)R
JCK-_R
2CLS-_R
JCK-A-_R*
2ACLS-_R
JCH-_R
2HCLS-_R
JCK-B-_R
2BCLS-_R
Construction
Standard
AMPGARD Hookeye
Hermetically sealed AMPGARD
Bolt-on
* Includes hermetically sealed versions.
* For use in 400 amp AMPGARD motor starters.
Standard and AMPGARD Hookeye
Ratings:
•
Volts
•
•
2.4 kV (nominal)
2.54 kV (max design)
D
C
Gripping tab
for Hookeye
constructions only
Indicator
•
•
Amps 25-450 A
Interrupting ratings
•
50 kA Sym
•
B
A
80 kA Asym
Agency information:
•
Bolt-on
E = 3 [76.2]
F = 2.5 [63.5]
G = 2.04 [51.81
H = 0.96 [24.4]
I = 0.5 [12.7]
EFGHI
R 0.23 [5.81] Typ.
UL Recognized: Guide MSSS2, File E96676 (JCK-_R [2R-12R] and
JCK-A-_R [2R-12R])
D
Recommended fuse holders for standard constructions:
Amp range Description
Fuseclips
25-230A 3” Enclosed fuseclip*
25-450A
Fuse holders
Non-disconnect holder, porcelain
25-230A Non-disconnect holder, glass polyester
Single barrel Disconnect holder, porcelain
Disconnect holder, glass polyester
Non-disconnect holder, porcelain
390-450A Non-disconnect holder, glass polyester
Double barrel Disconnect holder, porcelain
Disconnect holder, glass polyester
* Single barrel only, not sold in pairs.
2CLE-PNM-D
2CLE-GNM-D
2CLE-PDM-D
2CLE-GDM-E
2CLE-PNM-E
2CLE-GNM-E
2CLE-PDM-E
2CLE-GDM-E
3” Open fuseclip
3” Spring loaded open fuseclip
A3354730
1A0065
9078A67G04
3.0
[76.2]
Cat. No.
Indicator
C
2.12
[53.8]
3.0
[76.2]
B
A
2
Eaton.com/bussmannseries
R-Rated medium voltage fuses
for motor circuit protection
2.4 kV R-Rated fuse catalog numbers
Amps
25
70
100
130
150
170
200
230
390
450
"R"
Des.
—
2R
3R
4R
5R
6R
9R
12R
18R
24R
Standard
—
2CLS-25* (100)
JCK-2R (165)
2CLS-2R (180)
JCK-3R (220)
2CLS-3R (270)
JCK-4R (320)
2CLS-4R (360)
JCK-5R (410)
2CLS-5R (450)
JCK-6R (480)
2CLS-6R (540)
JCK-9R (720)
2CLS-200* (740)
JCK-12R (970)
2CLS-230* (1080)
JCK-18R (1430)† 2CLS-390* (1500)
JCK-24R (1880)† 2CLS-450* (2200)
Mounting style (minimum
Standard AMPGARD
—
2ACLS-25* (90)
JCK-A-2R (165)
2ACLS-2R (180)
JCK-A-3R (220)
2ACLS-3R (270)
JCK-A-4R (320)
2ACLS-4R (360)
JCK-A-5R (410)
2ACLS-5R (450)
JCK-A-6R (480)
2ACLS-6R (540)
JCK-A-9R (720)
2ACLS-200* (740)
JCK-A-12R (970)
2ACLS-230* (1080)
JCK-A-18R (1430)† 2ACLS-390* (1500)
JCK-A-24R (1880)† 2ACLS-450* (2200)
interrupting rating in amps)
Hermetically sealed AMPGARD
JCH-30* (90)
2HCLS-25* (90)
JCH-2R (180)
2HCLS-2R (180)
JCH-3R (270)
2HCLS-3R (270)
JCH-4R (360)
2HCLS-4R (360)
JCH-5R (450)
2HCLS-5R (450)
JCH-6R (540)
2HCLS-6R (540)
JCH-200* (740) 2HCLS-200* (740)
JCH-230* (1080) 2HCLS-230* (1080)
JCH-390* (1500) 2HCLS-390* (1500)
JCH-450* (2200) 2HCLS-450* (2200)
Technical Data 6001
Effective October 2018
No. of
Bolt-on
barrels
JCK-B-25* (90)
2BCLS-25* (90)
JCK-B-2R (180)
2BCLS-2R (180)
JCK-B-3R (270)
2BCLS-3R (270)
JCK-B-4R (360)
2BCLS-4R (360)
1
JCK-B-5R (450)
2BCLS-5R (450)
JCK-B-6R (540)
2BCLS-6R (540)
JCK-B-200* (740)
2BCLS-200* (740)
JCK-B-230* (1080) 2BCLS-230* (1080)
JCK-B-390* (1500) 2BCLS-390* (1500)
2
JCK-B-450* (2200) 2BCLS-450* (2200)
* Does not comply with ANSI C37 for “R” rating.
.46
† Not UL
JCK and 2HCLS Type mountings -in (mm)
Catalog
number
A
Disconnect single barrel
†
2CLE-GDM-D
8.24 (209.3)
2CLE-PDM-D
Disconnect double barrel
†
2CLE-GDM-E
8.24 (209.3)
2CLE-PDM-E
Non-disconnect single barrel
2CLE-GNM-D
8.24 (209.3)
2CLE-PNM-D
Non-disconnect double barrel
2CLE-GNM-E
8.24 (209.3)
2CLE-PNM-E
Hole centers
B
Overall
length
C
Hole Inset
D
Hole centers
E
Contact
height
F
Overall
height
G
BIL (kV)
6 (152.4)
18 (457
.2)
0.62 (15.7)
1.75 (44.4)
4.5 (114.3)
11.72 (297
.7)
60
6 (152.4)
18 (457
.2)
0.62 (15.7)
1.75 (44.4)
4.5 (114.3)
15.28 (388.1)
60
6 (152.4)
18 (457
.2)
0.62 (15.7)
1.75 (44.4)
4.5 (114.3)
8.79 (223.3)
60
6 (152.4)
18 (457
.2)
0.62 (15.7)
1.75 (44.4)
4.5 (114.3)
12.48 (317
.0)
60

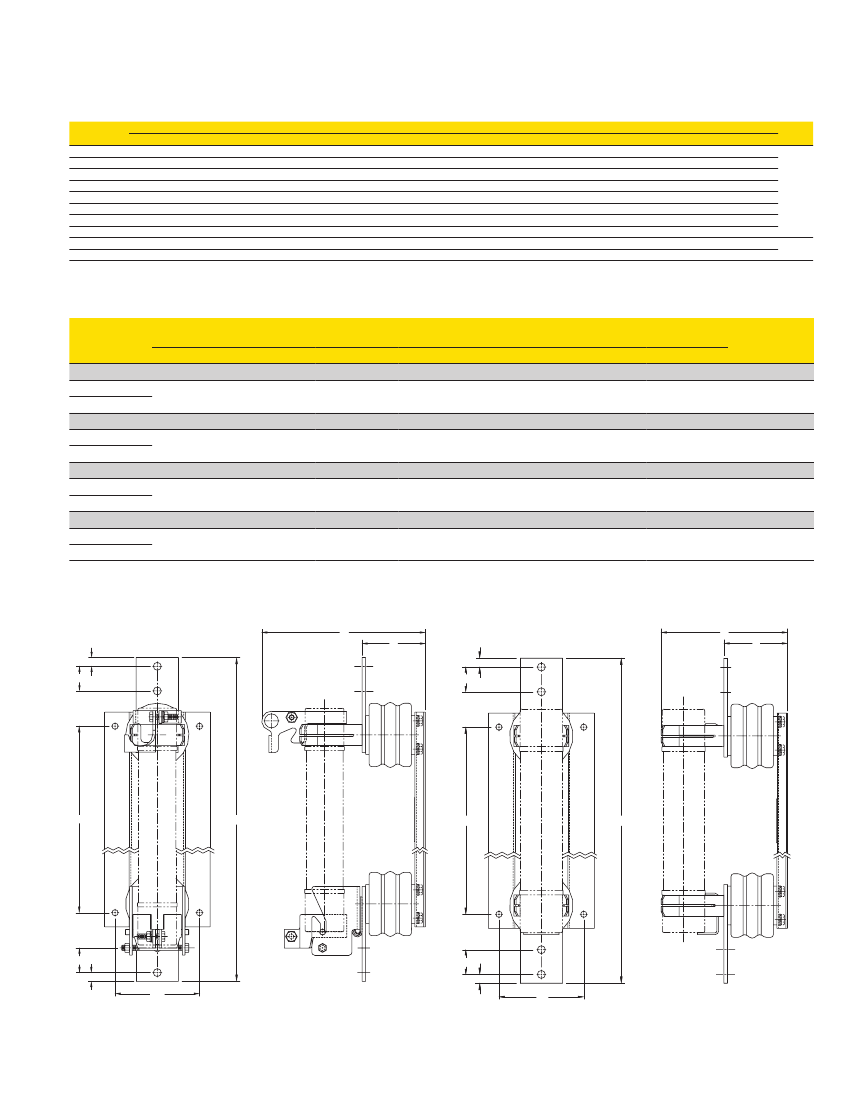

2.4 kV disconnect mounting
†
G
D
F
2.4 kV non-disconnect mounting
G
D
F
E
E
A
C
A
C
E
E
D
B
D
B
† Disconnect mountings provide a means for fuse extraction only. Do not use a
disconnect mounting for load switching or fuse removal while energized.
Eaton.com/bussmannseries
3
Technical Data 6001
Effective October 2018
R-Rated medium voltage fuses
for motor circuit protection

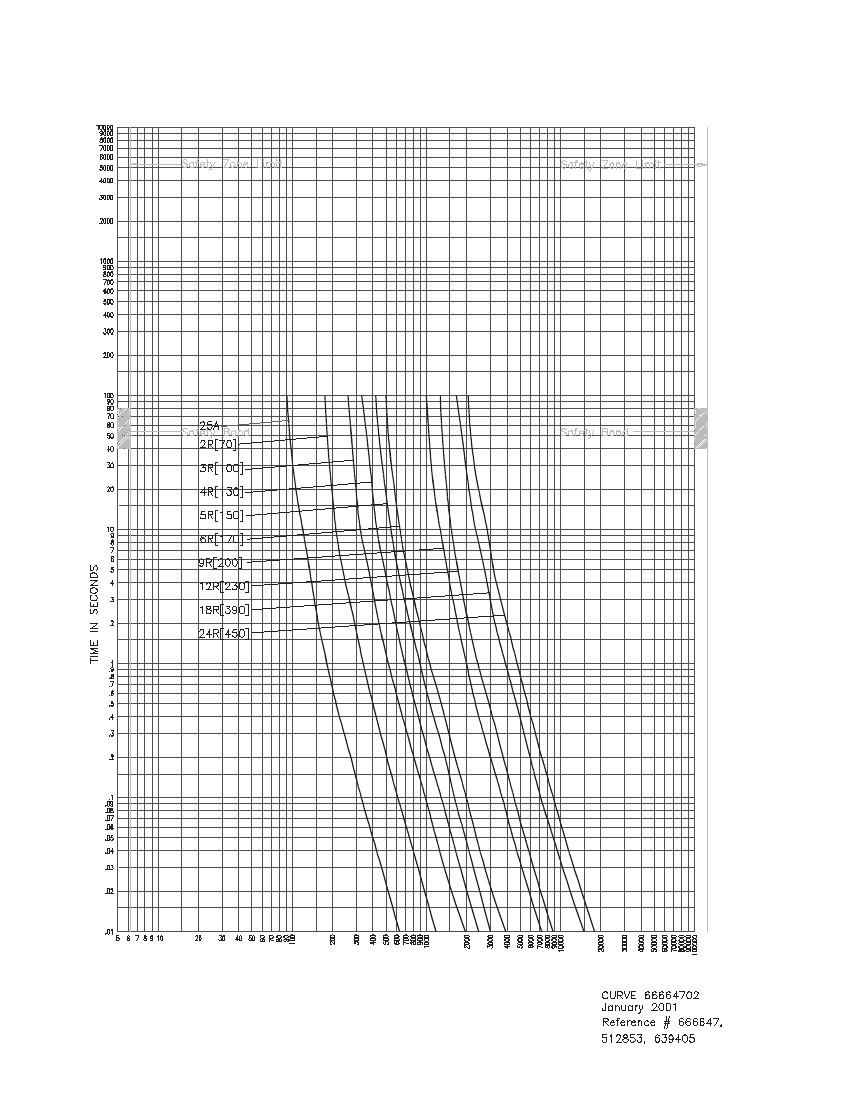

2.4 kV Time-current curves — minimum melting for 2HCLS-_R and 2BCLS-_R (25A, 2R-24R
@25°C)
CURRENT IN AMPS
2HCLS-_R and 2BCLS-_R
4
Eaton.com/bussmannseries
R-Rated medium voltage fuses
for motor circuit protection

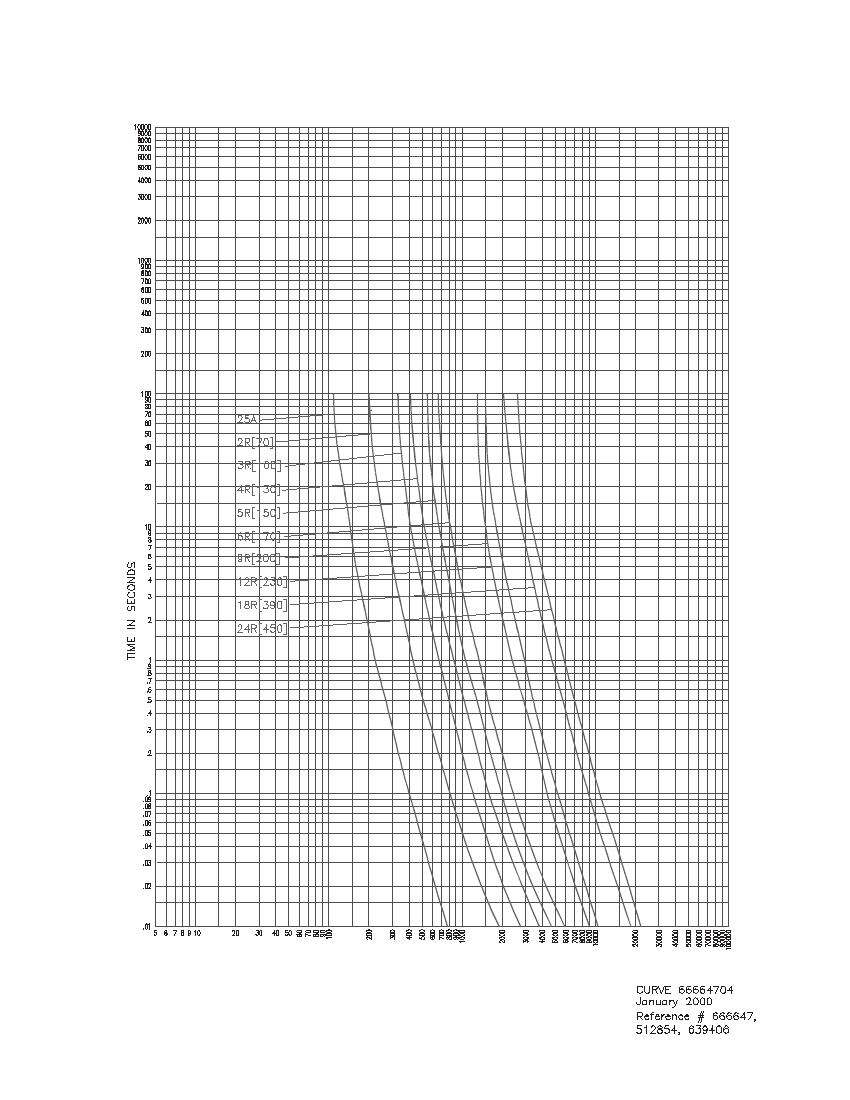

2.4 kV Time-current curves — total clearing for 2HCLS-_R and 2BCLS-_R (25A, 2R-24R @25°C)
Technical Data 6001
Effective October 2018
CURRENT IN AMPS
2HCLS-_R and 2BCLS-_R
Eaton.com/bussmannseries
5
