Connector Series uses rugged and environmentally sealed (IP68) shells to protect existing APP
®
Powerpole
®
contacts and
housings. Customer configured SPEC Pak
®
Connectors may be used anywhere a rugged and waterproof high-power interconnect with signal and
ground capabilities is required such as in; mass transportation, off-road vehicles, factory automation, oil and petrochemical exploration, agricultural
equipment, and many more.
The core APP
®
Powerpole
®
technology within the SPEC Pak
®
is proven reliable and cost effective. The broad selection of touch safe, color-coded
Powerpole
®
housings with power, signal and ground contacts accept a broad range of wire gauges, #24 to #10 AWG (0.25 to 4.0 mm²), giving users
thousands of flexible design solutions in a single interconnect.
14
15
13
1
2
3 4 5
6
7
8
12
9
10
11

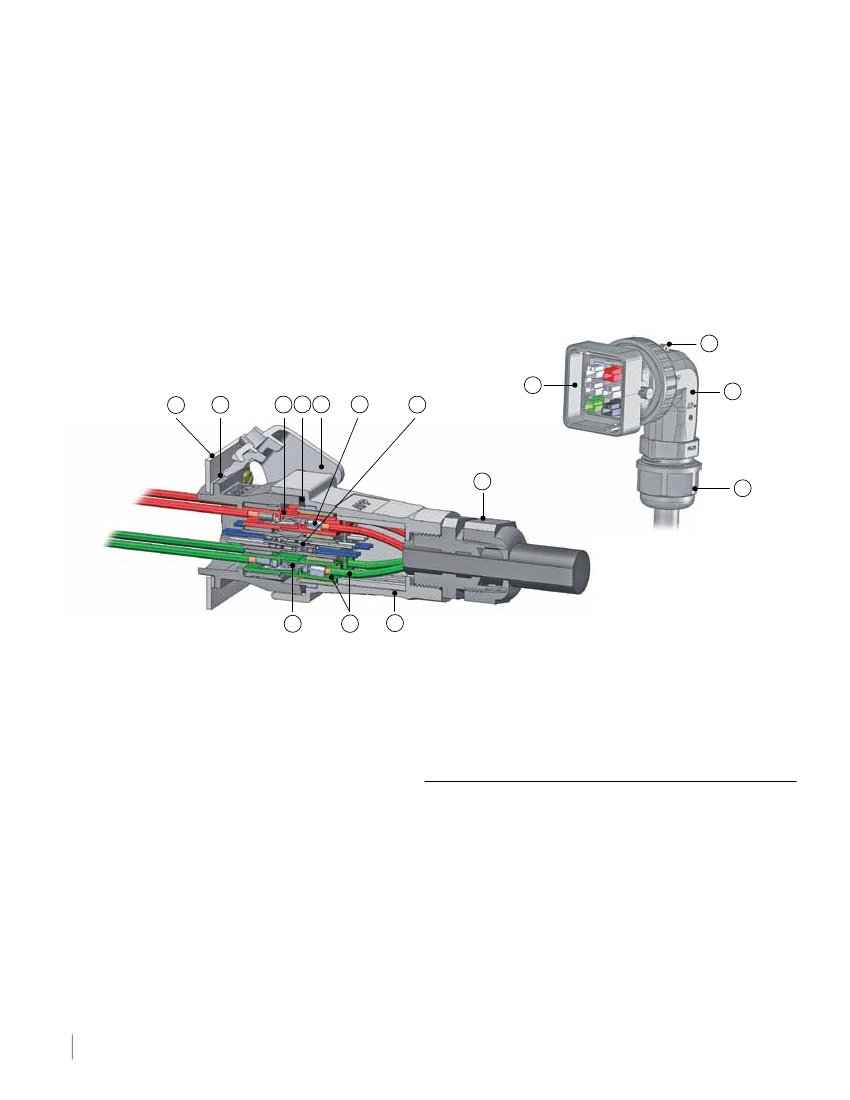

1 - Industry Standard Panel Cut Out
(Same as 26482 & 5015 shell size 24)
9 - First Mate / Last Break Ground Contacts
10 - Color Coded Housings to Match Wire Color
11 - UV & Chemical Resistant Ruggedized Shells
Additional Features Available on the Right Angle Include:
12 - Uses Industry Standard PG Gland
(PG gland compatible - size 21 or 29)
2 - IP68 Panel Mount Sealing Gasket
3 - Touch Safe Housings
(UL1977, Section 10.2)
4 - IP68 Interfacial Sealing Gasket
5 - Latch
(top or bottom of plug or receptacle)
6 - Power Contacts
(up to 45 amps)
7 - Signal Contacts
(4 contacts per PPMX housing)
8 - Uses Industry Standard Sealing Components
(PG gland compatible - size 21)
13 - Right Angle Backshell Lockable in 8 Directions for
Cable Routing
14 - Integrated Strain Relief
15 - Ruggedized Right Angle Plug Shell
-2-
www.andersonpower.com
Specifications
SPEC Pak
®
Shell / Components
Electrical
UL Voltage Rating (AC/DC)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C)
(°F)
Flammability Rating of SPEC Shells
Mechanical
Shells / Latch Mating Cycles
Connect / Disconnect (lbf)
(N)
IP Rating
UL50 Sec 30 Sealing Requirement
Material
Shells (Plug / Receptacle)
Latch
Holder
600
3000
-40° to 105°
-40° to 221°
UL 94V-0
Powerpole
®
Power (1327FP Series) &
Ground (1827 Series) Contacts
Ratings for SPEC Pak
®
Use
Electrical
UL Current Rating (Amperes)
CSA (30°C Rise) (Amperes)
Voltage Rating (AC/DC)
Contact Barrel Wire Size (AWG) - Power
- Ground
(mm²) - Power
- Ground
Average Contact Resistance (micro-ohms)
Contact Retention Force (lbf)
(N)
Operating Temperature (°C)
(°F)
Flammability Rating
1500 Min
18 Max
80 Max
IP68
Pass
PBT
Nylon
Polycarbonate
15 to 45
10 to 29
600
20 to 10
14 to 10
0.5 to 4.0
1.5 to 4.0
600
25
111
-20° to 105°
-4° to 221°
UL94 V-0
PPMX (4800 Series) Powerpole
®
Signal Contact
Ratings for SPEC Pak
®
Use
Electrical
UL Current Rating (Amperes)
Voltage Rating (AC/DC)
Contact Barrel Wire Size (AWG)
(mm²)
Contact Retention Force (lbf)
(N)
Insertion Force (lbf)
(N)
Operating Temperature (°C)
(°F)
Mechanical
Mating Cycles (No load)
Material
Housing Material
Contact Material
Contact Plating
NOTE: PPMX Contacts, up to 4 per housing
PBT
Copper Alloy
Gold, 50 Micro-inches
1500
Mechanical
Mating Cycles
No Load
- Tin
- Silver
Under Load (Hot Plug 250 mating cycles @ 120V) *
(Hot Plug 250 mating cycles @ 72V) *
Mechanical Shock (50 g)
Vibration (10 g)
1,500
10,000
30A
45A
Mil Standard
202 213 Cond. A
Mil Standard
202 204 Cond. A
7
300
#20 to #24
0.5 to 0.25
12.0
53.0
4.5 Max
20.0 Max
-20° to 105°
-4° to 221°
Material
Housing Material
Touch Safe (Power / Signal Housing)
Contact Material
Contact Plating
* Hot Plug testing completed with individual Powerpole
