1N4942 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N4942

1N4942: Description1 A, 200 V, SILICON, SIGNAL DIODE, DO-204AP; CategoryDiscrete semiconductor diode; File Size52KB，2 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

1N4942 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4942	-	-	View	Buy Now

1N4942 Overview

1 A, 200 V, SILICON, SIGNAL DIODE, DO-204AP

1N4942 Parametric

Parameter Name	Attribute value
Maker	LRC
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	25 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

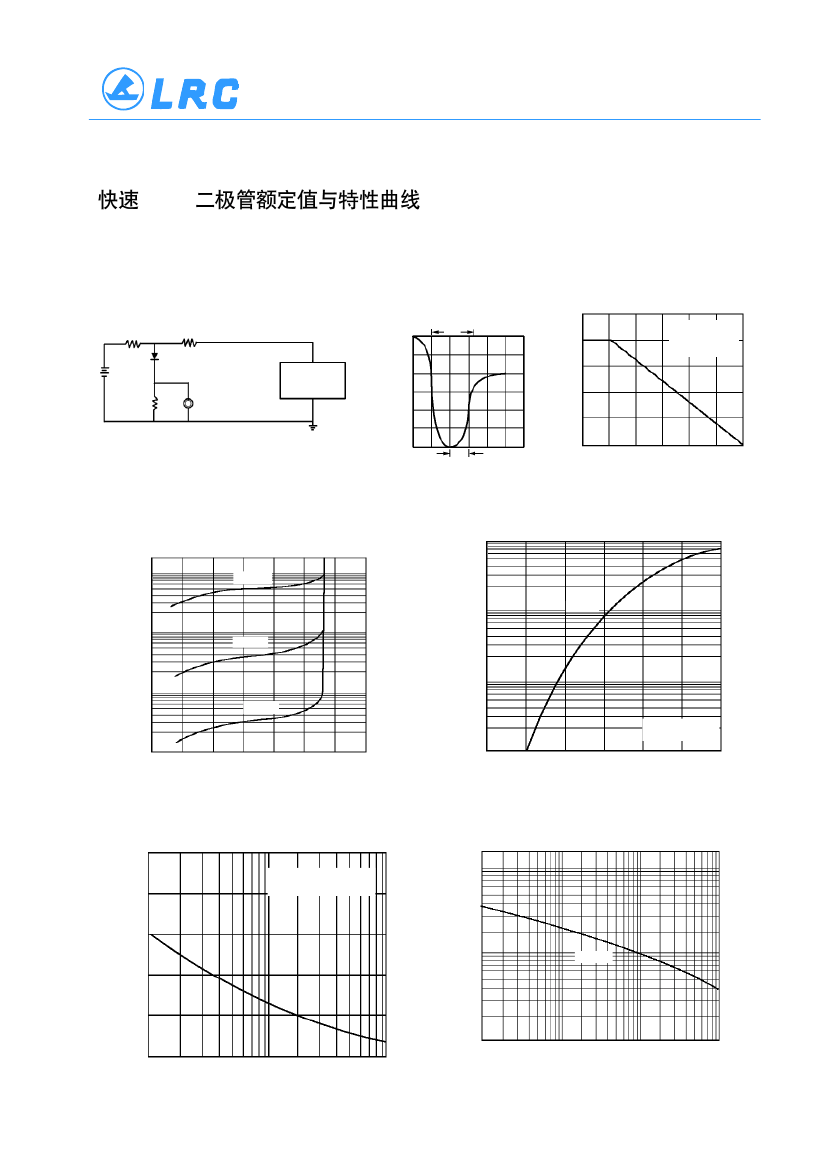

LESHAN RADIO COMPANY, LTD.

1N4942 – 1N4948

FAST GPP DIODES

Maximum Average

TYPE

Maximum

Peak Reverse

Voltage

PRV

Maximum

Reverse

Current @ PRV

@ T

=25ºC

Maximum

Forward

Voltage

@ T

=25ºC

Maximum

Reverse

Recovery Time

Trr

Package

Dimensions

Rectified Current

Forward Peak

@ Half-Wave

Surge Current @

Resistive Load 60Hz 8.3ms Superimposed

@ T

ºC

(Surge)

µAdc

1N4942

1N4944

1N4946

1N4947

1N4948

200

400

600

800

1000

1.0

5.0

1.0

1.3

150

250

500

DO – 41

Trr

= 0.5A, I

= 1.0A, I

= 0.25A

Trr Test Conditions: I

= 0.5A, I

= 1.0A, I

= 0.25A

1.0(25.4)

MIN

.205(5.2)

.166(4.2)

1.0(25.4)

MIN

.034(0.9)

.028(0.7)

DIA

.107(2.7) DIA

.080(2.0)

DO – 41

37A–1/2

1N4942 Related Products

	1N4942	1N4946	1N4947	1N4948
Description	1 A, 200 V, SILICON, SIGNAL DIODE, DO-204AP	1 A, SILICON, SIGNAL DIODE	1 A, 800 V, SILICON, SIGNAL DIODE, DO-204AP	1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41
package instruction	O-PALF-W2	ROHS COMPLIANT, PLASTIC PACKAGE-2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	25 A	25 A	25 A	25 A
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	200 V	600 V	800 V	1000 V
Maximum reverse recovery time	0.15 µs	0.25 µs	0.25 µs	0.5 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1
Maker	LRC	-	LRC	LRC
