0347630001
Active
CMC and CMX Sealed, Hybrid, Modular Connectors
CMC Header 154 Circuits, 3-Bay (Bay-X 48 Circuits; Bay-Y 53 Circuits; Bay-Z 53
Circuits) Compliant Pin, Press-fit Style
Documents:
3D Model
Drawing (PDF)
Product Specification PS-34763-001-001 (PDF)
General
Product Family
Series
Application
Application Tooling Part Link
Comments
Application Specification AS-34763-001-001 (PDF)
Packaging Specification PK-31301-304 (PDF)
RoHS Certificate of Compliance (PDF)

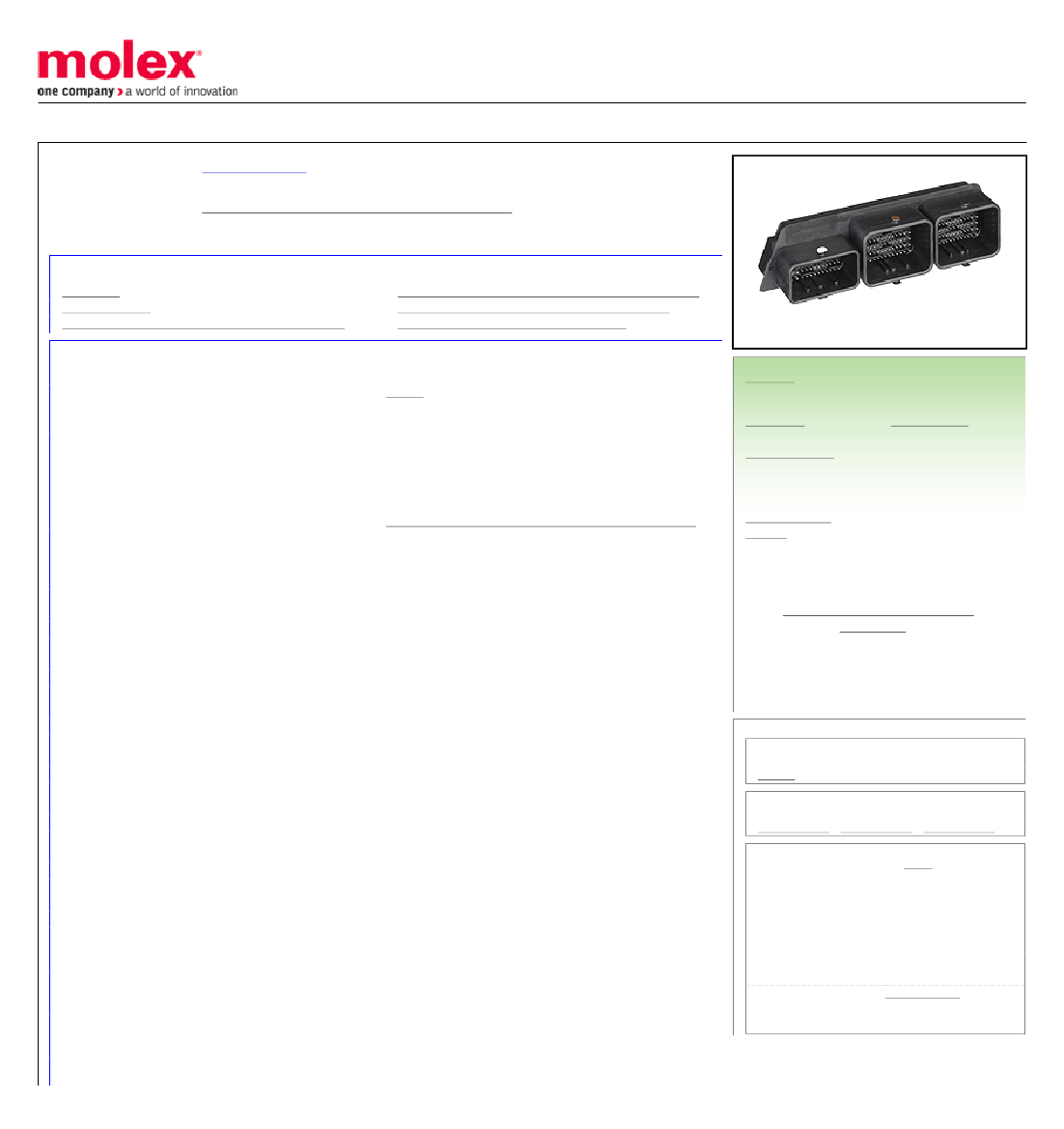

Series image - Reference only
PCB Headers
34763
Board-to-Board, Wire-to-Board
62203-0500
Coding: Black, Brown, Gray|0.635mm (.025") Terminals
- max 8.0A (0.75mm² wire) / 1.50mm (.059") terminals
- max. 10.5A (2.00mm² wire) / 2.80mm (.110") single
strap terminals - 13.5A (5.00mm²) / 2.80mm (.110") dual
strap terminals - 17.0A (5.00mm²)
CMC and CMX Sealed, Hybrid, Modular Connectors
CMC
884982161856
No
154
154
Black, Brown, Gray
20
No
No
No
Yes
Yes
Tin
Nylon Alloy
119.264/g
4
Right Angle
Tray
2.50mm, 3.50mm, 3.70mm, 4.00mm, 4.50mm
Yes
Yes
-40°C to +105°C
Through Hole - Compliant Pin
10.5A, 13.5A, 17.0A, 8.0A
14V DC
N/A
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Resin
Net Weight
Number of Rows
Orientation
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Search Parts in this Series
34763 Series
Mates With
64320-1318 , 64321-2011 , 64321-2019
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
154 Way CMC
0622030500
Header Assembly
PCB Insertion Fixture
Special Edition for Assessment Centres
