MS27484P12A8SD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MS27484P12A8SD

MS27484P12A8SD: DescriptionCircular MIL Spec Connector PLUG; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS27484P12A8SD Overview

Circular MIL Spec Connector PLUG

MS27484P12A8SD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, COMPATIBLE CONTACT: M39029/57-357
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS27484P
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	12
Termination type	CRIMP
Total number of contacts	8

Preview

Download Datasheet

View All

Amphenol

Aerospace

38999

III

Dualok

SJT

Commercial

Connector

Type

Shell

Style

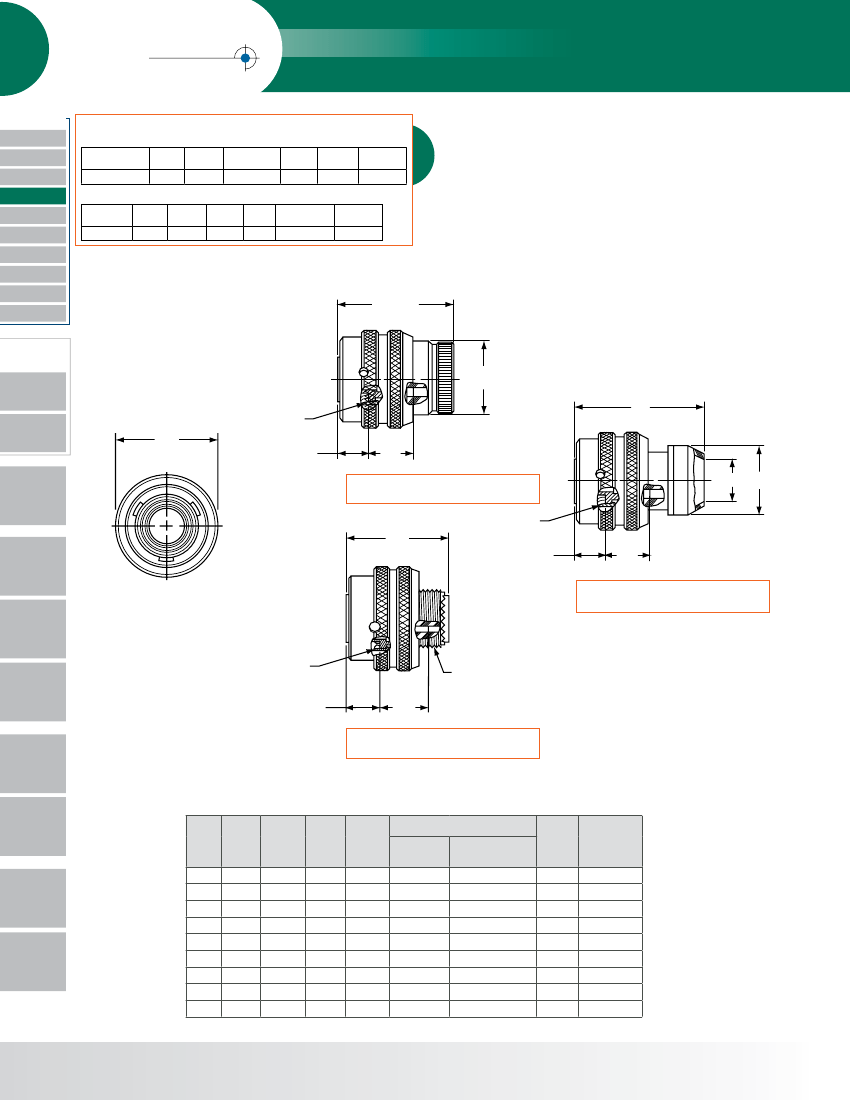

JTG06R (MS27484) Series II – Crimp

Straight Plug (With Grounding Fingers)

PART #

JTG/JTNG

Part number reference. To complete,

see how to order pages 62-66.

Service

Class

Shell Size

& Insert Arrg

Contact Alternate

Type

Position

Special

Variations

Shell

Size

Finish

22-2

Insert

Arrg

Contact Style

(P or S)

(XXX)

Military

Number

Service

Class

Alternate

Position

MS27484

ccessories

quacon

erm/Seal

PCB

.938 MAX.

HigH

Speed

Fiber

Optics

Connectors

KK1

GROUNDING

FINGERS

+.003

–.002

Contacts

Cables

.257

.325

±.025

eMi Filter

Transient

* JTG06RE-XX-XXX (MS27484E)

** JTNG06RE-XX-XXX

GROUNDING

FINGERS

Matrix 2

26482

.257

+.003

–.002

.325

±.025

83723 iii

Matrix|pyle

* JTG06RP-XX-XXX (MS27484P)

** JTNG06RP-XX-XXX

26500

pyle

GROUNDING

FINGERS

.257

+.003

–.002

.325

±.025

Crimp Rear

Release

Matrix

5015

* JTG06RT-XX-XXX (MS27484T)

** JTNG06RT-XX-XXX

22992

Class L

* Plug with grounding fingers

** Clear iridite finish (gold color), N

resistant

Shell

Size

Max.

F Dia.

.444

.558

.683

.808

.909

1.034

1.159

1.284

1.409

L Max.

.891

Dia

Max.

.734

.844

1.016

1.141

1.265

1.391

1.500

1.625

1.750

V Thread Modified

Class 2A

UNEF

.4375-28

.5625-24

.6875-24

.8125-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

Modified Major

KK Dia.

Dia.

Max.

.421 – .417

.542 – .538

.667 – .663

.791 – .787

.916 – .912

1.034 – 1.030

1.158 – 1.154

1.283 – 1.279

1.408 – 1.404

.625

.750

.875

1.000

1.125

1.250

1.375

1.500

1.625

Dia.

Max.

.578

.703

.828

.953

1.078

1.203

1.328

1.453

1.578

Back-

Shells

1.000

1.062

Options

Others

All dimensions for reference only.

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
