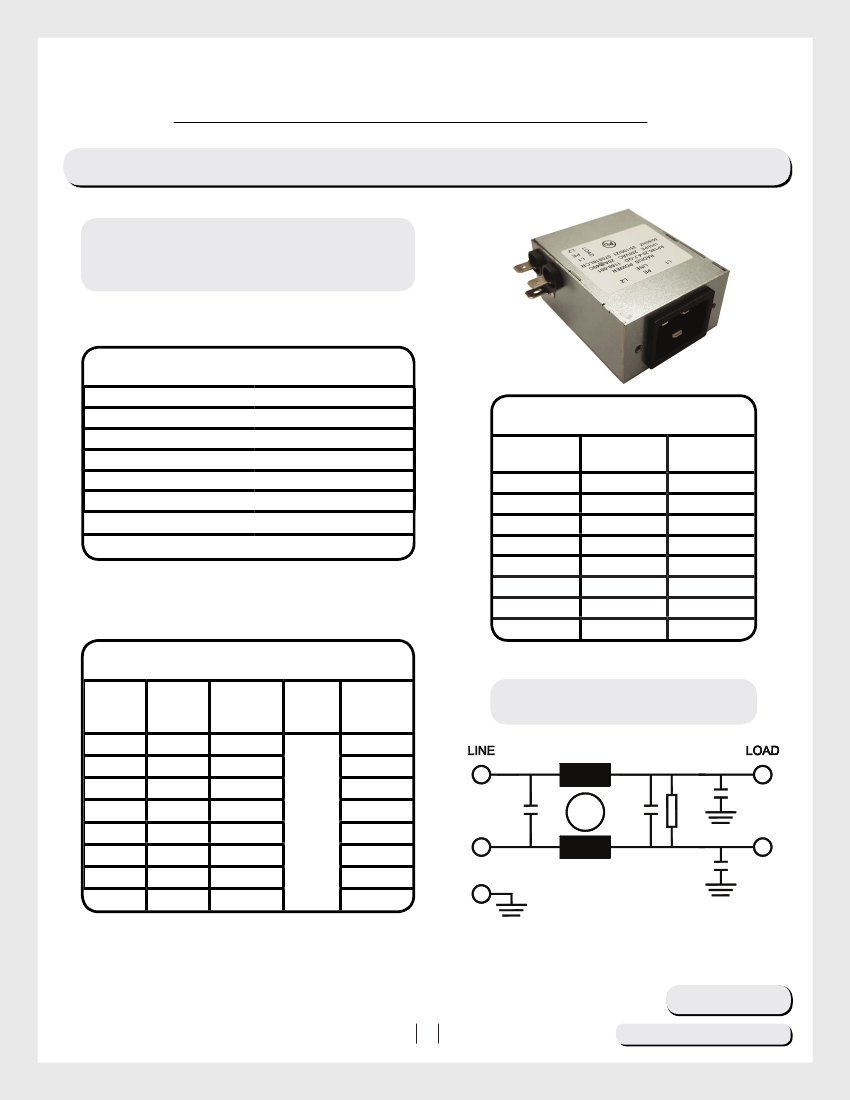

RP
RP186 Series
RP186
HIGH PERFORMANCE TO 20A
IEC INLET FILTER
ROHS COMPLIANT
RADIUS POWER
Your Power Partner
High Performance IEC Inlet Power Line Filter
SPECIFICATIONS
Operating Freq.
Usable Freq.
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
: 50/60Hz
: DC - 400Hz
: -25 to 80C
: 25/100/21
: 2121VDC
: QD: 0.25 Tab (1-20A)
: cURus, EN60939
LEAKAGE CURRENT
Y-cap, nF
0
.47
1
2.2
4.7
10
22
47
mA,
120V/60Hz
0
0.04
0.09
0.2
0.4
0.9
2
4
mA,
250V/60Hz
0
0.08
0.18
0.4
0.8
1.8
4
8
Max. Operating Voltage : 250V +10%
PART NUMBER/ ORDERING
RP186
-X
(Amps)
1
3
6
10
12
15
16
20
-Y
(Ycap, nF)
0*
.47
1
2.2
4.7
10
22
47
QD
-T
Weight
LBS (KG)
Typ.
SCHEMATIC
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP186-16-22-QD (16 Amps with 22nF Ycap)
*RP186-16-0-QD
(16 Amps with 0 Ycap) For Medical
Application with leackage current requirement of <2.0uA
www.radiuspower.com
www.astrodyne.com
Email:Emifiltercs@astrodyne.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
RP
RP186
Typical Insertion Loss, dB (50/50ohm)
1Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
46
60
.5
35
80
1.0
30
80
10
30
50
30
45
35
FREQ (MHz)
CM(dB)
DM(dB)
.15
50
45
RADIUS POWER
Your Power Partner
3 Amp
.5
40
70
1.0
35
80
10
30
50
30
55
40
6 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
40
35
.5
45
70
1.0
40
80
10
40
45
30
60
45
FREQ (MHz)
CM(dB)
DM(dB)
.15
30
25
10 Amp
.5
40
60
1.0
35
70
10
35
45
30
40
35
12 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
25
20
.5
40
55
1.0
40
75
10
46
70
30
40
46
FREQ (MHz)
CM(dB)
DM(dB)
.15
20
20
15 Amp
.5
30
50
1.0
35
70
10
45
65
30
40
60
16 Amp
FREQ (MHz)
CM(dB)
DM(dB)
.15
30
20
.5
45
65
1.0
45
85
10
65
55
30
40
50
FREQ (MHz)
CM(dB)
DM(dB)
.15
25
20
20 Amp
.5
40
65
1.0
40
85
10
65
60
30
40
55
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
www.radiuspower.com
www.astrodyne.com
Email:Emifiltercs@astrodyne.com
RP
RP186

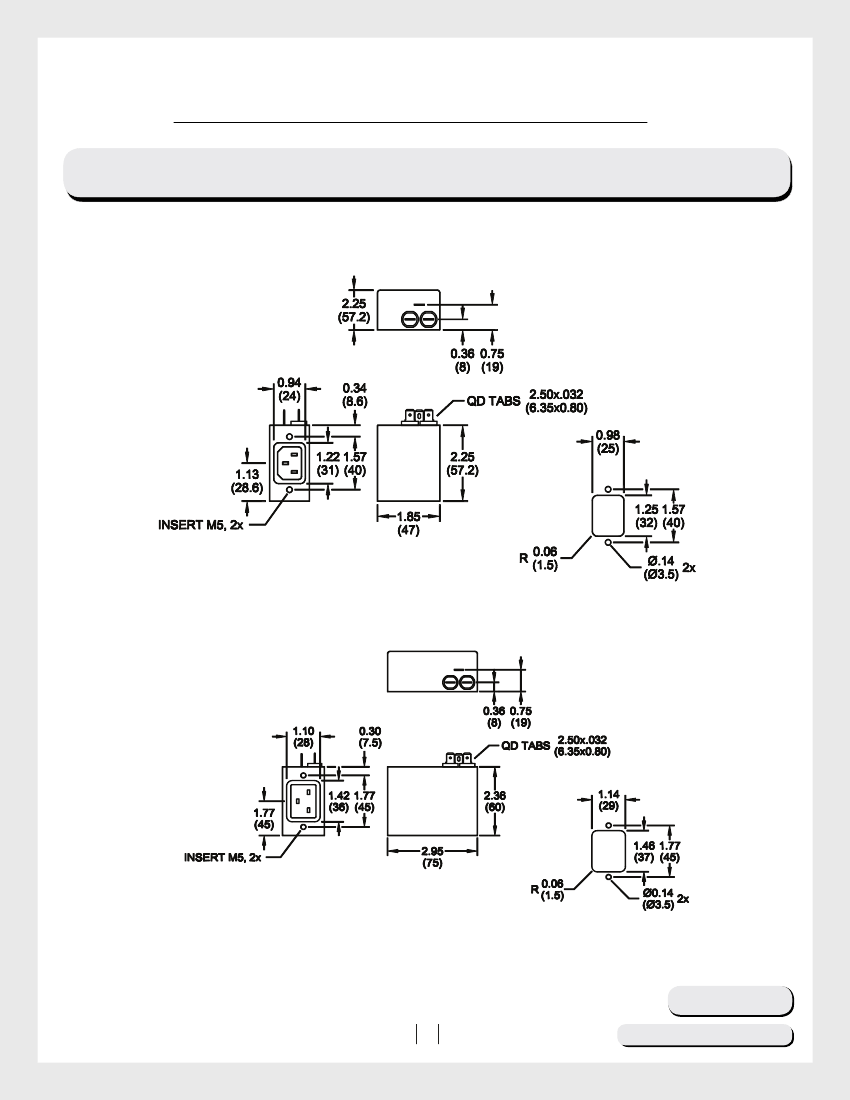

Mechanical Dimensions
1/3/6/10/12/15A
RADIUS POWER
Your Power Partner
16/20A
TYPICAL TOLERANCE: +/-0.02 (0.50)
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
www.radiuspower.com
www.astrodyne.com
Email:Emifiltercs@astrodyne.com
