Ultra Low-Noise 2-Stage Bypass LNA
QPL9065
Product Description
The QPL9065 is a high-linearity, ultra-low noise 2-stage
gain block amplifier module with a bypass mode
functionality integrated to the second stage in the product.
At 1.95 GHz, the amplifier, under high gain mode, typically
provides 37.5 dB gain, +36 dBm OIP3, and 0.55 dB noise
figure while drawing 160 mA current from a +5 V supply.
The component also provides high performance in the low
gain mode with 17.5 dB gain, 0.55dB noise figure and +33
dBm OIP3 while drawing 70 mA current.
The QPL9065 uses a high performance E-pHEMT process.
This low noise amplifier contains an internal active bias to
maintain high performance over temperature.
The QPL9065 covers the 0.45 – 3.8 GHz frequency band
and is targeted for wireless infrastructure. The QPL9065 is
housed in a 3.5 x 3.5 mm SMT package.

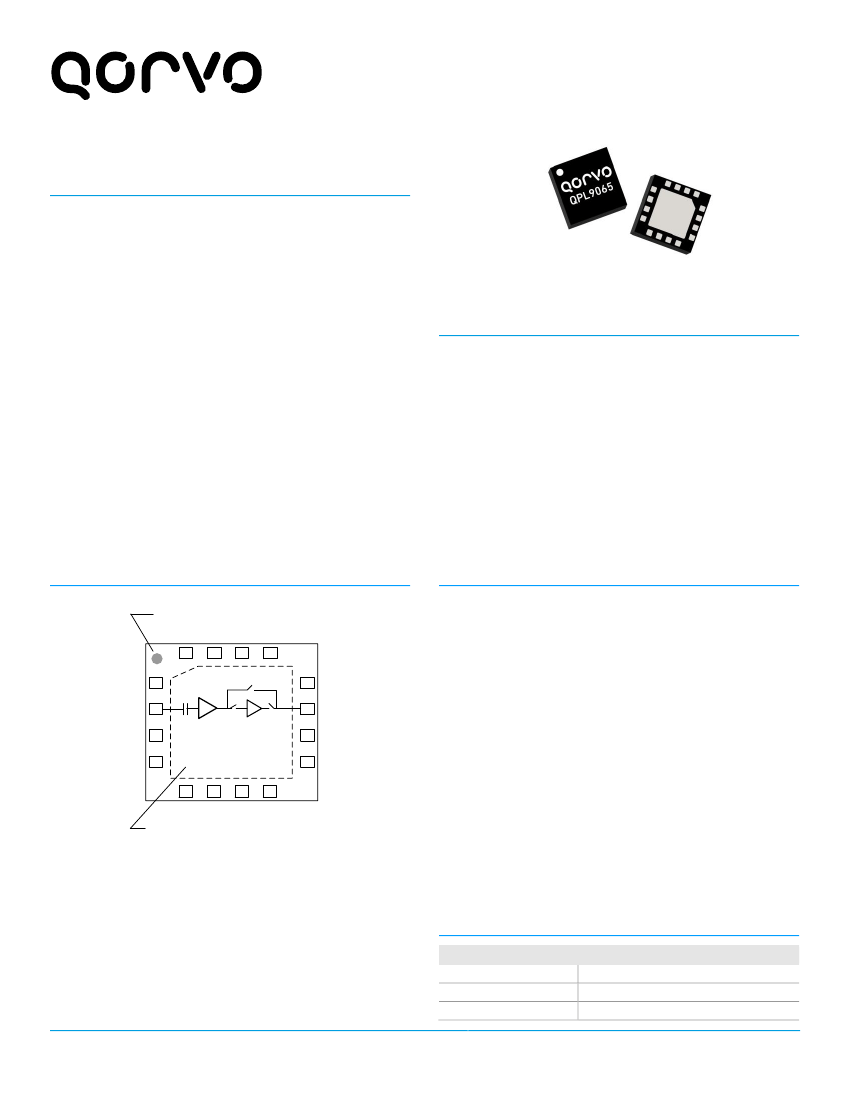

16 Pin 3.5 X 3.5 mm Leadless SMT Package
Product Features
0.45 – 3.8 GHz Operational bandwidth
2
nd
stage LNA with integrated bypass mode
Ability to turn LNA and bypass mode OFF
Ultra low noise, 0.55 dB at 1.95 GHz
37.5 dB Gain at 1.95 GHz, 17.5 dB in Low Gain Mode
+36 dBm Output IP3 in High Gain Mode
+33 dBm Output IP3 in Low Gain Mode
Positive supply only, +3.3 to +5 V
1.8V CMOS TTL logic compatible on pins 5 & 8
Functional Block Diagram
Pin 1 Reference Mark
VDD1
GND
GND
VDD2
Applications
12
GND
11
RF
OUT
16
GND
RF IN
GND
GND
15
14
13
1
2
3
4
5
VPD
Base Station Receivers
Tower Mount Amplifiers
Repeaters
FDD-LTE, TDD-LTE, WCDMA
General Purpose Wireless
10
GND
9
6
NC
GND
7
8
GND VBYP
Backside Paddle - RF/DC GND
Ordering Information
Part No.
QPL9065SR
QPL9065TR13
QPL9065PCB401
DATA SHEET May 4, 2017 | Subject to change without notice
Description
100 pieces on a 7” reel
2500 pieces on a 13” reel
1.7-2.7GHz Tuned Evaluation Board
www.qorvo.com
-
1 of 12
-
®
Ultra Low-Noise 2-Stage Bypass LNA
Recommended Operating Conditions
Units
°C
V
dBm
QPL9065
Absolute Maximum Ratings
Parameter
Storage Temperature
Drain Voltage (V
DD
)
Input Power (CW)
Range / Value
−65 to 150
+7
+22
Parameter
Supply Voltage
T
CASE
Tj at T
CASE
= 125°C
Min
+3.3
−40
Typ
+5.0
Max
+5.25
+105
+169
Units
V
°C
°C
Exceeding any one or a combination of the Absolute Maximum
Rating conditions may cause permanent damage to the device.
Extended application of Absolute Maximum Rating conditions to
the device may reduce device reliability.
Electrical specifications are measured under bias, signal and temperature
conditions as specified. Specifications are not guaranteed over all
recommended operating conditions.
Electrical Specifications
Test conditions unless otherwise noted: V
DD
= +5 V, Temp. = +25°C.
Parameter
Operational Frequency Range
Test Frequency
Gain
Input Return Loss
Output Return Loss
Noise Figure
Output P1dB
Output IP3
Gain
Input Return Loss
Output Return Loss
Noise Figure
Output P1dB
Output IP3
Control Voltage, V
PD
, V
BYP
Conditions
LNAs ON, Bypass OFF
LNAs ON, Bypass OFF
LNAs ON, Bypass OFF
LNAs ON, Bypass OFF
LNAs ON, Bypass OFF
LNAs ON, Bypass OFF,
Pout=+5 dBm/tone, Δf=1 MHz
LNA1 ON, Bypass ON
LNA1 ON, Bypass ON
LNA1 ON, Bypass ON
LNA1 ON, Bypass ON
LNA1 ON, Bypass ON
LNA1 ON, Bypass ON,
Pout=+5 dBm/tone, Δf=1 MHz
V
IH
V
IL
LNAs ON, Bypass OFF
LNA1 ON, LNA2 OFF, Bypass ON
LNAs OFF, Bypass OFF
High gain Mode (Channel to case)
Low gain Mode (Channel to case)
Min
450
35.5
Typ
1950
37.5
12.5
15
0.55
+20.8
+36
17.5
11.5
12
0.55
+18
+33
Max
3800
39.5
Units
MHz
MHz
dB
dB
dB
dB
dBm
dBm
0.8
+17.5
(1)
+32
16.2
19.2
0.8
+15.8
(1)
+30
1.17
0
80
43
dB
dB
dB
dB
dBm
dBm
Current, I
D
Thermal Resistance, θ
jc
Notes:
1.
160
70
5
3.3
0.63
200
98
42
70
V
V
mA
mA
mA
°C/W
°C/W
P1dB is not measured in production test. This min spec is calculated based on design confidence.
Control Truth Table
V
PD
V
BYP
1
0
0
1
0
0
1
1
State
LNA1 OFF, LNA2 OFF, Bypass OFF
LNA1 ON, LNA2 ON, Bypass OFF
LNA1 ON, LNA2 OFF, Bypass ON
LNA1 OFF, LNA2 OFF, Bypass ON
DATA SHEET May 4, 2017 | Subject to change without notice
-
2 of 12
-
www.qorvo.com
®
Ultra Low-Noise 2-Stage Bypass LNA
QPL9065
Typical Performance
Test conditions unless otherwise noted:
V
DD
=+5 V, Temp=+25°C
Parameter
Frequency
Gain
Input Return Loss
Output Return Loss
Noise Figure
Output P1dB
Output IP3
Gain
Input Return Loss
Output Return Loss
Noise Figure
Output P1dB
Output IP3
Conditions
High Gain Mode
High Gain Mode
High Gain Mode
High Gain Mode
High Gain Mode
Pout=+3 dBm/tone, ∆f=1 MHz
High Gain Mode
Low Gain Mode
Low Gain Mode
Low Gain Mode
Low Gain Mode
Low Gain Mode
Pout=+0 dBm/tone, ∆f=1 MHz
Low Gain Mode
900
47.5
17.5
12.5
0.7
+21.2
+35.6
23.2
14
12
0.7
+20
+33
Typical Values
1950
37.5
12.7
15.7
0.55
+20.8
+36
17.5
11.5
12
0.55
+18
+33
2600
33
13.5
12.5
0.65
+20.2
+34.3
15
13.7
25
0.65
+17.3
+34.5
3600
28.8
12
8.2
1.1
+19.7
+36
11.3
12
10
1.1
+14.5
+30
Units
MHz
dB
dB
dB
dBm
dBm
dBm
dB
dB
dB
dB
dBm
dBm
Note: 1) Noise figure data has input trace loss de-embedded.
Switching Speed
(1)
V
PD
V
BYP
0
1
0
0
1
0
State
50% of Vctrl to 90% of RF 50% of Vctrl to 10% of RF
-40 °C
0 LNA1 ON, LNA2 ON, Bypass OFF
1 LNA1 OFF, LNA2 OFF, Bypass ON
0 LNA1 ON, LNA2 ON, Bypass OFF
1 LNA1 ON, LNA2 OFF, Bypass ON
1 LNA1 OFF, LNA2 OFF, Bypass ON
1 LNA1 ON, LNA2 OFF, Bypass ON
730
276
214
25 °C
400
292
190
105 °C
360
300
176
-40 °C
880
780
303
25 °C
730
740
275
105 °C
640
690
256
ns
Units
Note:
1.
To achieve the fast switching speed listed, placement of R10 and C9 are critical. Refer to pg. 4 for EVB schematic and BOM.
DATA SHEET May 4, 2017 | Subject to change without notice
-
3 of 12
-
www.qorvo.com
®
Ultra Low-Noise 2-Stage Bypass LNA
QPL9065
QPL9065 Evaluation Board (1.7 – 2.7 GHz tuned)
J3 V
DD
C12
(0603)
J8 GND
J3 V
DD
R2
R1
0
C6
0.1 uF
C5
C12
R1
R2
0
C8
0.1 uF
C7
100 pF
100 pF
L2
L5
C8
C7
L2
C6
C5
L5
R10
C1
L4
J1
L3
U1
R9
C2
J2
L1
C9
1
RF
IN
U1
16
V
DD1
15
14
13
V
DD2
R3
12
RF
OUT
C11
J1
RF
Input
R9
C2
J2
RF
Output
2
11
10
C10
R5
R7
10pF
C1
L4
3
4
V
PD1
V
PD2
V
BYP
R10
9
5
6
7
8
R3
0
J4 V
PD
R7
0
C10
10 pF
C11
10 pF
J5 V
BYP
J6
C3
C4
J7
R5
0
See Evaluation Board PCB Information section for PCB material and stack-up.
Bill of Material – QPL9065 Evaluation Board
Reference Des.
n/a
U1
R1, 2, 3, 5, 7
R10
C1
R9
L1
L4
C2, 3, 4, 5, 7
C6, 8
C9
C12
C10, 11
L2
L5
Value
n/a
n/a
0Ω
39K
0.5 pF
5.1 Ω
1.5 nH
6.8 nH
100 pF
0.1 uF
10 pF
4.7 uF
10 pF
2.2 nH
18 nH
Description
PCB
2-Stage Bypass LNA
RES, 0402, +/-5%, 1/16W
RES, 0402, +/-5%, 1/16W
CAP, 0402, +/-0.1pF, 50V, C0G
RES, 0402, +/-5%, 1/16W
IND, 0402, +/-0.1nH, 1000mA
IND, 0402, +/-2%, 700mA
CAP, 0402, +/-5%, 50V
CAP, 0402, 20%, 16V, Y5V
CAP, 0201, 2%, 50V
CAP, 0603, 20%, 10V, Y5V
CAP, 0402, 2%, 50V
IND, 0402, +/-0.2nH, 1000mA
IND, 0603, 5%
Manuf.
Qorvo
Qorvo
Various
Various
Murata
various
Murata
Murata
Various
Various
Murata
Various
various
Murata
Coilcraft
Part Number
1123139
QPL9065
GJM1555C1HR50BB01D
LQP15MN1N5B02D
LQG15HS6N8J02
GRM0335C1H100GA01
LQW15AN2N2C10
0603CS-18NXJL
DATA SHEET May 4, 2017 | Subject to change without notice
-
4 of 12
-
www.qorvo.com
®
Ultra Low-Noise 2-Stage Bypass LNA
QPL9065

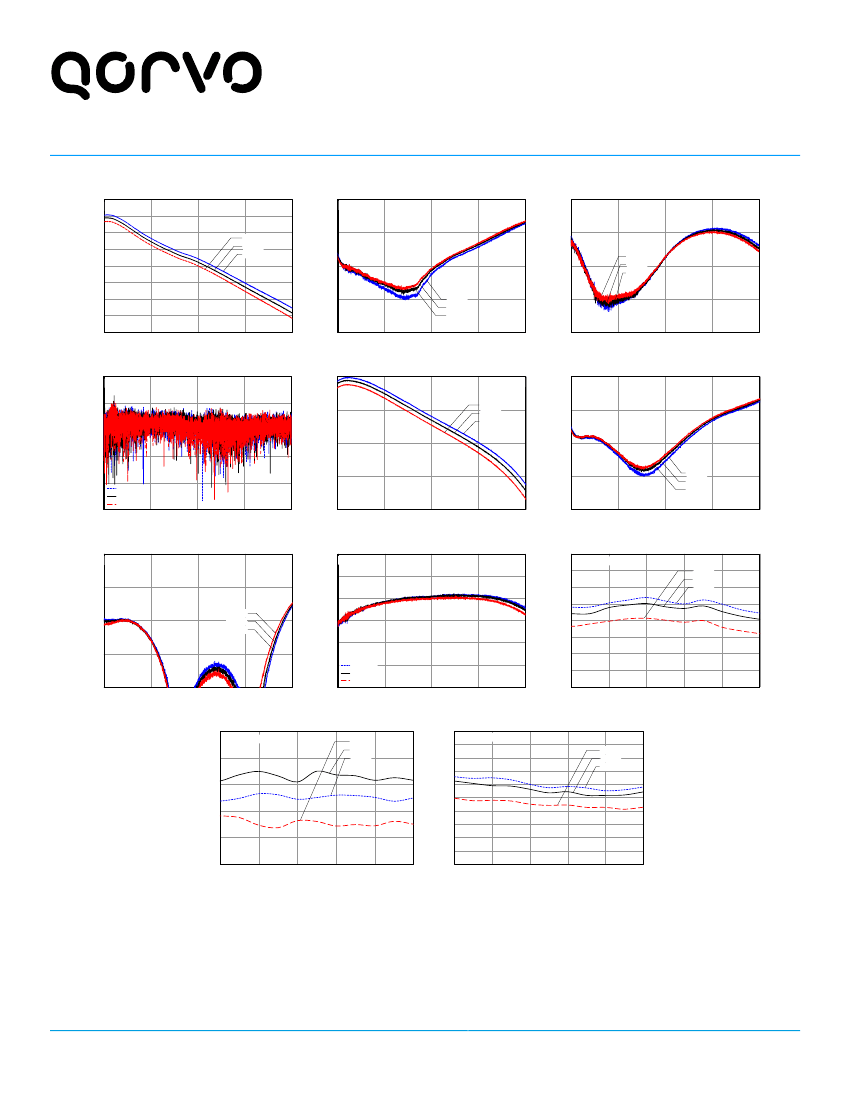

Performance Plots
Test conditions unless otherwise noted: V
DD
= +5 V, Temp.= +25 °C
50
High Gain Mode
Gain vs. Frequency
0
Input Return Loss vs. Frequency
High Gain Mode
0
Output Return Loss vs. Frequency
High Gain Mode
45
40
35
30
25
20
15
10
1000
+105 °C
+25 °C
-5
-5
−40 °C
|S22| (dB)
|S11| (dB)
Gain (dB)
+105 °C
-10
-10
+25 °C
−40 °C
-15
−40 °C
-15
+25 °C
+105 °C
2000
3000
4000
5000
-20
1000
2000
3000
4000
5000
-20
1000
2000
3000
4000
5000
Frequency (MHz)
Frequency (MHz)
Frequency (MHz)
-40
High Gain Mode
|S12| vs. Frequency
20
Gain vs. Frequency
Low Gain Mode
0
Input Return Loss vs. Frequency
Low Gain Mode
-50
15
+105 °C
+25 °C
−40 °C
-5
|S12| (dB)
10
|S11| (dB)
Gain (dB)
-60
-10
-70
5
-80
-40degC
+25degC
+105degC
-15
−40 °C
+25 °C
+105 °C
-90
1000
2000
3000
4000
5000
0
1000
2000
3000
4000
5000
-20
1000
2000
3000
4000
5000
Frequency (MHz)
Frequency (MHz)
Frequency (MHz)
0
Output Return Loss vs. Frequency
Low Gain Mode
-20
Low Gain Mode
|S12| vs. Frequency
38
High Gain Mode
OIP3 vs. Frequency
+105 °C
+25 °C
-25
-5
-30
+105 °C
37
36
−40 °C
-10
+25 °C
−40 °C
-35
OIP3 (dBm)
-40degC
+25degC
+105degC
|S22| (dB)
|S12| (dB)
35
34
33
32
-40
-15
-45
31
30
1700
-20
1000
2000
3000
4000
5000
-50
1000
2000
3000
4000
5000
1900
2100
2300
2500
2700
Frequency (MHz)
Frequency (MHz)
Frequency (MHz)
40
Low Gain Mode
OIP3 vs. Frequency
+105 °C
+25 °C
−40 °C
25
High Gain Mode
P1dB vs. Frequency
+105 °C
+25 °C
−40 °C
24
37
23
22
34
P1dB (dBm)
1900
2100
2300
2500
2700
OIP3 (dBm)
21
20
19
31
18
28
17
16
25
1700
15
1700
1900
2100
2300
2500
2700
Frequency (MHz)
Frequency (MHz)
DATA SHEET May 4, 2017 | Subject to change without notice
-
5 of 12
-
www.qorvo.com
