B350A-M3/5AT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B350A-M3/5AT

B350A-M3/5AT: DescriptionSchottky Diodes and Rectifiers 3A, 50V, SM Schottky Rect; CategoryDiscrete semiconductor diode; File Size82KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

B350A-M3/5AT Overview

Schottky Diodes and Rectifiers 3A, 50V, SM Schottky Rect

B350A-M3/5AT Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.62 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

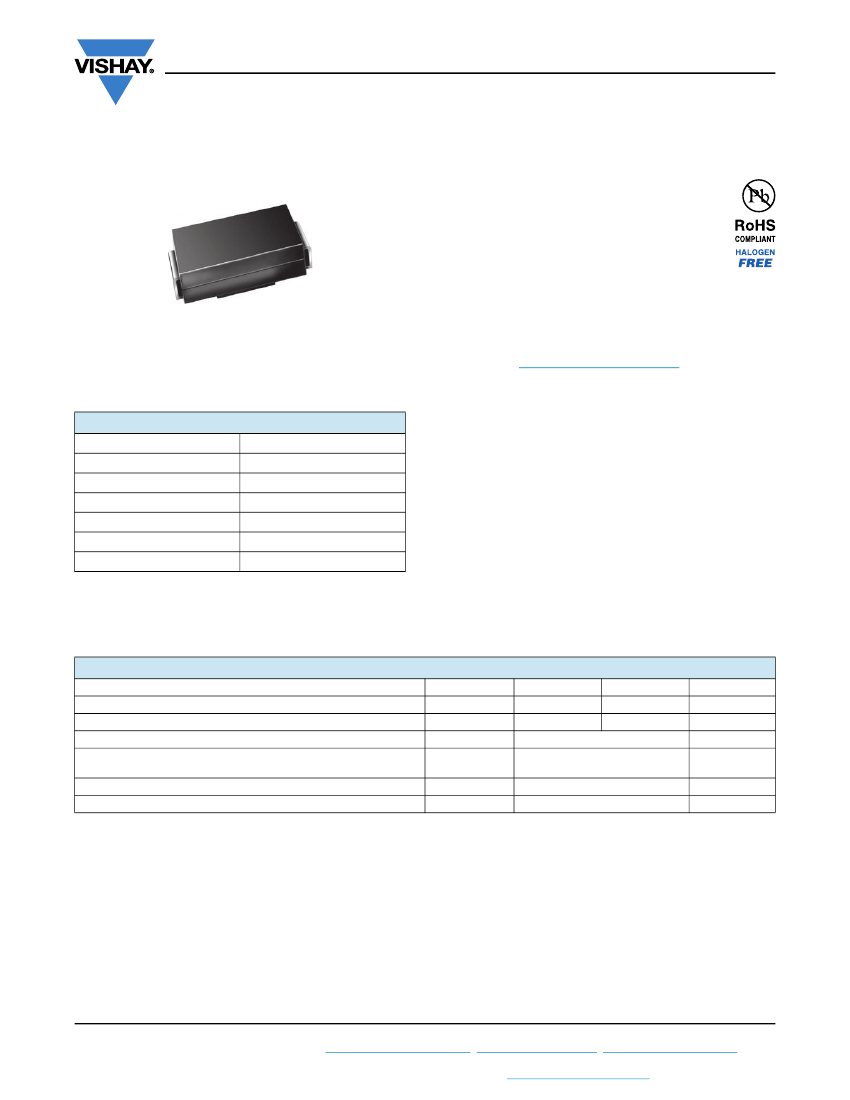

B350A-M3, B360A-M3

www.vishay.com

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Low forward voltage drop, low power losses

• High efficiency

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-214AC (SMA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 3.0 A

max.

Package

Diode variation

3.0 A

50 V, 60 V

50 A

0.55 V

150 °C

DO-214AC (SMA)

Single die

For use in low voltage, high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 2 whisker test

Polarity:

Color band denotes the cathode end

per

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction and storage temperature range

RRM

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

B350A

B35

3.0

10 000

-55 to +150

B360A

B36

V/μs

°C

UNIT

Revision: 09-Dec-13

Document Number: 89414
