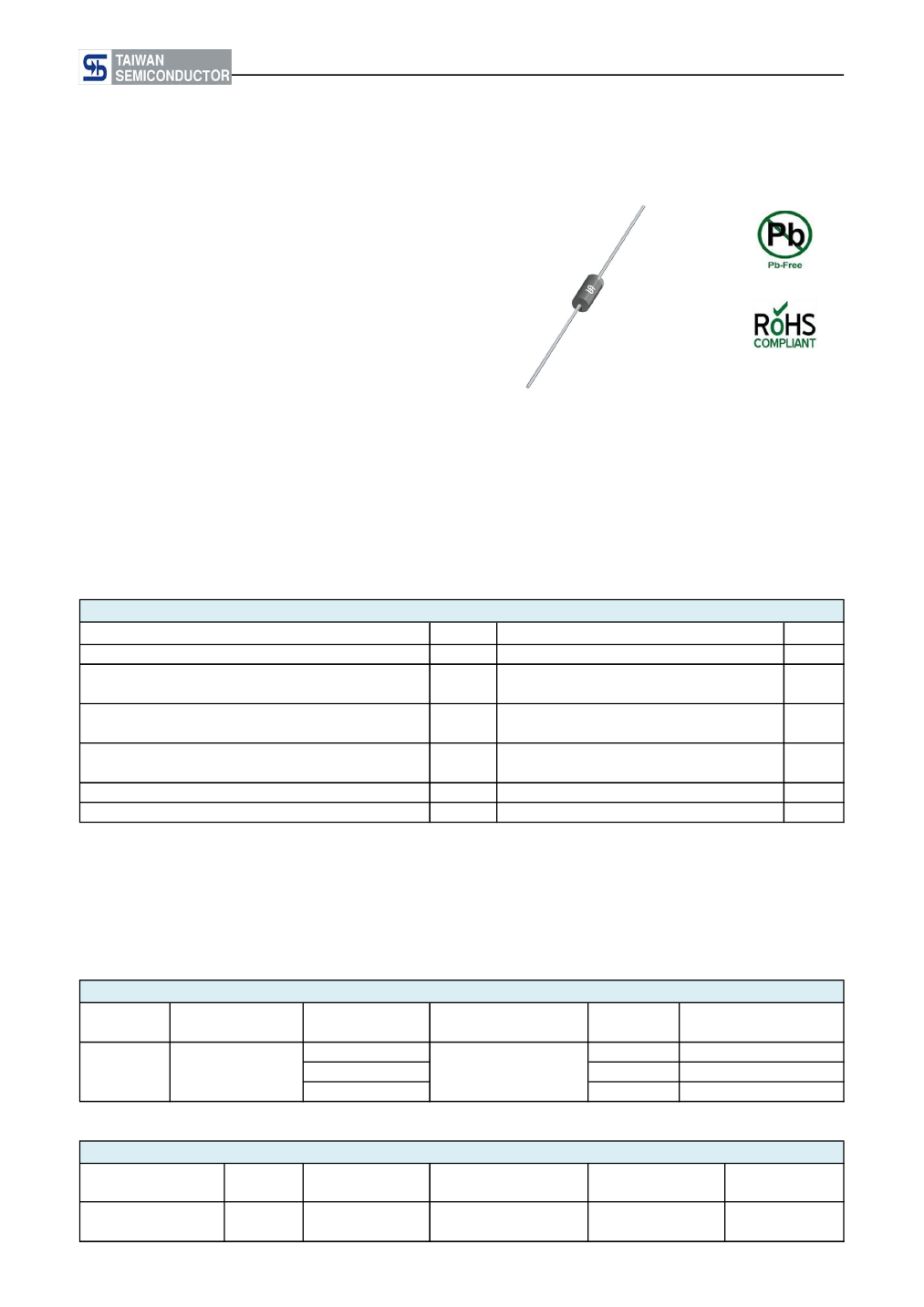

1.5KE SERIES

Taiwan Semiconductor

CREAT BY ART

1500W, 6.8V - 440V Transient Voltage Suppressor

FEATURES

- Excellent clamping capability

- Low dynamic impedance

- 1500W surge capability at 10 / 1000

μs

waveform

- Fast response time: Typically less than

1.0ps from 0 volt to V

BR

for unidirectional

and 5.0ns for bidirectional

- Typical I

R

less than 1μA above 10V

- UL recognized file # E-326243

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21

DO-201

MECHANICAL DATA

Case:

DO-201

Molding compound: UL flammability classification rating 94V-0

Part No. with suffix "H" means AEC-Q101 qualified

Packing code with suffix "G" means green compound (halogen-free)

Terminal:

Pure tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 2 whisker test

Weight:

0.94g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(T

A

=25°C unless otherwise noted)

PARAMETER

Peak power dissipation at T

A

=25°C, Tp=1ms (Note 1)

Steady state power dissipation at T

L

=75°C

lead lengths .375", 9.5mm (Note 2)

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum Instantaneous Forward Voltage at 50 A for

Unidirectional Only (Note 3)

Operating junction temperature range

Storage temperature range

SYMBOL

P

PK

P

D

I

FSM

V

F

T

J

T

STG

VALUE

1500

5

200

3.5 / 5.0

- 55 to +175

UNIT

W

A

V

°C

Note 1: Non-repetitive current pulse per fig. 3 and derated above T

A

=25°C per fig. 2

Note 2: Mounted on copper pad area of 0.6" x 0.6" (16mm x 16mm)

Note 3: V

F

=3.5V for devices of V

BR

≦200V

and V

F

=5.0V max. for devices V

BR

>200V

Devices for Bipolar Applications

1. For bidirectional use C or CA suffix for types 1.5KE6.8 - types 1.5KE440

2. Electrical characteristics apply in both directions

ORDERING INFORMATION

PART NO.

1.5KExxxx

(Note 1)

PART NO.

SUFFIX

H

PACKING CODE

A0

R0

B0

G

PACKING CODE

SUFFIX

PACKAGE

DO-201

PACKING

500 / Ammo box

1,250 / 13" Paper reel

500 / Bulk packing

Note 1: "xxxx" defines voltage from 6.8V (1.5KE6.8) to 440V (1.5KE440)

EXAMPLE

PART NO.

1.5KE100AHR0G

PART NO.

1.5KE100A

PART NO.

SUFFIX

H

PACKING CODE

R0

PACKING CODE

SUFFIX

G

DESCRIPTION

AEC-Q101 qualified

Green compound

Version: N1602

1.5KE SERIES

Taiwan Semiconductor

CREAT BY ART

RATINGS AND CHARACTERISTICS CURVES

(T

A

=25°C unless otherwise noted)

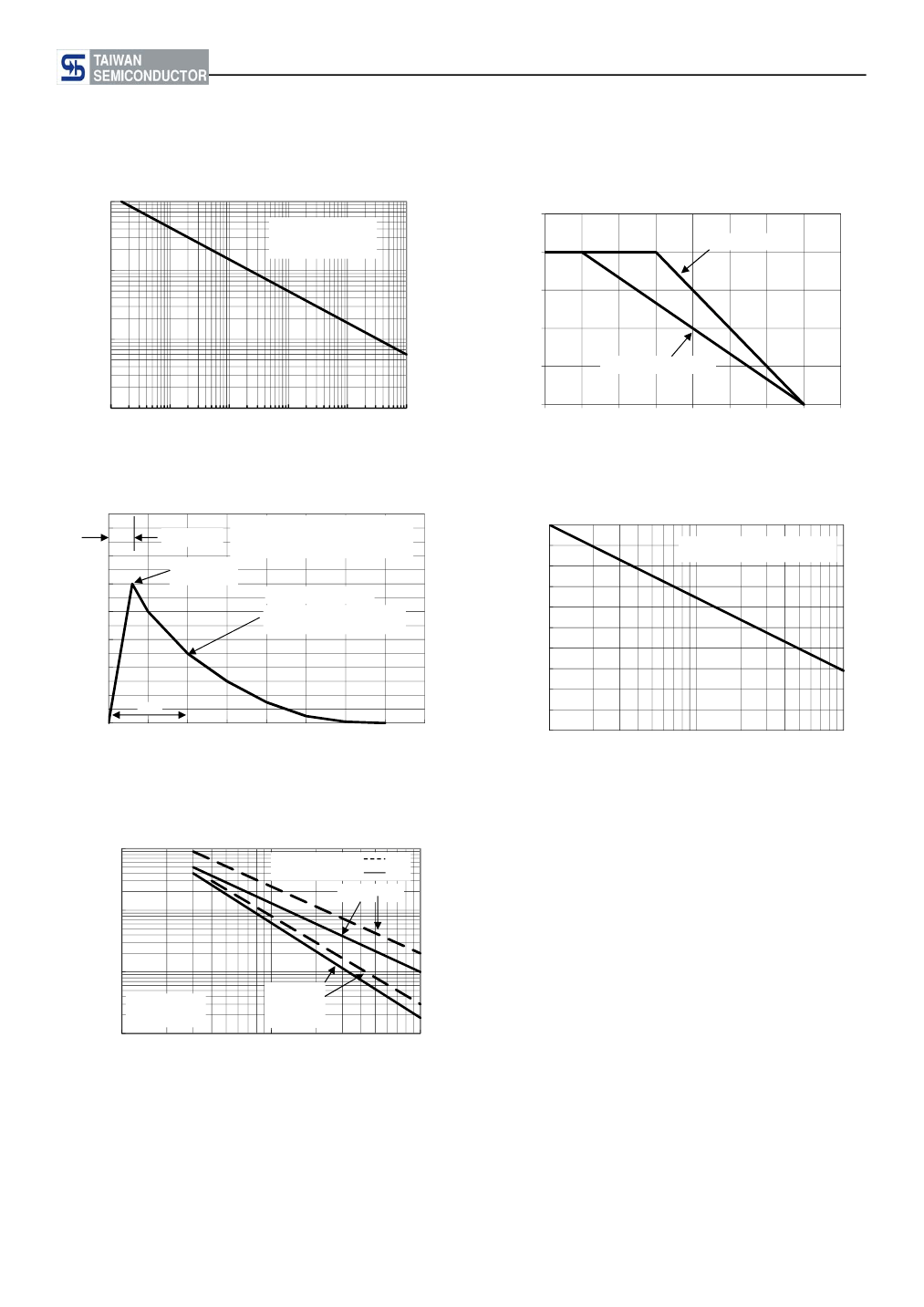

FIG. 1 PEAK PULSE POWER RATING CURVE

100

PEAK PULSE POWER(P

PP

) OR CURRENT (I

PP

)

A

DERATING IN PERCENTAGE (%)

FIG.2 PULSE DERATING CURVE

125

P

PPM

, PEAK PULSE POWER, kW

Non-repetitive

pulse waveform

shown in fig.3

10

100

75

50

25

0

25

50

75

100

Without heat sink

With heat sink

1

0.1

1

10

100

1000

10000

tp, PULSE WIDTH, (μs)

125

150

175

200

T

A

, AMBIENT TEMPERATURE (

°

C)

FIG. 3 CLAMPING POWER PULSE WAVEFORM

IFSM, PEAK FORWARD SURGE CURRENT (A)

140

PEAK PULSE CURRENT (%)

120

100

80

60

40

20

0

td

0.5

1

1.5

2

t, TIME ms

2.5

3

3.5

4

Pulse width(td) is defined

as the point where the peak

current decays to 50% of I

PPM

200

180

160

140

120

100

80

60

40

20

0

1

FIG. 4 MAXIMUM NON-REPETITIVE FORWARD SURGE

CURRENT UNIDIRECTIONAL ONLY

8.3ms single half sine wave

tr=10μs

Peak value

I

PPM

Half value-I

PPM

/2

10/1000μs, waveform

as defined by R.E.A.

10

NUMBER OF CYCLES AT 60 Hz

100

FIG. 5 TYPICAL JUNCTION CAPACITANCE

10000

CJ, JUNCTION CAPACITANCE (pF)

A

UNIDIRECTIONAL

BIDIRECTIONA

VR=0

1000

100

f=1.0MHz

Vsig=50mVp-p

10

1

10

V(

BR

), BREAKDOWN VOLTAGE (V)

100

V

R

-rated

stand-off

voltage

Version: N1602

1.5KE SERIES

Taiwan Semiconductor

CREAT BY ART

JEDEC

TYPE

NUMBER

1N6267

1N6267A

1N6268

1N6268A

1N6269

1N6269A

1N6270

1N6270A

1N6271

1N6271A

1N6272

1N6272A

1N6273

1N6273A

1N6274

1N6274A

1N6275

1N6275A

1N6276

1N6276A

1N6277

1N6277A

1N6278

1N6278A

1N6279

1N6279A

1N6280

1N6280A

1N6281

1N6281A

1N6282

1N6282A

1N6283

1N6283A

1N6284

1N6284A

1N6285

1N6285A

1N6286

1N6286A

1N6287

1N6287A

1N6288

1N6288A

1N6289

1N6289A

GENERAL

PART

NUMBER

1.5KE6.8

1.5KE6.8A

1.5KE7.5

1.5KE7.5A

1.5KE8.2

1.5KE8.2A

1.5KE9.1

1.5KE9.1A

1.5KE10

1.5KE10A

1.5KE11

1.5KE11A

1.5KE12

1.5KE12A

1.5KE13

1.5KE13A

1.5KE15

1.5KE15A

1.5KE16

1.5KE16A

1.5KE18

1.5KE18A

1.5KE20

1.5KE20A

1.5KE22

1.5KE22A

1.5KE24

1.5KE24A

1.5KE27

1.5KE27A

1.5KE30

1.5KE30A

1.5KE33

1.5KE33A

1.5KE36

1.5KE36A

1.5KE39

1.5KE39A

1.5KE43

1.5KE43A

1.5KE47

1.5KE47A

1.5KE51

1.5KE51A

1.5KE56

1.5KE56A

Nominal

Voltage

V

6.8

7.5

8.2

9.1

10

11

12

13

15

16

18

20

22

24

27

30

33

36

39

43

47

51

56

Breakdown Voltage

V

BR

(V)

(Note 1)

Min

6.12

6.45

6.75

7.13

7.38

7.79

8.19

8.65

9.00

9.50

9.90

10.5

10.8

11.4

11.7

12.4

13.5

14.3

14.4

15.2

16.2

17.1

18.0

19.0

19.8

20.9

21.6

22.8

24.3

25.7

27.0

28.5

29.7

31.4

32.4

34.2

35.1

37.1

38.7

40.9

42.3

44.7

45.9

48.5

50.4

53.2

Max

7.48

7.14

8.25

7.88

9.02

8.61

10.00

9.55

11.00

10.5

12.1

11.6

13.2

12.6

14.3

13.7

16.5

15.8

17.6

16.8

19.8

18.9

22.0

21.0

24.2

23.1

26.4

25.2

29.7

28.4

33.0

31.5

36.3

34.7

39.6

37.8

42.9

41.0

47.3

45.2

51.7

49.4

56.1

53.6

61.6

58.8

Test

Current

I

T

(mA)

10

1.0

Stand-Off

Voltage

V

WM

(V)

5.50

5.80

6.05

6.40

6.63

7.02

7.37

7.78

8.10

8.55

8.92

9.40

9.72

10.20

10.50

11.10

12.10

12.80

12.90

13.60

14.50

15.30

16.20

17.10

17.80

18.80

19.40

20.50

21.80

23.10

24.30

25.60

26.80

28.20

29.10

30.80

31.60

33.30

34.80

36.80

38.10

40.20

41.30

43.60

45.40

47.80

Maximum

@ V

WM

I

R

(μA)

1000

500

200

50

10

1

Maximum

Current I

PPM

(A) (Note 2)

145

150

134

139

126

130

114

117

105

108

97

100

91

94

82

86

71

74

67

70

59

60

54

56

49

51

45

47

40

42

36

38

33

34

30

31

27

29

25

26

23

24

21

22

19

20

Maximum

@ I

PPM

Vc(V)

10.8

10.5

11.7

11.3

12.5

12.1

13.8

13.4

15.0

14.5

16.2

15.6

17.3

16.7

19.0

18.2

22.0

21.2

23.5

22.5

26.5

25.5

29.1

27.7

31.9

30.6

34.7

33.2

39.1

37.5

43.5

41.4

47.7

45.7

52.0

49.9

56.4

53.9

61.9

59.3

67.8

64.8

73.5

70.1

80.5

77.0

Maximum

Coefficient

of V

BR

(%/°C)

0.057

0.061

0.065

0.068

0.073

0.075

0.078

0.081

0.084

0.086

0.088

0.090

0.092

0.094

0.096

0.097

0.098

0.099

0.100

0.101

0.102

0.103

Reverse Leakage Peak Pulse Clamping Voltage Temperature

Version: N1602

1.5KE SERIES

Taiwan Semiconductor

CREAT BY ART

JEDEC
