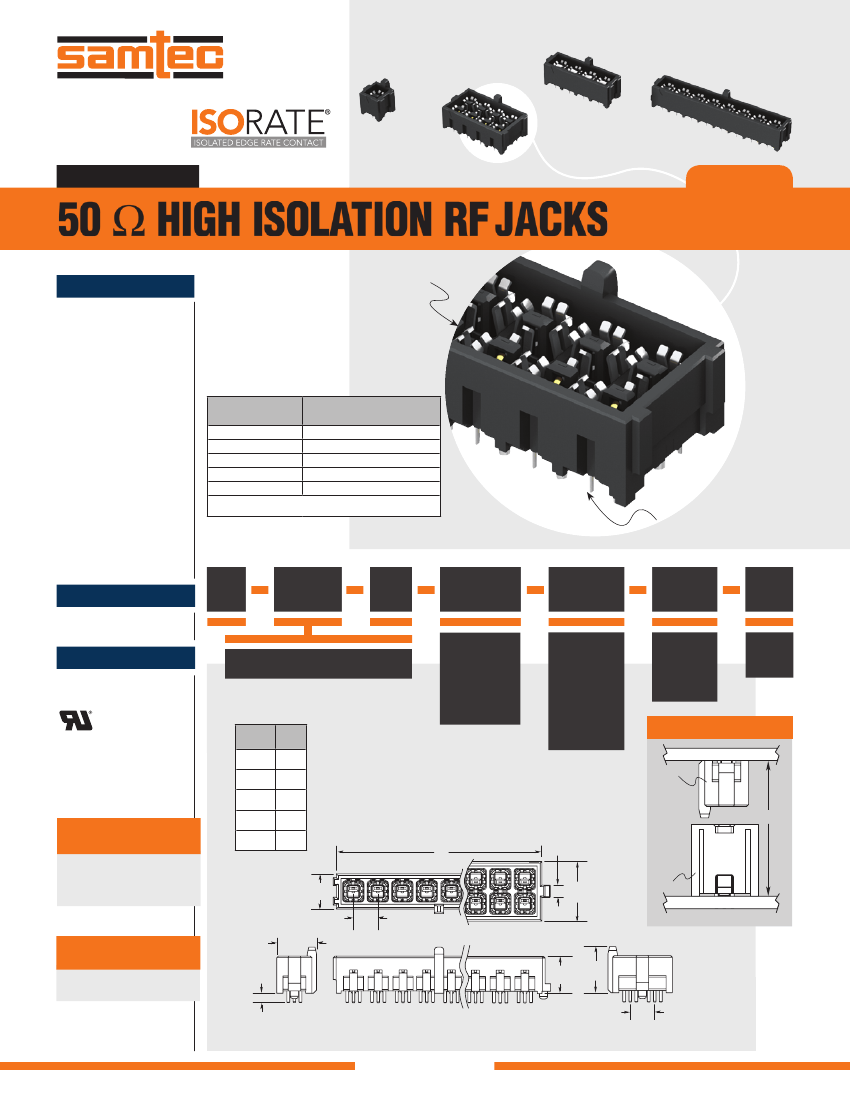

RF-18
IJ5–04–05.0–L–S–1–TR
IJ5–01–05.0–L–S–1–TR
IJ5–08–05.0–L–S–1–TR
(4.00 mm) .1575"
IJ5–04–05.0–L–D–1–TR
IJ5 SERIES
50
W
HIGH ISOLATION RF JACKS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?IJ5
Shell Material:
Copper Alloy
Insulator Material:
Black LCP
Contact Material:
Copper Alloy
Dielectric Material:
Black LCP
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating (Vertical):
Signals: 2.36 A per pin
(2 adjacent pins powered)
Grounds: 4.4 A per pin
(2 adjacent pins powered)
Operating Temp Range:
-55 °C to +125 °C
Dielectric
Withstanding Voltage:
600 VAC
Working Voltage:
200 VAC
RoHS Compliant:
Yes
Mates with:
IP5
Single or
Double Row
IP5/IJ5
10 mm Stack Height
Frequency
Insertion Loss = 3 dB
10.5 GHz / 21.0 Gbps
Return Loss = 15 dB
5.5 GHz / 11.0 Gbps
Isolation = 60 dB
8.8 GHz / 17.6 Gbps
Isolation = 70 dB
7.6 GHz / 15.2 Gbps
Isolation = 80 dB
1.3 GHz / 2.6 Gbps
Complete test data available at www.samtec.com?IJ5
or contact sig@samtec.com
1, 2, 4, 6 or 8
Positions
PROCESSING
Lead–Free Solderable:
Yes
IJ5
JACKS
PER ROW
05.0
PLATING
ROW
OPTION
TAIL
TR
–TR
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
–01, –02, –04, –06, –08
= 10 µ"
(0.25 µm)
Gold on
contact area,
Matte Tin
on tail
–L
= Single
Row
–S
FILE NO. E111594
NO. OF
JACKS
–01
–02
–04
A
(5.55)
.219
(9.55)
.376
(17.55)
.691
(25.55)
1.006
(33.55)
1.321
= Double
Row
(Not available
with –01)
–D
= (1.60 mm)
.062"
board
thickness
–1
= Tape &
Reel
APPLICATION
IJ5
ALSO AVAILABLE
(MOQ Required)
• Other stack heights
• Other PCB thicknesses
Contact Samtec.
–06
–08
10 mm
A
(2.03)
.080
(5.74)
.226
(4.00)
.1575
(9.74)
.383
IP5
OTHER
SOLUTIONS
• Cable assembly
(see IJ5C Series)
(6.50)
.256
(1.52)
.060
(6.05) (7.52)
.296
.238
(4.00)
.1575
–S
–D
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
