F-219
BSS–025–01–L–D–A
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
10 YEAR MFG
WITH 50 µ" GOLD
BTS–075–01–L–D–A
BTS–050–01–F–D–A
(0.635 mm) .025"

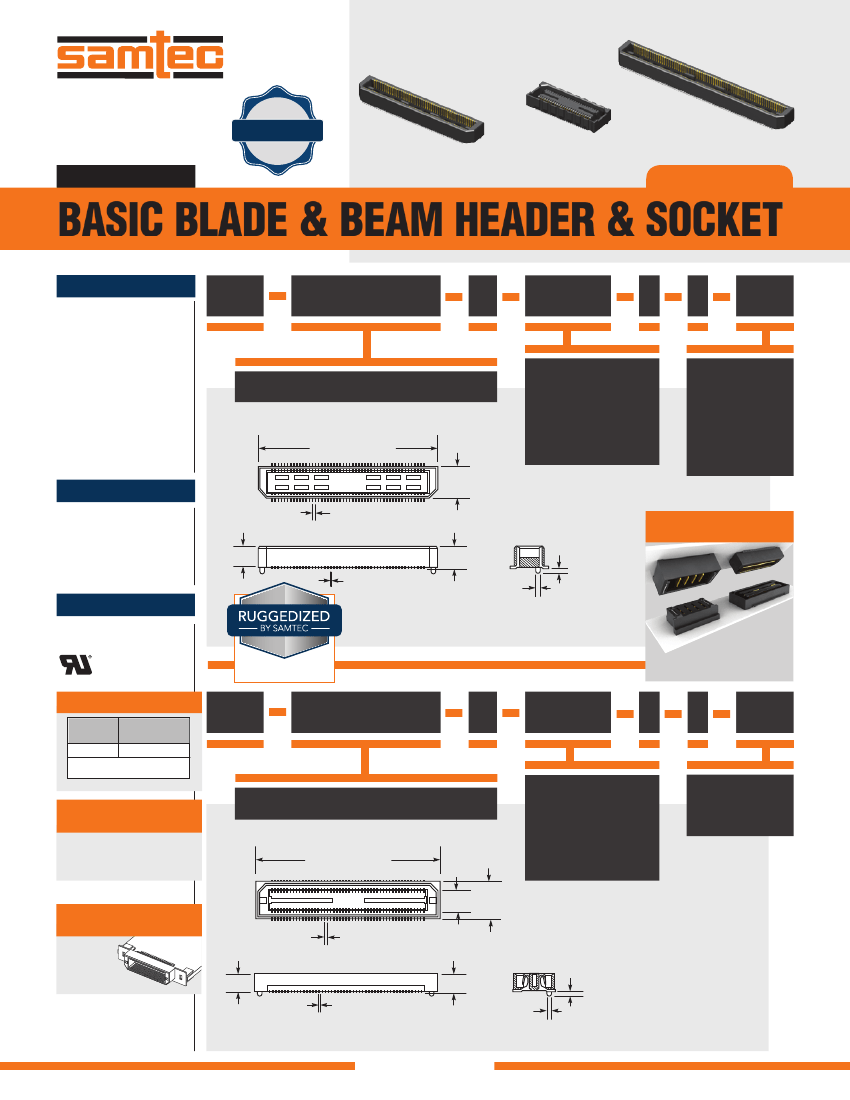

BTS, BSS SERIES
BASIC BLADE & BEAM HEADER & SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?BTS or
www.samtec.com?BSS
Insulator Material:
Liquid Crystal Polymer
Terminal Material (BTS):
Phosphor Bronze
Contact Material (BSS):
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating:
1.8 A per pin
(2 pins powered)
Operating Temp Range:
-55 °C to +125 °C
RoHS Compliant:
Yes
BTS
Mates with:
BSS
NO. OF POSITIONS
PER ROW
01
PLATING
OPTION
D
A
OTHER
OPTION
–025, –050, –075, –100
No. of Positions x (0.635) .025
+ (4.13) .163
(5.97)
.235
02
= Gold Flash on contact,
Matte Tin on tail
–F
–L
= (7.00 mm) .275" DIA
Polyimide Film Pick
& Place Pad
–K
01
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
= Tape & Reel
(–100 positions
maximum)
–TR
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max
Board Stacking:
For applications requiring more
than two connectors per board
or 100 positions or higher,
contact ipg@samtec.com
(0.635)
.025
(4.27)
.168
(0.20)
.008
(0.89)
.035
DIA
(0.89)
.035
POWER/SIGNAL
APPLICATION
(4.06)
.160
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
• Passes
10 year MFG
Compatible with
UMPT/UMPS for flexible
two-piece power/signal solutions
MATED HEIGHT
LEAD
STYLE
MATED
HEIGHT*
(5.00) .197
BSS
Mates with:
BTS
NO. OF POSITIONS
PER ROW
01
PLATING
OPTION
D
A
OTHER
OPTION
–01
*Processing conditions will
affect mated height.
ALSO AVAILABLE
(MOQ Required)
• 30 µ" (0.76 µm) Gold
• Other platings
• Other positions
–025, –050, –075, –100
No. of Positions x (0.635) .025
+ (5.41) .213
02
= Gold Flash on contact,
Matte Tin on tail
–F
–L
= Tape & Reel
(–100 positions
maximum)
–TR
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
OTHER
SOLUTIONS
Edge
Mount
capability.
Call for availability.
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(3.81) (7.24)
.150 .285
01
(0.635)
.025
(0.76)
.030
(0.15)
.006
(0.89)
.035
DIA
(3.43)
.135
(3.63)
.143
