2315-3041: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size191KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

2315-3041 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking

2315-3041 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.417 inch
subject depth	0.457 inch
body length	3.74 inch
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	200 Cycles
Manufacturer's serial number	2315
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

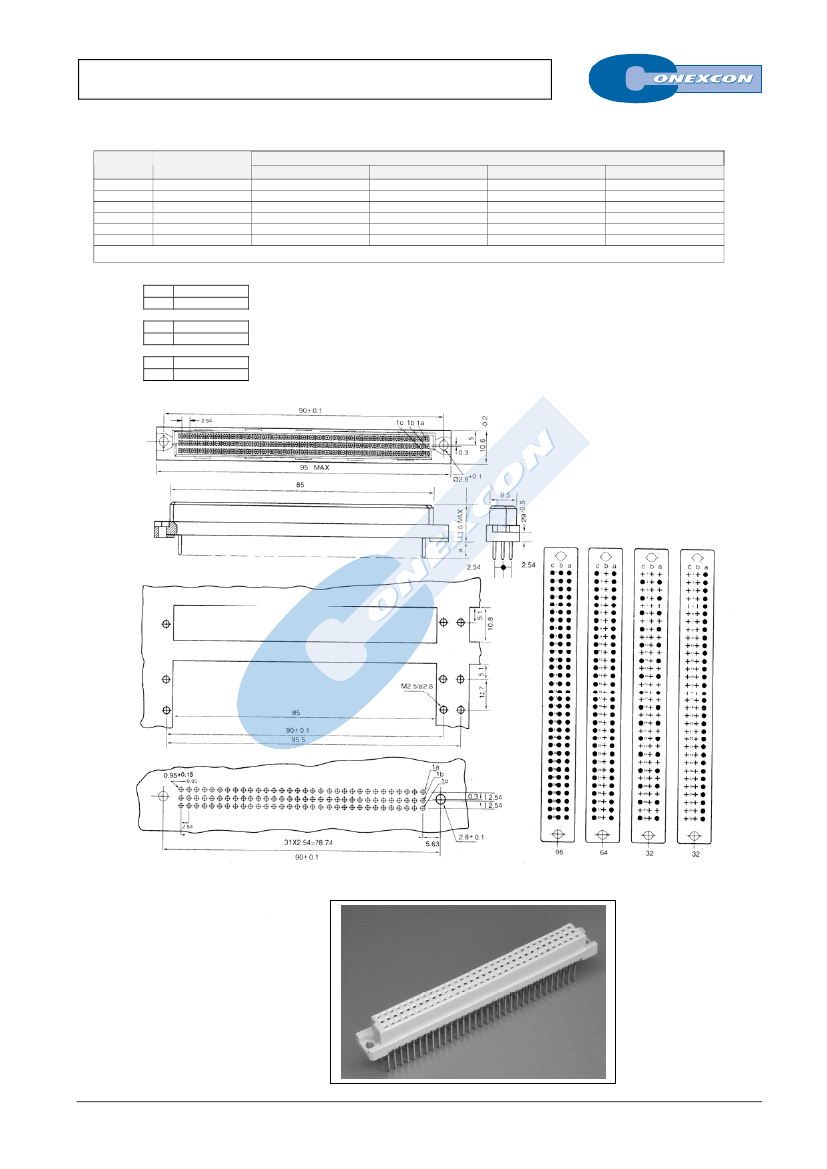

DIN 41612 EUROCARD CONNECTORS

2315 SERIES.

Vertical Female Type C Connectors.

Circuit Size

32

48

64

96

Configuration

a

a+c

a + b +c

a+b

a+c

a + b +c

CÓDIGOS

PCB Solder 4 mm

2315 –

T021

2315 –

T321

2315 –

T481

2315 –

T041

2315 –

T641

2315 –

T961

Wrap post tail length 13 mm Wrap post tail length 17 mm

2315 –

T023

2315 –

T027

2315 –

T323

2315 –

T327

2315 –

T483

2315 –

T487

2315 –

T043

2315 –

T047

2315 –

T643

2315 –

T647

2315 –

T963

2315 –

T967

Available with press-in contacts (Consult with the Sales Office)

a

4

a

13

a

17

0.3 x 0.63

PCB Solder

0.6 x 0.69

Wrap post

0.6 x 0.69

Wrap post

T = Plating and class connector



T =

3.

0.20 µ” over 1.27 µ” Ni. 200 cycles class 2B

T =

4.

0.38 µ” over 1.27 µ” Ni. 400 cycles class 2

T =

5.

0.76 µ” over 1.27 µ” Ni. 500 cycles class 1

CONTACT ARRANGEMENT

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

Q-XX
