F-219
IPT1–110–04–L–D
IPT1–110–01–L–D
(2.54 mm) .100"
IPT1–105–01–L–D–VS
IPT1–125–01–L–D–RA

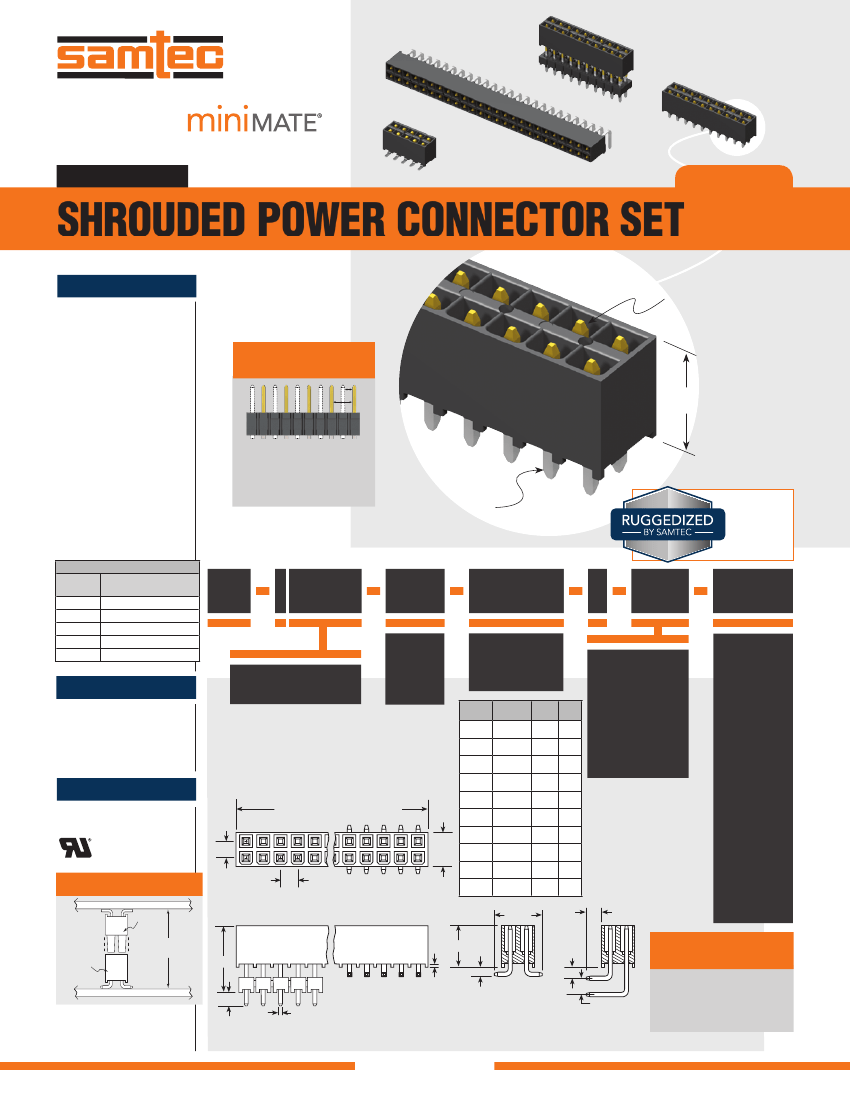

IPT1 SERIES
SHROUDED POWER CONNECTOR SET
SPECIFICATIONS
For complete specifications
see www.samtec.com?IPT1
Insulator Material:
Black LCP
Contact Material:
Phosphor Bronze
Plating:
Sn or Au over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Insertion Depth:
(3.81 mm) .150" to
(6.48 mm) .255"
Wiping Distance:
(0.38 mm) .015"
Voltage Rating:
775 VAC/1095 VDC
Standard Creepage:
(2.49 mm) .098" (without -LC)
(1.28 mm) .050" (with -LC)
Standard Clearance:
(1.91 mm) .075" (without -LC)
(0.91 mm) .036" (with -LC)
RoHS Compliant:
Yes
IPT1/IPS1
CURRENT RATING
(PER CONTACT)
5.9 A
4.8 A
4.1 A
3.6 A
2.3 A
Mates with:
IPS1
Each pin individually
shrouded for electrical
and mechanical protection
CREEPAGE
AND CLEARANCE
(6.35 mm)
.250"
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
Choice of
through-hole,
right-angle or
surface mount
• Individually
shrouded
contacts
• Locking clip
option
PINS
1
2
3
4
50
IPT1
1
NO. PINS
PER ROW
LEAD
STYLE
Specify
LEAD
STYLE
from
chart
PLATING
OPTION
D
TAIL
OPTION
OTHER
OPTION
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.13 mm) .005" max (05-10)*
(0.15 mm) .006" max (15-25)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
05, 10, 15, 20, 25
(Standard sizes)
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
LEAD MATED A
B
STYLE HEIGHT
(11.05) (6.35) (2.16)
–01
.435
.250 .085
-01-VS
(13.59) (6.35) N/A
.535
.250
–02
–03
–04
(14.00)
.551
(16.00)
.630
(17.00)
.669
(19.00)
.748
(20.00)
.787
(25.00)
.984
(30.00)
1.181
(35.00)
1.378
(9.30) (2.64)
.366 .104
(11.30) (2.16)
.445 .085
(12.30) (2.69)
.484 .106
(14.30) (2.46)
.563 .097
(15.30) (2.35)
.602 .093
(20.30) (2.31)
.799 .091
(25.30) (2.39)
.996 .094
(30.30) (2.46)
1.193 .097
–L
Requires –01
Lead Style
(Leave blank for
Through-hole)
= Alignment Pin
(–VS only)
(N/A with -LC)
–A
= Right-angle
–RA
–VS
= Surface Mount
= Locking Clip
(Manual
placement
required)
(–VS only)
(N/A with -A)
–LC
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
FILE NO. E111594
No. of positions x (2.54) .100
+ (0.51) .020
02
50
–05
(5.08)
.200
–06
–07
–08
–09
= (6.00 mm)
.236" DIA
Polyimide film
Pick & Place Pad
(–VS only)
–K
APPLICATION
IPS1
MATED
HEIGHT
(2.54)
01
.100
(2.54)
.100
49
Through-hole
Surface Mount
(7.16)
.282
(2.30)
.090
(1.50)
.060
= Tape & Reel
Packaging
(–VS only)
–TR
IPT1
A
B
(0.51)
.020
(0.64) .025 SQ
A
(1.27)
.050
–VS
ALSO AVAILABLE
(MOQ Required)
•
•
•
•
Other sizes
Other platings
Latching feature
No. 1 position polarized
(2.54) .100
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–RA
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Samtec
:
IPT1-115-01-S-D-RA IPT1-125-01-S-D IPT1-120-01-S-D IPT1-105-01-S-D IPT1-105-01-S-D-RA IPT1-110-01-S-D-
RA IPT1-106-01-S-D-RA IPT1-120-01-L-D IPT1-105-01-L-D IPT1-125-01-L-D-RA IPT1-120-01-L-D-RA IPT1-115-
01-L-D IPT1-120-01-S-D-RA IPT1-115-01-L-D-RA IPT1-105-02-L-D IPT1-115-01-S-D IPT1-110-01-L-D-VS IPT1-
110-05-L-D IPT1-110-03-L-D IPT1-110-01-S-D-PL IPT1-110-01-L-D IPT1-110-01-S-D IPT1-110-01-L-D-RA IPT1-
110-04-L-D IPT1-105-06-L-D IPT1-120-01-L-D-VS IPT1-110-06-L-D IPT1-105-01-L-D-VS IPT1-115-01-L-D-VS
IPT1-125-01-L-D IPT1-105-07-L-D IPT1-105-01-L-D-RA IPT1-105-04-L-D IPT1-105-03-L-D IPT1-107-01-L-D-RA
IPT1-108-01-L-D IPT1-103-01-S-D-RA IPT1-104-01-L-D-VS IPT1-115-01-L-D-VS-K-TR IPT1-117-01-L-D-VS IPT1-
109-01-S-D IPT1-109-01-S-D-RA IPT1-110-01-S-D-VS IPT1-103-01-S-D IPT1-107-01-S-D-RA IPT1-108-01-S-D-RA
IPT1-116-01-S-D-RA IPT1-118-01-S-D-RA IPT1-150-01-S-D-VS IPT1-111-01-S-D-VS-A IPT1-117-01-S-D IPT1-
110-01-S-D-VS-A-K IPT1-105-01-S-D-VS IPT1-113-01-S-D IPT1-104-01-S-D-RA IPT1-105-01-S-D-VS-A IPT1-113-
01-S-D-RA IPT1-107-01-S-D IPT1-125-01-S-D-RA IPT1-111-01-S-D-VS IPT1-150-01-S-D IPT1-120-01-S-D-VS
IPT1-120-01-S-D-VS-LC IPT1-125-01-S-D-VS IPT1-108-01-S-D IPT1-111-01-S-D-RA IPT1-115-01-S-D-VS-A IPT1-
125-01-S-D-VS-A IPT1-150-01-S-D-RA IPT1-105-01-S-D-VS-LC IPT1-106-01-S-D-VS IPT1-115-01-S-D-VS IPT1-
105-01-S-D-FL IPT1-105-01-S-D-RA-FL IPT1-125-01-S-D-VS-FL IPT1-120-01-S-D-VS-K IPT1-112-01-S-D IPT1-112-
01-S-D-RA IPT1-115-01-S-D-DH-A IPT1-125-01-S-D-VS-LC IPT1-110-01-S-D-VS-LC IPT1-115-01-S-D-VS-LC IPT1-
125-01-S-D-DH-A IPT1-105-01-SM-D-VS IPT1-116-01-S-D-VS-LC-K IPT1-120-01-H-D-RA IPT1-104-01-S-D-DH-A
IPT1-105-01-S-D-VS-FL IPT1-125-01-S-D-RA-FL IPT1-110-01-S-D-VS-A IPT1-105-01-SM-D-RA IPT1-106-01-S-D
IPT1-106-01-S-D-VS-LC IPT1-103-01-SM-D IPT1-110-01-S-D-VS-A-K-TR IPT1-110-01-SM-D-RA IPT1-102-01-S-D
IPT1-108-01-S-D-VS-LC IPT1-125-01-S-D-FL IPT1-111-01-S-D
