SSW-136-01-G-D-LL datasheet, PDF

Datasheet> All Categories > The connector> The connector> SSW-136-01-G-D-LL

SSW-136-01-G-D-LL: DescriptionHeaders & Wire Housings .100" Tiger Buy Socket Strip; CategoryThe connector The connector; File Size902KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SSW-136-01-G-D-LL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSW-136-01-G-D-LL	-	-	View	Buy Now

SSW-136-01-G-D-LL Overview

Headers & Wire Housings .100" Tiger Buy Socket Strip

SSW-136-01-G-D-LL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
body width	0.195 inch
subject depth	0.335 inch
body length	3.62 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Durability	100 Cycles
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6.3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	72
Base Number Matches	1

Preview

Download Datasheet

View All

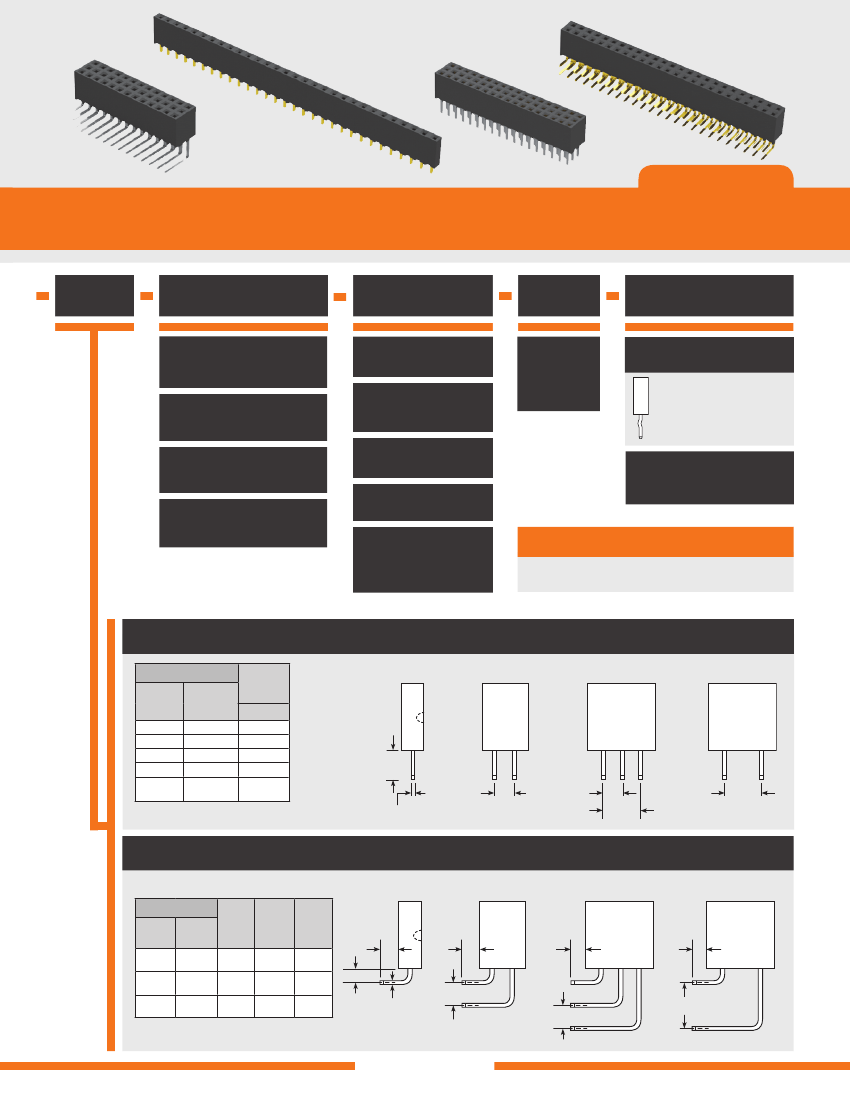

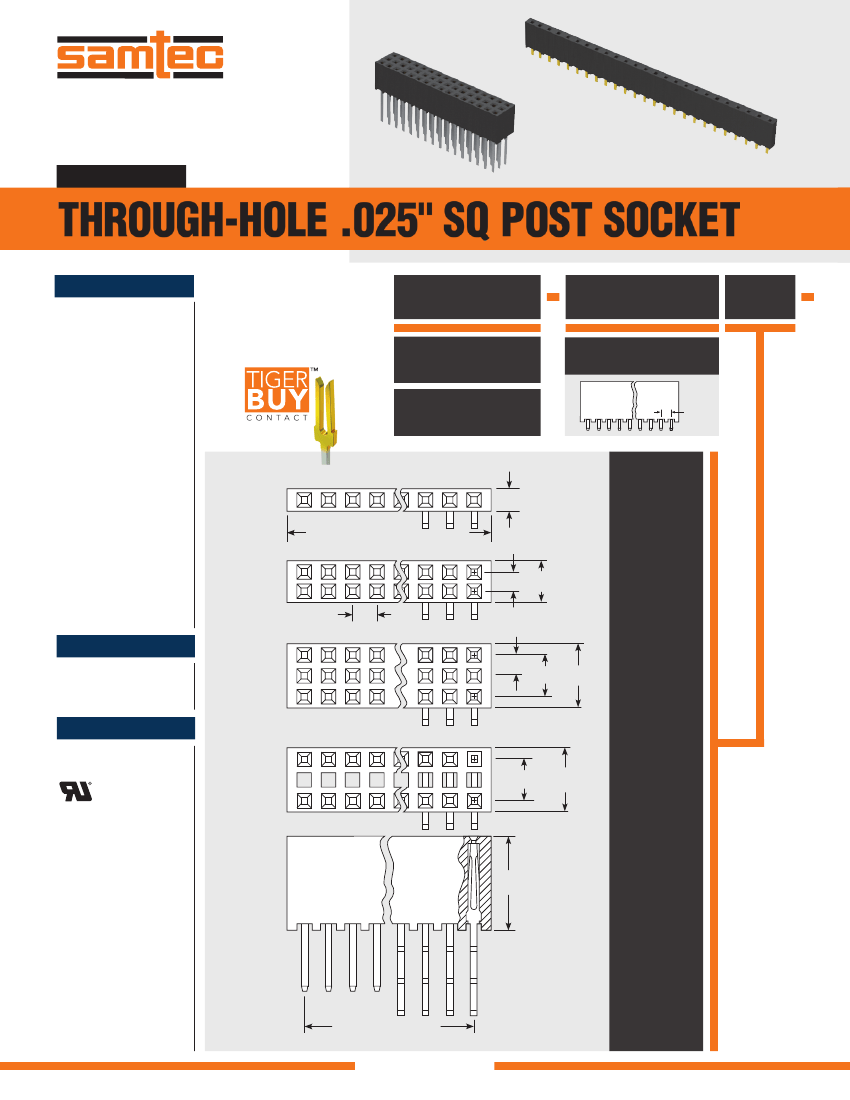

F-219

SSW–125–01–G–S

(2.54 mm) .100"

SSQ–116–03–L–T

THROUGH-HOLE .025" SQ POST SOCKET

SPECIFICATIONS

For complete specifications

see www.samtec.com?SSW

or www.samtec.com?SSQ

Insulator Material:

Black Liquid Crystal Polymer

(-S & -D) or

Black High Temperature

Thermoplastic (-T)

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating (SSW/TSM):

4.7 A per pin

(2 pins powered)

Current Rating (SSQ/TSW):

6.3 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C with Gold

-55 °C to +105 °C with Tin

Insertion Depth:

(3.68 mm) .145" to

(6.35 mm) .250"

Normal Force:

Standard= 125 grams (4.4 N)

Max Cycles:

100 with 10 µ" (0.25 µm) Au

Voltage Rating:

465 VAC / 655 VDC

RoHS Compliant:

Yes

Mates With:

TSW, MTSW, MTLW,

EW, ZW, TSS, ZSS,

TSM, TSSH, HTSS

TYPE STRIP

PIN CENTERS

NO. PINS

PER ROW

SSW

= Solder Tail

SSQ

= Square Tail

–1

= (2.54 mm) .100" Centers

(2.54)

.100

(2.41)

.095

–S

(2.54) .100 x No. of Positions + (0.51) .020

100

–D

150

147

(2.54)

.100

(2.54) (4.95)

.100 .195

PROCESSING

Lead–Free Solderable:

Yes:

-S and -D row option

Wave only:

-P, -T and -Q row option

–T

148

150

145

147

(2.54)

.100 (5.08)

.200

(7.49)

.295

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

–Q

148

145

(5.08)

.200

(7.49)

.295

thru

FILE NO. E111594

(8.51)

.335

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(2.54) .100 x No. of Spaces

–RA

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
