SB5100-TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SB5100-TB

SB5100-TB: Description5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size52KB，4 Pages; ManufacturerWon-Top Electronics Co., Ltd.; Websitehttps://www.wontop.com/

Download Datasheet Parametric View All

SB5100-TB Overview

5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD

SB5100-TB Parametric

Parameter Name	Attribute value
Maker	Won-Top Electronics Co., Ltd.
Parts packaging code	DO-201AD
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

WTE

POWER SEMICONDUCTORS

SB520 – SB5100

5.0A SCHOTTKY BARRIER DIODE

Features

Schottky Barrier Chip

Guard Ring Die Construction for

Transient Protection

High Current Capability

Low Power Loss, High Efficiency

High Surge Current Capability

For Use in Low Voltage, High Frequency

Inverters, Free Wheeling, and Polarity

Protection Applications

Mechanical Data

Case: DO-201AD, Molded Plastic

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 1.2 grams (approx.)

Mounting Position: Any

Marking: Type Number

Lead Free: For RoHS / Lead Free Version,

Add “-LF” Suffix to Part Number, See Page 4

DO-201AD

Dim

Min

Max

25.4

—

7.20

9.50

1.20

1.30

4.80

5.30

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

(Note 1)

= 100°C

Symbol

RRM

RWM

R(RMS)

=25°C unless otherwise specified

SB520 SB530 SB540

SB550 SB560

5.0

SB580 SB5100

100

Unit

Non-Repetitive Peak Forward Surge Current 8.3ms

Single half sine-wave superimposed on rated load

(JEDEC Method)

Forward Voltage

Peak Reverse Current

At Rated DC Blocking Voltage

= 5.0A

= 25°C

= 100°C

FSM

, T

STG

500

0.55

150

0.70

0.5

400

-65 to +150

0.85

°C/W

°C

Typical Junction Capacitance (Note 2)

Typical Thermal Resistance (Note 1)

Operating and Storage Temperature Range

Note: 1. Valid provided that leads are kept at ambient temperature at a distance of 9.5mm from the case.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

SB520 – SB5100

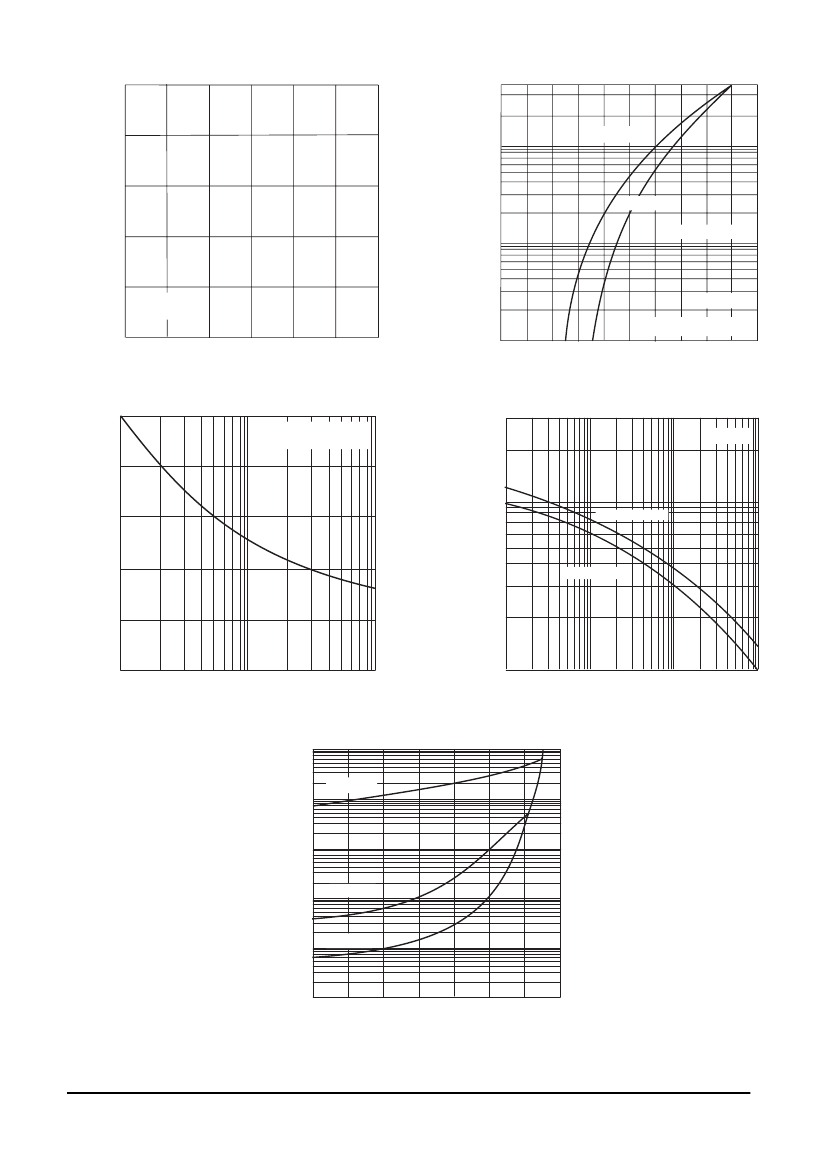

1 of 4
