TMM-110-03-F-D-002

Description
Headers and Wire Housings 2.00 mm Low Profile Terminal Strip
CategoryThe connector    The connector
File Size295KB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

TMM-110-03-F-D-002 Online Shopping

Suppliers Part Number Price MOQ In stock
TMM-110-03-F-D-002 - - View Buy Now

TMM-110-03-F-D-002 Overview

Headers and Wire Housings 2.00 mm Low Profile Terminal Strip

TMM-110-03-F-D-002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSAMTEC
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time3 weeks
Connector typeBOARD CONNECTOR

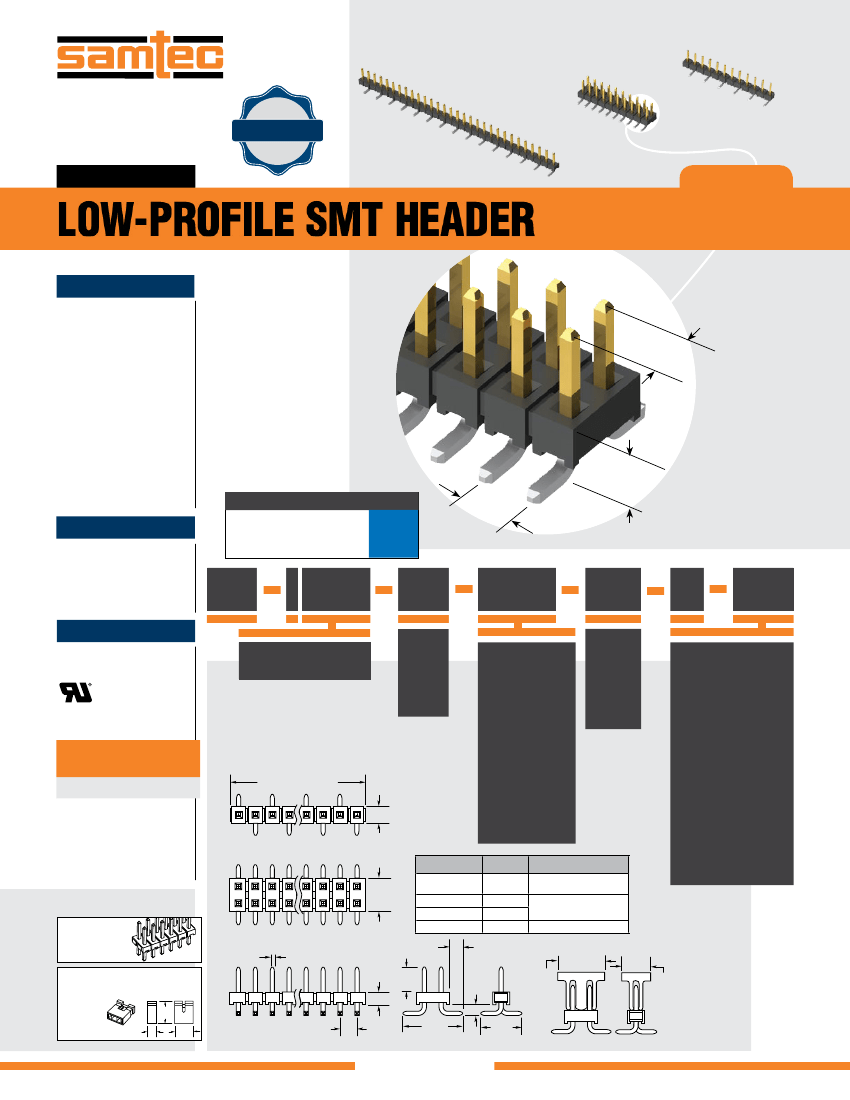

F-219 (Rev 23JAN19)
TMM–110–01–S–D–SM
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
10 YEAR MFG
WITH 30 µ" GOLD
TMM–112–01–F–S–SM
(2.00 mm) .0787"
TMM–130–05–L–S–SM
TMM SERIES
LOW-PROFILE SMT HEADER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?TMM
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
Current Rating:
3.2 A per pin
(2 pins powered)
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Voltage Rating:
281 VAC mated with SQW;
250 VAC mated with SQT
RoHS Compliant:
Yes
Board Mates:
CLT, SQT, SQW, ESQT,
TLE, SMM, MMS
Cable Mates:
TCSD
(2.00 mm)
.0787" pitch
Available with optional
• Pick & place pads
• Alignment pins
• Tape & reel packaging
(2.77 mm)
.109" Low Profile
HIGH-SPEED CHANNEL PERFORMANCE
Rating based on Samtec reference
channel. For full SI performance data
visit Samtec.com or contact
SIG@samtec.com
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.15 mm) .006" max*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
G b p s
8
(2.00 mm)
.0787"
pitch
TMM
1
NO. PINS
PER ROW
LEAD
STYLE
Specify
LEAD
STYLE
from
chart
below.
PLATING
OPTION
ROW
OPTION
SM
OTHER
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
02 thru 40
= Gold flash on post,
Matte Tin on tail
–F
–L
= Single
Row
–S
FILE NO. E111594
ALSO AVAILABLE
(MOQ Required)
• Other platings
01
= 10 µ" (0.25 µm)
Gold on post,
Matte Tin on tail
= Double
Row
–D
= Alignment Pin
(Metal or plastic at
Samtec’s discretion)
(5 positions minimum)
(–D only)
–A
No. of positions x
(2.00) .0787
(1.97)
.078
= 30 µ" (0.76 µm)
Gold on post,
Matte Tin on tail
–S
–T
= Polarized Position
(Specify position of
omitted pin)
–“XXX”
–P
= Pick & Place Pad
(3 positions minimum)
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
40
02
80
= Matte Tin
LEAD STYLE
(3.94)
.155
A
(1.91) .075
(1.65) .065
(4.27) .168
MATES WITH
= Tape & Reel Packaging
(3 thru 36 positions only)
–TR
–01
–04
–05
–06
SQT, SQW, ESQT,
(3.20) .126 TLE, SMM, MMS, TCSD
CLT
CLT-BE
Other Solutions
Through-
hole
2 mm Shunt
Specify
2SN–BK–G
for 2 mm
shunt with
Gold plating.
(4.45)
.175
(1.95)
.077
(3.99)
.157
01
79
(0.50) .020 SQ
(1.27)
.050 TYP
(1.50)
.059
A
(7.06)
.278
–D
(1.27)
.050
(4.83)
.190
–S
(5.00)
.197
(5.08)
.200
(2.00)
.0787
–P
