FOLC-105-01-S-Q-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> FOLC-105-01-S-Q-LC

FOLC-105-01-S-Q-LC: DescriptionBoard-to-Board & Mezzanine Connectors.050" FOURRAY Quad Row Tiger Eye Socket Strip; CategoryThe connector The connector; File Size790KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FOLC-105-01-S-Q-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FOLC-105-01-S-Q-LC	-	-	View	Buy Now

FOLC-105-01-S-Q-LC Overview

Board-to-Board & Mezzanine Connectors.050" FOURRAY Quad Row Tiger Eye Socket Strip

FOLC-105-01-S-Q-LC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3

Preview

Download Datasheet

View All

F-219

FOLC–150–M1–L–Q

FOLC–120–L1–L–Q–LC

(1.27 mm) .050"

FOLC–140–04–L–Q

FOLC SERIES

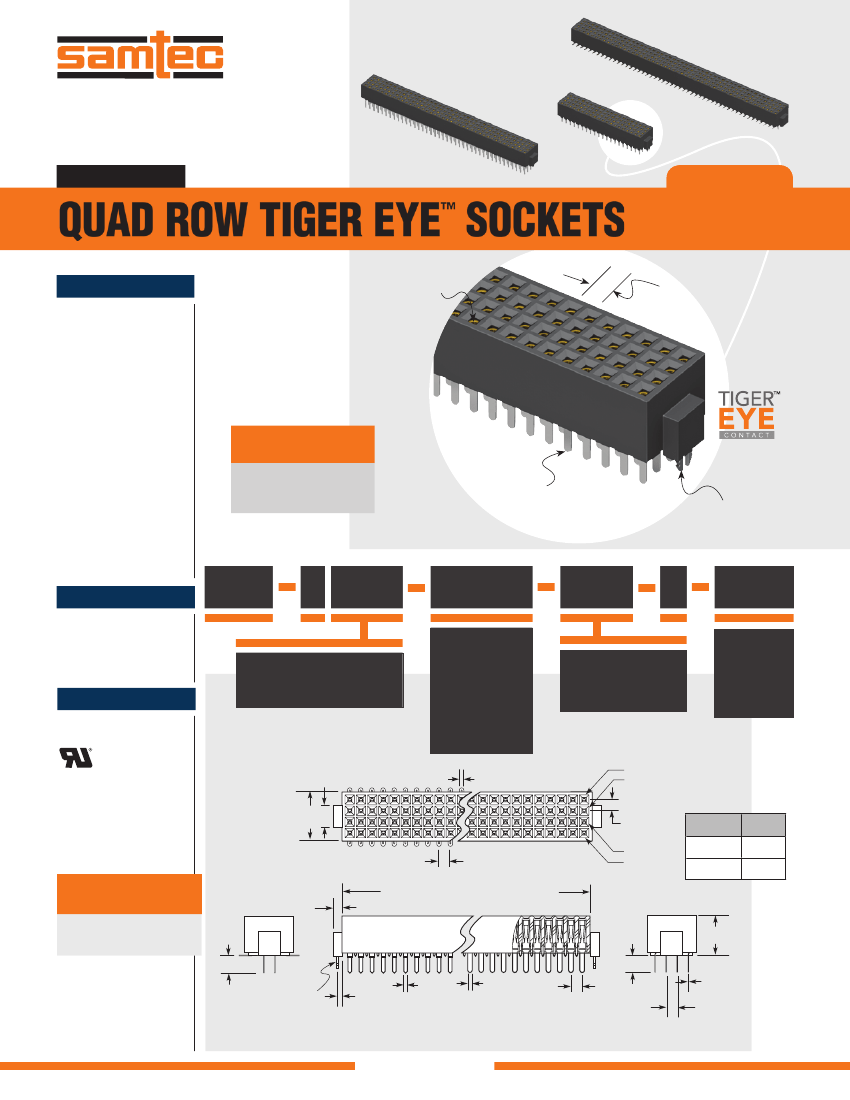

QUAD ROW TIGER EYE SOCKETS

™

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?FOLC

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

BeCu

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating:

2.6 A per pin

(4 pins powered)

Voltage Rating:

165 VAC/230 VDC

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(3.30 mm) .130" to

(4.06 mm) .160"

Normal Force:

Standard= 70 grams

(0.69 N) avg.

LIF= 40 grams (0.39 N) avg.

Max Cycles:

100

RoHS Compliant:

Yes

Mates with:

MOLC

Low Insertion Force

contacts available

(1.27 mm) .050" x

(1.27 mm) .050"

micro pitch

High-reliability

Tiger Eye™

contacts

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Alignment pins

• Other platings

Through-hole

Locking clip

options available

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.15 mm) .006" max*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

FOLC

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

–01 & –04

20, 25, 30, 35,

40, 45, 50

(Standard sizes)

= Through-hole

= Mixed Technology

–M1 & –M2

–L1 & –L4

(0.51)

.020

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

–L

= Locking

Clip

(Manual

placement

required)

–LC

= Low Insertion Force

Through-hole

(2.54)

.100

(5.59)

.220

(1.27)

.050

(1.27)

.050

TYP

LEAD

STYLE

(1.91)

.075

(3.04)

.120

– 01, –M1

– 04, –M2

OTHER

SOLUTIONS

• Surface mount design with

Tiger Buy

™

contacts

(see TOLC/SOLC Series)

No. of positions x (1.27) .050 + (0.51) .020

(1.02) .040 TYP (2)

(4.57)

.180

Optional

Locking

Clip

(–LC)

(0.51)

.020

(0.41)

.016

(0.51)

.020

(1.27)

.050

(1.27)

.050

TYP

(0.13)

.005

TYP

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

MIXED TECHNOLOGY

THROUGH-HOLE

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
