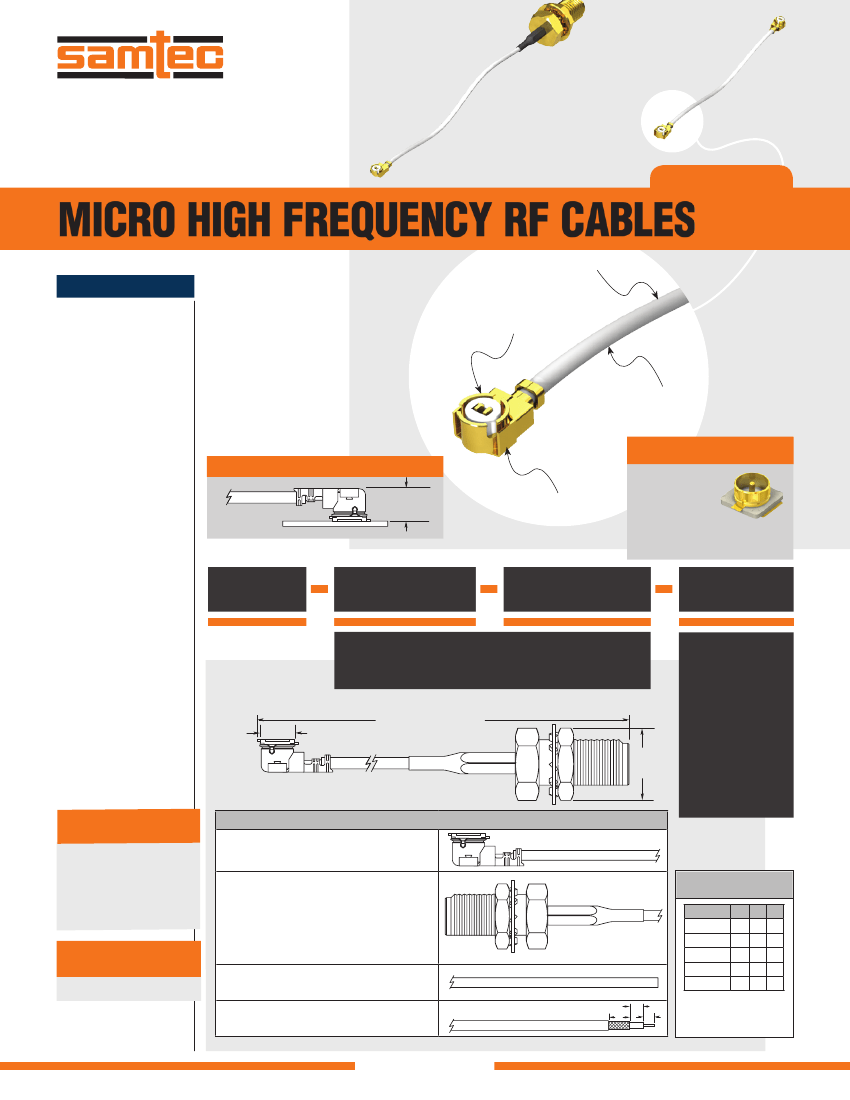

RF-18
MH113–MH1RP–MH1RP–0300
MH113–MH1RP–01BJ1–0300
MH113* SERIES
MICRO HIGH FREQUENCY RF CABLES
U.FL Type
SPECIFICATIONS
For complete specifications see
www.samtec.com?MH113
Outer Contact Material:
Au plated Phosphor Bronze
Center Contact Material:
Au plated Phosphor Bronze (MHX)
Au plated BeCu (SMA)
Insulator Material:
PBT (MHX)
PTFE (SMA)
Operating Temperature:
-40 °C to +90 °C
Voltage Rating:
170 V max
Dielectric Withstanding
Voltage:
200 Vrms
Frequency Range:
0~6 GHz
Impedance:
50
Ω
RoHS Compliant:
Yes
Micro High Frequency RF,
MHF or SMA Bulkhead
(1.13 mm) .045"
Diameter Cable
APPLICATION
–MH1RP
2.4 mm
(2.5 mm MAX)
1.4 mm
(1.55 mm MAX)
MATING SOLUTIONS
• Micro RF PCB
connectors for
Micro High
Frequency RFs
• MH1RP end mates
with RSP-122811-01
(Cycles: 30 max.)
Mating PCB
connectors available
1.13 mm Cable:
Impedance:
50
Ω
Capacitance:
95 pF/meter
Max Attenuation
(cable only):
2 dB @ 1 GHz
Conductor Size:
32 AWG, (1.13 mm) .045" dia.
Conductor Material:
Silver Plated Copper
Conductor Resistance:
0.60
Ω/meter
max
Insulator Diameter:
(0.66 mm) .026"
Insulator Material:
FEP
Shield Material:
Tinned Copper
Jacket Material:
FEP
Jacket Diameter:
(1.13 mm) .045" dia
Bend Radius:
6.8 mm
Jacket Temp Rating:
-40 °C to +90 °C
RoHS Compliant:
Yes
MH113
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
Specify
END OPTIONS
from chart
XXXX = OAL (millimeters)
= 1.18" (30 mm)
–0030
–0050
–0100
–0150
–0300
= 1.97" (50 mm)
(2.69)
.106
DIA
= 3.94" (100 mm)
(8.00)
.315
Hex.
= 5.91" (150 mm)
= 11.81" (300 mm)
END OPTIONS
–MH1RP = MHF1 Type Plug
(3.9 µ" (.1 µm) Gold on Center Contact,
1.9 u" (.05 µm) Gold on Shell)
–01BJ1 = SMA
Straight Bulkhead Jack
–01BJ2 = SMA
Straight Bulkhead Jack,
Reversed Polarity
–01SB1 = SMA
Straight Jack, Sealed Bulkhead
–01SR1 = SMA
Straight Jack, Sealed Bulkhead,
Reversed Polarity
(30 µ" (0.76 µm) Gold on Center Contact,
Gold Flash on Shell)
–SING
=
Single Ended
(End 2 callout)
XXXXXX
=
Stripped & Tinned
(End 2 callout)
Due to technical progress, all designs, specifications and components are subject to change without notice.
B
C
A
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and
tinning options
• Additional end connector
combinations
• Overall lengths
Contact Samtec.
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
EXTRACTION
TOOL
• –MH1RP = RSP-122893-01
*
MH113 Series was
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
previously RF113 Series
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
