F-219
IPBS–105–01–T–S–GP
IPBS–110–01–T–D–GP
(4.19 mm) .165"
IPBS–105–02–T–D

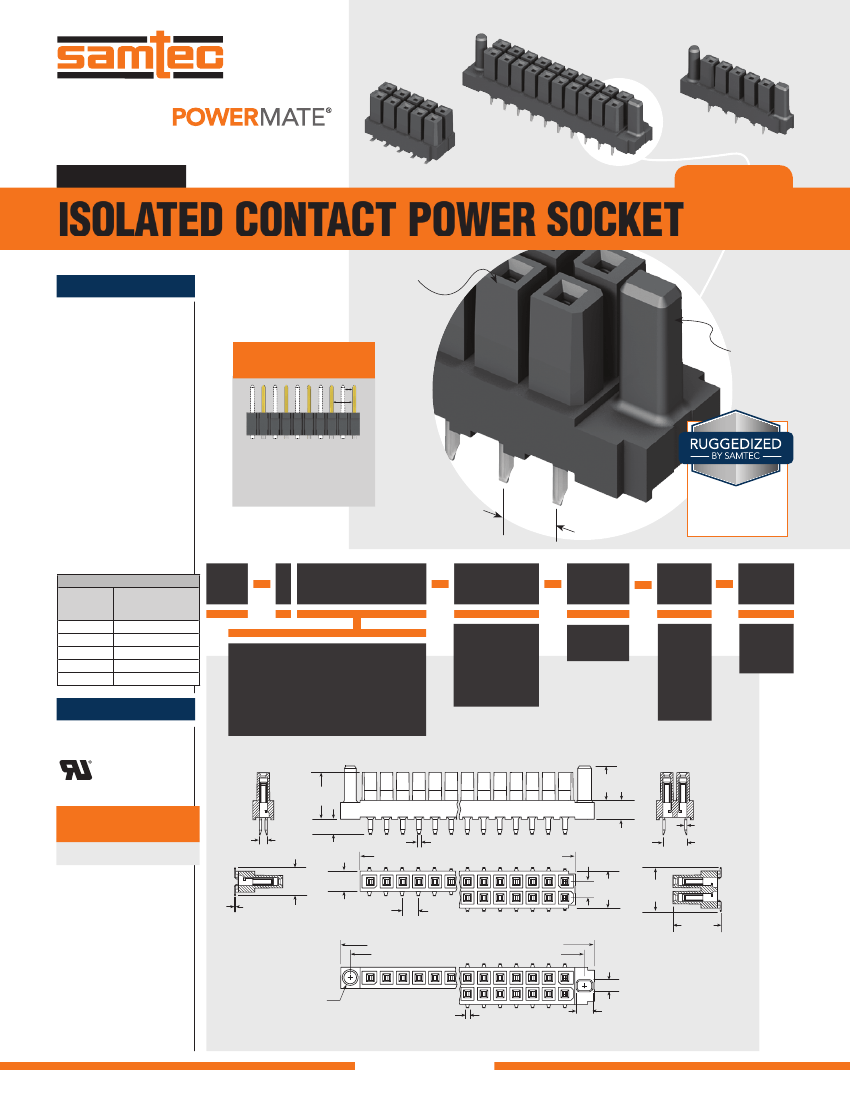

IPBS SERIES
ISOLATED CONTACT POWER SOCKET
SPECIFICATIONS
For complete specifications
see www.samtec.com?IPBS
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
Sn over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C
Insertion Depth:
(6.15 mm) .242" to
(7.24 mm) .285"
Wiping Distance:
(0.38 mm) .015" min.
Voltage Rating:
400 VAC/565 VDC
Standard Creepage:
(4.27 mm) .168" (-S)
(1.68 mm) .066" (-D)
Standard Clearance:
(2.16 mm) .085" (-S)
(1.14 mm) .045" (-D)
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes
IPBT/IPBS
CURRENT
PINS
RATING
POWERED (PER CONTACT)
2
4
6
8
30
10.3 A
8.4 A
7.6 A
7.1 A
6.0 A
Mates with:
IPBT
Individually
shrouded contacts
CREEPAGE
AND CLEARANCE
Optional
polarized
guide posts
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
(4.19 mm)
.165"
pitch
• Individually
shrouded contacts
• Polarized guide
post option
IPBS
1
NO. OF POSITIONS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
OPTION
02, 03, 04, 05, 08, 10, 15
(–D only)
= Standard Power
= Standard Power
Surface Mount
–01
= Matte Tin
–T
–02
= Single
Row
–S
= Guide
Post
–GP
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
02, 03, 04, 05, 08, 10
(–S only)
(Standard sizes)
= Double
Row
–D
FILE NO. E111594
(12.19)
.480
(2.03)
.080
–01–S
(7.37)
.290
(0.25)
.010
–02–S
(3.94) .155
(1.19) .047
No. of Positions x (4.19) .165 + (1.02) .040
(8.89)
.350
(4.95)
.195
(6.22)
.245
(0.59)
.023
ALSO AVAILABLE
(MOQ Required)
• Other sizes
16
(4.19)
.165
(9.60)
.378
15
–01–D
(5.41)
.213
01
02
(4.19)
.165
(11.44)
.451
(12.65)
.498
–02–D
16
No. of Positions x (4.19) .165 + (11.18) .440
No. of Positions x (4.19) .165 + (6.10) .240
(2.54)
.100
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(3.16)
.125
DIA
01
02
(1.02) .040
15
(3.80) .150
–GP OPTION
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
