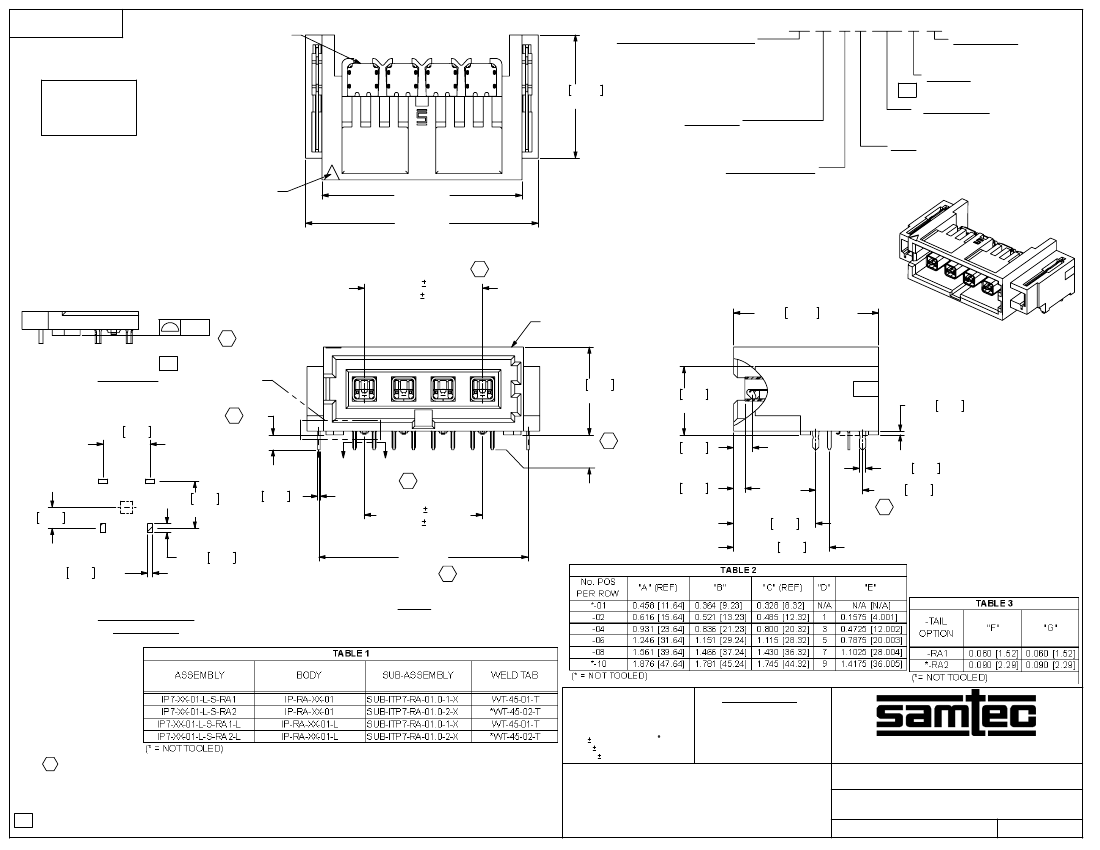

REVISION A
SUB-ITP7-RA-01.0-X-L
(TYP)
DO NOT
SCALE FROM
THIS PRINT
.493 12.52
REF.
No. OF POSITIONS PER ROW
*-01: 1 POSITION
-02: 2 POSITIONS
-04: 4 POSITIONS
-06: 6 POSITIONS
-08: 8 POSITIONS
*-10: 10 POSITIONS
IP7-XX-01-X-X-RAX-X-TR
PACKAGING
-TR: TAPE AND REEL
(SEE NOTE 3)
A
OPTIONS
-L: CABLE LATCH
TAIL OPTIONS
-RA1: .062" THICK BOARD
*-RA2: .093" THICK BOARD
LEAD STYLE
-01: SIGNAL TAIL: SMT
SHIELDS & WT: THRU HOLE
PIN 1
INDICATOR
"C" (REF)
"A" (REF)
PLATING OPTIONS
-L: 10µ" SELECTIVE GOLD ON CONTACTS
MATTE TIN ON SIGNAL TAILS,
SHIELDS & WELD TABS
ROW
-S: SINGLE ROW
(*=NOT TOOLED)
"D" EQ. SPCS @
.1575 .0050
[4.001 0.127]
= "E"
.004
(SEE NOTE 5)
C
C
.580 14.72 (REF)
IP-RA-XX-01
DETAIL 'B'
A
'B'
.351 8.92
(REF)
.078 1.98
REF.
C
"G"
"F"
"A"
.273 6.93
(REF)
.076 1.93
(REF)
.045 1.15
(REF)
.328 8.34
.383 9.72
.015 0.38 (REF)
C
"A"
.078 1.98
REF.
.010 0.25
(REF)
.035 0.89 REF.
"D" EQ. SPCS @
.1575 .0050
[4.001 0.127]
= "E"
"B"
- .007
+.005
C
.025 0.64 (REF) (TYP)
C
.188 4.76
.015 0.38 REF
.008 0.20 REF
C
SECTION "A"-"A"
SCALE 6 : 1
(IP7-04-01-L-S-RAX-X SHOWN)
FIG.1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [MILLIMETERS]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. PARTS TO BE PACKAGED IN TAPE & REEL.
3. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER OR REEL WILL BE SUPPLIED.
FOR QUANTITIES OF 50-124 PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.
4. SUB-ITP7-RA AND WELD TAB: PUSH OUT AND RETENTION FORCE TO BE .5 LBS (2.2N)
5. COPLANARITY MEASUREMENTS TO INCLUDE STANDOFFS AND CENTER CONTACT ONLY.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0030 [.076]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
A
BODY: HIGH TEMP NYLON
SHIELD & WELD TAB: PHOS BRZ.
TERMINAL: COPPER ALLOY
DIELECTRIC: LCP, COLOR: NATURAL (BEIGE)
F:\DWG\MISC\MKTG\IP7-XX-01-X-X-RAX-X-TR-MKT.SLDDRW
75 OHM IP7-RA PLUG ASSEMBLY
BY:
KNOWLDEN
IP7-XX-01-X-X-RAX-X-TR
6/9/2010
SHEET
1
OF
2

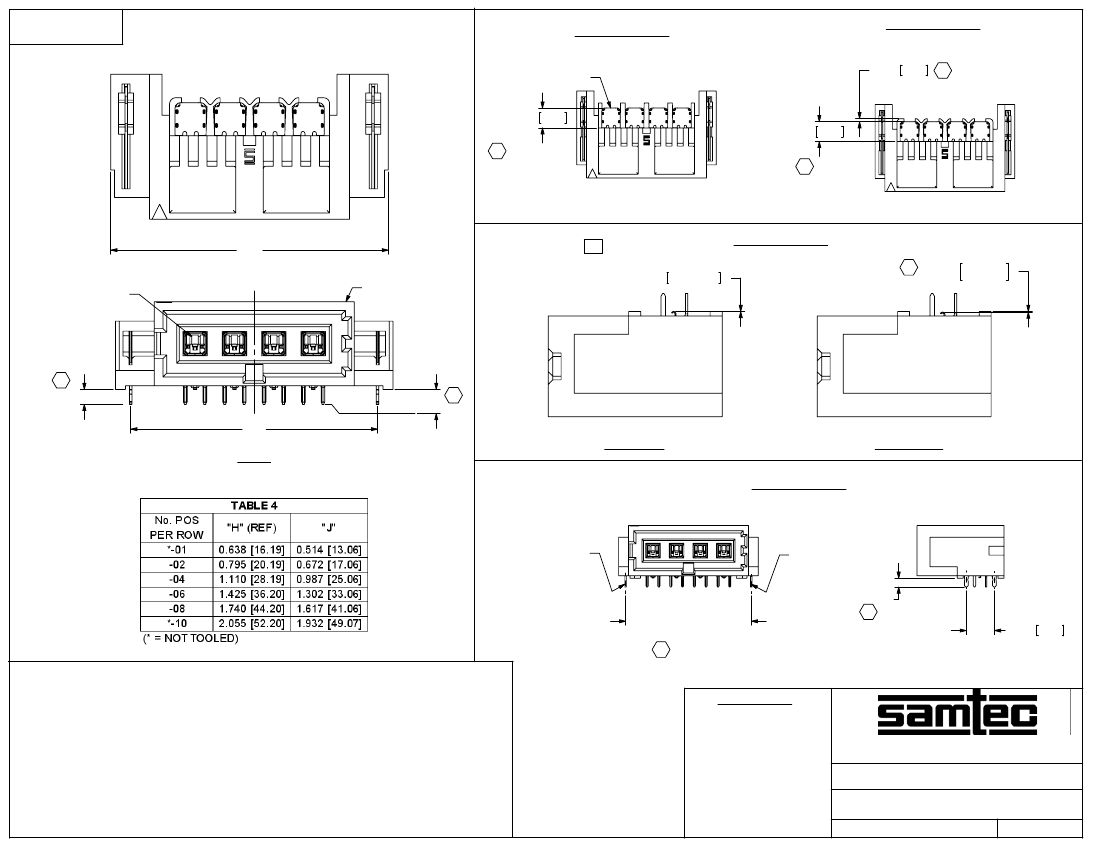

REVISION A
(FILLING ITP7-RA SUB ASSEMBLIES INTO BODY)
SUB-ITP7-RA-01.0-X-L
(TYP)
.132 3.35
PROCESS STEP 1
(HEAT STAKING ITP7-RA SUB ASSEMBLIES INTO BODY)
.020 0.51
PROCESS STEP 2
C
.132 3.35
C
C
"H"
SUB-ITP7-RA-01.0-X-L
(TYP)
C
L
IP-RA-XX-01-L
A
(REPRESS ITP7-RA SUB ASSEMBLIES INTO BODY)
.000±.002 0.00±0.05
PROCESS STEP 3
C
.002
+.000
0.05
0.00
- .022
- 0.56
C
"G"
"J"
"F"
C
PRE-PRESS
PROCESS STEP 4
POST-PRESS
(IP7-04-01-L-S-RAX-L SHOWN)
(SAME AS FIG. 1, EXCEPT AS SHOWN)
FIG.2
(FILL WT-45-XX-T WELD TABS)
WT-45-XX-T
WT-45-XX-T
"B" (STD, NO OPTION)
"J" (-L OPTION)
C
"F"
.188 4.76
C
F:\DWG\MISC\MKTG\IP7-XX-01-X-X-RAX-X-TR-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
75 OHM IP7-RA PLUG ASSEMBLY
BY:
KNOWLDEN
IP7-XX-01-X-X-RAX-X-TR
6/9/2010
SHEET
2
OF
2
