RP180-15-3.3-QD datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The power connector> The ac power input module> RP180-15-3.3-QD

Preview

RP180-15-3.3-QD: DescriptionAC power input module PWR ENT RCPT IEC320C14PNL15A3.3NF; CategoryThe connector The power connector The ac power input module; File Size587KB，2 Pages; ManufacturerAstrodyne TDI; Environmental Compliance

Download Datasheet Parametric Compare View All

RP180-15-3.3-QD Overview

AC power input module PWR ENT RCPT IEC320C14PNL15A3.3NF

RP180-15-3.3-QD Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
Product Category	AC power input module
Shipping restrictions	Mouser does not currently sell this product.
product	Inlets
filter	Filtered
melt	No
switch function	Not Switched
Current rating	15 A
Voltage rating	250 V
Installation style	Panel Mount
Termination type	Quick Connect
filter type	IEC Inlets
Encapsulation	Bulk
high	23 mm
length	41 mm
width	28 mm
Maximum operating temperature	+ 40 C
Minimum operating temperature	- 25 C

Preview

Download Datasheet

View All

RP

RP180 Series - Medical Grade

RP180

MEDICAL GRADE FILTER

IEC INLET FROM 15 TO 20A

ROHS COMPLIANT

RADIUS POWER

Your Power Partner

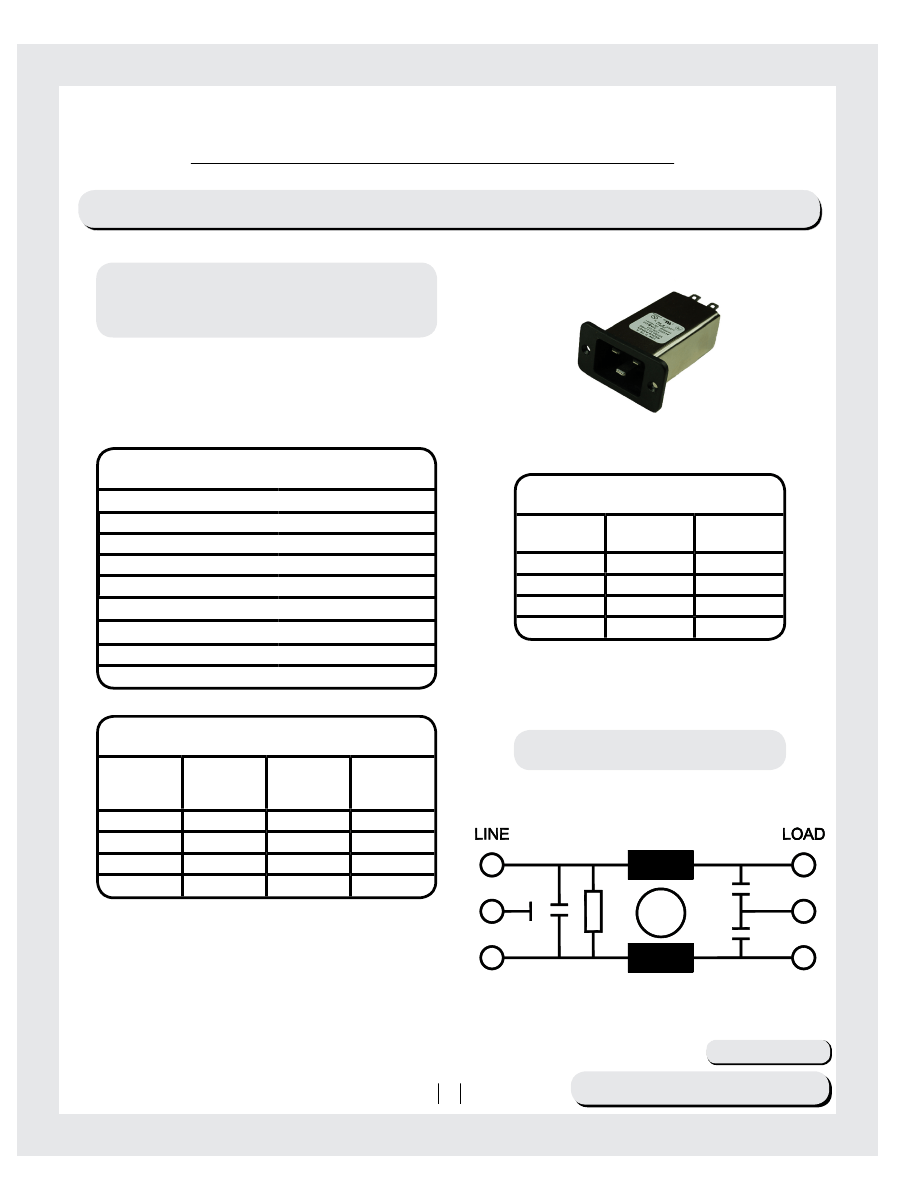

IEC Inlet Single Stage Power Line Filter

SPECIFICATIONS

Operating Freq.

Max. Operating Voltage

Ambient Temperature

Climatic Category

Hipot Rating (L-G)

Plastic Mtg Force

Terminals (-T)

Safety Approvals

Typ. Weight, LBS (KG)

:

50/60Hz

250V +10%

-25 to 40C

25/100/21

2121VDC

18 LBS

QD: 0.25 Tabs

cURus, EN60939

0.2 (0.1)

LEAKAGE CURRENT

Y-cap, nF

0

.22

.47

1

mA,

120V/60Hz

0

0.02

0.04

0.09

mA,

250V/60Hz

0

0.04

0.08

0.18

PART NUMBER/ ORDERING

RP180

-X

(Amps)

15

20

-Y

(Ycap, nF)

0

.22

.47

1

Note:

Use any combination of -Y with any -X (Amps) rating

e.g. RP180-6-1-QD (6Amps with 1nF Ycap)

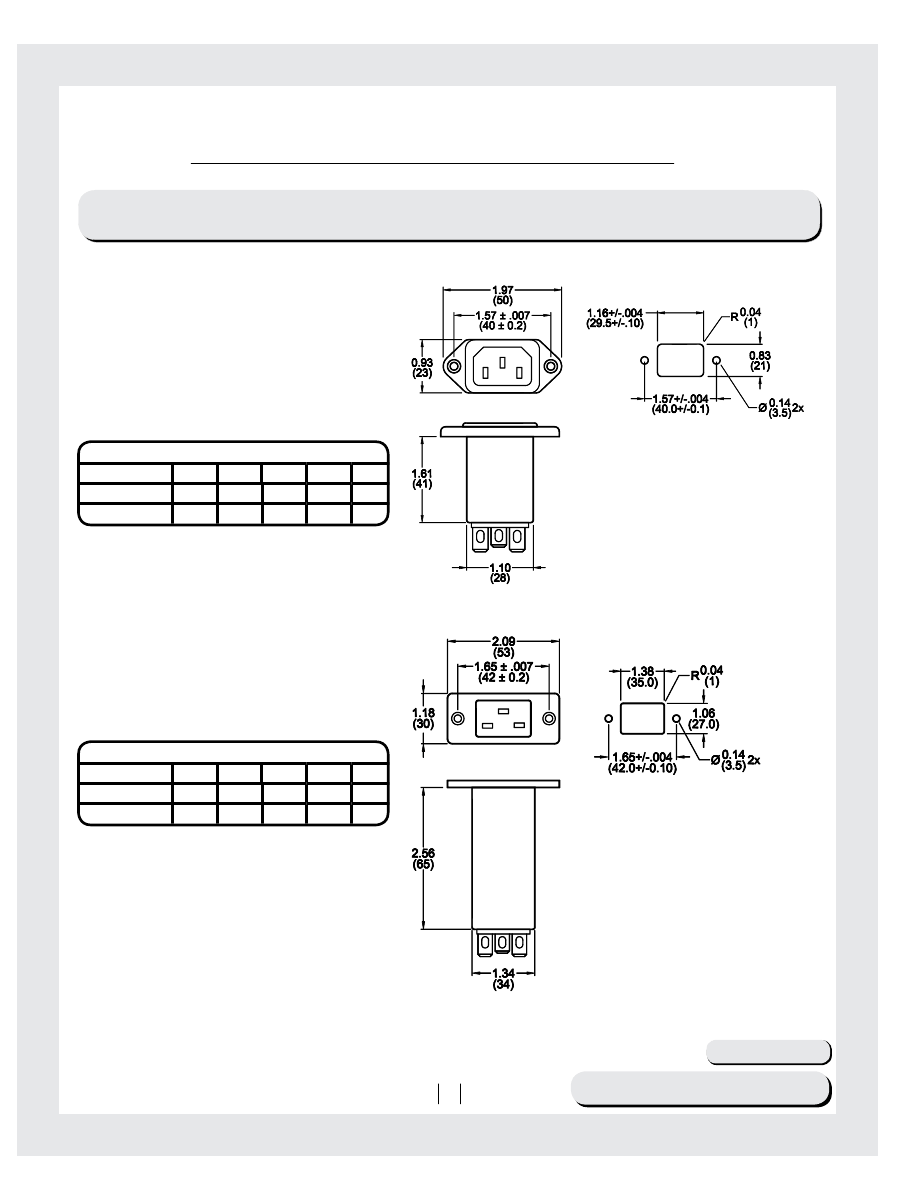

SCHEMATIC

-T

QD

www.radiuspower.com

Reference purposes only.

Specifications are subject to change.

Consult factory to verify specifications.

Engineering Assistance: engg@radiuspower.com

Sales:sales@radiuspower.com

195

RP180-15-3.3-QD Related Products

	RP180-15-3.3-QD	RP180-15-0.1-QD	RP180-20-2.2-QD	RP180-20-0.1-QD	RP180-15-0-QD	RP180-20-0-QD
Description	AC power input module PWR ENT RCPT IEC320C14PNL15A3.3NF	AC Power Entry Modules PWR ENT RCPT IEC320C14PNL15A0.1NF	AC Power Entry Modules PWR ENT RCPT IEC320C20PNL20A2.2NF	AC Power Entry Modules PWR ENT RCPT IEC320C20PNL20A0.1NF	AC Power Entry Modules PWR ENT RCPT IEC320C14 PNL 15A0NF	AC power input module PWR ENT RCPT IEC320C20 PNL 20A0NF
Product Category	AC power input module	AC Power Entry Modules	AC Power Entry Modules	AC Power Entry Modules	AC Power Entry Modules	AC power input module
Product Attribute	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value	-
Manufacturer	-	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	-
RoHS	-	Details	Details	Details	Details	-
Product	-	Inlets	Inlets	Inlets	Inlets	-
Filtered	-	Filtered	Filtered	Filtered	Filtered	-
Fused	-	No	No	No	No	-
Switch Function	-	Not Switched	Not Switched	Not Switched	Not Switched	-
Current Rating	-	15 A	20 A	20 A	15 A	-
Voltage Rating	-	250 V	250 V	250 V	250 V	-
Mounting Style	-	Panel	Panel	Panel	Panel	-
Termination Style	-	Quick Connect	Quick Connect	Quick Connect	Quick Connect	-
Filter Type	-	IEC Inlets	IEC Inlets	IEC Inlets	IEC Inlets	-
Packaging	-	Bulk	Bulk	Bulk	Bulk	-
Maximum Operating Temperature	-	+ 40 C	+ 40 C	+ 40 C	+ 40 C	-
Minimum Operating Temperature	-	- 25 C	- 25 C	- 25 C	- 25 C	-
