DC/DC converter with an extended input and output range.
The unique 4-switch, single inductor architecture provides
low noise and seamless operation from input voltages
above, below or equal to the output voltage.
With an input range of 2.7V to 15V, the LTC3112 is well-
suited for a wide variety of single or multiple cell battery,
backup capacitor or wall adapter source applications. Low
R
DS(ON)
internal N-Channel MOSFET switches provide
highly efficient operation in applications with higher load
current requirements.
The LTC3112 features selectable PWM or Burst Mode
operation, an easily synchronized oscillator and output
disconnect in shutdown. An output current monitor circuit
allows the load current to be controlled or measured. Other
features include <1µA shutdown current, short circuit
protection, soft-start, current limit and thermal shutdown.
The LTC3112 is offered in both a 16-pin (4mm
×
5mm
×
0.75mm) DFN and 20-pin TSSOP packages.
L,
LT, LTC, LTM, Linear Technology Burst Mode, LTSpice and the Linear logo are registered
trademarks and No R
SENSE
and PowerPath are trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners. Protected by U.S. Patents,
including 5481178.
n
n
n
n
n
n
n
n
n
n
Regulated Output with V
IN
Above, Below or Equal to V
OUT
2.7V to 15V Input Voltage Range
2.5V to 14V Output Voltage Range
2.5A Continuous Output Current: V
IN
≥ 5V,
V
OUT
= 5V, PWM Mode
Output Current Monitor
Up to 95% Efficiency
750kHz Switching Frequency, Synchronizable
Between 300kHz and 1.5MHz
Internal N-Channel MOSFETs
Selectable Burst Mode
®
Operation, I
Q
= 50µA
Shutdown Current < 1µA
Overvoltage Protection
Output Disconnect in Shutdown
Internal Soft-Start
Small, Thermally Enhanced 16-Lead (4mm
×
5mm
×
0.75mm) DFN and 20-Lead TSSOP Package
APPLICATIONS
n
n
n
n
n
n
n
3.3V or 5V from 1, 2 or 3 Li-Ion, Backup Capacitor Stack
Hand Held Inventory Terminals
RF Transmitters
12V Synchronous Boost Converter
Multiple Power Input Systems
LED Lighting with Current Regulation
12V Lead Acid Battery to 12V

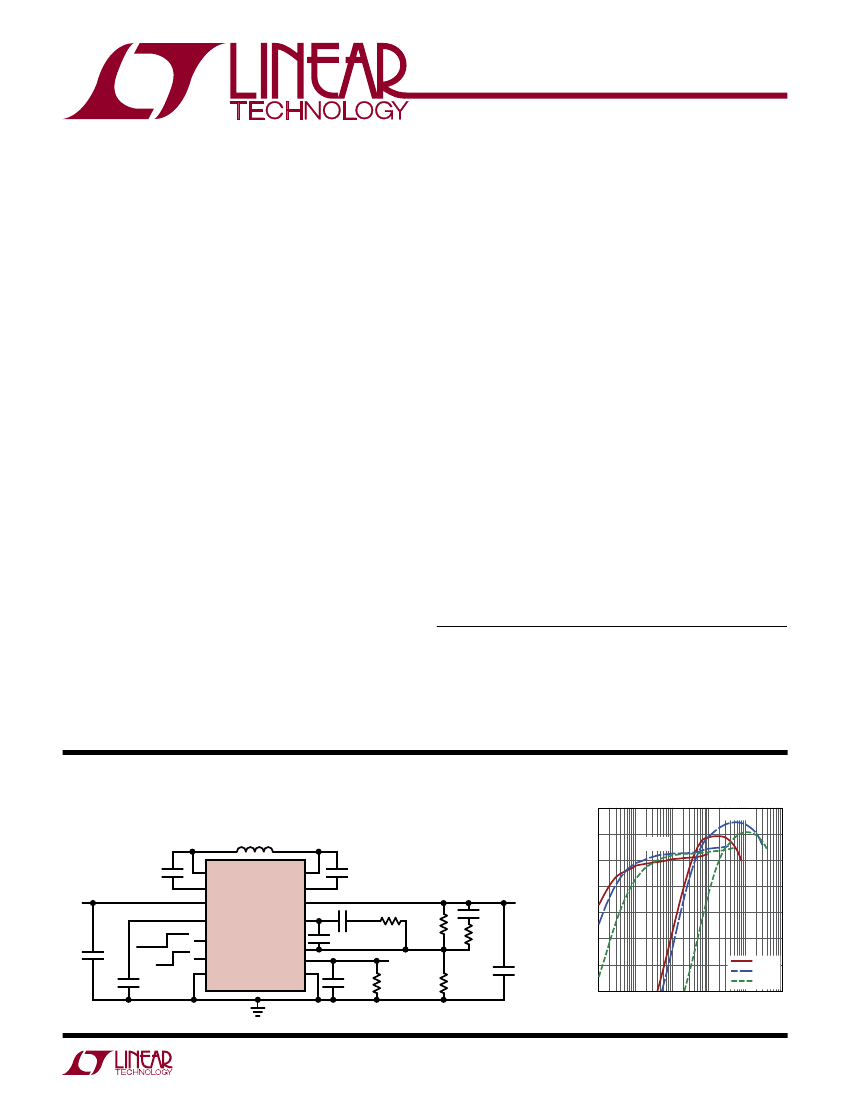

TYPICAL APPLICATION
5V, 750kHz Wide Input Voltage Range Buck-Boost Regulator
4.7µH
EFFICIENCY (%)
0.1µF
V
IN
2.7V TO 15V
SW1
BST1
V
IN
V
CC
BURST PWM
10µF
OFF ON
1µF
PWM/SYNC
RUN
GND
SW2
BST2
V
OUT
LTC3112 COMP
FB
0.1µF
5V/2.5A, V
IN
> 5V
V
OUT
47pF
10k
47µF
158k
3112 TA01
Efficiency at 5V
OUT
100
90
80
70
60
50
40
30
0.0001
0.001
0.01
0.1
LOAD CURRENT (A)
1
3112 TA02
PWM
BURST
680pF 33k
845k
22pF
TO ADC
1V PER AMP
42.2k
I
OUT
OVP
100pF
2.7V
IN
5.0V
IN
12V
IN
3112fd
For more information
www.linear.com/LTC3112
1
LTC3112
ABSOLUTE MAXIMUM RATINGS
(Notes 1, 3)
V
IN
Voltage ................................................. – 0.3V to 16V
V
OUT
Voltage .............................................. – 0.3V to 15V
SW1 Voltage (Note 4) ................... – 0.3V to (V
IN
+ 0.3V)
SW2 Voltage (Note 4) ................ – 0.3V to (V
OUT
+ 0.3V)
V
BST1
Voltage................... (V
SW1
– 0.3V) to (V
SW1
+ 6V)
V
BST2
Voltage...................(V
SW2
– 0.3V) to (V
SW2
+ 6V)
RUN Voltage............................................... – 0.3V to 16V
PWM/SYNC, V
CC
, I
OUT
Voltage ....................– 0.3V to 6V
FB, COMP, OVP Voltage ...............................– 0.3V to 6V
Operating Junction Temperature Range (Notes 2, 6)
............................................................... –55°C to 150°C
Storage Temperature Range ..................– 65°C to 150°C
Lead Temperature (Soldering, 10sec) TSSOP ....... 300°C
PIN CONFIGURATION
TOP VIEW
TOP VIEW
COMP
FB
OVP
V
IN
V
IN
RUN
I
OUT
V
OUT
1
2
3
4
5
6
7
8
17
GND
16 PWM/SYNC
15 V
CC
14 BST1
13 SW1
12 SW1
11 BST2
10 SW2
9
SW2
GND
COMP
FB
OVP
V
IN
V
IN
RUN
I
OUT
V
OUT
1
2
3
4
5
6
7
8
9
21
GND
20 GND
19 PWM/SYNC
18 V
CC
17 BST1
16 SW1
15 SW1
14 BST2
13 SW2
12 SW2
11 GND
DHD16 PACKAGE
16-LEAD (5mm
×
4mm) PLASTIC DFN
T
JMAX
=150 °C,
q
JA
= 43°C/W,
q
JC
= 4°C/W
EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
GND 10
FE PACKAGE
20-LEAD PLASTIC TSSOP
T
JMAX
= 150°C,
q
JA
= 38°C/W,
q
JC
= 4°C/W
EXPOSED PAD (PIN 21) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION
LEAD FREE FINISH
LTC3112EDHD#PBF
LTC3112IDHD#PBF
LTC3112HDHD#PBF
LTC3112MPDHD#PBF
LTC3112EFE#PBF
LTC3112IFE#PBF
LTC3112HFE#PBF
LTC3112MPFE#PBF
TAPE AND REEL
LTC3112EDHD#TRPBF
LTC3112IDHD#TRPBF
LTC3112HDHD#TRPBF
http://www.linear.com/product/LTC3112#orderinfo
PART MARKING*
3112
3112
3112
3112
3112FE
3112FE
3112FE
3112FE
PACKAGE DESCRIPTION
16-Lead (5mm
×
4mm) Plastic DFN
16-Lead (5mm
×
4mm) Plastic DFN
16-Lead (5mm
×
4mm) Plastic DFN
16-Lead (5mm
×
4mm) Plastic DFN
20-Lead Plastic TSSOP
20-Lead Plastic TSSOP
20-Lead Plastic TSSOP
20-Lead Plastic TSSOP
TEMPERATURE RANGE
–40°C to 125°C
–40°C to 125°C
–40°C to 150°C
–55°C to 150°C
–40°C to 125°C
–40°C to 125°C
–40°C to 150°C
–55°C to 150°C
LTC3112MPDHD#TRPBF
LTC3112EFE#TRPBF
LTC3112IFE#TRPBF
LTC3112HFE#TRPBF
LTC3112MPFE#TRPBF
Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Consult LTC Marketing for information on non-standard lead based finish parts.
For more information on lead free part marking, go to:
http://www.linear.com/leadfree/
For more information on tape and reel specifications, go to:
http://www.linear.com/tapeandreel/.
Some packages are available in 500 unit reels through
designated sales channels with #TRMPBF suffix.
2
3112fd
For more information
www.linear.com/LTC3112
LTC3112
ELECTRICAL CHARACTERISTICS
PARAMETER
Input Operating Range
V
IN
UVLO Threshold
V
IN
UVLO Hysteresis
V
CC
UVLO Threshold
V
CC
UVLO Hysteresis
Output Voltage Adjust Range
INTV
CC
Clamp Voltage
V
CC
Voltage in Dropout
Quiescent Current – Burst Mode Operation
Quiescent Current – Shutdown
Feedback Voltage = PWM Mode Operation
Feedback Leakage
OVP Threshold
OVP Hysteresis
OVP Leakage
NMOS Switch Leakage
NMOS Switch On Resistance
NMOS Switch On Resistance
NMOS Switch On Resistance
Input Current Limit
Peak Current Limit
Burst Current Limit
Burst Zero Current Threshold
Reverse Current Limit
I
OUT
Accuracy (Note 5)
Maximum Duty Cycle
Minimum Duty Cycle
Frequency
SYNC Frequency Range (Note 7)
PWM/SYNC Threshold
RUN Threshold
V
CC
= 2.7V or 5V
V
IN
= 2.7V or 15V
V
FB
= 0.8V
Rising Threshold
Measured at OVP Pin
OVP = 0.8V
Switch A, B, C, D, V
IN
= V
OUT
= 12V
Switch A
Switch B, C
Switch D
L = 4.7µH
L = 4.7µH
L = 4.7µH
L = 4.7µH
L = 4.7µH
SW2 to V
OUT
Current = 1.5A
SW2 to V
OUT
Current = 1.0A
SW2 to V
OUT
Current = 0.5A
Buck (Switch A On)
Boost (Switch C On)
Buck (Switch A On)
Boost (Switch C On)
PWM/SYNC = 5V, V
IN
= V
OUT
= 12V
l
l
l
l
l
l
l
l
l
l
The
l
denotes the specifications which apply over the specified operating
junction temperature range, otherwise specifications are at T
A
= 25°C (Note 2). V
IN
= V
OUT
= PWM/SYNC = RUN = 5V unless otherwise noted.
CONDITIONS
0°C to 150°C
–55°C to 0°C
Rising
Rising
l
MIN
2.7
2.85
1.75
2.2
2.5
3.8
TYP
MAX
15
15
UNITS
V
V
V
mV
V
mV
V
V
V
µA
µA
V
nA
V
mV
nA
µA
mΩ
mΩ
mΩ
2.3
300
2.35
150
2.7
2.5
14
V
IN
= 5V or 15V
V
IN
= 2.7V, I
VCC
= 10mA
V
FB
= 1V, V
PWM/SYNC
= 0V
RUN = V
OUT
= V
CC
= 0V, Not Including Switch Leakage
l
4.2
2.6
50
0
4.6
75
1
0.818
50
0.88
100
10
l
0.778
0.78
0.8
0
0.83
20
0
1
40
50
60
4.5
7
0.7
–0.5
32
20
8
80
75
5
675
300
0.5
0.35
6
10
1.3
0.3
–1
36
24
12
87
82
8.5
12
2
–1.5
40
28
16
A
A
A
A
A
µA
µA
µA
%
%
0
12
750
0.9
0.75
825
1500
1.5
1.5
%
%
kHz
kHz
V
V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings may
cause permanent damage to the device. Exposure to any Absolute Maximum
Rating condition for extended periods may affect device reliability and lifetime.
Note 2:
The LTC3112 is tested under pulsed load conditions such that T
J
≈ T
A
.
The LTC3112E is guaranteed to meet specifications from 0°C to 85°C junction
temperature. Specifications over the –40°C to 125°C operating junction
temperature range are assured by design, characterization and correlation with
statistical process controls. The LTC3112I is guaranteed to meet specifications
over the –40°C to 125°C operating junction temperature, the LTC3112H is
guaranteed to meet specifications over the –40°C to 150°C operating junction
temperature range and the LTC3112MP is guaranteed and tested to meet
specifications over the full –55°C to 150°C operating junction temperature
range. High junction temperatures degrade operating lifetimes; operating
lifetime is derated for temperature greater than 125°C. Note that the maximum
ambient temperature consistent with these specifications is determined by
specific operating conditions in conjunction with board layout, the rated
package thermal impedance and other environmental factors.
3112fd
For more information
www.linear.com/LTC3112
3
LTC3112
ELECTRICAL CHARACTERISTICS
Note 3:
This IC includes overtemperature protection that is intended
to protect the device during momentary overload conditions. Junction
temperature will exceed 150°C when overtemperature protection is active.
Continuous operation above the specified maximum operating junction
temperature may impair device reliability.
Note 4:
Voltage transients on the switch pins beyond the DC limit specified
in the Absolute Maximum Ratings, are non disruptive to normal operation
when using good layout practices, as shown on the demo board or
described in the data sheet and application notes.
Note 5:
I
OUT
current is tested in a non-switching DC state. In a switching
environment I
OUT
accuracy may exhibit variation with factors such as
switching frequency, load current, input/output voltage, and temperature.
See typical performance characteristic curves for predicted variation.
Note 6:
The junction temperature (T
J
, in °C) is calculated from the ambient
temperature (T
A
, in °C) and power dissipation (P
D
, in Watts) according to
the formula:
T
J
= T
A
+ (P
D
•
q
JA
), where
q
JA
(in °C/W) is the package thermal
impedance.
Note 7:
SYNC frequency range is tested with a square wave. Operation
with 100ns minimum high or low times is assured by design.
Preface: Circuits are profound and life is even more profound and wonderful. The following texts are just my daily experience, which can serve as a starting point. Welcome everyone to add your own vie...
Double 11 is here again~~ Today is the day, did you guys buy anything? ? ? Guan Zai said that I really held back this year, and it was the Double 11 that I spent the least in all these years, but I st...
Has anyone used the gtm900-B with its own protocol stack? Why did it automatically disconnect after about an hour of using AT commands to access the GPRS network? ? ?...
I am a newbie who has just come into contact with single-chip microcomputers and professional software engineering. Recently, I want to write a software, and one of the functional requirements is: I h...
My LG773N suddenly went black during use. Phenomenon: the orange light flashed twice, and the green light flashed once, and it kept flashing like this. When testing the power output +15V, the voltage ...
China's new energy vehicles are in a transition period from research and development to real industrial development. In 2012, with the intensive launch of new energy vehicle policy planning, the de...[Details]
Microcontrollers (MCUs), which are widely used in automotive electronics, are rapidly facing time and cost pressures. The main advantage of using MCUs has always been to create high-level system in...[Details]
Remote keyless entry (RKE) systems have become popular with users, with more than 80% of new cars in North America and more than 70% in Europe equipped with RKE systems. In addition to the obvious ...[Details]
With the continuous improvement of the requirements of intelligent building security systems and the continuous improvement of people's safety awareness, indoor anti-theft has gradually attracted peop...[Details]
From the PIC16F946 datasheet, we know that there are two ways to write values to the LCD for display:
1. Directly write the value to LCDDATA1~LCDDATA23
2. Use disconnect t...[Details]
The automotive lighting and signal control system is responsible for controlling the vehicle's lighting, signal lights, electric horns, reversing and brake buzzers. Traditional automotive lighting...[Details]
The typical fault troubleshooting listed below is for reference of maintenance personnel.
When the computer is turned on, the indicator light is off and there is no screen display
Mainte...[Details]
VP2188 is a color STN LCD module produced by Jingdian Pengyuan. This module is a dot matrix transmissive color STN display screen with a color scale of 65 k colors and white LED backlight. Its core...[Details]
Experimental tasks
A DS18B20 is used to form a temperature measurement system. The temperature measurement accuracy reaches 0.1 degrees. The temperature range is between -20 degrees and +50 de...[Details]
12v Lead Acid batteries used in trucks, cars, RVs and uninterruptible power supplies are usually rated at 12V. This circuit monitors the battery, the charge and discharge curves, gives the cu...[Details]
Among the many members of the single-chip microcomputer family, the MCS-51 series of single-chip microcomputers has occupied the main market of industrial measurement and control and automation eng...[Details]
From the previous section, we have learned that the timer/counter in the microcontroller can have multiple uses, so how can I make them work for the purpose I need? This requires setting the timer/...[Details]
OC faults may be the most frequent and the most frequent of all faults in the inverter. They alarm during the startup process, during the shutdown process, during operation, and even when powered o...[Details]
In 2012, more than half of the cars in the European, Japanese and American car markets will be equipped with color displays, navigation systems, satellite communications and other in-vehicle infota...[Details]
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guangzho...[Details]
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
