CUT355FF/A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> Switching power supply> CUT355FF/A

CUT355FF/A: DescriptionSwitching power supply 34.5W 5V 3A/15V 1A /-15V 0.65A Cover; CategoryPower/power management Switching power supply; File Size595KB，3 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

CUT355FF/A Overview

Switching power supply 34.5W 5V 3A/15V 1A /-15V 0.65A Cover

CUT355FF/A Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
Product Category	switching power supply
Output voltage—channel 1	5 VDC
Output voltage—channel 2	15 VDC
Number of outputs	3 Output
Output Power	15 W, 19.5 W, 19.5 W
open frame/closed	Enclosed
Input voltage	85 VAC to 265 VAC
Output current—channel 1	3 A
Output current—channel 2	1 A
industry	Medical, Commercial
Insulation voltage	3 kVrms
Installation style	Chassis
length	125 mm
width	63.1 mm
high	36 mm
series	CUT35
efficiency	82 %
input frequency	47 Hz to 63 Hz
type	Power Supply
load regulation	Regulated
Output current—channel	0.65 A
Output voltage—channel 3	- 15 VDC
Factory packaging quantity	1

Preview

Download Datasheet

View All

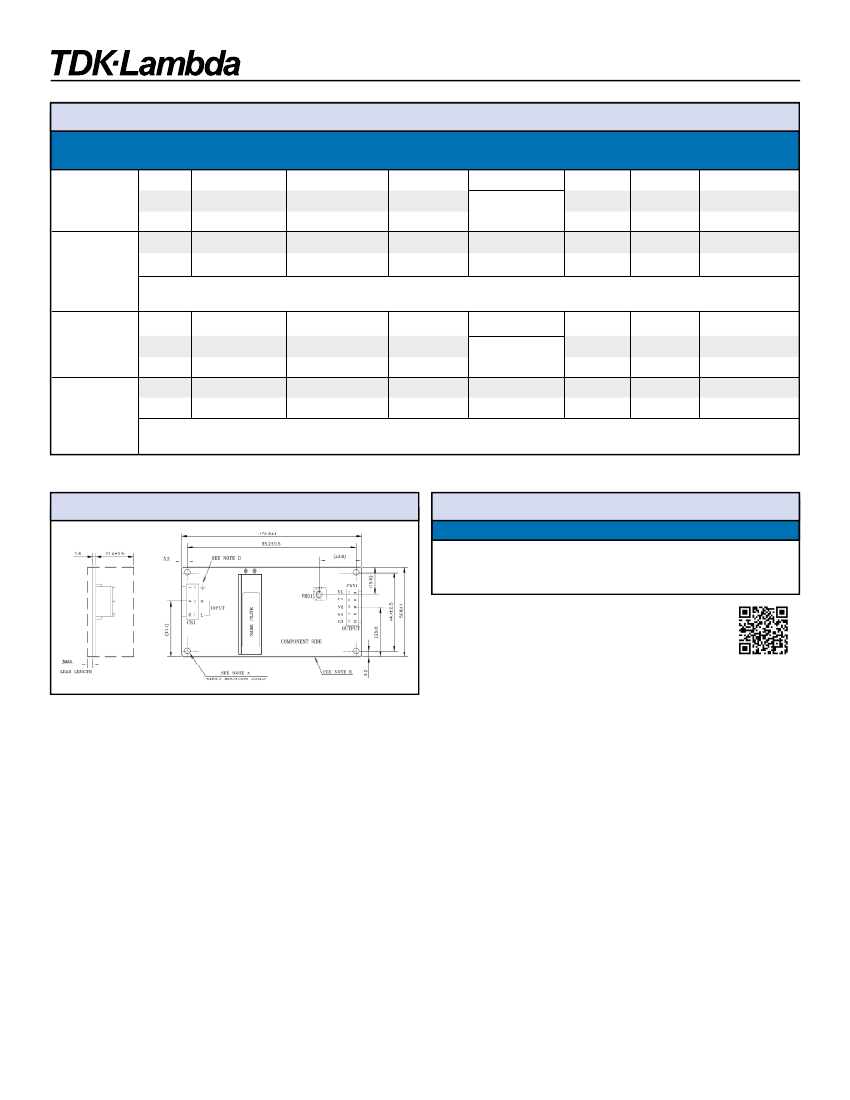

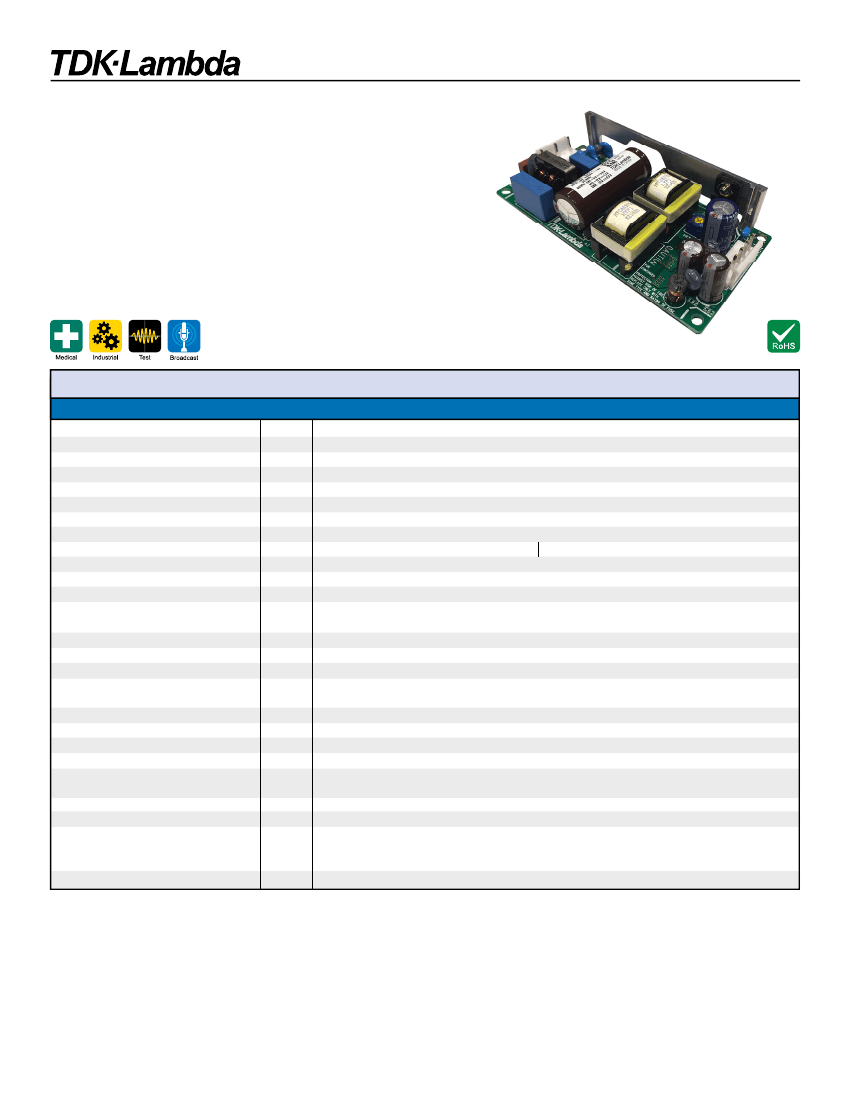

CUT35 Series

Dual or Triple Output 35W Low Proﬁle Power Supplies

Features



2 x 4 x 1.06” footprint



Output 1 isolated from outputs 2 & 3



No minimum loading



Medical & ITE Certiﬁcations



Three year warranty

Key Market Segments & Applications

Speciﬁcations

Model

AC Input Voltage (1)

Input Frequency

DC Input Voltage

Inrush Current (cold start)

Power Factor

Input Current (100 / 200VAC)

Temperature Coeﬃcient (-20 to +70°C)

Overcurrent Protection

Overvoltage Protection (2)

Eﬃciency (Typical at 200VAC Input)

Hold Up Time (115 / 230V input)

Leakage Current (265VAC 50Hz)

Operating Temperature (3)

Storage Temperature

Operating Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Immunity

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Weight (Typ)

Size (WxLxH)

Warranty

VAC

VDC

in (mm)

yrs

CUT35-522

CUT35-5FF

85 - 265VAC

47 - 63Hz

88 - 370VDC (No safety certiﬁcation)

13A at 100VAC, 32A at 230VAC

Meets EN61000-3-2

1 / 0.5

V1: <0.02%/°C, V2 & 3 <0.03%/°C

> 105%

V1: 5.7-7.0, V2: 13.8 - 16.8V

V1: 5.7-7.0, V2: 17.2 - 21.0V

81%

82%

20ms

<0.3mA

Open Frame & /B:-20 to +70°C. Derate linearly to 70% load from +55 to +70°C

Cover:-20 to +60°C. Derate linearly to 70% load from +45 to +60°C

-30 to +85°C

5 - 95% RH

Convection

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC,

V1 to V2 / V3 500VAC for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC

10 - 55Hz: 19.6m/s

constant sweep 1 min X, Y, Z for 1 hour

< 196.1 m/s

(20G)

IEC61000-4-2 (lv 3, 4), -3 (lv3), -4 (lv 4), -5 (lv3, 4), -6 (lv 3), -8 (lv 4), -11

UL60950-1, CSA60950-1-07 (cTUVus), EN60950-1, CE Mark

ANSI/AAMI ES60601-1, CSA 60601-1 (cTUVus), IEC/EN60601-1 (2 x MOOP)

EN55011-B, FCC-B

Open frame: 90, Baseplate: 136, Cover: 175

Open Frame: 2 x 4 x 1.06”” (50.8 x 101.6 x 27)

Baseplate: 2.22 x 4.8 x 1.1”” (56.5 x 122 x 28)

Cover: 2.48 x 4.92 x 1.42”” (63.1 x 125 x 36)

Three Years

(1) Derate linearly to 60% load from 100VAC to 85VAC input when ambient is <-10°C

(2) Cycle AC to reset

(3) See derating curves in installation manual for all mounting orientatons

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

CUT355FF/A Related Products

	CUT355FF/A	CUT355FF/B	CUT35522/B
Description	Switching power supply 34.5W 5V 3A/15V 1A /-15V 0.65A Cover	Switching power supply 34.5W 5V 3A/15V 1A /-15V 0.65A BP	Switching power supply 35.4W 5V 3A/12V 1.2A /-12V 0.85A BP
Maker	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
Product Category	switching power supply	switching power supply	switching power supply
Output voltage—channel 1	5 VDC	5 VDC	5 VDC
Output voltage—channel 2	15 VDC	15 VDC	12 VDC
Number of outputs	3 Output	3 Output	3 Output
Output Power	15 W, 19.5 W, 19.5 W	15 W, 19.5 W, 19.5 W	15 W, 20.4 W, 20.4 W
open frame/closed	Enclosed	Open Frame	Open Frame
Input voltage	85 VAC to 265 VAC	85 VAC to 265 VAC	85 VAC to 265 VAC
Output current—channel 1	3 A	3 A	3 A
Output current—channel 2	1 A	1 A	1.2 A
industry	Medical, Commercial	Medical, Commercial	Medical, Commercial
Insulation voltage	3 kVrms	3 kVrms	3 kVrms
Installation style	Chassis	Chassis	Chassis
length	125 mm	122 mm	122 mm
width	63.1 mm	56.5 mm	56.5 mm
high	36 mm	56.5 mm	28 mm
series	CUT35	CUT35	CUT35
efficiency	82 %	82 %	81 %
input frequency	47 Hz to 63 Hz	47 Hz to 63 Hz	47 Hz to 63 Hz
type	Power Supply	Power Supply	Power Supply
load regulation	Regulated	Regulated	Regulated
Output current—channel	0.65 A	0.65 A	0.85 A
Output voltage—channel 3	- 15 VDC	- 15 VDC	- 12 VDC
Factory packaging quantity	1	1	1
