16N-50-7-30/133NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 16N-50-7-30/133NE

Preview

16N-50-7-30/133NE: DescriptionCABLE TERMINATED, MALE, N CONNECTOR, CRIMP SOLDER, PLUG, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

16N-50-7-30/133NE Overview

CABLE TERMINATED, MALE, N CONNECTOR, CRIMP SOLDER, PLUG, ROHS COMPLIANT

16N-50-7-30/133NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	STANDARDS: IEC 61169-16, MIL-STD-348A/304, APPLICABLE CABLE: RG 213/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Manufacturer's serial number	N
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

DATA SHEET

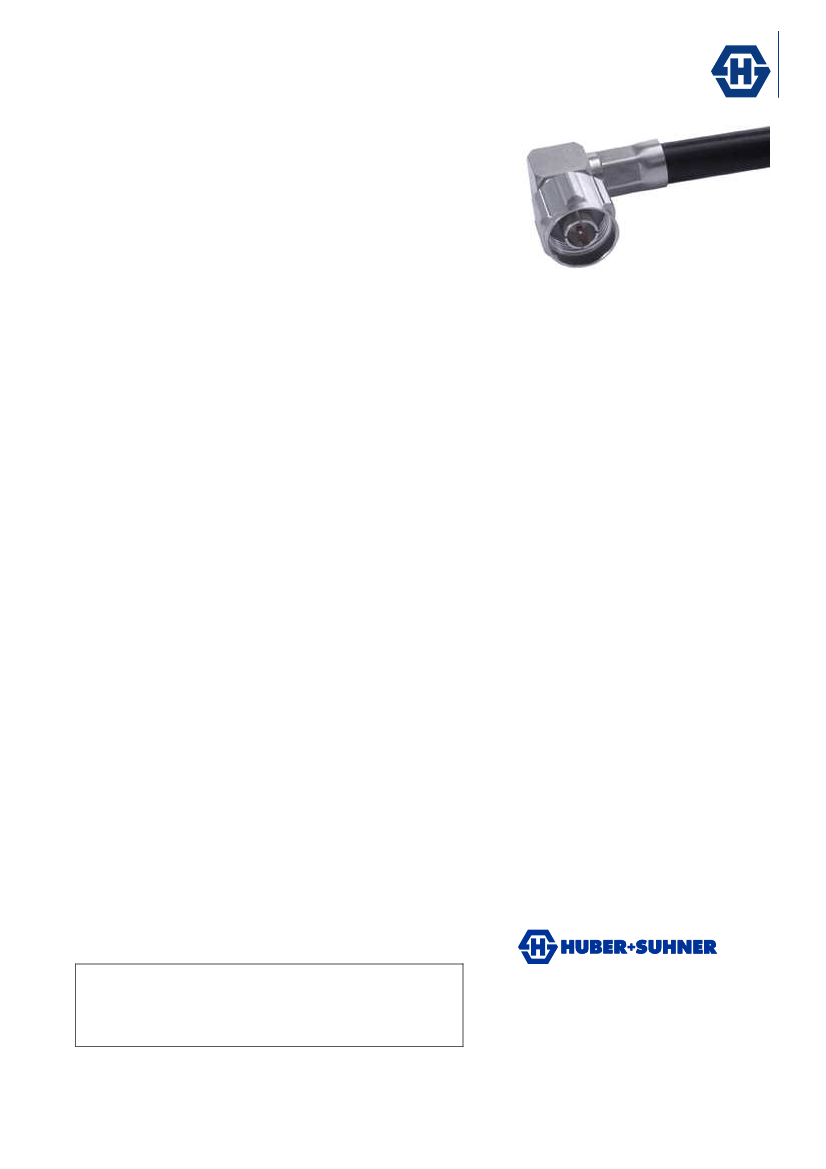

Coaxial Cable Connector: 16_N-50-7-30/133_N

Description

Rev.: B

Right angle cable plug

Interface Standards

IEC 61169-16_MIL-STD-348A/304_CECC 22210

Technical Data

Electrical Data

Impedance

Interface frequency max.

50

Ω

11 GHz

soldered

crimped

0.0458 kg

-65 °C to 165 °C

compliant

Material

Brass

PFA / PTFE

Brass

MVQ (Silicone Rubber)

Copper

DOU-00008037

DOU-00005992

DOC-0000179199

16_N-50-7-30/133_NE

RG_213_/U, GX_07272, G_07262, G 07272

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Crimp ferrule

Material Data
