DF06M-E3/45

Description
Bridge Rectifier 1.0 Amp 600 Volt
CategoryDiscrete semiconductor    diode
File Size84KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

DF06M-E3/45 Overview

Bridge Rectifier 1.0 Amp 600 Volt

DF06M-E3/45 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
MakerVishay
package instructionR-PDIP-T4
Contacts4
Manufacturer packaging codeCASE DFM
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresUL RECOGNIZED
Minimum breakdown voltage600 V
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JESD-30 codeR-PDIP-T4
JESD-609 codee3
Maximum non-repetitive peak forward current50 A
Number of components4
Phase1
Number of terminals4
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT APPLICABLE
Certification statusNot Qualified
Maximum repetitive peak reverse voltage600 V
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT APPLICABLE

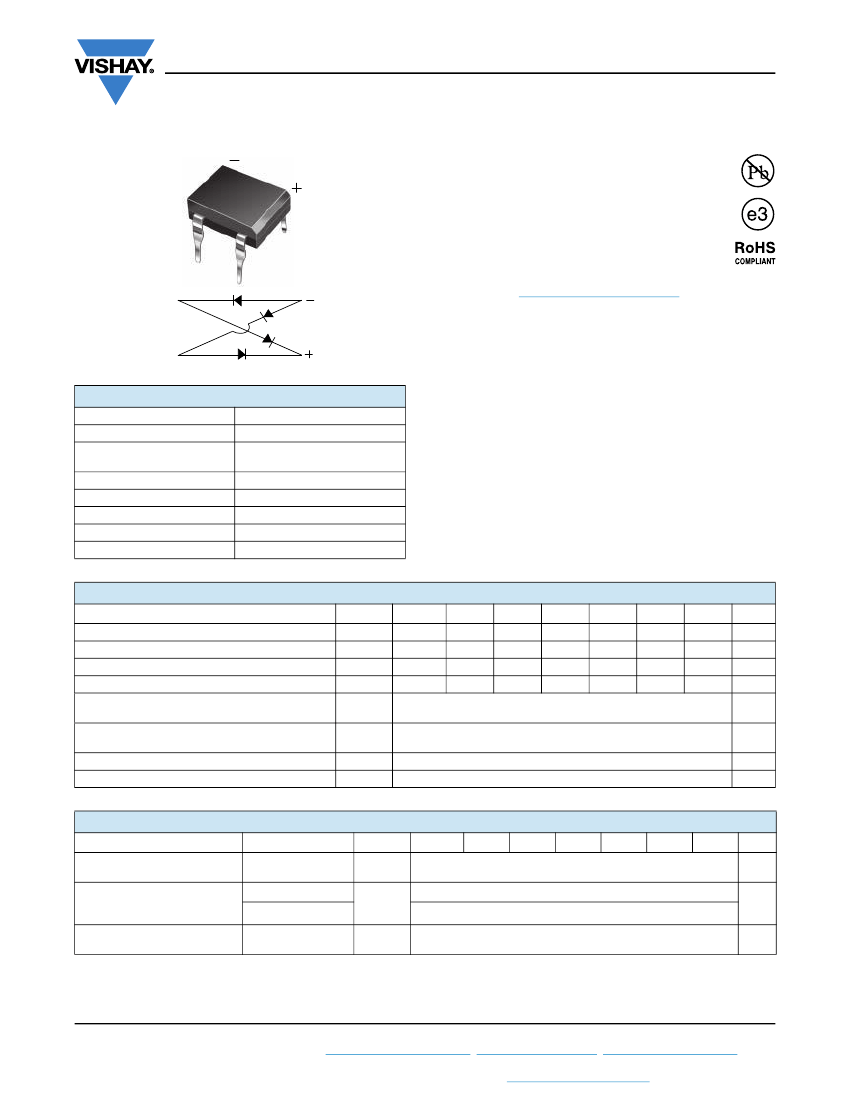

DF005M, DF01M, DF02M, DF04M, DF06M, DF08M, DF10M
www.vishay.com
Vishay General Semiconductor
Miniature Glass Passivated Single-Phase Bridge Rectifiers
FEATURES
• UL recognition, file number E54214
• Ideal for printed circuit boards
• Applicable for automative insertion
• High surge current capability
~
~
• Solder dip 275 °C max. 10 s, per JESD 22-B106
~
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
~
Case Style DFM
PRIMARY CHARACTERISTICS
Package
I
F(AV)
V
RRM
I
FSM
I
R
V
F
at I
F
= 1.0 A
T
J
max.
Diode variations
DFM
1A
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
50 A
5 μA
1.1 V
150 °C
Quad
General purpose use in AC/DC bridge full wave rectification
for SMPS, lighting ballaster, adapter, battery charger, home
appliances, office equipment, and telecommunication
applications.
MECHANICAL DATA
Case:
DFM
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
As marked on body
per
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward output rectified current
at T
A
= 40 °C
Peak forward surge current single sine-wave
superimposed on rated load
Rating for fusing (t < 8.3 ms)
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
T
J
, T
STG
SYMBOL DF005M DF01M DF02M DF04M DF06M DF08M DF10M
DF005
50
35
50
DF01
100
70
100
DF02
200
140
200
DF04
400
280
400
1.0
50
10
- 55 to + 150
DF06
600
420
600
DF08
800
560
800
DF10
1000
700
1000
V
V
V
A
A
A
2
s
°C
UNIT
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage drop per diode
Maximum reverse current at
rated DC blocking voltage per
diode
Typical junction capacitance
per diode
TEST CONDITIONS SYMBOL DF005M DF01M DF02M DF04M DF06M DF08M DF10M UNIT
1.0 A
T
A
= 25 °C
T
A
= 125 °C
4.0 V, 1 MHz
V
F
I
R
C
J
1.1
5.0
500
25
μA
pF
V
Revision: 16-Aug-13
Document Number: 88571
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

DF06M-E3/45 Related Products

DF06M-E3/45 PHT0402Y2180BGPF DF08M-E3/45 PHT2010E2184BN PNM0402K2290BBTS DF08M/45 DF01MA-E3/45
Description Bridge Rectifier 1.0 Amp 600 Volt Fixed Resistor, Thin Film, 0.0189W, 218ohm, 50V, 0.1% +/-Tol, 15ppm/Cel, Surface Mount, 0402, CHIP Bridge Rectifier 1.0 Amp 800 Volt RESISTOR, THIN FILM, 0.1 W, 0.1 %, 50 ppm, 2180000 ohm, SURFACE MOUNT, 2010, CHIP, GREEN Res,SMT,Thin Film,229 Ohms,75WV,.1% +/-Tol,-100,100ppm TC,0402 Case Bridge Rectifier 1.0 Amp 800 Volt Bridge Rectifier 1.0 Amp 100 Volt
Reach Compliance Code unknown unknown unknown unknown compliant unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum operating temperature 150 °C 230 °C 150 °C 215 °C 155 °C 150 °C 150 °C
surface mount NO YES NO YES YES NO NO
Is it lead-free? Lead free - Lead free Lead free - - Lead free
package instruction R-PDIP-T4 CHIP R-PDIP-T4 , 2010 SMT, 0402 - R-PDIP-T4
Other features UL RECOGNIZED ANTI-SULFUR UL RECOGNIZED HIGH PRECISION LASER TRIMMABLE, NON INDUCTIVE, PRECISION - UL RECOGNIZED
Configuration BRIDGE, 4 ELEMENTS - BRIDGE, 4 ELEMENTS - - BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode type BRIDGE RECTIFIER DIODE - BRIDGE RECTIFIER DIODE - - BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF) 1.1 V - 1.1 V - - 1.1 V 1.1 V
JESD-609 code e3 - e3 e2 e0 - e3
Maximum non-repetitive peak forward current 50 A - 50 A - - 50 A 30 A
Number of components 4 - 4 - - 4 4
Number of terminals 4 2 4 2 2 - 4
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C - -55 °C
Maximum output current 1 A - 1 A - - 1 A 1 A
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR PACKAGE - - RECTANGULAR
Package form IN-LINE SMT IN-LINE - SMT - IN-LINE
Maximum repetitive peak reverse voltage 600 V - 800 V - - 800 V 100 V
Terminal surface Matte Tin (Sn) GOLD OVER NICKEL Matte Tin (Sn) Tin/Silver (Sn/Ag) Tin/Lead (Sn63Pb37) - with Nickel (Ni) barrier - Matte Tin (Sn)
Is it Rohs certified? - conform to - conform to incompatible incompatible -
