74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
Rev. 6 — 22 May 2015
Product data sheet
1. General description
The 74HC4067; 74HCT4067 is a single-pole 16-throw analog switch (SP16T) suitable for
use in analog or digital 16:1 multiplexer/demultiplexer applications. The switch features
four digital select inputs (S0, S1, S2 and S3), sixteen independent inputs/outputs (Yn), a
common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are
turned off. Inputs include clamp diodes. This enables the use of current limiting resistors
to interface inputs to voltages in excess of V
CC
.
2. Features and benefits
Input levels S0, S1, S2, S3 and E inputs:
For 74HC4067: CMOS level
For 74HCT4067: TTL level
Low ON resistance:
80
(typical) at V
CC
= 4.5 V
70
(typical) at V
CC
= 6.0 V
60
(typical) at V
CC
= 9.0 V
Specified in compliance with JEDEC standard no. 7A
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Multiple package options
Specified from
40 C
to +85
C
and
40 C
to +125
C
Typical ‘break before make’ built-in
3. Applications
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating
Nexperia
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
4. Ordering information
Table 1.
Ordering information
Package
Temperature range
74HC4067D
74HCT4067D
74HC4067DB
74HCT4067DB
74HC4067PW
74HCT4067PW
74HC4067BQ
74HCT4067BQ
40 C
to +125
C
40 C
to +125
C
TSSOP24
40 C
to +125
C
SSOP24
40 C
to +125
C
Name
SO24
Description
plastic small outline package; 24 leads;
body width 7.5 mm
plastic shrink small outline package; 24 leads;
body width 5.3 mm
plastic thin shrink small outline package; 24 leads;
body width 4.4 mm
Version
SOT137-1
SOT340-1
SOT355-1
SOT815-1
Type number
DHVQFN24 plastic dual in-line compatible thermal enhanced very
thin quad flat package; no leads; 24 terminals;
body 3.5
5.5
0.85 mm
5. Functional diagram
Fig 1.
Logic symbol
Fig 2.
IEC logic symbol
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 6 — 22 May 2015
2 of 28
Nexperia
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
Fig 3.
Schematic diagram (one switch)
Fig 4.
Functional diagram
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 6 — 22 May 2015
3 of 28
Nexperia
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
Fig 5.

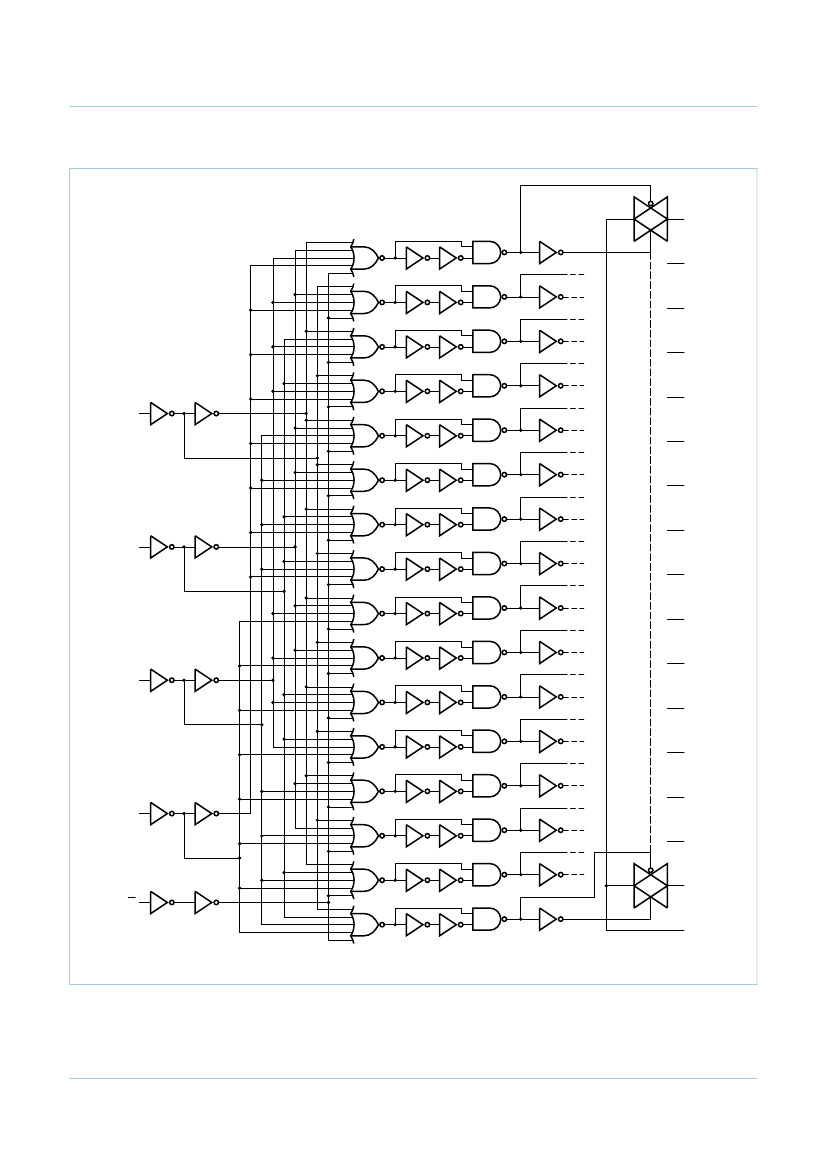

Logic diagram
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 6 — 22 May 2015
4 of 28
Nexperia
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
6. Pinning information
6.1 Pinning
(1) This is not a supply pin. The substrate is attached to this
pad using conductive die attach material. There is no
electrical or mechanical requirement to solder this pad.
However, if it is soldered, the solder land should remain
floating or be connected to V
CC
.
Fig 6.
Pin configuration for SO24, SSOP24 and
TSSOP24
Fig 7.
Pin configuration for DHVQFN24
6.2 Pin description
Table 2.
Symbol
Z
Y7, Y6, Y5, Y4, Y3, Y2, Y1, Y0, Y15,
Y14, Y13, Y12, Y11, Y10, Y9, Y8
S0, S1, S3, S2
GND
E
V
CC
Pin description
Pin
1
2, 3, 4, 5, 6, 7, 8, 9, 16, 17, 18, 19, 20, 21, 22, 23
10, 11, 13, 14
12
15
24
Description
common input or output
independent input or output
address input 0
ground (0 V)
enable input (active LOW)
supply voltage
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2017. All rights reserved
Product data sheet
Rev. 6 — 22 May 2015
5 of 28
