I-NUCLEO-LRWAN1
USI
®
LoRa
®
expansion board for STM32 Nucleo
Data brief
Features
•
USI
®
low-cost, LPWAN module supporting
LoRa
®
technology:
– ST ultra-low-power STM32L052T8Y6
MCU, Cortex
®
-M0+ based with 64 Kbytes
of Flash memory, 8 Kbytes of RAM,
2 Kbytes of EEPROM, T-RNG
– Semtech SX1272 radio transceiver
supporting LoRa
®
, FSK, GFSK, MSK,
GMSK and OOK modulation
– High sensitivity down to -137 dBm
– 860 MHz to 1020 MHz frequency range
– 14 dBm to 20 dBm output power
– 2.0 V to 3.6 V voltage range
– -40°C to +85°C temperature range
– Embedded 32 kHz and 32 MHz crystals
– USART communication interface
•
ST accelerometer and magnetometer sensor
(LSM303AGR)
•
ST relative humidity and temperature sensor
(HTS221)
•
ST pressure sensor (LPS22HB)
•
Arduino™ connectors
•
SMA connector (antenna included in the kit)

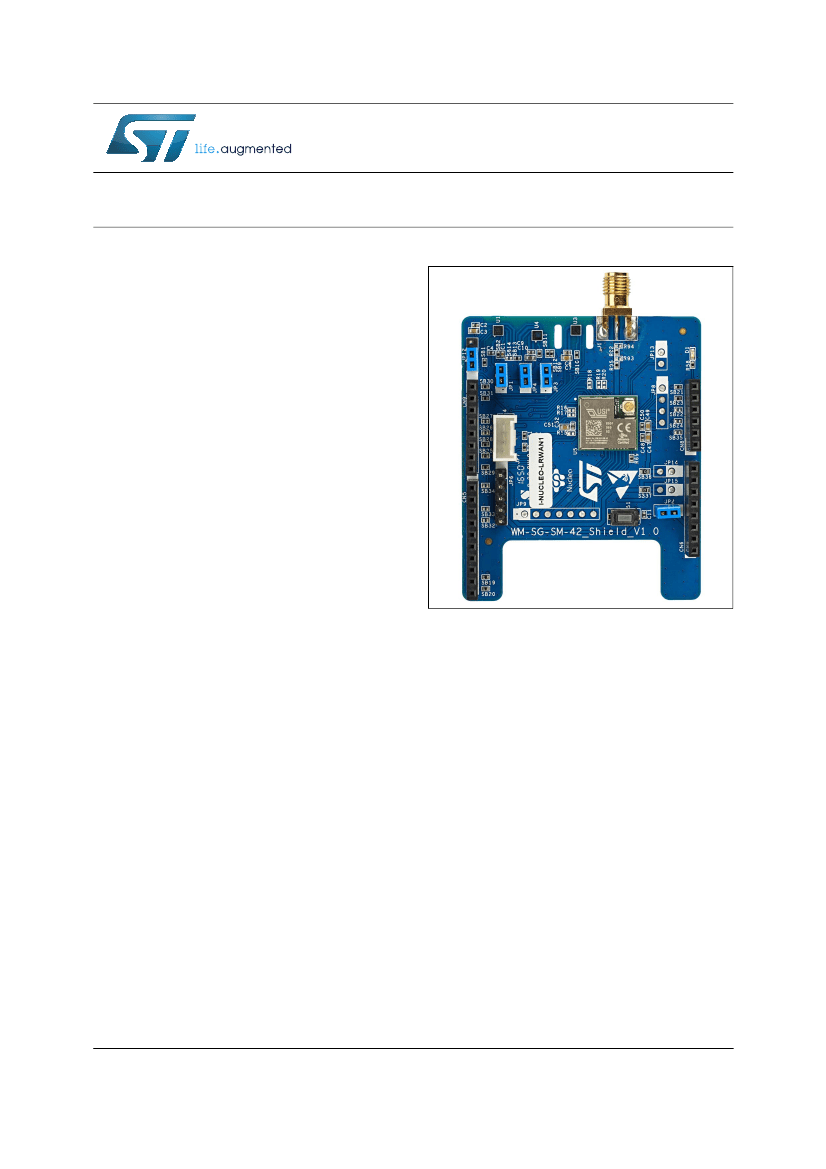

1. Picture is not contractual.
The I-NUCLEO-LRWAN1 can be controlled from
an external host such as NUCLEO-L053 boards,
running the I-CUBE-LRWAN embedded software.
This software provides the means to set up a
complete LoRaWAN™ node.
The I-NUCLEO-LRWAN1 is LoRaWAN™ class A
certified and sustains the class C.
The I-NUCLEO-LRWAN1 includes the USI
®
LoRaWAN™ module, Arduino™ connectors, a
SMA connector, a 50
Ω
antenna and three ST
environmental sensors.
For more details about all the components of the
LoRa
®
-Middleware library, refer to the
STM32
LoRa
®
software expansion for STM32Cube
user
manual (UM2073).
The I-NUCLEO-LRWAN1 is supplied by a third
party not affiliated to ST. For complete and latest
information, refer to the third party GitHub page
https://github.com/USIWP1Module
/USI_I-NUCLEO-LRWAN1.
Description
USI
®
in partnership with STMicroelectronics
developed the LoRa
®
expansion board for STM32
Nucleo (I-NUCLEO-LRWAN1). This board is an
integrated solution allowing anyone to learn and
develop solutions using LoRa
®
and/or FSK/OOK
technologies.
The I-NUCLEO-LRWAN1 features the USI
®
LoRaWAN™ technology module, addressing low-
cost and low-power wide area network (LPWAN),
which comes with the embedded AT-command
stack pre-loaded.
March 2018
DB3169 Rev 4
1/4
www.st.com
For further information contact your local STMicroelectronics sales office.
