DC703A

Description
Power management IC development tool LTC3459ES6 - Boost Converter, Vin = 1.8V
CategoryEmbedded solution    Engineering tools    Power management IC development tools
File Size178KB,4 Pages
ManufacturerADI
Websitehttps://www.analog.com
Environmental Compliance
Download Datasheet Parametric View All

DC703A Online Shopping

Suppliers Part Number Price MOQ In stock
DC703A - - View Buy Now

DC703A Overview

Power management IC development tool LTC3459ES6 - Boost Converter, Vin = 1.8V

DC703A Parametric

Parameter NameAttribute value
MakerADI
Product CategoryPower Management IC Development Tools
productDemonstration Boards
typeVoltage Regulators - Switching Regulators
Tools for assessmentLTC3459ES6
Input voltage1.5 V to 5.5 V
The output voltage2.5 V to 10 V
Output current40 mA
seriesLTC3459
Factory packaging quantity1
QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 703
LTC3459ES6
DESCRIPTION
Demonstration circuit 703 features the LTC3459
10V micropower synchronous boost converter.
The circuit in DC703 is designed to generate an
8V output from a 1.8V to 5.5V input voltage range.
The maximum output current is listed on the
DC703 silkscreen and is dependent on the output
voltage.
The boost converter circuit is enabled using JP1.
Placing the jumper to “OFF” turns off the boost
converter and the output goes to 0V. Placing the
jumper to “ON” enables the boost converter and
allows the output to rise to a regulated 8V. The
SHDN pin is also accessible via the turret, J4.
Design files for this circuit board are available.
Call the LTC factory.
________________________________________________
LT is a trademark of Linear Technology Corporation

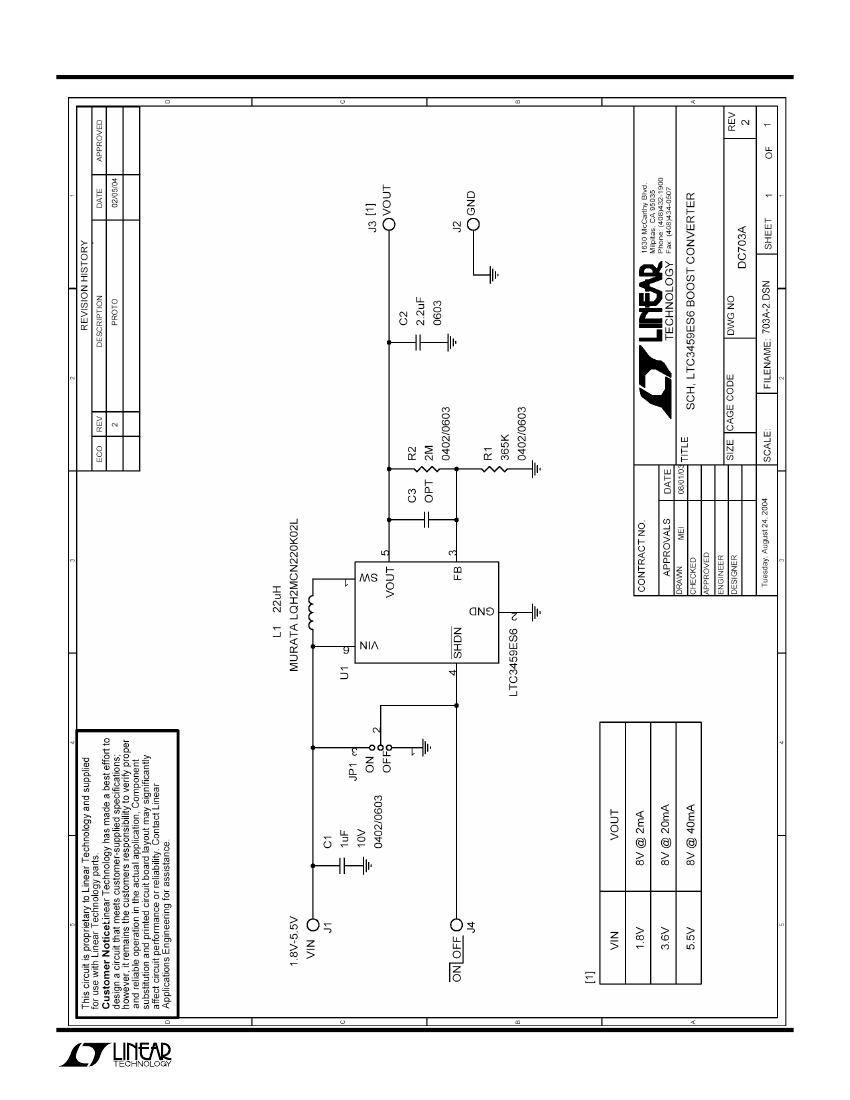

10V MICROPOWER SYNCHRONOUS BOOST CONVERTER IN THINSOT
Table 1.
Performance Summary (T
A
= 25°C unless otherwise noted)
PARAMETER FOR BOOST CONVERTER
Minimum Input Voltage
Maximum Input Voltage
Maximum Output Current
Typical Efficiency
Programmable output voltage range
With 5.5V input
With 5.5V input and 2~40mA load
CONDITION
VALUE
1.5V
5.5V
40mA
>85%
2.5V ~ 10V
QUICK START PROCEDURE
Demonstration circuit 703 is easy to set up to
evaluate the performance of the LT3459. Refer

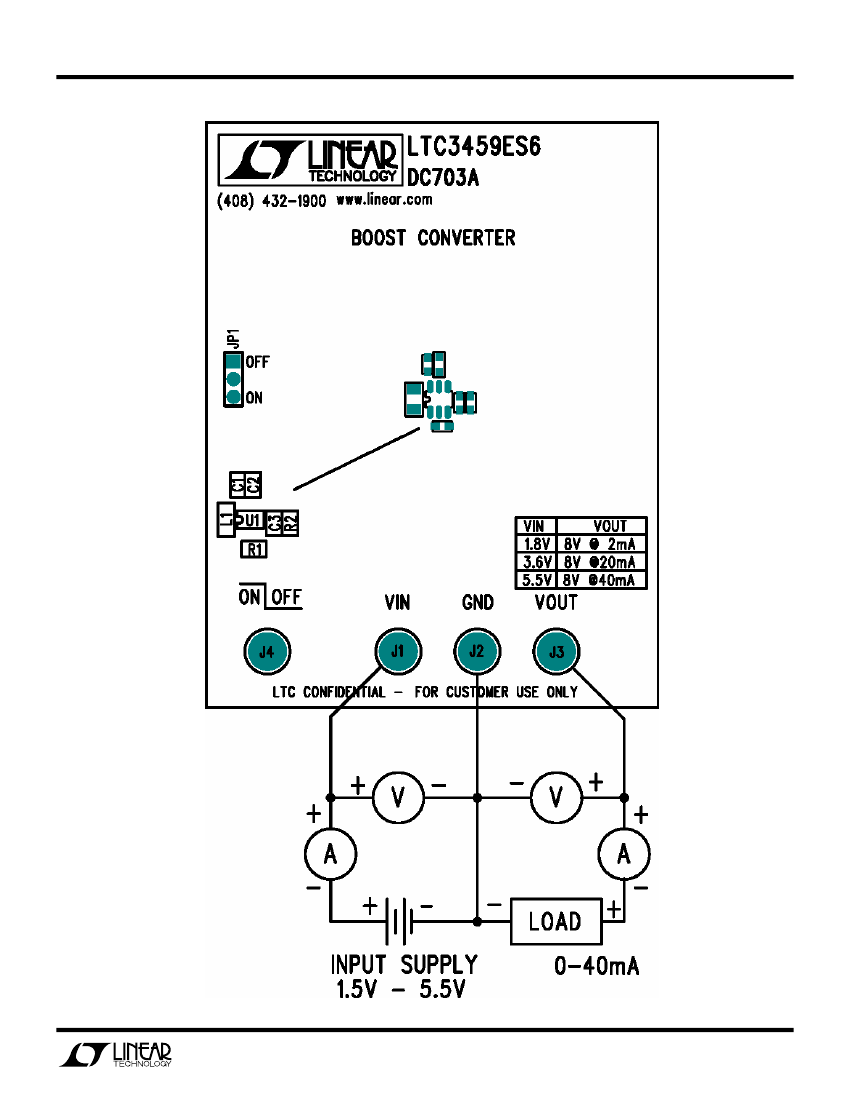

to Figure 1 for proper measurement equipment
setup and follow the procedure below:
the output voltage across
VOUT
and
GND.
The output voltage should read
8V.
3. Turn on the load (follow the chart on the
demo board silkscreen for input voltage and
output current). The output voltage should
be regulating to
8V with different load con-
ditions.
4. Test the SHDN function by placing the
jumper JP1 to “OFF”. The output voltage
should read 0V. Enable the boost converter
by placing the jumper (JP1) back to “ON”.
The output should now read
8V.
1. With power off, connect the input power sup-
ply to
VIN
and
GND.
Make sure JP1 is set to
“ON”.
2. Set the input supply between 1.8V to 5.5V.
Turn on the power at the input and observe
1
