Features:
Low optical
insertion loss
Cost-effective
CWDM technology
Mux/Demux four
wavelengths
SC connectors (LC
version available)
Color coded for
easy installation
Reliable passive
WDM technology
Scales easily for
ring networks
Low-profile
modular design
Fits in 1RU 19”
rack mount chassis
RoHS compliance

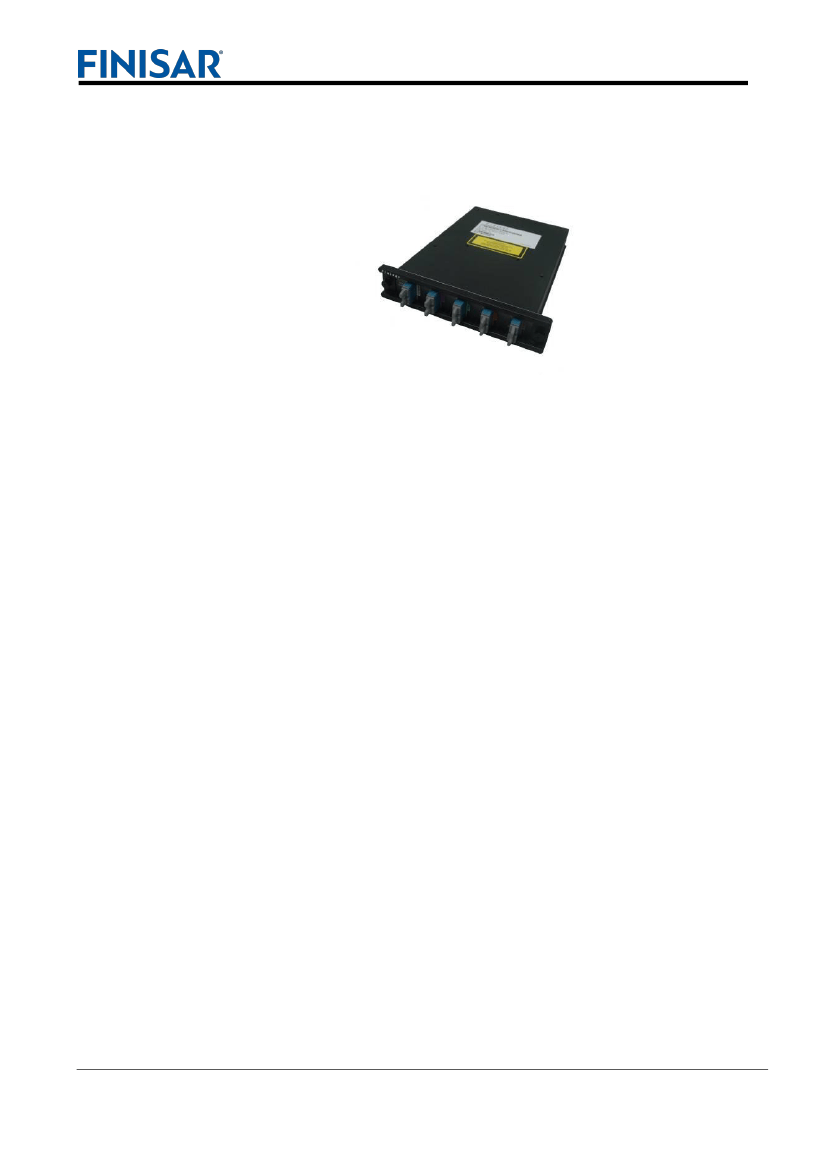

CWDM MUX/DEMUX-4-2
Plug-in Module
CWDM MUX/DEMUX-4-2 plug-in module is a passive optical multiplexer/demultiplexer
designed to add and drop CWDM wavelength channels to an existing backbone ring.
The module multiplexes and demultiplexes four CWDM wavelengths from a two-fiber
ring, going in opposite directions into a network.
This MUX/DEMUX module plugs into one half of a 1RU, 19" rack mount chassis for
simple installation and modularity. This Chassis based system offers network
equipment manufacturers a more scalable and higher-density solution to add CWDM
capability to their existing and new networks with simple pluggable interface.
Finisar’s CWDM product delivers dramatic cost savings to network equipment
manufacturers, enabling them to develop metro access systems that are lower in cost,
easier to provision and simpler to operate.
MUX/DEMUX-4-2 Plug-in Module
Specifications
Mechanical
Dimensions:
8.3” x 1.7” x 10.4”,
210mm x 43mm x 264mm,
plug-in for 1RU rack-mount
MUX/DEMUX-4-2 Plug-in
Optical
Center Wavelengths:
• 1491 nm
• 1531 nm
• 1571 nm
• 1611 nm
Directivity:
≥
55 dB
Return Loss:
≥
45 dB
Passband Ripple:
≤
0.5dB
Connectors:
• Network side: 1 dual SC/PC
or LC/PC
• Equipment side: 4 dual SC/PC
or LC/PC
PDL:
≤
0.15dB
PMD:
≤
0.2ps
Environmental:
o
•
Operating 0 to 70 C
•
Relative humidity:
10 to 85%,
non-condensing
o
• Storage - 40 to 85 C
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar. 15 Rev. D
MUX/DEMUX-4-2 Plug-in Module Parameter Specifications
Passband
+/- 6.5nm
Note:
Connector loss included
Max Insertion Loss (dB)
Mux
Demux
2.30
2.30
Min Isolation (dB)
Mux
Demux
30
50

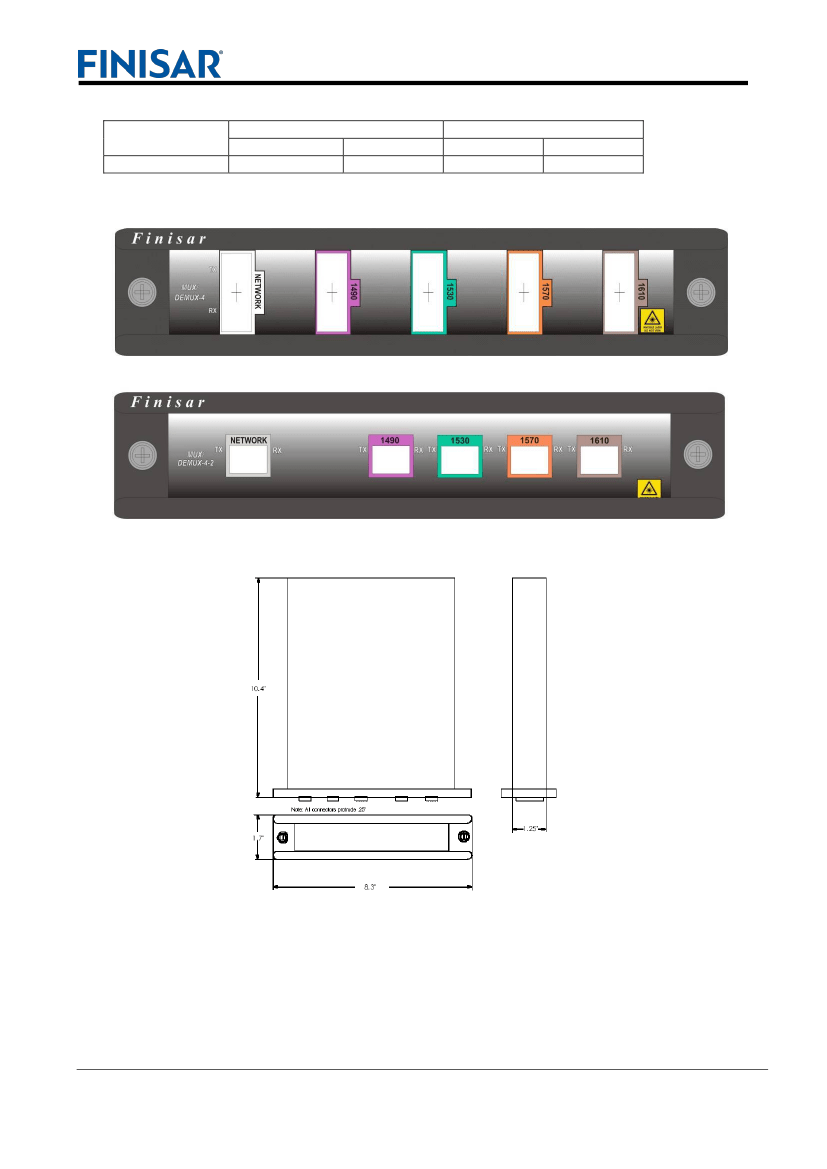

Front Panel
SC connector front panel
LC connector front panel
Dimensions
(Unit: inch)
Ordering Information
Part Number Description
FWSF-M/D-4-2
Four Wavelengths MUX/DEMUX Plug-in Module for FWSF-CHASSIS-2,
1491nm, 1531nm, 1571nm, 1611nm, SC connectors
FWSF-M/D-4-2-LC
Four Wavelengths MUX/DEMUX Plug-in Module for FWSF-CHASSIS-2,
1491nm, 1531nm, 1571nm, 1611nm, LC connectors
