Single Board Computer

Peripherals

w w w.ieiworld.com

MPCIE-UART-KIT01-R10

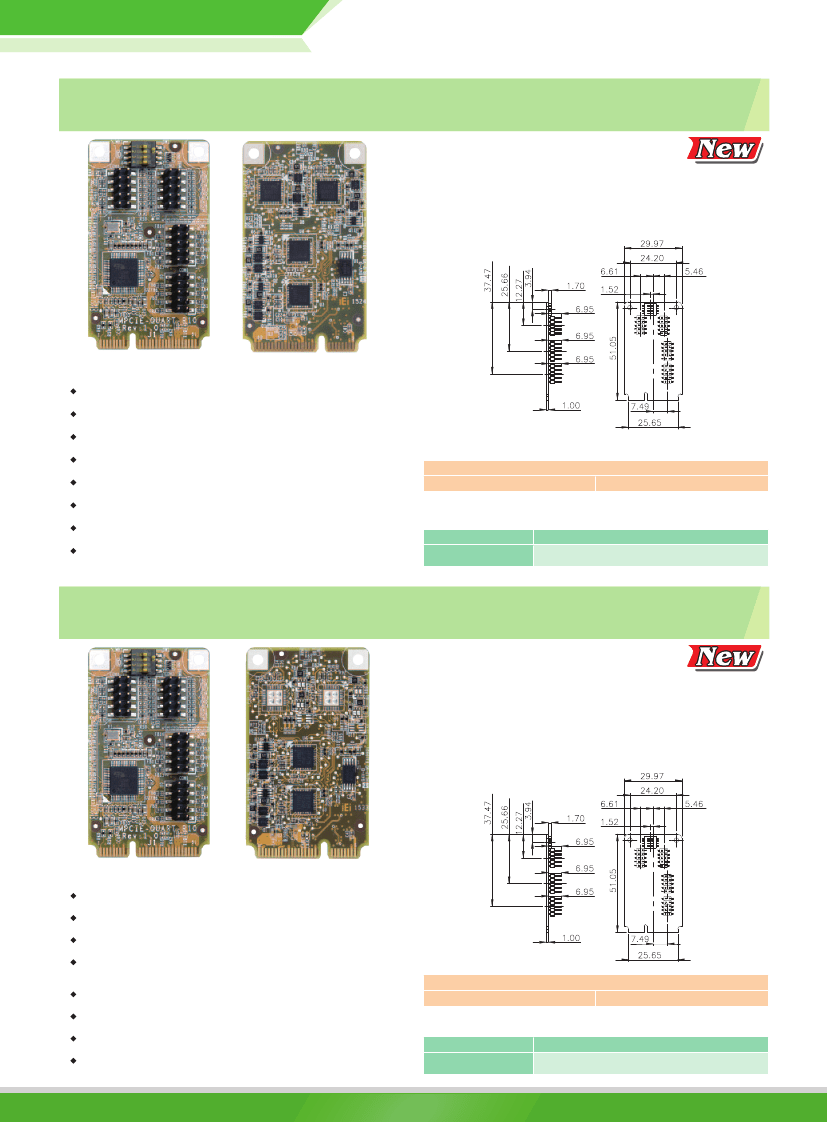

Features

Dimensions

(mm)

PCI Express Mini Card Supports

Quad-port RS-232/422/485, Full Size,

RoHs

● PCI Express Mini supports quad-port RS-232/422/485

● 128 bytes transmit/receive FIFO

● High-speed 16C550/16C650/16C750/16C850 compatible UARTs

● Baud rate supports 115.2K, max. up to 1.5M

Specifications

Form Factor

PCI Express Mini card

PCI Express Bridge to Quad Serial Port

Fintek F81504

Buffer/Transceiver Series

F81439

4 x RS-232/422/485 (2x5-pin header)

Operating Temperature

0°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions (LxW)

51 mm x 30 mm

Weight

GW:100g/NW:50g

Packing List

1 x MPCIE-UART-KIT01-R10 module

2 x D-SUB9 male cable

1 x QIG

Ordering Information

Part No.

MPCIE-UART-KIT01-R10

Description

PCI Express Mini card supports quad-port RS-232/422/485,

full size, RoHs

MPCIE-UART-KIT02-R10

Features

PCI Express Mini Card Supports

Dual-port RS-232/422/485, 16-bit

GPIO, Full Size, RoHs

● PCI Express Mini supports dual RS-232/422/485 and 16-bit GPIO ports

● 128 bytes transmit/receive FIFO

● High-speed 16C550/16C650/16C750/16C850 compatible UARTs

● Baud rate supports 115.2K, max. up to 1.5M

● All GPIO supports digit IO for input/output control, output data control, input status

● Support High/Low Level/Pulse, Open Drain/Push Pull function selection

Dimensions

(mm)

Specifications

Form Factor

PCI Express Mini card

PCI Express Bridge to Quad Serial Port

Fintek F81504

Buffer/Transceiver Series

F81439

2 x RS-232/422/485 (2x5-pin header)

2 x 8 bit GPIO (2x5-pin header)

Operating Temperature

0°C ~ 60°C

Operating Humidity

5% ~ 95%, non-condensing

Dimensions (LxW)

51 mm x 30 mm

Weight

GW:100g/NW:50g

Packing List

1 x MPCIE-UART-KIT02-R10 module

2 x D-SUB 9 male cable

1 x QIG

Ordering Information

Part No.

MPCIE-UART-KIT02-R10

Description

PCI Express Mini card supports dual-port RS-232/422/485,

16-bit GPIO, full size, RoHs

MPCIE-UART-KIT01-2016-V10
