RoHS Compliant
CFast 2.0
SM220-CFast 2.0 Product Specifications
December 11, 2017
Version 2.0
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
Features:
Standard Serial ATA Interface
–
–
–
–
Temperature Range
–
SATA Revision 3.1 compliance
SATA 6.0 Gbps interface speed
Backward compatible with SATA 1.5 and
3.0 Gbps interfaces
ATA-compatible command set
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Power Consumption*
–
–
–
Capacity
–
Supply voltage: 3.3V
Active mode: 435 mA
Idle mode: 105 mA
8, 16, 32, 64, 128, 256 GB
Performance*
–
–
–
–
–
–
Sequential read: Up to 510 MB/sec
Sequential write: Up to 355 MB/sec
Seq. read QD32: Up to 540 MB/sec
Seq. write QD32: Up to 355 MB/sec
Random read (4K): Up to 76,000 IOPS
Random write (4K): Up to 44,000 IOPS
Connector Type
–
7 + 17 pin female connector
Device Sleep (optional)
RoHS Compliant
Flash Management
–
–
–
–
–
–
–
–
Built-in hardware ECC
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
S.M.A.R.T.
Power Failure Management
ATA Secure Erase
TRIM
NAND Flash Type:
MLC
MTBF:
>1,000,000 hours
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending
on flash configurations or platform settings.
1
© 2017 Apacer Technology Inc.
Table of Contents
1. General Descriptions ........................................................................3
2. Functional Block ...............................................................................3
3. Pin Assignments ................................................................................4
4. Product Specifications......................................................................6
4.1 Capacity ......................................................................................................................................... 6
4.2 Performance .................................................................................................................................. 6
4.3 Environmental Specifications ........................................................................................................ 7
4.4 Mean Time Between Failures (MTBF) .......................................................................................... 7
4.5 Certification and Compliance ........................................................................................................ 7
5. Flash Management ............................................................................8
5.1 Error Correction/Detection ............................................................................................................. 8
5.2 Bad Block Management ................................................................................................................ 8
5.3 Global Wear Leveling .................................................................................................................... 8
5.4 Flash Translation Layer – Page Mapping...................................................................................... 8
5.5 ATA Secure Erase ......................................................................................................................... 8
5.6 Power Failure Management .......................................................................................................... 9
5.7 TRIM .............................................................................................................................................. 9
5.8 SATA Power Management ............................................................................................................ 9
5.9 DEVSLP (DevSleep or DEVSLP) Mode ...................................................................................... 10
6. Software Interface ......................................................................... 11
6.1 Command Set .............................................................................................................................. 11
6.2 S.M.A.R.T. ................................................................................................................................... 11
7. Electrical Specifications ............................................................... 13
7.1 Operating Voltage........................................................................................................................ 13
7.2 Power Consumption .................................................................................................................... 13
8. Physical Characteristics ................................................................ 14
9. Product Ordering Information ........................................................ 15
9.1 Product Code Designations ......................................................................................................... 15
9.2 Valid Combinations ...................................................................................................................... 16
2
© 2017 Apacer Technology Inc.
1. General Descriptions
Apacer SM220-CFast 2.0 is the latest enhancement of conventional CFast form factor that delivers
various technological advantages. This new flash memory card comes with SATA 6.0 Gbps interface
for higher performance and consists of SATA-based 7-pin signal segment and 17-pin for power and
control purposes. For data efficiency, the internal controlling unit of the SM220-CFast 2.0 is
engineered with DRAM for enhanced random performance which achieves data transfer rates up to
540 MB/s in sequential access and 76,000 IOPS in 4KB random access. In addiation, Apacer CFast
cards come with S.M.A.R.T. for lifetime monitoring and customization support if write protection is
required. Apacer SM220-CFast 2.0 guarantees reliability of applications in harsh environments by
implementing intelligent Flash Management algorithms and Error Correction.
2. Functional Block
Apacer SM220-CFast 2.0 includes a single-chip SATA 6.0 Gbps and the flash media. The controller
integrates the flash management unit to support multi-channel, multi-bank flash arrays. Figure 2-1
shows the functional block diagram.
Flash data bus & ECC engine
DDR3
DRAM
SATA 6.0
Gbps Interface
Flash
SATAI/O & PHY
Host
Interface
Controller
Flash
Figure 2-1
Functional Block Diagram
3
© 2017 Apacer Technology Inc.
3. Pin Assignments
Table 3-1 describes SM220-CFast 2.0 signal segment, and Table 3-2, its power segment.

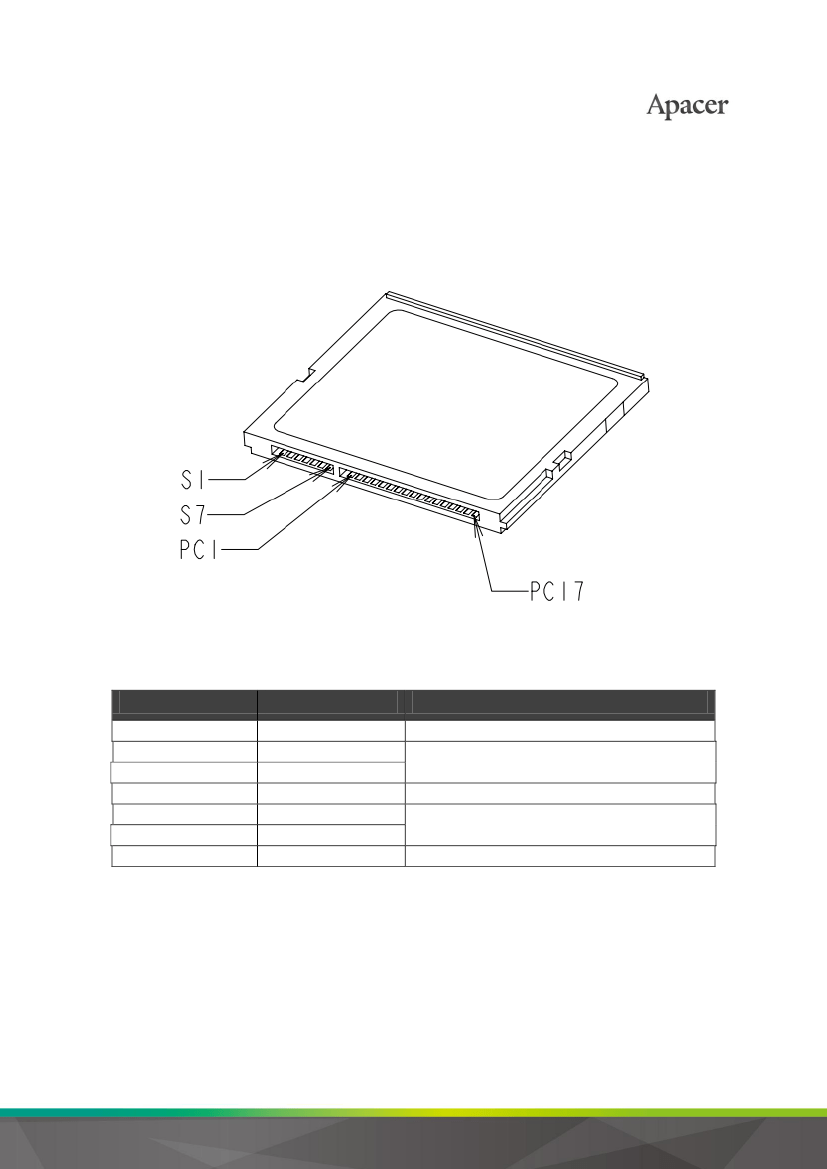

Figure 3-1
Pin Assignment
Table 3-1
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Definition
GND
A+
A-
GND
B-
B+
GND
Description
Ground
SATA Differential
Signal Pair A
Ground
SATA Differential
Signal Pair B
Ground
4
© 2017 Apacer Technology Inc.
