Measured at 20 MHz bandwidth at an oscilloscope jack on the output with 0.1 µF ceramic and 10 µF aluminum electrolyitc capacitors.
At 90~180 Vac input, maximum of 1500 W.
At 180~264 Vac input, maximum of 3000 W.
At 230 Vac input, 3000 W. Meets 80 PLUS platinum efficiency requirements.
All specifications measured at: Ta=25°C and 220 Vac input voltage unless otherwise specified.
PSE-3000
-
XX
-
X
-
CXX
Base Number
Output Voltage
Reserved for Custom
Configurations
Airflow Direction:
F = AC input connector to DC output connector
B = DC output connector to AC input connector
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
PSE-3000
│
DESCRIPTION:
AC-DC HOT-SWAP POWER SUPPLY
date
07/22/2015
│
page
2 of 19
INPUT
parameter
voltage
frequency
current
inrush current
leakage current
power factor correction
at 230 Vac, full load
0.99
at 90 Vac, 1500 W
at 180 Vac, full load
at 115 Vac, cold start
at 230 Vac, cold start
20
40
1.5
conditions/description
min
90
47
typ
max
264
63
20.2
18.5
units
Vac
Hz
Arms
Arms
A
A
mArms
OUTPUT - V1 (MAIN OUTPUT)
parameter
line regulation
load regulation
load capacitance
transient response
start-up time
hold-up time
remote sense
current share accuracy (Droop)
LED indicator
at 230 Vac, full load
between both output terminals
over 25% to 100% load
AC OK: “green” to indicate AC above the lower
limit that is required to sustain normal operation
DC OK: “green” to indicate module in normal
operating condition
12
0.5
±10
50% step load, 1A/µs slew rate, recovery to 1%
within 1 ms
conditions/description
min
typ
±3
±3
30,000
3
5
max
units
%
%
μF
%
s
ms
V
%
OUTPUT - V2 (STANDBY OUTPUT)
parameter
output voltage
output current
ripple and noise
1
line regulation
load regulation
load capacitance
transient response
start-up time
Notes:
1. Measured at 20 MHz bandwidth at an oscilloscope jack on the output with 0.1 µF ceramic and 10 µF aluminum electrolyitc capacitors.
conditions/description
min
0
typ
3.3
max
2
33
units
Vdc
A
mVp-p
%
%
±5
±5
1000
50% step load, 1A/µs slew rate, recovery to 1%
within 1 ms
3
5
µF
%
s
PROTECTIONS
parameter
over voltage protection
over current protection
over temperature protection
conditions/description
V1: latch off
V2: latch off
V1: constant current inception
V2: hiccup
at full load, auto recovery
55
min
110
typ
max
60
120
62.5
2.6
units
Vdc
%
A
A
°C
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
PSE-3000
│
DESCRIPTION:
AC-DC HOT-SWAP POWER SUPPLY
date
07/22/2015
│
page
3 of 19
SAFETY & COMPLIANCE
parameter
insulation safety rating / test
voltage
isolation voltage
conditions/description
input to output, reinforced
input to chassis, basic
output to output
output to chassis
signals to chassis/ground
V2 to chassis/ground
The main output V1 is “floating” and not
referenced to chassis/ground.The output control
and status signals are referenced to the V2 output
return connection.
EN60950-1:2006+A11+A1+A12, IEC60950-
1:2005+Amd 1, CAN/CSA-C22.2 No.60950-1-
07+A1:2011, UL 60950-1:2007 R12.11(NRTL
Route), EEC/93/68/LVD, 2006/95/EC LVD
FCC 15 Sub Part B, EN55022, Class A: 3dB margin
tested with resistive load
FCC 15 Sub Part B, EN55022, Class A: 3dB margin
tested with resistive load
EN/IEC 61000-3-2:2009, Class A Harmonic Limits
Compliance Level: 230 Vac line voltage; 100%
output load
EN/IEC 61000-3-3:2009 limits as specified in the
standard: flicker and voltage fluctuations
EN/IEC 61000-4-2, ±8 kV operational air
discharge, ±8 kV contact discharge: all parameters
to remain within limits, test set up to be defined
EN/IEC 61000-4-3 80~1000 MHz, 10V/m, 80%
AM Modulation (1 kHz): all parameters to remain
within limits, test set up to be defined
EN/IEC 61000-4-4 Power lines: ±2 kV: all
parameters to remain within limits, test set up to
be defined
EN/IEC 61000-4-5 ±1 kV line to line, ±2 kV line to
earth, Criteria A: all parameters to remain within
limits, test set up to be defined
EN/IEC 61000-4-6 150 kHz~80 MHz 3Vrms 80%
AM (1 kHz), Criteria A: all parameters to remain
within limits, test set up to be defined
IEC 61000-4-11 30% reduction for 10 ms, 60%
reduction for 100 ms: Reset is permitted must be
selfrecovering. Additionally, the PSU shall not latch
up during any brownout condition.
as per Telcordia SR-332, Issue 2, Sept 2006
component stress method at Ta=25°C
2011/65/EU
2012/19/EU
916,000
hours
min
3,000
1,500
1,500
1,500
1,500
100
typ
max
units
Vrms
Vrms
Vrms
Vrms
Vdc
Vdc
grounding
safety approvals
conducted emissions
radiated emissions
harmonic compliance
flicker
electrostatic discharge
RF electro-magnetic field.
amplitude modulated
immunity to fast
transients
surges (mains)
RF continuous
conducted
voltage dips/
interruptions
MTBF
RoHS
WEEE
ENVIRONMENTAL
parameter
operating temperature
storage temperature
operating humidity
storage humidity
conditions/description
full load, no derating
non-condensing
non-condensing
min
0
-40
10
5
typ
max
50
70
90
90
units
°C
°C
%
%
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
PSE-3000
│
DESCRIPTION:
AC-DC HOT-SWAP POWER SUPPLY
date
07/22/2015
│
page
4 of 19
ENVIRONMENTAL (CONTINUED)
parameter
acoustic
cold
1
dry heat
damp heat, cyclic
low air pressure (operating)
vibration (sinusoidal)
shock
bump
Notes:
conditions/description
ISO 7779-1999
IEC 68 Part 2 – 1: at -10°C minimum for 4 hours
IEC 68 Part 2 – 2: at 50°C minimum for 4 hours
IEC 68 Part 2 – 30: at 20~45°C, 30~95 %RH
IEC 68 Part 2 – 13: at 10,000 feet, 697 mbar
IEC 68 Part 2 – 6: at 10~58 Hz, 0.075 mm;
58~500 Hz, 10 m/s
2
, 1 octave/minute, 10 cycles/
main axis
IEC 68 Part 2 – 27: at 300 m/s
2
, 11 ms, half sine
wave 3 shocks/main axis
IEC 68 Part 2 – 29: at 150 m/s
2
, 6 ms, half sine
wave 900 bumps/main axis
min
typ
max
60
units
dB LpAm
1
30
15
G
G
G
1. The module shall start up at -10°C, however it is not required that the full specification is achieved until the operational internal temperature has risen to 0°C.
MECHANICAL
parameter
dimensions
weight
cooling / airflow
material flammability
AC input
DC output
integral fans
UL 94V-0
IEC320/C14
FCI PwrBlade P/N 51939-661LF
mates with FCI P/N 51915-351LF
conditions/description
14.00 x 4.00 x 1.60 (355.6 x 101.6 x 40.6 mm)
2.01
min
typ
max
units
inches
kg

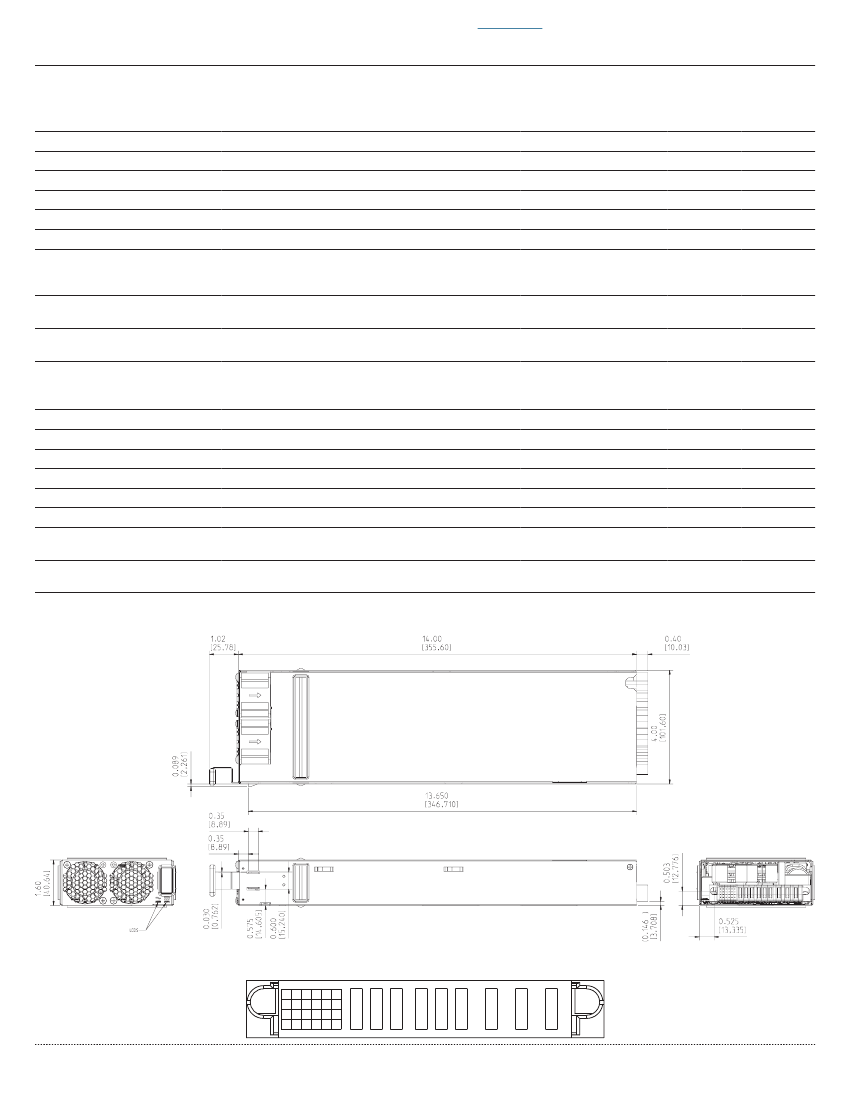

MECHANICAL DRAWING
units: inches [mm]
tolerance:
X.XX ±0.02 [0.50]
X.XXX ±0.010 [0.25]
D1 D2 D3 D4 D5 D6
C1 C2 C3 C4 C5 C6
B1 B2 B3 B4 B5 B6
A1 A2 A3 A4 A5 A6
P1
P2
P3
P4
P5
P6
P7
P8
P9
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
PSE-3000
│
DESCRIPTION:
AC-DC HOT-SWAP POWER SUPPLY
date
07/22/2015
│
page
5 of 19
DC PIN ASSIGNMENTS
PIN
P1, P2, P3
P4, P5, P6
P7
P8
P9
A1
B1
signal
pin
column
“1”
C1
FUNCTION
V (-VE/return)
V (+VE)
earth/chassis ground
neutral
line
I
2
C address A0
I
2
C address A1
I
2
C address A2
DESCRIPTION
V1 (-VE) output terminal
V1 (+VE) output terminal
protective/safety earth
neutral or AC line#2
hot/AC line#1
I
2
C address - LSB
I
2
C address bit
I
2
C address - MSB
internal pull up to 3.3 V
signal pin status
D1
REMOTE_ON_L
open circuit
logic “1”
logic “0”
A2
DC_OK_L
output status
“off”
“off”
“on”
>2.1 V
<0.4 V
-5 mA
3.3 mA
HIGH / LOW LEVEL
Imax
“L” to indicate DC output is within regulation,
there is no internal pull up resistor and it should
be provided externally to support VCEO ≤ 20 Vdc,
Ic ≤ 5 mA dc
“L” to indicate AC above lower limit that is required
for sustain normal operation, there is no internal
pull up resistor and it should be provided externally
