CleO35-WIFI Module Datasheet
Version 1.0
Document Reference No.:BRT_000117
Clearance No.:BRT#082
Bridgetek Pte Ltd
Datasheet
CleO35-WIFI Module
1 Introduction

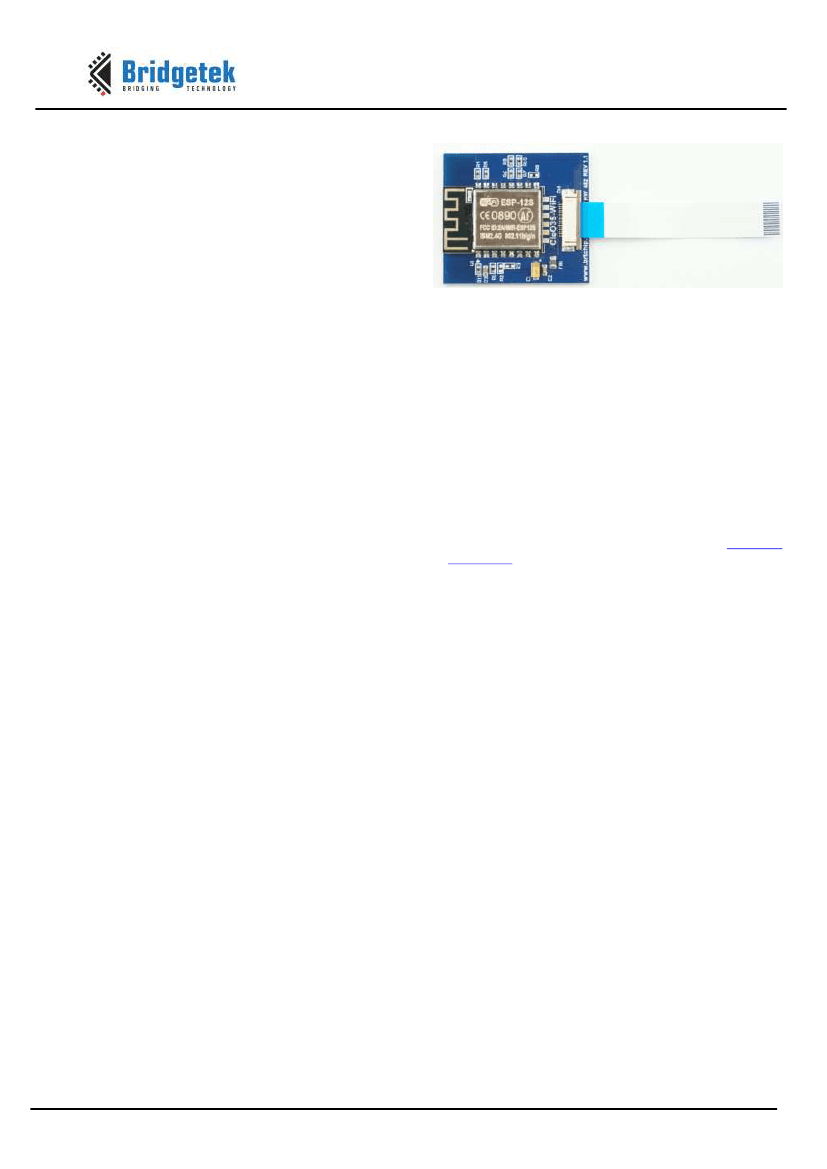

The CleO35-WIFI module is a Wi-Fi accessory for the
CleO
series – the smart TFT display for Arduino.
Designed with an ESP-12S Wi-Fi module from Ai-thinker
using core processor ESP8266, the ESP8266 is among
the most integrated Wi-Fi chips in the industry.
Measuring just 5mm X 5mm, it requires minimal
external circuitry and integrates a 32-bit Tensilica MCU,
digital peripheral interface, antenna switch, RF balun,
power amplifier, low noise receive amplifier, filters and
power management modules all in one small package.
The
CleO35-WIFI
module comes with a standard 16 pin
0.5mm pitch FFC cable, suitable for connecting directly
to CleO35 modules or via the CleO_IO Shield to CleO50
modules enabling wireless communications to the
system.
As a plug in accessory to CleO it extends the CleO
modules capabilities to include wireless monitor and
control for smart devices around the home.
1.1
Features
The CleO35-WIFI consists of ESP-12S WIFI module
developed by Ai-thinker using an ESP8266. For the
full list of ESP8266’s features, refer to the
ESP8266
Datasheet.
In addition, CleO35-WIFI has the
following features:
Supports standard IEEE802.11 b/g/n
Integrated low power 32-bit MCU
Wi-Fi 2.4GHz, Support WPA/WPA2
Support STA/AP/STA+AP operation mode
+20dBm output power in 802.11b mode
On board PCB antenna
Compatible with Bridgetek CleO35
16 Pin 0.5mm Pitch FFC Flex interface
Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced
in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are
supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Bridgetek Pte Ltd
will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your statutory rights are not
affected. This product or any variant of it is not intended for use in any medical appliance, device or system in which the failure of the
product might reasonably be expected to result in personal injury. This document provides preliminary information that may be subject
to change without notice. No freedom to use patents or other intellectual property rights is implied by the publication of this document.
Bridgetek Pte Ltd, 178 Paya Lebar Road, #07-03, Singapore 409030. Singapore Registered Company Number: 201542387H
Copyright © Bridgetek Pte Ltd
1
CleO35-WIFI Module Datasheet
Version 1.0
Document Reference No.: BRT_000117
Clearance No.: BRT#082
Table of Contents
1
2
3
4
Introduction .................................................................... 1
1.1
Features .................................................................................... 1
Ordering Information ...................................................... 2
Program Support ............................................................. 2
Pin Out and Signal Description ........................................ 4
4.1
4.2
Module Description ................................................................... 4
Module Interface Signal Description ......................................... 4
Parameters ............................................................................... 6
5
6
7
8
Device Major Parameters ................................................ 6
5.1
Board Schematics ............................................................ 7
Mechanical Dimensions ................................................... 8
Contact Information ........................................................ 9
Document References ..................................................................... 10
Acronyms and Abbreviations ........................................................... 10
Appendix A – References ................................................... 10
Appendix B - List of Figures and Tables ............................. 11
List of Tables ................................................................................... 11
List of Figures ................................................................................. 11
Appendix C – Revision History ........................................... 12
Copyright © Bridgetek Pte Ltd
3
CleO35-WIFI Module Datasheet
Version 1.0
Document Reference No.: BRT_000117
Clearance No.: BRT#082
4
Pin Out and Signal Description
4.1 Module Description
U1
CN1

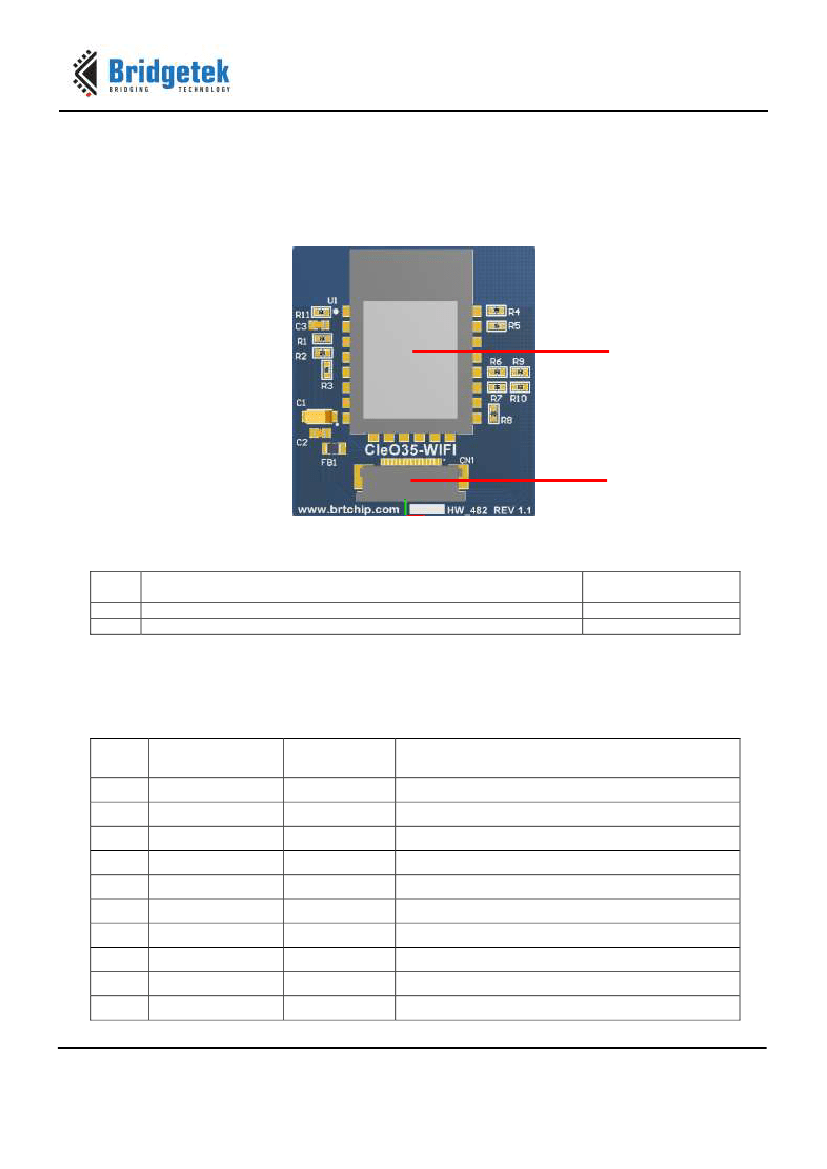

Figure 1 – CleO35-WIFI Top View
No
1
2
Feature
ESP-12S WIFI Module
16 pin 0.5mm pitch FFC Connector
Table 1 - Module Feature Description
Reference
Designator
U1
CN1
4.2 Module Interface Signal Description
The pin description of
CN1
is given in
Table 2.
Pin
No
1
2
3
4
5
6
7
8
9
10
Pin Name
WIFI_RST
WIFI_EN
WIFI_CFG0
-
VDD_3V3
GND
-
-
WIFI_TXD
WIFI_RXD
Type
Input
Input
I/O
NC
Power
Ground
NC
NC
Output
Input
Description
Reset Wi-Fi module (Active low signal)
Enable Wi-Fi module (‘1’ to enable module)
GPIO0
No connection
3V3 Supply
Power ground
No connection
No connection
UART TXD
UART RXD
Copyright © Bridgetek Pte Ltd
4
