NAE-CW305-04-SOCKET-0.10-X datasheet, PDF

Datasheet> All Categories > Embedded solution> Engineering tools> Embedded development tools> Programmable logic IC development tools> NAE-CW305-04-SOCKET-0.10-X

Preview

NAE-CW305-04-SOCKET-0.10-X: DescriptionProgrammable logic IC development tool CW305 Artix FPGA Target Board; CategoryEmbedded solution Engineering tools Embedded development tools Programmable logic IC development tools; File Size2MB，5 Pages; ManufacturerNewAE; Environmental Compliance

Download Datasheet Parametric Compare View All

NAE-CW305-04-SOCKET-0.10-X Overview

Programmable logic IC development tool CW305 Artix FPGA Target Board

NAE-CW305-04-SOCKET-0.10-X Parametric

Parameter Name	Attribute value
Maker	NewAE
Product Category	Programmable Logic IC Development Tools
product	Target Boards
type	FPGA
Tools for assessment	Artix-7 in FTG-256 Package
Encapsulation	Bulk
series	CW305
Working power voltage	0.8 V to 1.2 V
Factory packaging quantity	1

Preview

Download Datasheet

View All

NewAE

Technology

NewAE Technology Inc.

newae.com

ChipWhisperer® Embedded Security Analysis Tools

Stand-Alone Targets

CW305 Artix FPGA Target

Product Datasheet

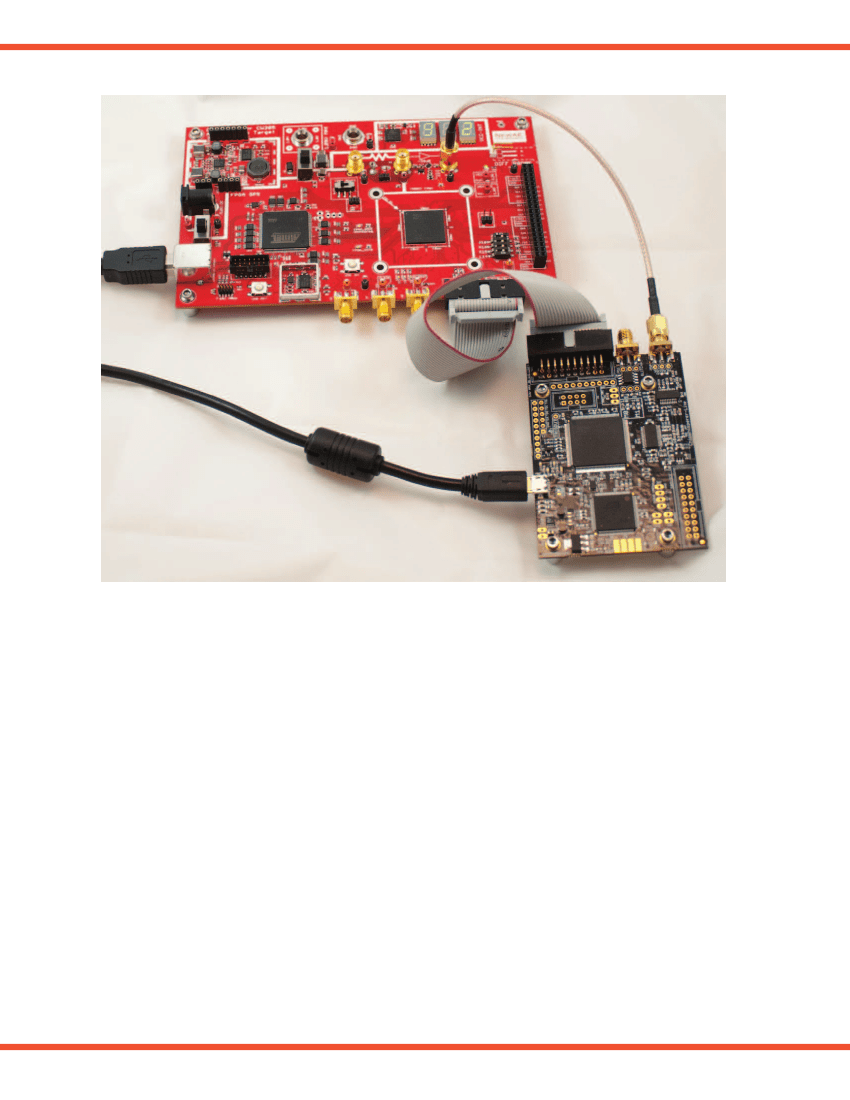

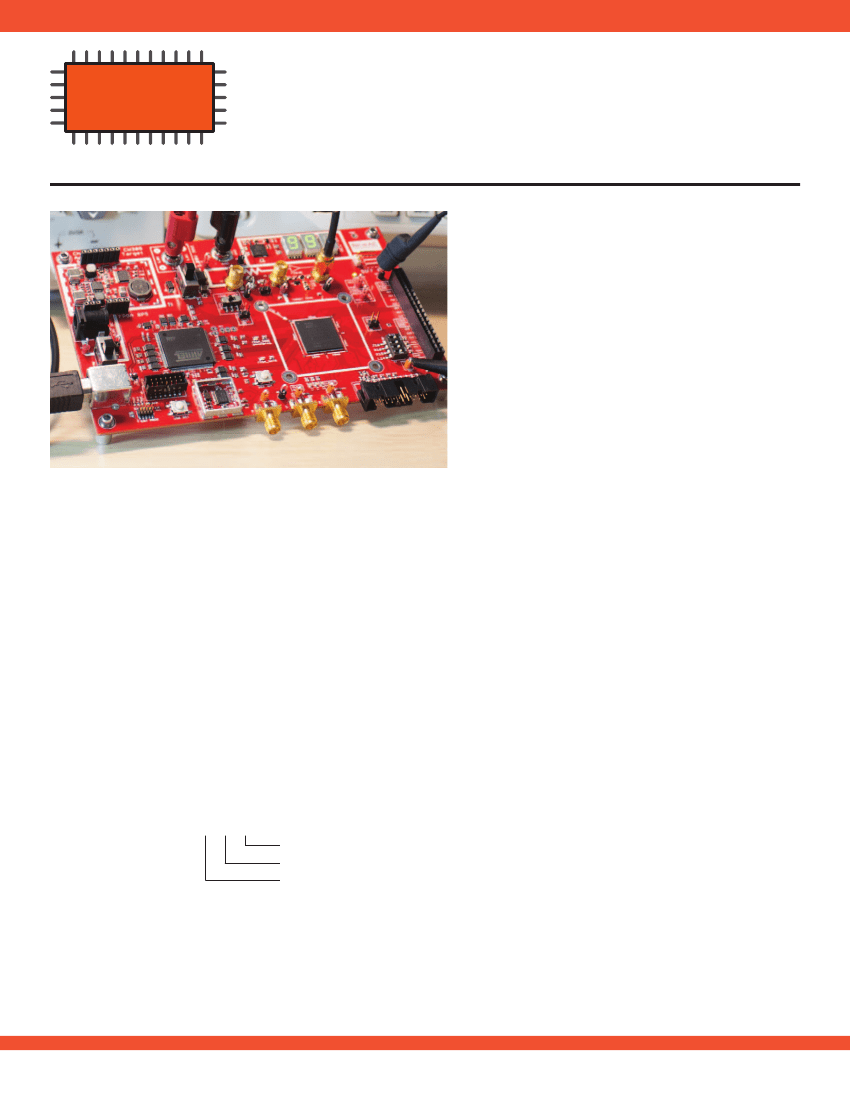

The CW305 is an advanced target for performing

power analysis & fault injection attacks against hard-

ware cryptographic functions implemented in FPGAs.

A custom USB interface chip means you can trivially

send and receive data to your FPGA design, while

also performing FPGA configuration and adjusting

external PLL operating frequencies all from the same

interface. ESD protection on all I/O lines allows you to

perform glitch insertion safely, and an optional BGA

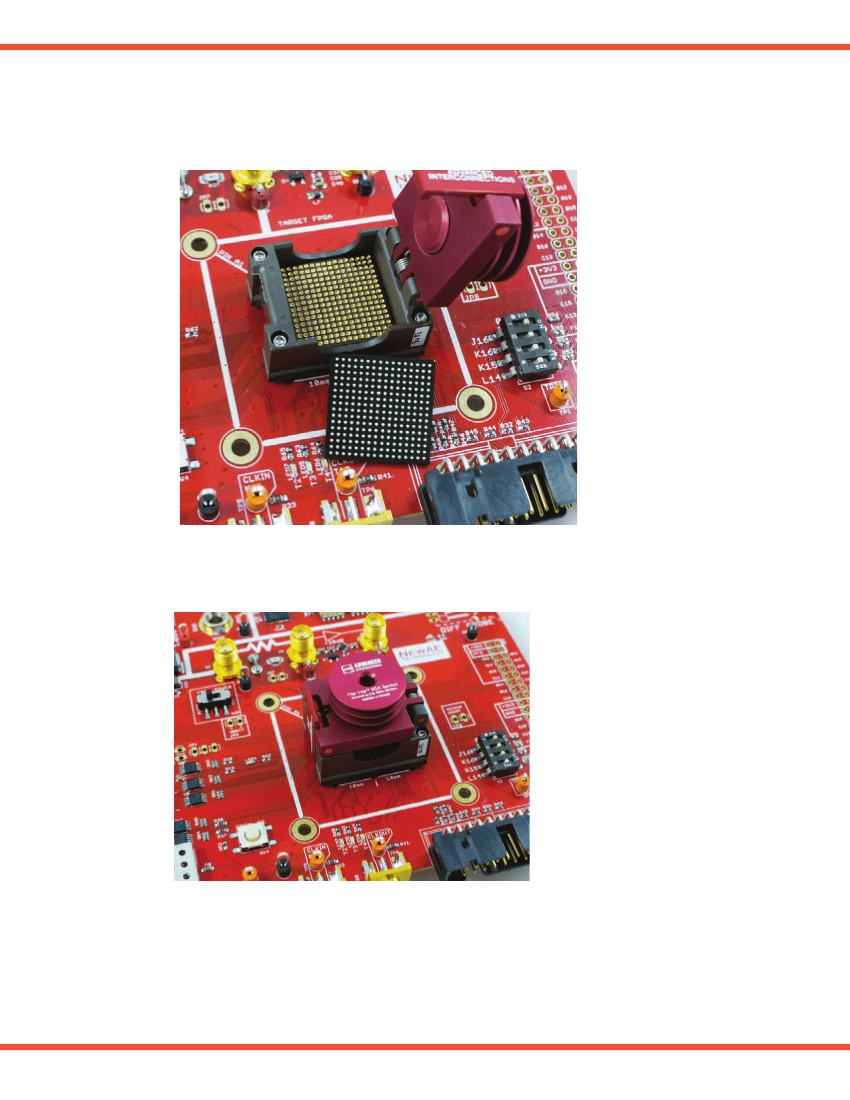

socket is perfect for comparing effects across many

physical devices.

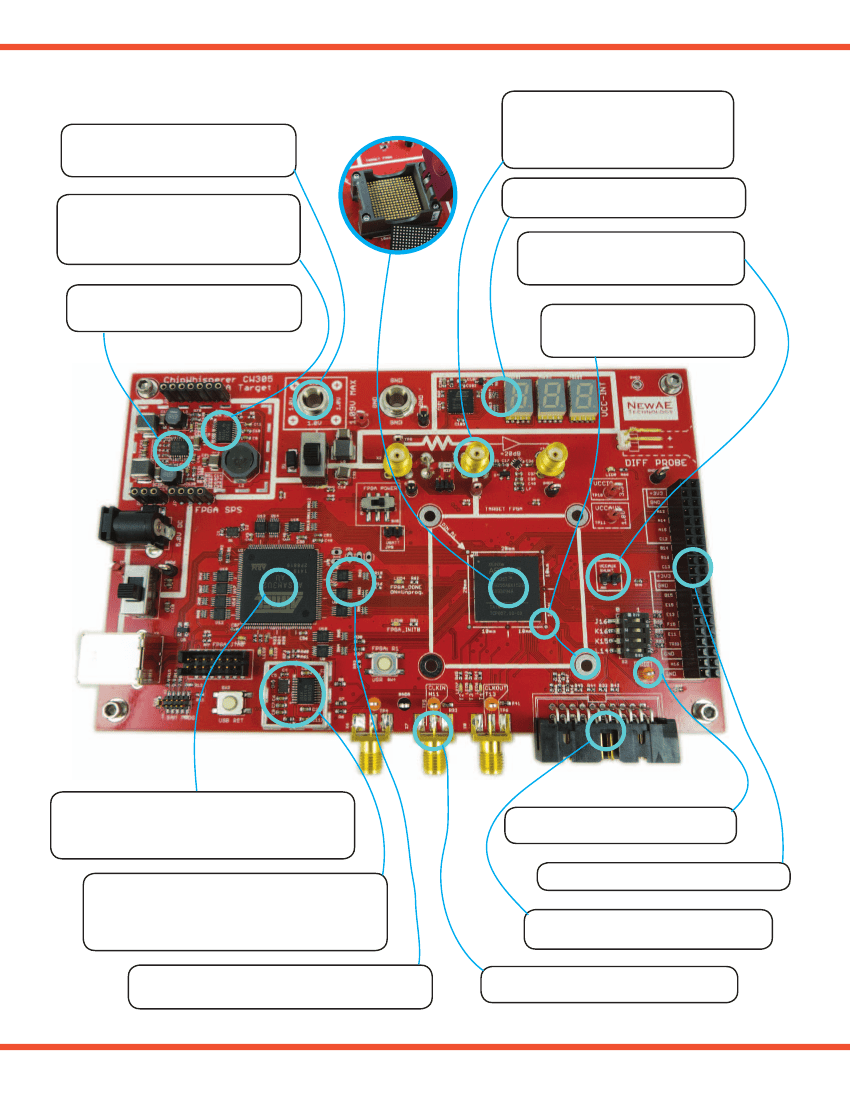

Product Highlights

Shunt resistor for measurement of power consumption of core implemented on FPGA. Default option of no decoupling

capacitors mounted leaves high-frequency signals present across shunt.

ESD protection reduces possibility of resetting USB interface when inserting EM or voltage faults.

Three types of FPGA targets (-A35, -A100, SOCKET) allowing implementation of large cryptographic cores.

Custom USB interface provides simple address/data register set leaving you to concentrate on FPGA core, and not on

details of the USB Interface protocol.

Programmable VCC-INT power supply & external oscillators allow you to control external parameters over USB for

validation across voltage and frequency.

Ordering Summary

NAE-CW305-04-☐-☐-☐

Decoupling capacitor options

Shunt resistor

FPGA type

Product Links

Full Documentation

Example FPGA Projects

http://cwdocs.com/cw305

https://github.com/newaetech/chipwhisperer/tree/master/hardware/

victims/cw305_artixtarget

CW305 Datasheet

Last Update: 2018-FEB-06

NAE-CW305-04-SOCKET-0.10-X Related Products

	NAE-CW305-04-SOCKET-0.10-X	NAE-CW305-04-7A100-0.10-X
Description	Programmable logic IC development tool CW305 Artix FPGA Target Board	Programmable logic IC development tool CW305 Artix FPGA Target Board
Maker	NewAE	NewAE
Product Category	Programmable Logic IC Development Tools	Programmable Logic IC Development Tools
product	Target Boards	Target Boards
type	FPGA	FPGA
Tools for assessment	Artix-7 in FTG-256 Package	XC7A100T-2FTG256
Encapsulation	Bulk	Bulk
series	CW305	CW305
Working power voltage	0.8 V to 1.2 V	0.8 V to 1.2 V
Factory packaging quantity	1	1
