MAX40008/MAX40009 Evaluation Kit
Evaluates: MAX40008/MAX40009
General Description
The MAX40008/MAX40009 evaluation kit (EV kit) is a
fully assembled and tested PC board that evaluates
the MAX40008/MAX40009 single comparator with shutdown
input. The MAX40009EVKIT# comes with a push-pull out-
put (MAX40009ANT+), while the MAX40008EVKIT# EV
kit comes with an open-drain output (MAX40008ANT+)
installed that operates off a V
DD
supply between 1.7V
and 5.5V. The MAX40008/MAX40009 has a wide input
common mode voltage range from -0.2V to V
DD
+ 0.2V.
This EV kit demonstrates the MAX40008/MAX40009 in an
ultra-small, 0.73mm x 1.1mm, 6-bump wafer-level pack-
age (WLP) with 0.35mm bump spacing.
The EV kit can be used to evaluate both the
MAX40008 and MAX40009 with a 6-bump WLP. To
evaluate the MAX40008 (open-drain output version on
MAX40009EVKIT#), replace U1 (MAX40009) with the
MAX40008 with jumper J1 installed.
When using the MAX40008EVKIT# to evaluate the
MAX40009 (push-pull version), replace U1 (MAX40008)
with MAX40009 with jumper J1 removed.
Quick Start
Required Equipment
●
Three +5V DC power supplies
(V
DD
, V
IN+
, and V
PULL
)
●
Two digital multimeters (DMMs)
Procedure
The MAX40008/MAX40009 EV kit is fully assembled
and tested. Follow steps below to verify board operation.
Caution: Do not turn on the power supply until all
connections are completed.
1)
Connect the positive terminal of a DC power supply
to the VDD test point and the ground terminal to the
GND test point.
Connect the positive terminal of a DC power supply to
the VPULL test point and the ground terminal to the
GND test point when evaluating the MAX40008. This
is not necessary when evaluating the MAX40009.
Connect the positive terminal of a DC power supply
to the INP test point and the ground terminal to the
GND test point.
Turn on the V
DD
power supply and set it to any
voltage between 1.7V and 5.5V.
Turn on the V
PULL
power supply and set it to any
voltage between 1.7V to 5.5V (MAX40008 only).
Do not need V
PULL
supply when MAX40009
(push-pull output) is used.
Turn on the IN+ power supply and set it to the desired
level.
Monitor the output using a DMM at the V
OUT
test
point and observe its response to varying voltage at
IN+. V
OUT
should be at logic-high (V
PULL
) when voltage
applied on IN+ is greater than V
IN-
and should be at
logic-low (0V) when the voltage applied on IN+ is less
than V
IN-
.
2)
3)
Features
●
300ns Propagation Delay
●
Wide Input Common Mode Voltage Range,
-0.2V to V
DD
+ 0.2V
●
Hysteresis Adding Configurable
●
Evaluates 6-Bump WLP Package
●
Fully Assembled and Tested
Ordering Information
appears at end of data sheet.
4)
5)
6)
7)
319-100005; Rev 1; 6/17
MAX40008/MAX40009 Evaluation Kit
Evaluates: MAX40008/MAX40009
Detailed Description of Hardware
the term
V
OL
R1
~ 0, so
R1
+
R2
R1
+
R 3
R1
+
R2
+
R 3
The MAX40008/MAX40009 EV kit is a fully assembled
and tested PC board that evaluates the 6-bump WLP
MAX40009ANT+ open-drain output comparator, while
the MAX40008EVKIT# comes with an open-drain output
(MAX40008ANT+). The EV kit requires a 1.7V to 5.5V
supply voltage for normal operation. The EV kit can be
used to evaluate both the MAX40008 and MAX40009
offered in a WLP package.
V
HYS
=
V
PULL
Positive Hysteresis
and R5 and R6 set the threshold voltage at IN- input as
follows:
V
IN-
+
The EV kit allows user to add external hysteresis in addi-
tion to the 4mV internal hysteresis by usage of adding
appropriate resistors on R2 and R1 pads. When R1 and
R2 values are chosen in such a way that R1, R2 >> R3
(39kΩ) approximately greater 50x than R3, then the equa-
tions become:
For the MAX40008 (open-drain) output:
=
V
THP
+
=
V
DD
R5
R5
+
R6
The source providing the signal input at IN+ input should
be a low impedance source. High-impedance source
affects the trip points as the input resistance of the source
adds on to R1.
V
IN
R2
+
R3
R1
+
R3
+
V
PULL
R1
+
R2
+
R3
R1
+
R2
+
R3
Logic Level Translation
and
=
V
THN
+
V
IN
R2
R1
+
V
OL
R1
+
R2
R1
+
R2
Use the MAX40008 output for logic-level translation
applications. Install jumper J1 and apply the desired
supply voltage level at V
PULL
. Resistors R5 and R6 set
the threshold voltage at IN-. Apply the signal to be level
translated at IN+. Note that the device’s output has an
absolute maximum of (-0.3V) to +6V. See
Table 1
for
jumper configurations.
The pullup supply voltage (V
PULL
) can be up to 6V.
For evaluating the MAX40008 on the MAX40009EVKIT#,
replace U1 (MAX40009ANT+) with MAX40008ANT+ and
install jumper J1 to connect to V
PULL
. When using the
MAX40008EVKIT#, to evaluate MAX40009 (push-pull
version), replace U1 (MAX40008) with MAX40009 with
jumper J1 removed.
when R1 and R2 >> RP
=
V
THP
+
V
IN
R2
R1
+
V
P
R1
+
R2
R1
+
R2
V
HYS
=
V
THP
−
V
THN
=
R1
R1
+
R 3
+
V
OL
V
PULL
R1
+
R2
+
R 3
R1
+
R2
Table 1. Jumper Settings
JUMPER
J1
SHUNT POSITION
Installed
Not Installed*
J2
*Default Jumper settings
1-2*
2-3
FUNCTION
Connects Open-Drain output (MAX40008) to V
PULL
Normal push-pull operation (MAX40009)
The device is in Active mode
The device is shut down
Ordering Information
PART
MAX40008EVKIT#
MAX40009EVKIT#
#RoHS-compliant
www.maximintegrated.com
Maxim Integrated
│
2
TYPE
EV Kit
EV Kit
MAX40008 EV Kit Bill of Materials
QTY
2
3
3
1
1
1
1
2
1
2
0
1
18
ERJ-2GE0R00X
MAX40008
PANASONIC
MAXIM
0
PCB
5000
KEYSTONE
N/A
MAX40008EWT+
MAXIM
MAX40008EWT+
2SN-BK-G
SAMTEC
2SN-BK-G
ERJ-2GE0R00X
ERJ-2RKF3902X
PANASONIC
PANASONIC
0
39K
FTS-103-01-L-S
SAMTEC
FTS-103-01-L-S
FTS-102-01-L-S
SAMTEC
FTS-102-01-L-S
5002
KEYSTONE
N/A
TEST POINT; PIN DIA=0.1IN; TOTAL LENGTH=0.3IN;
BOARD HOLE=0.04IN; WHITE; PHOSPHOR BRONZE WIRE SILVER;
5001
KEYSTONE
N/A
CL05B104KO5NNN
0.1UF
MFG PART #
VALUE
COMMENTS
MANUFACTURER
SAMSUNG
ELECTRONICS
ITEM
REF_DES
DNI/DNP
1
C1, C2
-
2
X1, X2, GND
-
DESCRIPTION
CAPACITOR; SMT (0402); CERAMIC; 0.1UF; 16V;
TOL=10%; TG=-55 DEGC TO +125 DEGC; TC=X7R
TEST POINT; PIN DIA=0.1IN; TOTAL LENGTH=0.3IN;
BOARD HOLE=0.04IN; BLACK; PHOSPHOR BRONZE
WIRE SILVER PLATE FINISH;
www.maximintegrated.com
CONNECTOR; MALE; THROUGH HOLE; 1.27MM MICRO
LOW PROFILE TERMINAL STRIP; STRAIGHT; 2PINS;
CONNECTOR; MALE; THROUGH HOLE; MICRO LOW PROFILE
TERMINAL STRIP; STRAIGHT; 3PINS
RESISTOR; 0402; 0 OHM; 0%; JUMPER; 0.10W; THICK FILM
RESISTOR, 0402, 39K OHM, 1%, 100PPM, 0.0625W, THICK FILM
TEST POINT; JUMPER; STR; TOTAL LENGTH=0.175IN; BLACK;
INSULATION=PBT;PHOSPHOR BRONZE CONTACT=GOLD PLATED
EVKIT PART-IC; MAX40008EWT+; PACKAGE OUTLINE: 21-100086C;
PACKAGE CODE: N60D1+1; WLP6
TEST POINT; PIN DIA=0.1IN; TOTAL LENGTH=0.3IN;
BOARD HOLE=0.04IN; RED; PHOSPHOR BRONZE
WIRE SILVER PLATE FINISH;
RESISTOR; 0402; 0 OHM; 0%; JUMPER; 0.10W; THICK FILM
PCB Board:MAX40008 EVALUATION KIT
3
INM, INP,
VOUT
-
4
J1
-
5
J2
-
6
7
R1
R3
-
-
8
SU1, SU2
-
9
U1
-
10
VDD, VPULL
-
MAX40008/MAX40009 Evaluation Kit
11
12
TOTAL
R2, R5, R6
PCB
DNP
-
Evaluates: MAX40008/MAX40009
Maxim Integrated
│
3
MAX40008/MAX40009 Evaluation Kit
Evaluates: MAX40008/MAX40009
MAX40008 EV Kit Schematic
VDD
VDD
R6
DNI
INM
1
VDD
2
J2
VDD
B2
R5
DNI
3
C1
A2
FTS-103-01-L-S
GND
VOUT
GND
R1
INP
0.1UF
B1
A1
R2
DNI
VOUT
SHDN
IN-
IN+
VDD
GND
B3
OUT
A3
J1
2
FTS-102-01-L-S
VOUT
1
R3
0
U1
MAX40008EWT+
39K
C2
0.1UF
VPULL
GND
www.maximintegrated.com
Maxim Integrated
│
4
MAX40008/MAX40009 Evaluation Kit
Evaluates: MAX40008/MAX40009

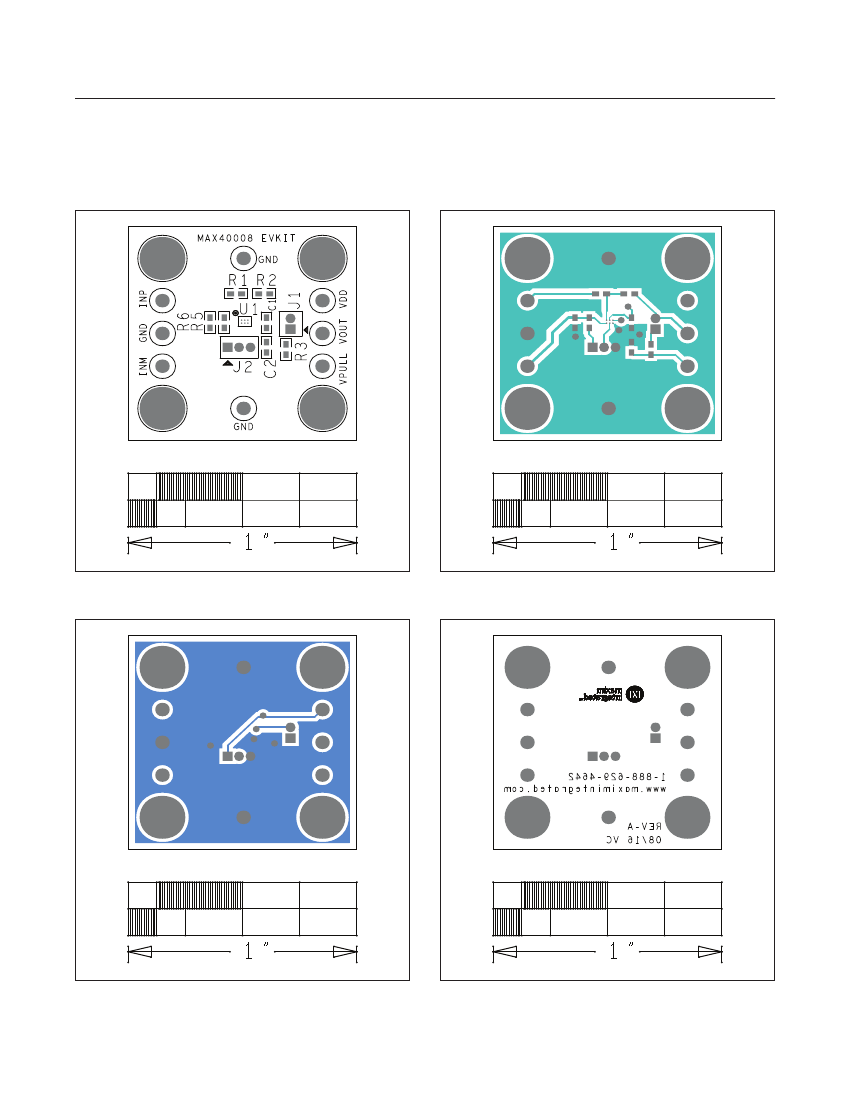

MAX40008 EV Kit PCB Layout Diagrams
MAX40008 EV Kit—Top Silkscreen
MAX40008 EV Kit—Top
MAX40008 EV Kit—Bottom
MAX40008 EV Kit—Bottom Silkscreen
www.maximintegrated.com
Maxim Integrated
│
5
