Features:
Low optical
insertion loss
Cost-effective
WDM
technology
Terminates 1310
and four or eight
CWDM
wavelengths
LC connectors
(SC version
available)
Color coded for
easy installation
Reliable passive
WDM technology
1310/CWDM MUX/DEMUX
(type II) Plug-in Module
Ring or point-to-point
applications
Low-profile
modular design
Fits in 1RU 19”
rack mount chassis
RoHS compliant
1310/CWDM plug-in module is a passive optical multiplexer/demultiplexer designed to
add CWDM wavelengths to an existing 1310nm backbone ring. The module
multiplexes and demultiplexes a single 1310nm wavelength and four or eight additional
CWDM wavelengths in a two-fiber ring network.
This MUX/DEMUX module plugs into one half of a 1RU, 19" rack mount chassis for
simple installation and modularity. This Chassis based system offers network
equipment manufacturers a more scalable and higher-density solution to add CWDM
capability to their existing and new networks with simple pluggable interface.
Finisar’s CWDM product delivers dramatic cost savings to network equipment
manufacturers, enabling them to develop metro access systems that are lower in cost,
easier to provision and simpler to operate.
1310/CWDM MUX/DEMUX (Type II) Plug-in Module
Specifications
Mechanical
Dimensions:
8.3” x 1.7” x 10.4”,
210mm x 43mm x 264mm,
plug-in for 1RU rack-mount
Optical
Wavelengths Ports:
MUX/DEMUX-1310/CWDM-4 Plug-in
• 1310nm
• 1471nm
• 1511nm
• 1551nm
• 1591nm
MUX/DEMUX-1310/CWDM-8 Plug-in
• 1310nm
• 1471nm • 1491nm
• 1511nm • 1531nm
• 1551nm • 1571nm
• 1591nm • 1611nm
Directivity:
≥
55dB
Return Loss:
≥
45dB
PDL:
≤
0.15dB
PMD:
≤
0.2ps
Environmental:
o
•
Operating 0 to 70 C
•
Relative humidity:
10 to 85%, non-condensing
o
• Storage - 40 to 85 C
Connectors:
• Network side: LC/PC or LC/APC
• Equipment side: LC/PC or LC/APC
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar.15 Rev.F
1310/CWDM MUX/DEMUX (type II) Plug-in Module Parameter Specifications
FWSF-M/D-1310/CWDM-4
Channel
1310 channel
CWDM channels
Passband
1260nm-1360nm
CWL+/-6.5nm
Max Insertion Loss (dB)
Mux
Demux
1.1
1.1
2.4
2.7
Min Isolation (dB)
Mux
Demux
30
45
30
45
FWSF-M/D-1310/CWDM-8
Channel
1310 channel
CWDM channels
Passband
1260nm-1360nm
CWL+/-6.5nm
Max Insertion Loss (dB)
Mux
Demux
1.1
1.1
3.2
3.5
Min Isolation (dB)
Mux
Demux
30
45
30
45
Note:
Connector loss included

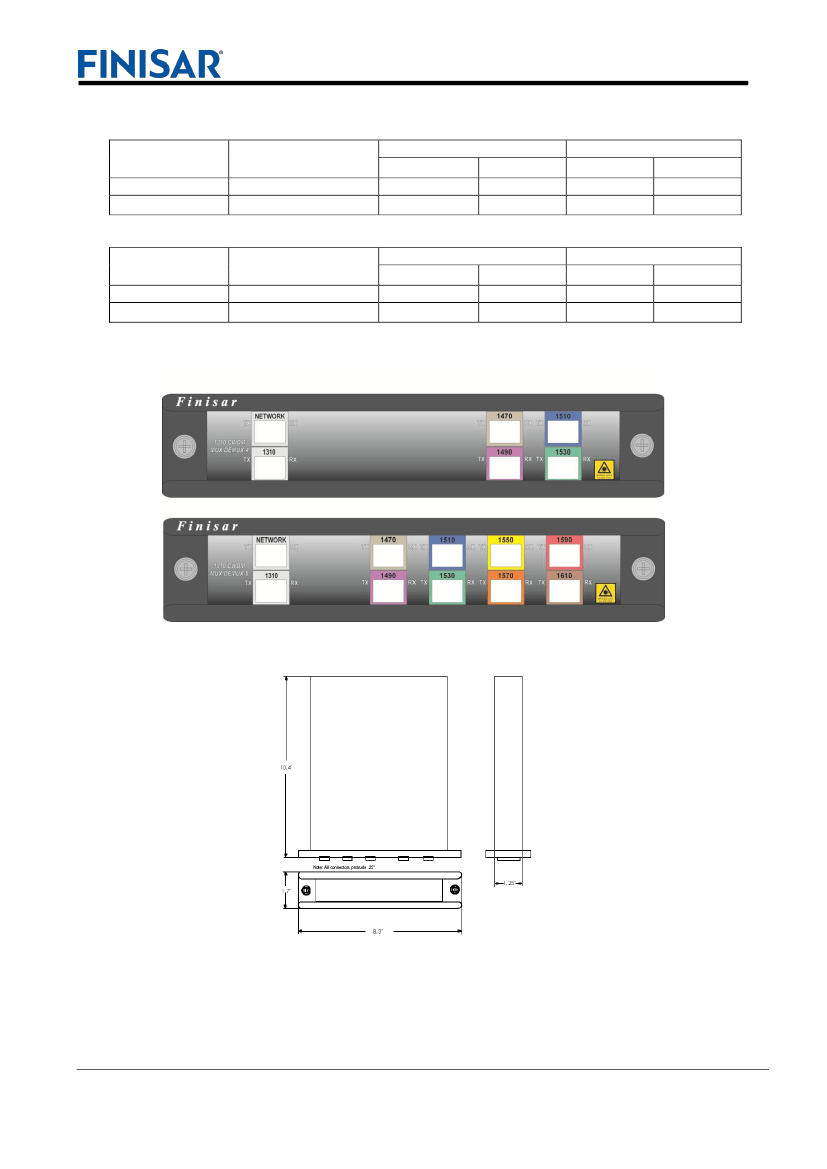

Front Panel
Dimensions
(Unit: inch)
Ordering Information
Part Number Description
FWSF-M/D-1310/CWDM-4-LC
FWSF-M/D-1310/CWDM-4-LA
FWSF-M/D-1310/CWDM-8-LC
FWSF-M/D-1310/CWDM-8-LA
Four Wavelength Plug-in Module for FWSF-CHASSIS-2, 1471nm, 1511nm, 1551nm, 1591nm, LC/PC connectors
Four Wavelength Plug-in Module for FWSF-CHASSIS-2, 1471nm, 1511nm, 1551nm, 1591nm, LC/APC connectors
Eight Wavelength Plug-in Module for FWSF-CHASSIS-2, 1471nm to 1611nm, LC/PC connectors
Eight Wavelength Plug-in Module for FWSF-CHASSIS-2, 1471nm to 1611nm, LC/APC connectors
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar.15 Rev.F
