DC1349A

Description
Power management IC development tool LTC3853EUJ Demo Board - 6.5V < VIN < 14V
CategoryEmbedded solution    Engineering tools    Power management IC development tools
File Size812KB,8 Pages
ManufacturerADI
Websitehttps://www.analog.com
Environmental Compliance
Download Datasheet Parametric View All

DC1349A Online Shopping

Suppliers Part Number Price MOQ In stock
DC1349A - - View Buy Now

DC1349A Overview

Power management IC development tool LTC3853EUJ Demo Board - 6.5V < VIN < 14V

DC1349A Parametric

Parameter NameAttribute value
MakerADI
Product CategoryPower Management IC Development Tools
productDemonstration Boards
typeVoltage Regulators - Switching Regulators
Tools for assessmentLTC3853EUJ
Input voltage6.5 V to 14V
The output voltage1.2 V, 1.8 V, 2.5 V
Output current15 A
seriesLTC3853
Factory packaging quantity1
HIGH CURRENT POLYPHASE 3-OUTPUT STEP-DOWN SUPPLY WITH TRACKING
QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 1349A
LTC3853EUJ
DESCRIPTION
Demonstration circuit 1349A is a high current polyphase
3-output step-down supply with tracking featuring the
LTC3853EUJ. The entire circuit, excluding the bulk out-
put capacitors, fits within a 1.5” X 1.5” area on all layers.
The package style for the LTC3850EUJ is a 6mm x 6mm
plastic QFN.
The main features of the board include rail tracking, an
internal 5V linear regulator for bias, RUN pins for each
output, two PGOOD signals and a Mode selector that
allow the converter to run in CCM, pulse skip or Burst
Mode operation. Synchronization to an external clock is
also possible through some minor component changes.
The board is configured for resistor current sensing, but
optional DCR sensing is possible through some compo-
nent changes.
The input voltage range is 6.5V to 14V, but for applica-
tions with narrow, 5V ± 0.5V input range, the board has
an optional resistor to tie the INTVCC pin to the VIN pin.
The LT3853 datasheet gives a complete description of
the part, operation and application information and must
be read in conjunction with this quick start guide for
demo circuit 1349A.
Design files for this circuit board are available. Call
the LTC factory.
Burst Mode is a trademark of Linear Technology Corporation
Table 1. Performance Summary (T
A
= 25°C)
PARAMETER
Input Voltage Range
Output Voltage V
OUT1
Output Voltage V
OUT2
Output Voltage V
OUT3
Nominal Switching Frequency
Efficiency
See Figures 4, 5 and 6 for efficiency curves
V
OUT1
= 1.8V, I
OUT1
= 15A; V
IN
= 12V
V
OUT2
= 1.2V, I
OUT2
= 15A; V
IN
= 12V
V
OUT3
= 2.5V, I
OUT3
= 15A; V
IN
= 12V
V
IN
= 6.5V to 14V, I
OUT1
= 0A to 15A
V
IN
= 6.5V to 14V, I
OUT2
= 0A to 15A
V
IN
= 6.5V to 14V, I
OUT3
= 0A to 15A
CONDITION
VALUE
6.5V - 14V
1.8V ±2%
1.2V ±2%
2.5V ±2%
400kHz
89.2% Typical
86.6% Typical
91.7% Typical
QUICK START PROCEDURE
Demonstration circuit 1349A is easy to set up to evalu-

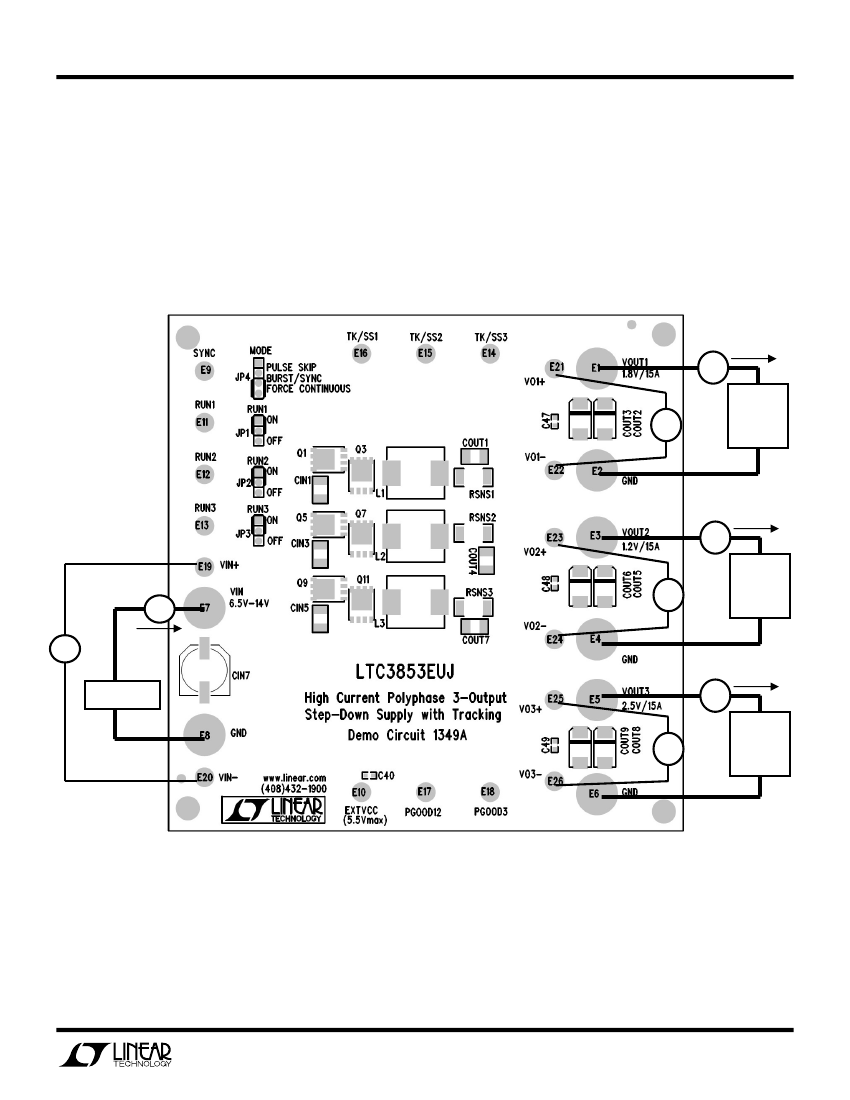

ate the performance of the LTC3853EUJ. Refer to Figure
1 for proper measurement equipment setup and follow
the procedure below:
measuring the input or output voltage rip-
ple, care must be taken to avoid a long ground lead on
the oscilloscope probe. Measure the input or output
voltage ripple by touching the probe tip directly across
the Vin or Vout and GND terminals. See Figure 2 for
proper scope probe technique.
NOTE:
When
1.
Place jumpers in the following positions:
JP1
JP2
JP3
JP4
On
On
On
Forced Continuous
2.
3.
With power off, connect the input power supply to Vin
and GND.
Turn on the power at the input.
