FQ1200MK3/FM1200MK3 FAMILY
Application Note
Disclaimer
This document is believed to be correct at the time of publication. Whilst every care has been taken to
ensure its accuracy, the copyright owner accepts absolutely no liability for any losses or damages arising
from its use.
The copyright owner also reserves the right to change and update this document as and when he sees fit.
Copyright © Philips Electronics Singapore Private Limited
Business Unit RF-Solutions
FQ/FM1200MK3 Application note
1
Tables of contents:
1.
2.
3.
4.
5.
6.
Introduction
……………………………………
Range of Products
……………………………………
General Block Diagram
……………………………………
Pinning Information
……………………………………
Functional Description
……………………………………
Application information
………………………………… …
6.1
Grounding/Layout orientation
…………………..
6.2
Antenna socket/Cable requirement
…………………..
6.3
Supply requirement
…………………..
2
6.4
I C Programming requirement
…………………..
2
6.4.1 I C Bus Structure
…………………..
6.4.2 Tuner Programming
…………………..
6.4.3 IF Programming
…………………..
2
6.4.4 I C Programming Examples
…………………..
6.5
Specific Pin Connections
…………………..
2
6.5.1 Loading of I C Bus
…………………..
6.5.2 FM AF-L/AF-R
…………………..
ND
6.5.3 2 Sound IF Output
…………………..
6.5.4 CVBS Output
…………………..
6.6
TV Stereo Sound System
…………………..
6.7
Approbation
…………………..
Appendix
……………………………………
7.1
Appendix A: TV Auto-tuning flow chart
………….
7.2
Appendix B: FM Auto-tuning flow chart
………….
7.3
Appendix C: FQ1236 MK3 Noise Figure
………….
7.4
Appendix D: Video SNR
………….
4
4
5
5
6
7
7
8
8
9
9
9
13
22
24
24
24
25
25
26
26
27
27
28
29
29
7.
List of Figures:
Figure 1: General Block Diagram of FQ/FM1200MK3
Figure 2: Suggested Layout
Figure 3: Suggested Supply De-coupling circuit
Figure 4: I
2
C Bus Structure
Figure 5: I
2
C Bus Loading
Figure 6: AF-R/AF-L Pins
Figure 7: 2
nd
IF Sound Output
Figure 8: CVBS Output
…………………..
…………………..
…………………..
…………………..
…………………..
…………………..
…………………..
…………………..
5
7
8
9
24
24
25
25
FQ/FM1200MK3 Application note
3
This document serves as a guideline to maximize the performance of this module for various
applications.
1.
Introduction

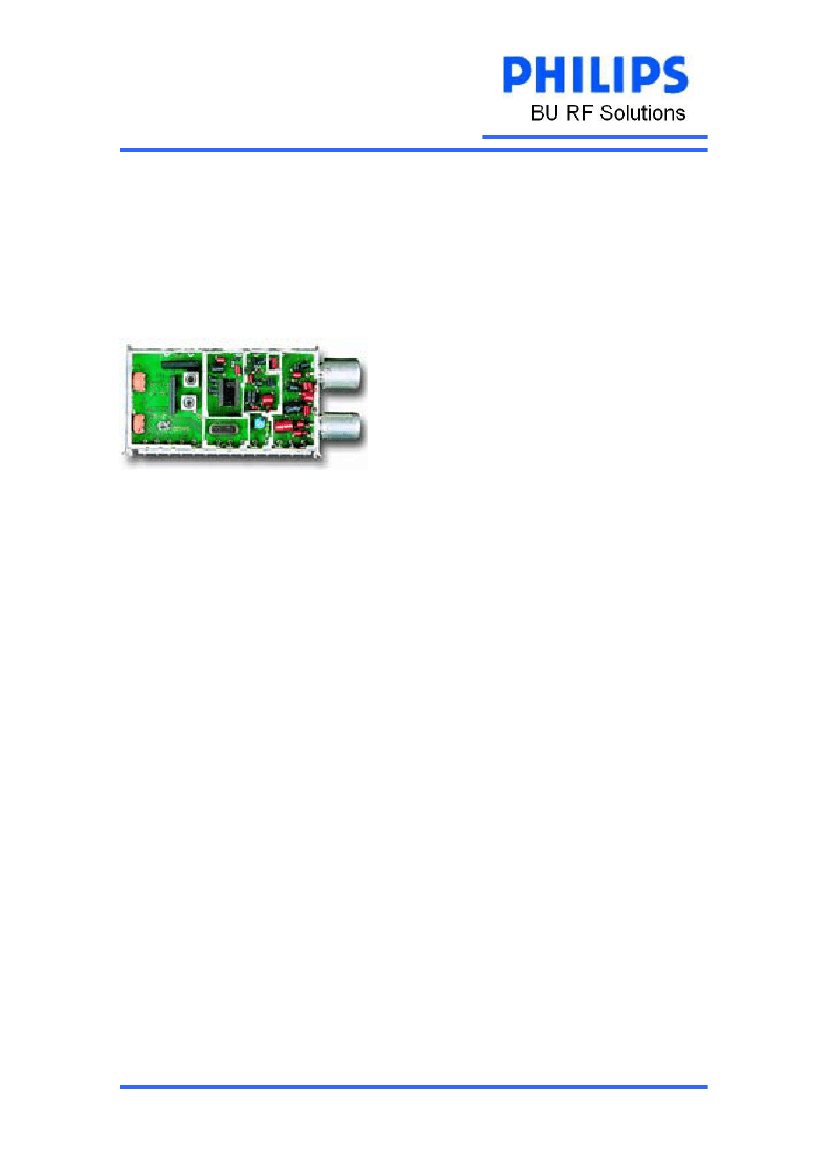

The FM1200Mk3 and FQ1200Mk3 are the new family of RF video modules family. The MK3
family is the small size front-ends which is designed to meet wider range of RF applications in the
areas like PC/TV Multi-Media; LCD TV; PVR and etc. It combines the functions of an all bands
tuner, and a Quasi-Split Sound (QSS) IF Demodulation unit.
The frontends have a built-in digital (I
2
C) PLL tuning system. A DC-DC converter circuit is built-
in to synthesize the tuning voltage, thus making the frontends the true 5V device.
The FQ1200Mk3 and FM1200MK3 are complied all the requirements of FCC, CISPR, JIS, DOC
(canada) as well as CENELEC (EN55013, EN55020) with respect to input immunity and EMC.
2.
Types
Range of Products
TV standard / Countries
CCIR B/G, I, D/K, L/L’
Western Europe, East Asia, China,
OIRT countries, France, UK, HK,
NZ, Australia
Input connector/
Mounting
IEC/Horizontal
Phono/Horizontal
IEC/Vertical
F/Horizontal
Phono/Horizontal
F/Vertical
F/Horizontal
Phono/Horizontal
12 NC
3139 147 18291
3139 147 18771
3139 147 19151
3139 147 18351
3139 147 18761
3139 147 19521
3139 147 18981
3139 147 20171
FQ1216ME/I H-3
FQ1216ME/P H-3
FQ1216ME/I V-3
FQ1236/F H-3
FQ1236/P H-3
FQ1236/F V-3
FQ1286/F H-3
FQ1286/P H-3
M/N
USA, Canada, Latin America,
Taiwan, S Korea, Philippines
M/N
Japan
FM1216ME/I H-3
CCIR B/G, I, D/K, L/L’ & FM
Western Europe, East Asia, China,
OIRT countries, UK, France, HK,
NZ, Australia
M/N and FM radio
USA, Canada, Latin America,
Taiwan, S Korea, Philippines
M/N and FM radio
Japan
IEC/Horizontal
3139 147 18201
FM1236/F H-3
F/Horizontal
3139 147 18261
FM1286/F H-3
F/Horizontal
3139 147 19011
Note : option for active loop-through; passive loop-through, LNA are available.
FQ/FM1200MK3 Application note
4
3.
TV
antenna
General Block Diagram
Oscillators
Video
SAW Filter
IF
Sound
SAW Filter
TDA988X
IF Demodulator IC
MOPLL
* 10.7MHz Filter
RF
AGC
*FM Radio
Stereo Decoder
33V
5V
RF AGC
do not connect
Vtuning
do not connect
+5V
SCL SDA
Address
Select
I2C BUS
*AF-R
*AF-L/
AS IF
*FM Radio
2nd IF CVBS
+5V
AF

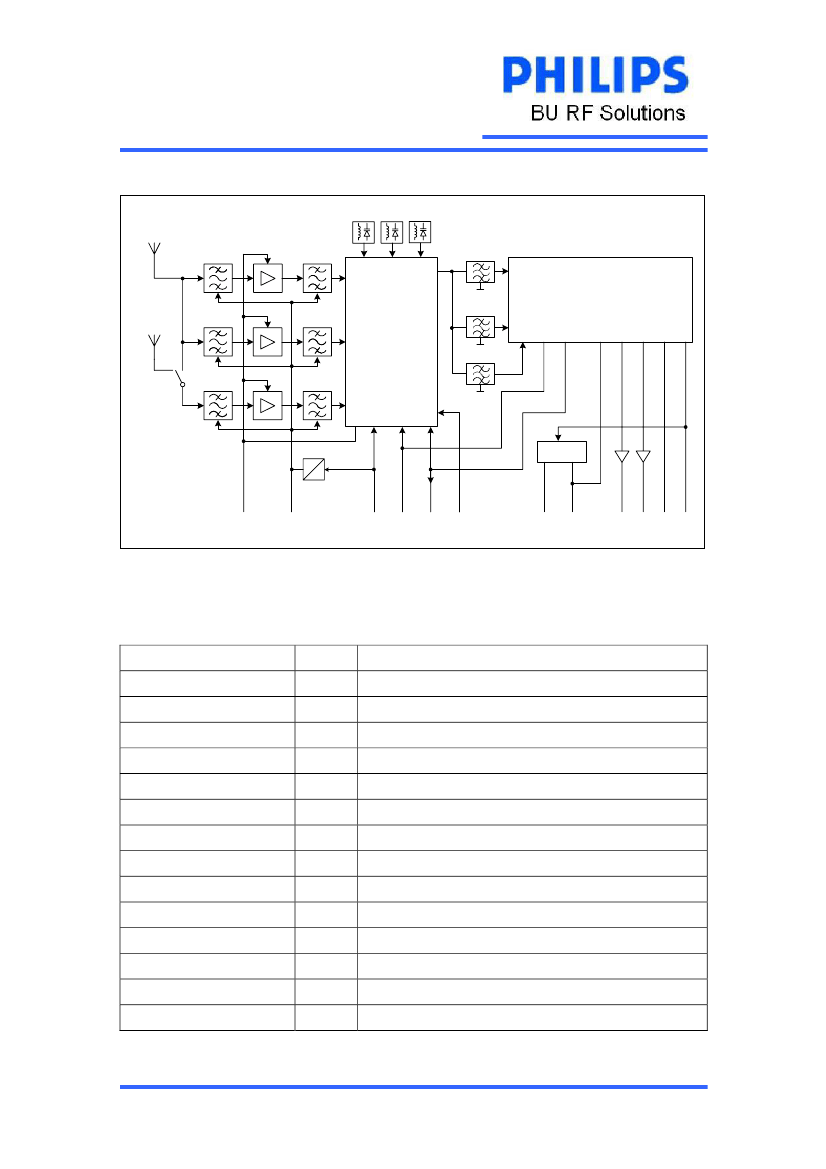

Figure 1, General Block Diagram of FQ/FM1200MK3
4.
N.C
N.C
+5V
SCL
SDA
AS
-
-
Pinning Information
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Description
Do not Connected (agc Monitor)
Do not Connected (tuning voltage monitor)
Supply Voltage Vb, Tuner section
I
2
C – Serial Clock
I
2
C – Serial Data
I
2
C – Address Select
Do not Connected
Do not Connected
Do not Connected / FM radio Right channel
I
2
C – Address Select IF/ FM radio Left channel
Second Sound IF output (buffered output)
Video (buffered output)
Supply Voltage, IF section
AF/MPX TV sound output
Symbol
N.C/AF-R
IF AS /AF-L
2
nd
Sound IF
CVBS
+5V IF
AF/MPX
FQ/FM1200MK3 Application note
5
