2SC0108T2C0-17 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> The power management module> 2SC0108T2C0-17

2SC0108T2C0-17: DescriptionPower management module Dual-Ch SCALE-2 1700 IGBT Driver; CategoryEmbedded solution The power management module; File Size949KB，22 Pages; ManufacturerPower Integrations; Websitehttps://www.powerint.cn

Download Datasheet Parametric View All

2SC0108T2C0-17 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2SC0108T2C0-17	-	-	View	Buy Now

2SC0108T2C0-17 Overview

Power management module Dual-Ch SCALE-2 1700 IGBT Driver

2SC0108T2C0-17 Parametric

Parameter Name	Attribute value
Maker	Power Integrations
Product Category	Power management module
RoHS	N
product	IGBT Drivers
Maximum input voltage	15.5 V
The output voltage	-
Output current	8 A
Maximum operating temperature	+ 85 C
Collector-emitter maximum voltage VCEO	1.7 kV
size	45 mm x 34.3 mm x 16 mm
Output Power	1 W
Encapsulation	Bulk
series	SCALE-2
Fall time	15 ns
Minimum input voltage	14.5 V
Minimum operating temperature	- 20 C
Rise Time	17 ns
Factory packaging quantity	45

Preview

Download Datasheet

View All

SCALE™-2+ 2SC0108T

Preliminary Description & Application Manual

Dual Channel Ultra-compact Low-cost Driver Core

Abstract

The new low-cost SCALE™-2+ dual-driver core 2SC0108T combines unrivalled compactness with broad

applicability. The driver was designed for universal applications requiring high reliability. The 2SC0108T drives

all usual IGBT modules up to 600A/1200V or 450A/1700V. The embedded paralleling capability allows easy

inverter design covering higher power ratings. Multi-level topologies are also supported.

The 2SC0108T is the most compact driver core available for industrial applications, with a footprint of only

45mm x 34.3mm and an insertion height of max. 16mm. It allows even the most restricted insertion spaces to

be efficiently used.

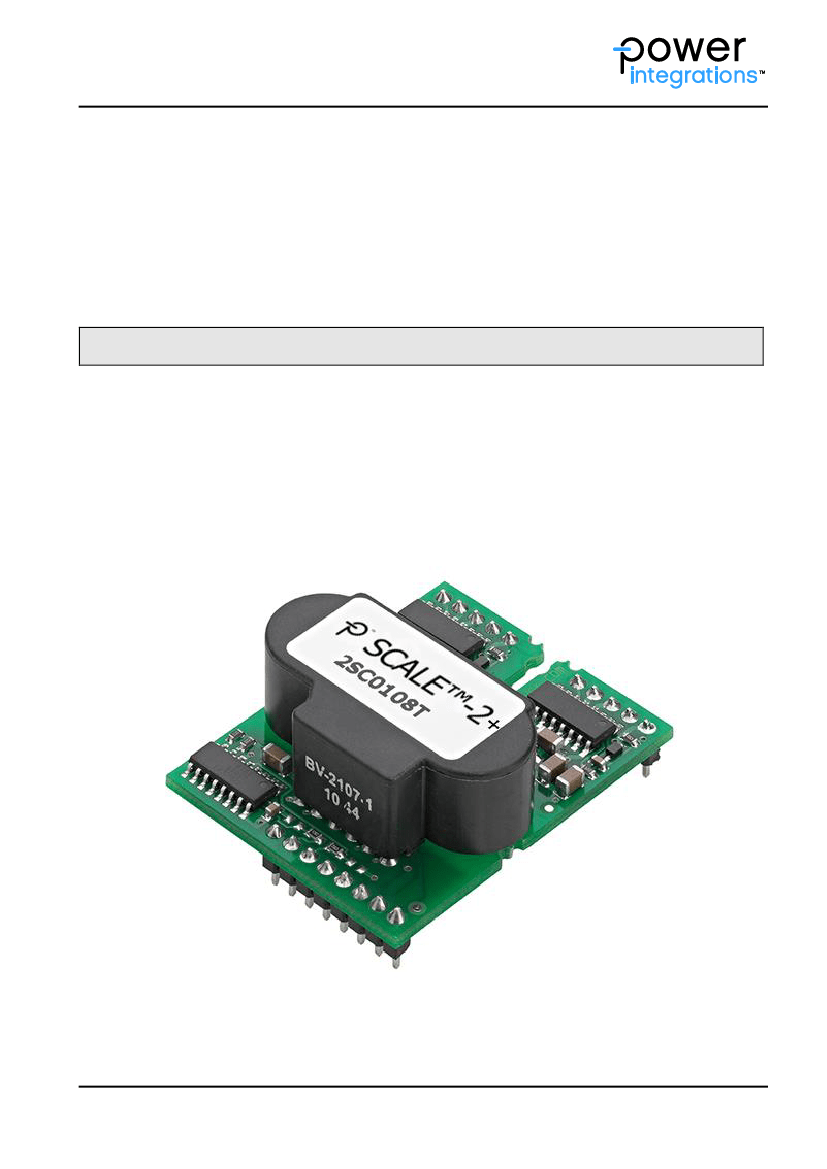

Fig. 1 2SC0108T driver core

www.power.com/igbt-driver

Page 1

SCALE™-2+ 2SC0108T

Preliminary Description & Application Manual

Contents

Abstract .......................................................................................................................................... 1

Contents ......................................................................................................................................... 2

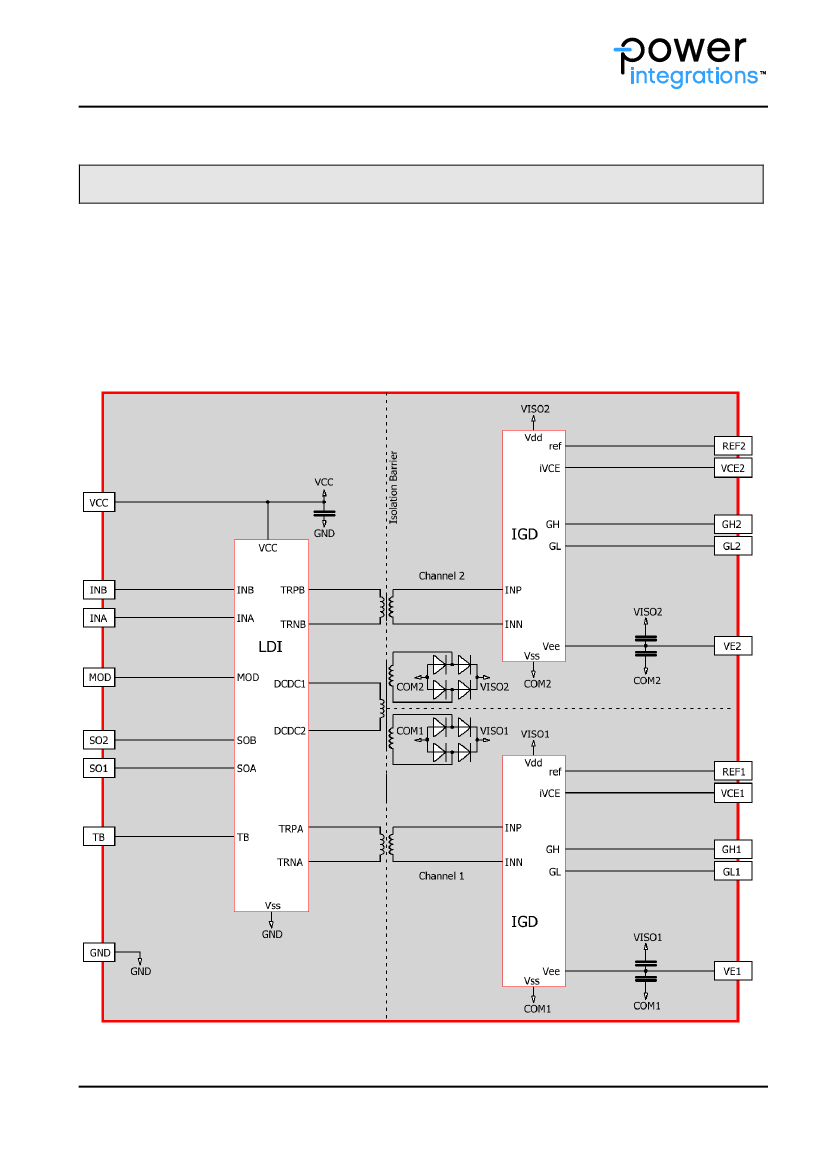

Driver Overview ............................................................................................................................. 4

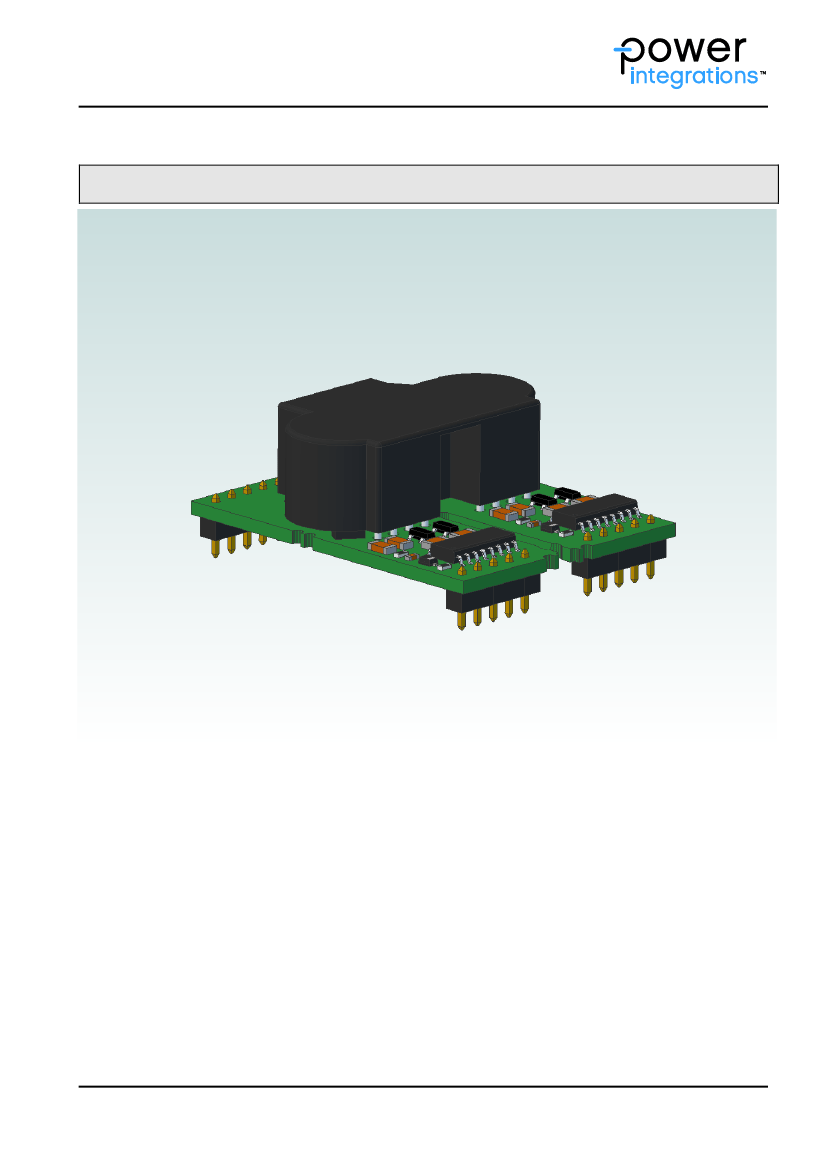

Mechanical Dimensions .................................................................................................................. 5

Pin Designation .............................................................................................................................. 7

Recommended Interface Circuitry for the Primary Side Connector .............................................. 8

Description of Primary Side Interface ........................................................................................... 8

General ............................................................................................................................... 8

VCC terminal ....................................................................................................................... 8

MOD (mode selection) ......................................................................................................... 9

INA, INB (channel drive inputs, e.g. PWM)........................................................................... 10

SO1, SO2 (status outputs) .................................................................................................. 10

TB (input for adjusting the blocking time T

) ........................................................................ 10

Recommended Interface Circuitry for the Secondary Side Connectors ...................................... 11

Description of Secondary Side Interfaces .................................................................................... 11

General ............................................................................................................................. 11

Emitter terminal (VEx)........................................................................................................ 11

Reference terminals (REFx) ................................................................................................ 12

Collector sense (VCEx) with resistors ................................................................................... 12

Desaturation protection with sense diodes ........................................................................... 13

Disabling the V

CE,sat

detection .............................................................................................. 15

Gate turn-on (GHx) and turn-off (GLx) terminals .................................................................. 15

Active clamping ................................................................................................................. 16

Soft Shut Down (SSD) ........................................................................................................ 16

How Do 2SC0108T SCALE-2+ Drivers Work in Detail? ................................................................ 17

Power supply and electrical isolation ................................................................................... 17

Power-supply monitoring .................................................................................................... 17

Parallel connection of 2SC0108T ......................................................................................... 18

3-level or multilevel topologies ............................................................................................ 18

Additional application support for 2SC0108T ........................................................................ 18

Electrical Ratings for UL recognized types .................................................................................. 18

Bibliography ................................................................................................................................. 18

The Information Source: SCALE-2 and SCALE-2+ Driver Data Sheets ........................................ 19

www.power.com/igbt-driver

Page 2
