AX93292 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Module accessories> AX93292

AX93292: DescriptionModule accessories AX93292 I/O board for PICO880/500/300; CategoryEmbedded solution Module accessories; File Size316KB，3 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AX93292 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AX93292	-	-	View	Buy Now

AX93292 Overview

Module accessories AX93292 I/O board for PICO880/500/300

AX93292 Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Module accessories
Shipping restrictions	Mouser does not currently sell this product.
product	I/O Modules
used for	PICO300, PICO500, PICO880
Description/Function	I/O expansion board with RS-232/422/485, 4 USB 2.0, HDMI
size	118 mm x 29 mm
Maximum operating temperature	+ 60 C
Minimum operating temperature	- 20 C
Working power voltage	12 V
Factory packaging quantity	1

Preview

Download Datasheet

View All

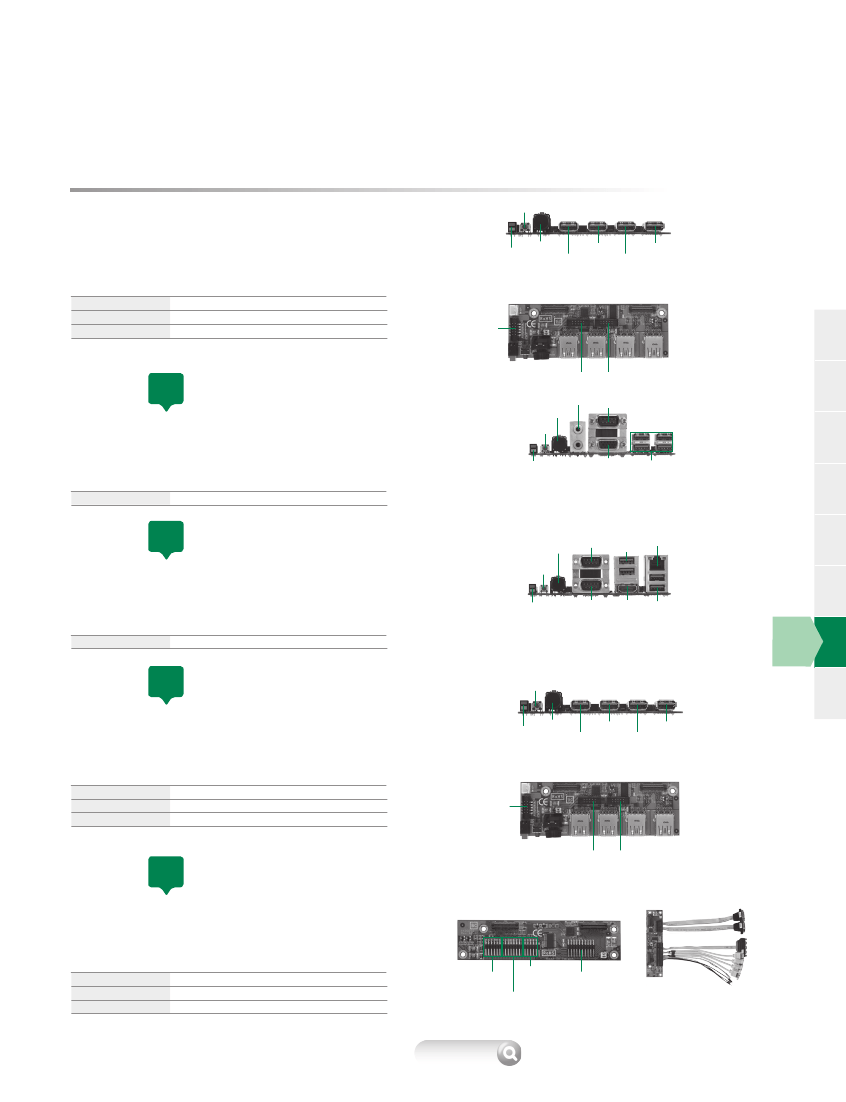

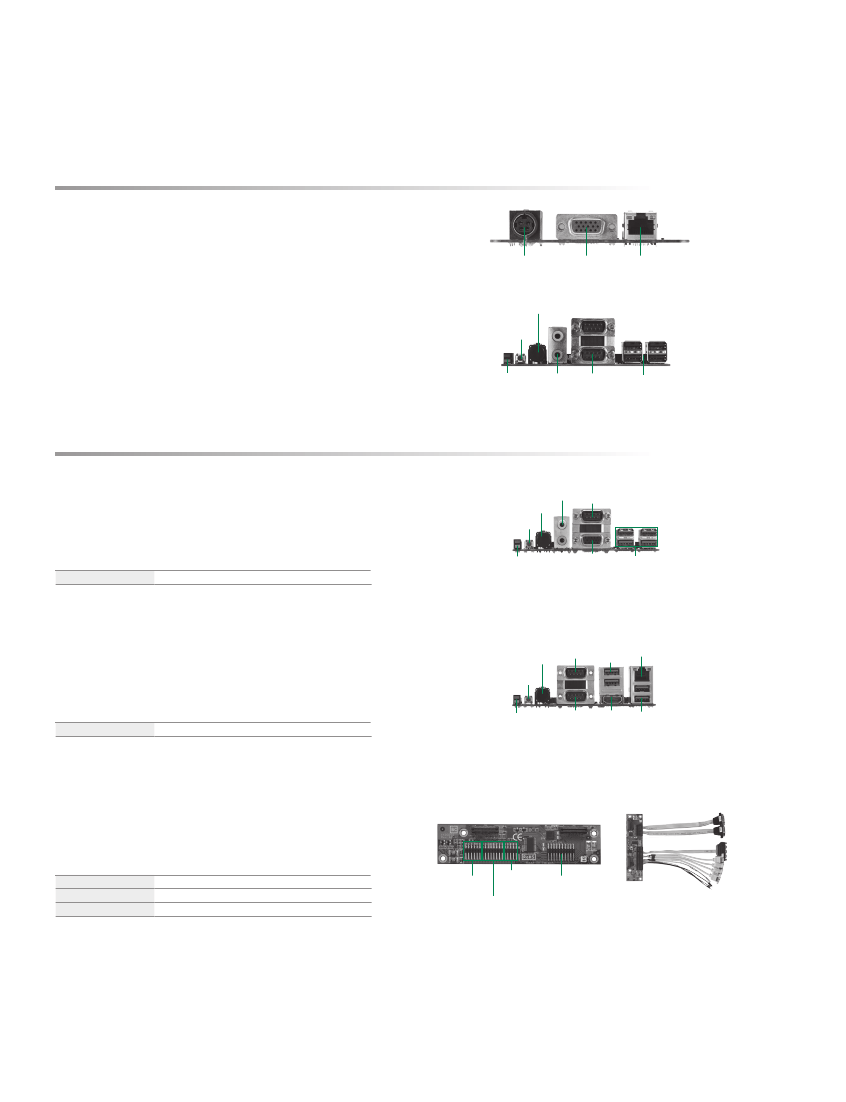

I/O Board for Pico-ITX Boards

Attached as Accessory

AX93267

Specification: 1 x DC Jack, 1 x VGA, 1 x Gigabit LAN

Dimension: 100 x 26 mm

Compliant Product: PICO841, PICO843

DC Jack

VGA

Ethernet

AX93283

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio (Mic-in/Line-out),

1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 29 mm

Compliant Product: PICO840, PICO841, PICO843

Power-on

Reset

Red LED: HDD Audio

Green LEF: power-on

COM

USB 2.0 x 4

Ordered by Optional

AX93275

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x VGA,

1 x Audio (Mic-in/Line-out), 1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 40 mm

Compliant Product: PICO880, PICO500, PICO300

Ordering Information

AX93275

P/N: E393275102

Audio COM 1

Power-on

Reset

Red LED: HDD

Green LED: power-on

VGA

USB 3.0

AX93276

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x HDMI, 1 x Gigabit LAN,

1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 40 mm

Compliant Product: PICO880, PICO500, PICO300

Ordering Information

AX93276

P/N: E393276102

Power-on

Reset

COM 1 USB 3.0 Ethernet

COM 2

Red LED: HDD

Green LED: power-on

HDMI USB 3.0

AX93292

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio (Mic-in/Line-out),

1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 29 mm

Compliant Product: PICO880, PICO500, PICO300

Ordering Information

AX93292

P/N: E393292100

Cable for COM

P/N: 594H8302100E

Cable for Audio+USB+LED P/N: 59340000200E

Audio

Power on/off,

COM 1/2

reset, LED

USB 2.0 x 4

237

Updated Nov. 16, 2017

* All specifications and photos are subject to change without notice.

AX93292 Related Products

	AX93292	AX93299
Description	Module accessories AX93292 I/O board for PICO880/500/300	Module accessory AX93299 for PICO880/500/300 w/USB3.0
Maker	Axiomtek	Axiomtek
Product Category	Module accessories	Module accessories
product	I/O Modules	I/O Modules
used for	PICO300, PICO500, PICO880	PICO300, PICO500, PICO880
Description/Function	I/O expansion board with RS-232/422/485, 4 USB 2.0, HDMI	I/O expansion board with RS-232/422/485, 4 USB 3.0, HDMI
size	118 mm x 29 mm	118 mm x 40 mm
Maximum operating temperature	+ 60 C	+ 60 C
Minimum operating temperature	- 20 C	- 20 C
Working power voltage	12 V	12 V
Factory packaging quantity	1	1
