cExpress-SL-3955U Overview

Modular Computer - COM Compact COM Express Type 6 module with Intel Celeron 3955U with GT1 level graphics

cExpress-SL-3955U Parametric

Parameter Name	Attribute value
Maker	ADLINK
Product Category	Modular Computer - COM
series	cExpress-SL
Factory packaging quantity	1

Preview

Download Datasheet

View All

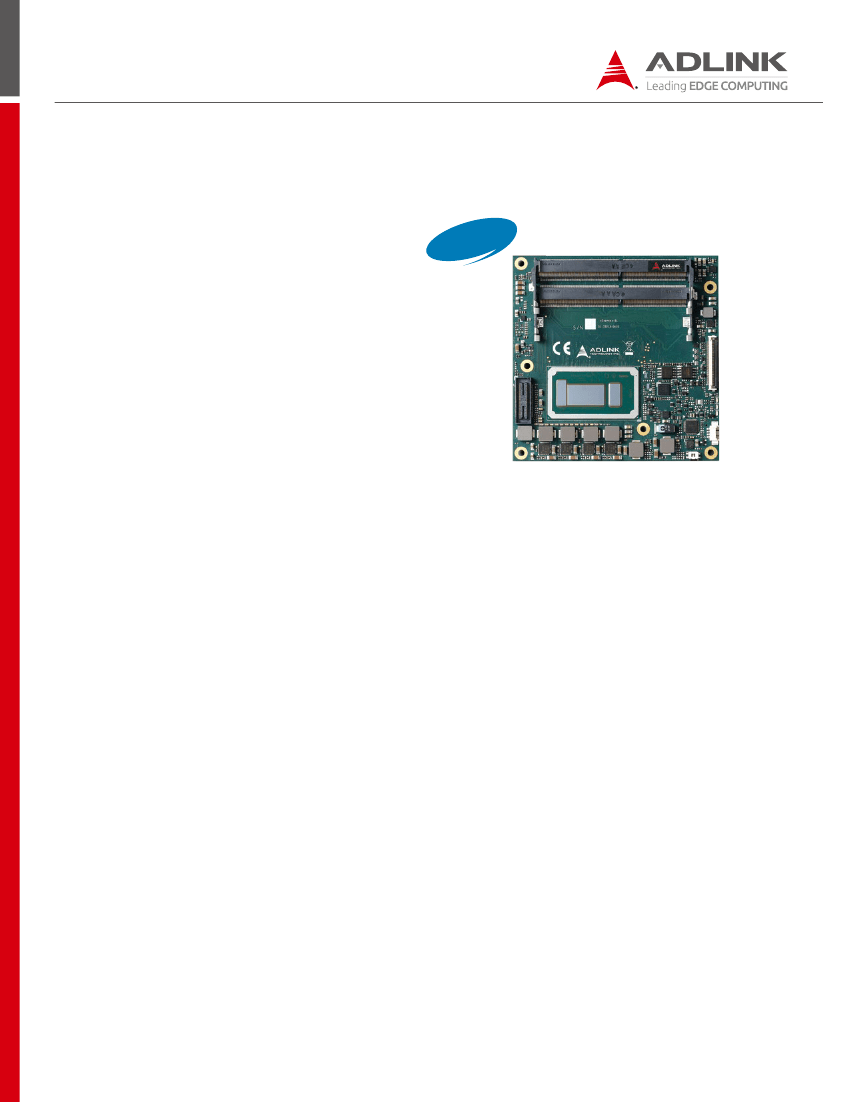

cExpress-SL

COM Express Compact Size Type 6 Module with

6th Gen Intel

Core™ and Celeron

Processors

Features

●

New

6th Generation Intel

Core™ and Celeron

Processors

Up to 32GB Dual Channel non-ECC DDR4 at 1867/2133MHz

Two DDI channels, one LVDS (build option 4 lanes eDP),

supports up to 3 independent displays

GbE, up to 6 PCIe x1 (build option)

Up to three SATA 6 Gb/s, four USB 3.0 and four USB 2.0

Supports Smart Embedded Management Agent (SEMA

) functions

Extreme Rugged operating temperature: -40°C to +85°C

(build option)

●

Specifications

●

Core System

CPU

6th Generation Intel

Core™ and Celeron

Processors - Mobile 14nm process

(formerly “Skylake-U”)

Core™ i7-6600U 2.6/3.4GHz (Turbo), 4M, 15W (7.5W cTDP)(2C/GT2)

Core™ i5-6300U 2.4/3.0GHz (Turbo), 3M, 15W (7.5W cTDP) (2C/GT2)

Core™ i3-6100U 2.3GHz, 3M, 15W (7.5W cTDP) (2C/GT2)

Celeron

3955U 2GHz, 2M, 15W (10W cTDP) (2C/GT1)

Supports: Intel

VT, Intel

TXT, Intel

SSE4.2, Intel

HT Technology, Intel

Architecture, Execute Disable Bit, Intel

Turbo Boost Technology 2.0, Intel

AVX2, Intel

AES-NI, PCLMULQDQ Instruction, Intel

Secure Key and Intel

TSX.

Note: Availability of features may vary between processor SKUs.

●

Video

Intel

Generation 9 LP Graphics Core Architecture, supporting 3 independent

and simultaneous display combinations of DisplayPort/HDMI/LVDS or eDP

outputs

Hardware encode/transcode HD content (including HEVC DirectX 12, DirectX

11.2, DirectX 11.1, DirectX 11, DirectX 10.1, DirectX 10, DirectX 9 support

OpenGL 5.0, 4.4/4.3 and ES 2.0 support

OpenCL 2.1, 2.0/1.2 support

GPU Feature Support

Digital Display Interface

DDI1/2 supporting DisplayPort/HDMI/DVI

Memory

Dual channel 1867/2133 MHz non-ECC DDR4 memory up to 32GB in dual

SODIMM socket

LVDS

Single/dual channel 18/24-bit LVDS from eDP-to-LVDS IC

eDP

4 lane support build option, in place of LVDS

Embedded BIOS

AMI EFI with CMOS backup in 8MB SPI BIOS with Intel AMT 11.0 support

(AMT support available on Core™ i7/i5 only)

●

Audio

Chipset

Intel

HD Audio integrated in SOC

Cache

4MB for Core™ i7, 3MB for Core™ i5 and Core™ i3, 2MB for Celeron®

Expansion Busses

Up to 6 PCI Express x1 (AB): Lanes 0-5 (configurable to x2, x4, Lane 5 by build

option)

Note: Gen3 for Core™ i7/i5/i3, Gen2 for Celeron

LPC bus, SMBus (system) , I

C (user)

Audio Codec

On carrier Express-BASE6 (ALC886 standard support)

●

Ethernet

Intel

MAC/PHY: i219LM with AMT 11.0 support

Interface: 10/100/1000 GbE connection

Supports : Voltage/current monitoring, power sequence debug support,

AT/ATX mode control, logistics and forensic information, flat panel control,

general purpose I

C, failsafe BIOS (dual BIOS ), watchdog timer and fan

control

SEMA Board Controller

●

I/O Interfaces

USB: 4x USB 1.1/2.0/3.0 (USB 0,1,2,3) and 4x USB 1.1/2.0 (USB 4,5,6,7)

SATA: Up to three ports SATA 6 Gb/s (SATA 0,1,2; Celeron

supports two ports

only

Serial: 2 UART ports with console redirection

GPIO: 4 GPO and 4 GPI from BMC

Debug Headers

40-pin multipurpose flat cable connector for use with DB-40 debug module

providing BIOS POST code LED, BMC access, SPI BIOS flashing, power

testpoints, debug LEDs

60-pin XDP header for ICE debug of CPU/chipset

Note:

“build option” indicates an alternative BOM configuration to support additional or alternative functions that are not available on the standard product.

Be aware that these “build option” part numbers will need to be newly created and this will result in production lead times.
