RoHS Compliant
Serial ATA Flash Drive
SM210-25 Product Specifications
November 7, 2017
Version 1.9
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
Features:
Compliance with SATA Revision 3.1
–
–
–
Temperature Range
–
SATA 6.0 Gbps interface
Backward compatible with SATA 1.5 and
3.0 Gbps interfaces
ATA-8 command set
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Capacity
–
Supply Voltage
–
16, 32, 64, 128, 256, 512 GB
5.0 V
±
5%
Performance*
–
–
–
–
–
Power Consumption*
–
–
Burst read/write: 600 MB/sec
Sequential read: Up to 510 MB/sec
Sequential write: Up to 470 MB/sec
Random read (4K): Up to 83,000 IOPS
Random write (4K): Up to 79,000 IOPS
Active mode: 680 mA
Idle mode: 75 mA
Connector Type
–
–
7-pin SATA signal connector
15-pin SATA power connector
Flash Management
–
–
–
–
–
–
–
Built-in hardware ECC
Global Wear Leveling
Flash bad-block management
S.M.A.R.T.
Power Failure Management
ATA Secure Erase
TRIM
Form Factor
–
–
–
2.5”
Dimensions with 7mm enclosure:
100.00 x 69.85 x 6.90, unit: mm
Dimensions with 9.5mm enclosure:
100.00 x 69.84 x 9.30, unit: mm
Shock & Vibration**
–
–
NAND Flash Type:
MLC
MTBF:
>1,000,000 hours
Endurance (in Terabytes Written: TBW)
–
–
–
–
–
–
Shock:1,500 G
Vibration: 15 G
DRAM Cache for Enhanced Random
Performance
SATA Power Management Modes
Thermal Sensor
Device Sleep
RoHS Compliant
16 GB: 35 TBW
32 GB: 71 TBW
64 GB: 142 TBW
128 GB: 285 TBW
256 GB: 571 TBW
512 GB: 1,142 TBW
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending
on flash configurations or platform settings.
**Non-operating
1
© 2017 Apacer Technology Inc.
Table of Contents
1. General Descriptions ........................................................................3
1.1 Introduction .................................................................................................................................... 3
1.2 Capacity ......................................................................................................................................... 3
1.3 Performance .................................................................................................................................. 3
1.4 Pin Assignments ............................................................................................................................ 4
2. Software Interface ............................................................................6
2.1 Command Set ................................................................................................................................ 6
2.2 S.M.A.R.T. ..................................................................................................................................... 6
3. Flash Management ............................................................................8
3.1 Error Correction/Detection ............................................................................................................. 8
3.2 Bad Block Management ................................................................................................................ 8
3.3 Global Wear Leveling .................................................................................................................... 8
3.4 Power Failure Management .......................................................................................................... 8
3.5 ATA Secure Erase ......................................................................................................................... 8
3.6 TRIM .............................................................................................................................................. 9
3.7 Thermal Sensor ............................................................................................................................. 9
3.8 DEVSLP (DevSleep or DEVSLP) Mode ........................................................................................ 9
3.9 SATA Power Management .......................................................................................................... 10
4. Reliability Specifications ............................................................... 11
4.1 Environmental .............................................................................................................................. 11
4.2 Mean Time Between Failures (MTBF) ........................................................................................ 11
4.3 Certification and Compliance ...................................................................................................... 11
4.4 Endurance ................................................................................................................................... 12
5. Electrical Specifications ............................................................... 13
5.1 Operating Voltage........................................................................................................................ 13
5.2 Power Consumption .................................................................................................................... 13
6. Physical Characteristics ................................................................ 14
6.1 7mm Type Dimensions ................................................................................................................ 14
7. Product Ordering Information ........................................................ 16
7.1 Product Code Designations ......................................................................................................... 16
7.2 Valid Combinations ...................................................................................................................... 17
2
© 2017 Apacer Technology Inc.
1. General Descriptions
1.1 Introduction
Apacer’s SM210-25 is a well-balanced solid-state disk (SSD) drive with standard form factor and great
performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write
speed, making it the ideal companion for heavy-loading industrial or server operations.
For data efficiency, the internal controlling unit of the SSD is engineered with DRAM for enhanced
random performance. In regard of reliability, the drive comes with various implementations including
powerful hardware ECC engine, power saving modes, wear leveling, flash block management,
S.M.A.R.T., TRIM, and power failure management.
1.2 Capacity
Capacity specifications of SM210-25 are available as shown in Table 1-1. It lists the specific capacity
and the default numbers of heads, sectors and cylinders for each product line.
Table 1-1
Capacity Specifications
Capacity
16 GB
32 GB
64 GB
128 GB
256 GB
512 GB
Total bytes*
16,013,942,784
32,017,047,552
64,023,257,088
128,035,676,160
256,060,514,304
512,110,190,592
Cylinders
16,383
16,383
16,383
16,383
16,383
16,383
Heads
16
16
16
16
16
16
Sectors
63
63
63
63
63
63
Max LBA
31,277,232
62,533,296
125,045,424
250,069,680
500,118,192
1,000,215,216
*Display of total bytes varies from file systems, which means not all of the bytes can be used for storage.
**Notes: 1 GB = 1,000,000,000 bytes; 1 sector = 512 bytes.
LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of
the device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a
small portion of the capacity is reserved for device maintenance usages.
1.3 Performance
Performance of SM210-25 is listed below in Table 1-2.
Table 1-2
Performance Specifications
Capacity
Performance
Sequential Read* (MB/s)
Sequential Write* (MB/s)
Random Read IOPS** (4K)
Random Write IOPS** (4K)
215
47
26,000
8,000
380
100
48,000
24,000
510
205
78,000
49,000
510
380
81,000
79,000
510
350
83,000
79,000
490
470
56,000
29,000
16 GB
32 GB
64 GB
128 GB
256 GB
512 GB
Note:
Results may differ from various flash configurations or host system setting.
*Sequential performance is based on CrystalDiskMark 5.2.1 with file size 1,000MB.
**Random performance measured using IOMeter with Queue Depth 32.
3
© 2017 Apacer Technology Inc.
1.4 Pin Assignments
Table 1-3 describes the SFD signal segment, and Table1-4, power segment.

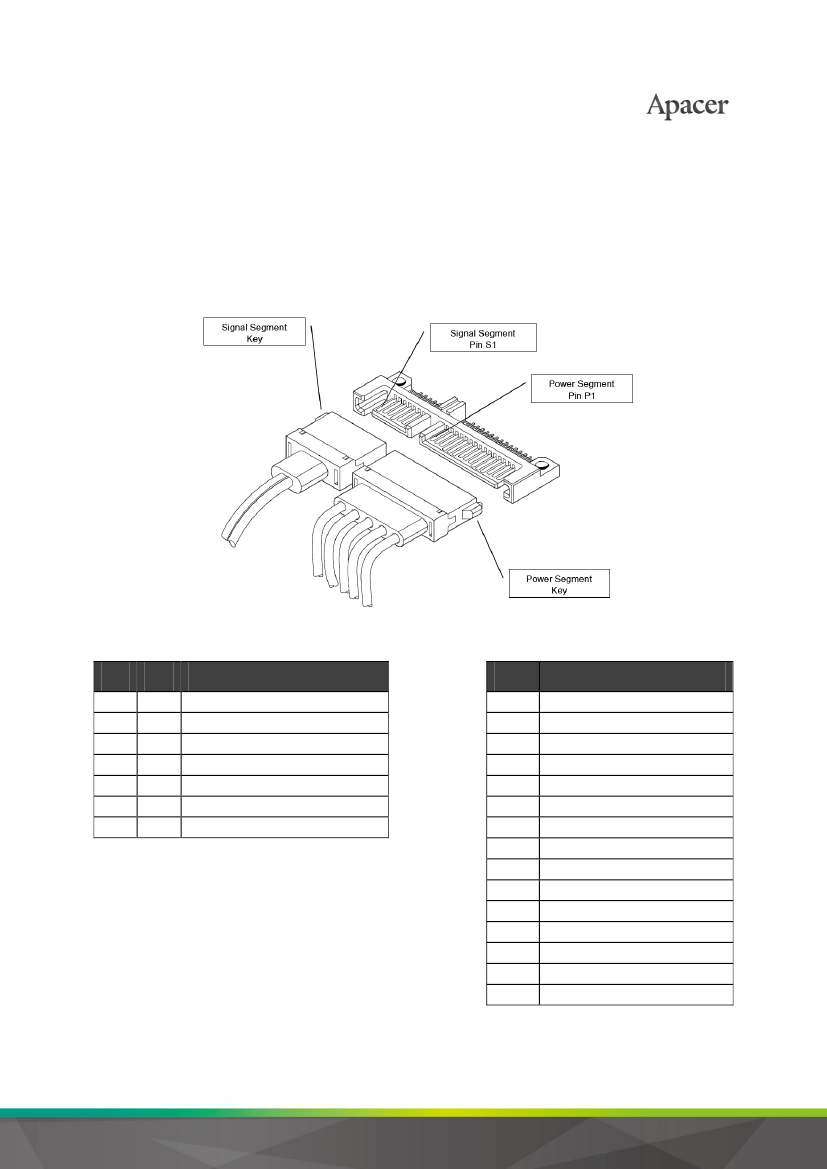

Figure 1-1
SATA Connectors
Table 1-3
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
- Differential Transmit Signal
+ Differential Transmit Signal
+ Differential Receive Signal
- Differential Receive Signal
Description
Pin
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
Table 1-4
Power Segment
Signal/Description
Unused (3.3V)
Unused (3.3V)
Device Sleep
Ground
Ground
Ground
5V
5V
5V
Ground
DAS
Ground
Unused (12V)
Unused (12V)
Unused (12V)
4
© 2017 Apacer Technology Inc.
