WGM110A1MV2: DescriptionWiFi模块 (802.11) Wizard Gecko WGM110 Wi-Fi Module, 1M Flash, Integrated antenna, cut tape. V2 is Mass-Production version.; CategoryEmbedded solution Wireless rf module with WiFi module (802.11); File Size1MB，47 Pages; ManufacturerSilicon Labs; Websitehttps://www.silabs.com; Environmental Compliance

Download Datasheet Parametric Compare View All

WGM110A1MV2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WGM110A1MV2	-	-	View	Buy Now

WGM110A1MV2 Overview

WiFi模块 (802.11) Wizard Gecko WGM110 Wi-Fi Module, 1M Flash, Integrated antenna, cut tape. V2 is Mass-Production version.

WGM110A1MV2 Parametric

Parameter Name	Attribute value
Maker	Silicon Labs
Product Category	WiFi module(802.11)
supporting agreement	802.11 b/g/n
frequency	2.412 GHz to 2.472 GHz
data rate	72.2 Mb/s
Interface Type	I2C, SPI, USB
Output Power	15 dBm, 16 dBm
Working power voltage	3.3 V
Transmit supply current	261 mA
Receive supply current	81 mA
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
size	21 mm x 14.4 mm x 2 mm
Safety	WEP, WPA, WPA2
series	WGM110
Antenna connector type	Chip
Factory packaging quantity	100

Preview

Download Datasheet

View All

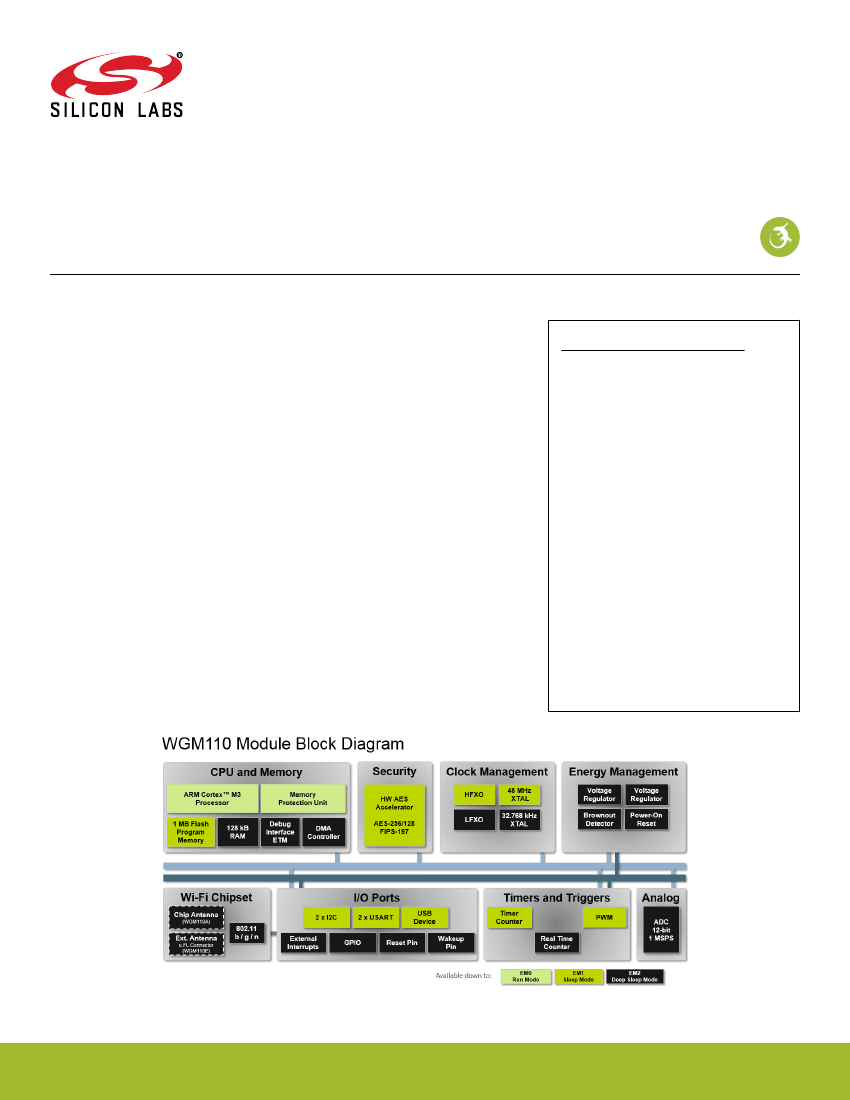

WGM110 Wizard Gecko Wi-Fi

Module

Data Sheet

The Wizard Gecko WGM110 is an all-inclusive Wi-Fi

Module targeted for applications

where good RF performance, low-power consumption, and easy application develop-

ment, together with fast time to market, are key requirements. WGM110 has excellent

RF performance and can provide long range with robust wireless connectivity.

The WGM110 Module integrates all of the necessary elements required for an IoT Wi-Fi

application, including an 802.11b/g/n radio, integrated chip antenna (WGM110A) or an

u.FL connector for an external antenna (WGM110E), certifications, a microcontroller,

Wi-Fi and IP stacks, an HTTP server, and multiple protocols, such as TCP and UDP.

WGM110 can act as a Wi-Fi client or be used as a Wi-Fi access point, making the provi-

sioning of the device as easy as surfing on the web. WGM110 can host BGScript™ end

user applications, which means applications can be designed without relying on an ex-

ternal microcontroller. Alternatively, the Wi-Fi Module can run in Network Co-Processor

(NCP) mode, leaving the complexity of TCP/IP networking to the Module so that the cus-

tomer’s own host controller can be fully dedicated to processing the customer applica-

tion tasks. The WGM110 Module also has highly flexible hardware interfaces which al-

lows connection to different peripherals and sensors.

In addition to the Wi-Fi Module itself, Silicon Labs offers support to guide and help de-

velopers in using WGM110 to build IoT applications, enabling a quick time to market.

KEY POINTS

• Module variants

• WGM110A (chip antenna)

• WGM110E (u.FL connector)

• 802.11b/g/n compliant

• TX power: +16 dBm

• RX sensitivity: -98 dBm

• Range: up to 450 m

• CPU core: 32-bit ARM

Cortex-M3

• Flash memory: 1 MB

• RAM: 128 kB

• Modular certification

• FCC

• IC

• Japan

• Korea

• CE compliant

• End-to-end security

• Can host applications

• Small size: 21.0 x 14.4 x 2.0 mm

silabs.com

| Building a more connected world.

Rev. 1.5

WGM110A1MV2 Related Products

	WGM110A1MV2	WGM110A1M-V2-P1163
Description	WiFi模块 (802.11) Wizard Gecko WGM110 Wi-Fi Module, 1M Flash, Integrated antenna, cut tape. V2 is Mass-Production version.	WiFi module(802.11)
Maker	Silicon Labs	Silicon Labs
Product Category	WiFi module(802.11)	WiFi module(802.11)
supporting agreement	802.11 b/g/n	802.11 b/g/n
frequency	2.412 GHz to 2.472 GHz	2.412 GHz to 2.472 GHz
data rate	72.2 Mb/s	72.2 Mb/s
Interface Type	I2C, SPI, USB	I2C, SPI, USB
Output Power	15 dBm, 16 dBm	15 dBm, 16 dBm
Working power voltage	3.3 V	3.3 V
Transmit supply current	261 mA	261 mA
Receive supply current	81 mA	81 mA
Minimum operating temperature	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C
size	21 mm x 14.4 mm x 2 mm	21 mm x 14.4 mm x 2 mm
Safety	WEP, WPA, WPA2	WEP, WPA, WPA2
series	WGM110	WGM110
Antenna connector type	Chip	Chip
Factory packaging quantity	100	500
