leftmost side of the pin. Grouped jumpers increase in pin
size with each jumper added.
Pin 1
Pins 1−4

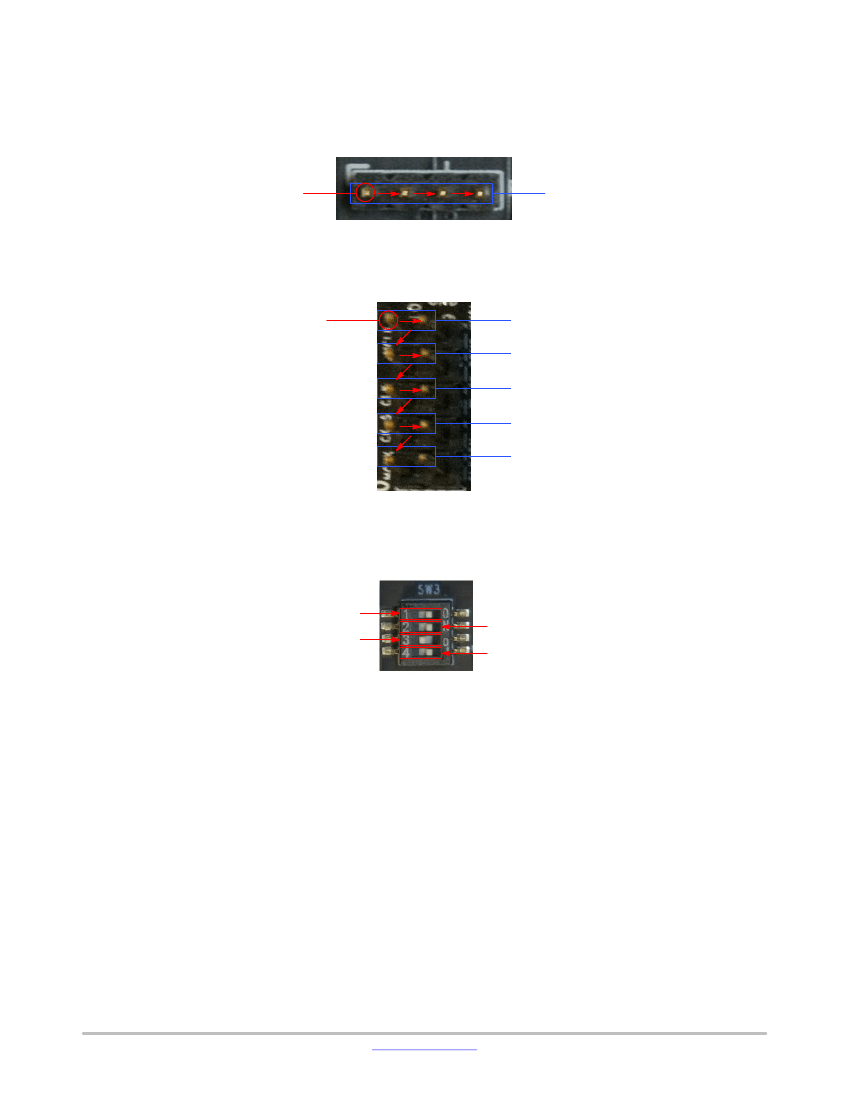

Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side
and Increases as it Moves to the Right
Pin 1
Pins 1 and 2
Pins 3 and 4
Pins 5 and 6
Pins 7 and 8
Pins 9 and 10
Figure 6. Pin Locations and Assignments of Grouped Jumpers.
Pin 1 is Located at the Top-Left Corner and Increases in a Zigzag Fashion Shown in the Picture
A0
A1
A2
WP
Figure 7. EEPROM Switches in their Default Positions.
The First Switch (A0) of SW3 is ON, the Second Switch (A1) is ON,
the Third Switch (A2) is OFF, and the Fourth Switch (WP) is ON
www.onsemi.com
3
AR0832MBSC25SUFAH−GEVB
Jumper/Header Functions & Default Positions
Table 1. JUMPERS AND HEADERS
Jumper/Header No.
P1
Jumper/Header Name
TEST
Pins
1−2 (Default)
2−3
P2
P3
P4
P5
P6
ATEST
FLASH
GPIO
SHUTTER
+2V8_VAA
Open (Default)
Open (Default)
Open (Default)
Open (Default)
1−2 (Default)
2−3
P7
P8
+VCM
+1V8_VDD
Open
1−2 (Default)
2−3
P9
+1V2_VDD
2−3 (Default)
1−2
P10
+1V2_VDDPLL
2−3 (Default)
1−2
P11
P12
+VPP0
CLK_SELECT
Open (Default)
1−2 (Default)
2−3
SW1
ON_LED
On (Default)
Off
SW2
SW3
RESET
EEPROM Addr. Sel
N/A
A0 ON, A1 ON,
A2 OFF, WP ON
(Default)
A0 OFF, A1 OFF,
A2 OFF, WP ON
A0 ON, A1 OFF,
A2 ON, WP ON
A0 ON, A1 ON,
A2 ON, WP ON
Description
MIPI/Parallel Output Enabled
CCP Output Enabled
For Debug/Test
For Connection to External Flash
For Connection to Various Sensor Settings
For Connection to External shutter
Connects to On-board +2V8_VAA Power Supply
External Power Supply Connection
For Connection to External +VCM Supply
Connects to On-board +1V8_VDD Power Supply
External Power Supply Connection
Connects to On-board +1V2_VDD Power Supply
External Power Supply Connection
Connects to On-board +1V2_VDDPLL Power Supply
External Power Supply Connection
For OTPM Programming
On-board Oscillator (25 MHz)
Demo 3 Headboard MCLK
Turn On +5V LED Indicator
Turn Off +5V LED Indicator
When Pushed, 400 ms Reset Signal will be Sent to
AR0832
EEPROM Address Set to 0xA8
EEPROM Address Set to 0xAC
EEPROM Address Set to 0xA4
EEPROM Address Set to 0xA0
Interfacing to ON Semiconductor Demo 2X Baseboard
The ON Semiconductor Demo 2X baseboard has a similar
26-pin connector which mates with P13 of the headboard.
The four mounting holes secure the baseboard and the
headboard with spacers and screws.
Shorted Jumpers for Power Measurement
on a given power rail, cut the trace between the two pins of
their respective JP, and insert an ammeter prior to powering
up the system. The figure below shows where the trace to cut
is located.
Table 2. SHORTED JUMPER FOR POWER
MEASUREMENT
Jumper
P16 (+5V0)
Voltage (V)
5.0
Different supplies to the evaluation board are provided by
trace shorted jumper, for any voltage and power
measurements. To conduct current for current measurement
Cut Here

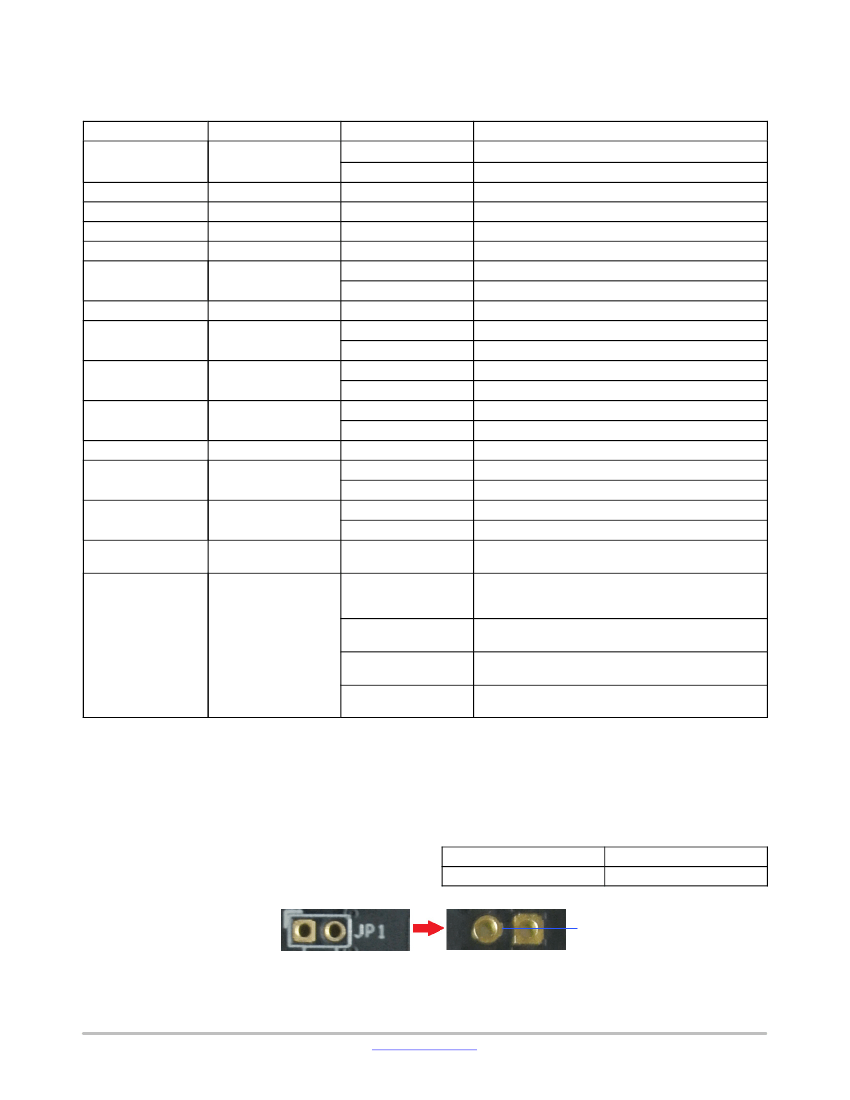

Figure 8. Top and Bottom View of Shorted Jumper.
The Bottom View Shows the Trace Location to Cut for Current Measurement
www.onsemi.com
4
AR0832MBSC25SUFAH−GEVB
