tBOX323-835-FL-110VDC datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Embedded box type computer> tBOX323-835-FL-110VDC

tBOX323-835-FL-110VDC: DescriptionEmbedded box computer Fanless Railway Grade embedded system E3845 1.91GHz processor 4GB DRAM USB*2 VGA Giga M12 LAN*2 RS-232/422/485*4(4x wire) RS-232*1 DIO(6-in/2 -out) 77 to 137.5VDC; CategoryEmbedded solution To calculate Embedded box type computer; File Size620KB，3 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

tBOX323-835-FL-110VDC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	tBOX323-835-FL-110VDC	-	-	View	Buy Now

tBOX323-835-FL-110VDC Overview

Embedded box computer Fanless Railway Grade embedded system E3845 1.91GHz processor 4GB DRAM USB*2 VGA Giga M12 LAN*2 RS-232/422/485*4(4x wire) RS-232*1 DIO(6-in/2 -out) 77 to 137.5VDC

tBOX323-835-FL-110VDC Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Embedded box computer
Shipping restrictions	Mouser does not currently sell this product.
Processor brand	Intel
Processor type	Intel Atom-E3845
chipset	Integrated in SoC
frequency	1.91 GHz
storage	4 GB
Working power voltage	110 V
Interface Type	Audio, HDMI, RS-232/422/485, USB
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 70 C
size	244 mm x 180.5 mm x 65.1 mm
Description/Function	Fanless railway embedded system
storage type	DDR3-1333
series	tBOX323-835
Processor series	E3845
Factory packaging quantity	1

Preview

Download Datasheet

View All

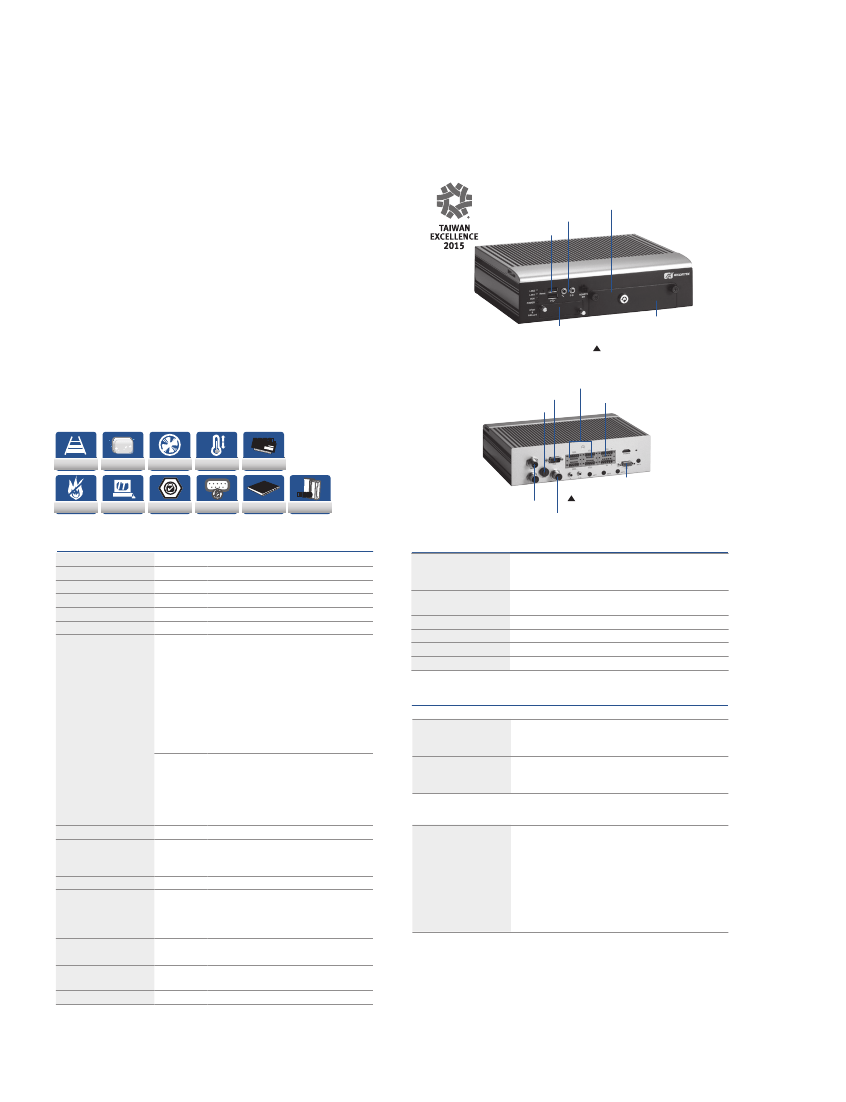

tBOX323-835-FL

Fanless Embedded System with Intel® Atom® Processor

E3845 Quad Core™ (1.91 GHz) for Railway PC

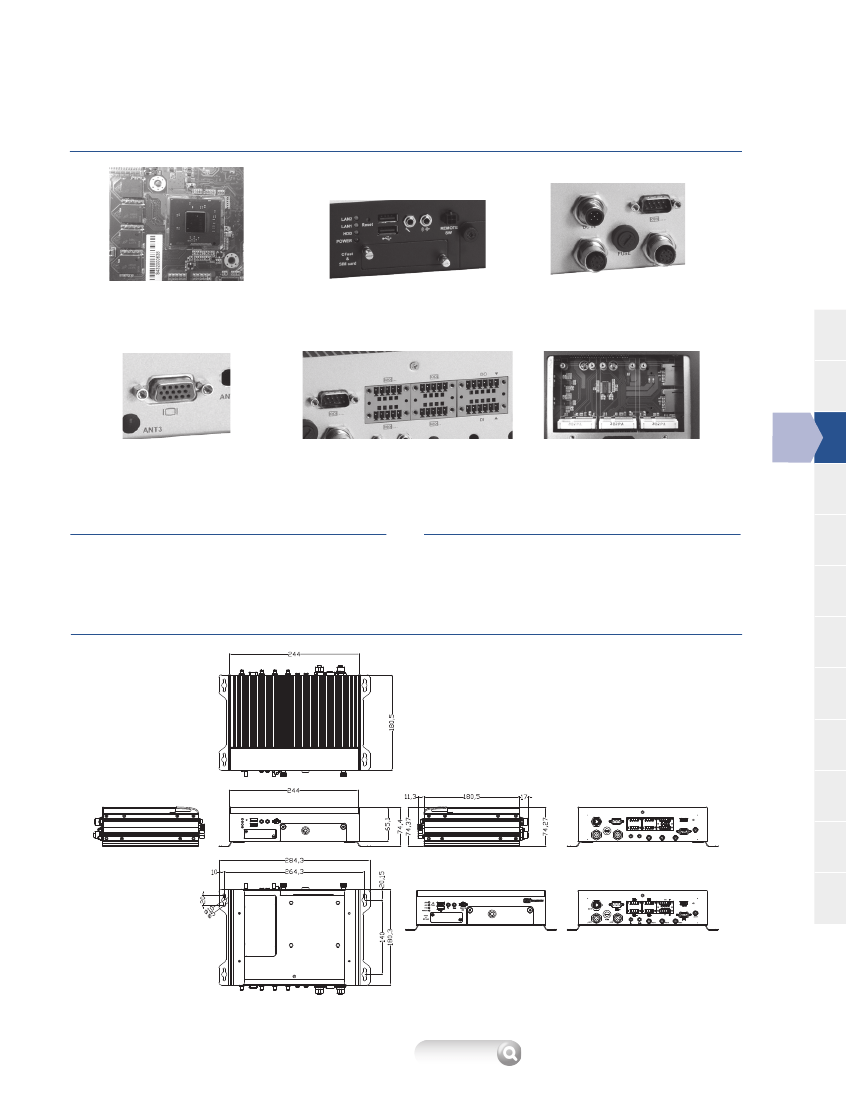

Features

●

EN 50155, EN 50121 certified and EN 45545-2 compliance

●

Fanless operation and wide temperature range from

-40°C to +70°C (EN 50155 class TX)

●

Intel® Atom® Bay E3845 4C@1.91GHz

●

DDR3L-1333 4GB memory onboard

●

Isolated RS-232 (4-Wire)/422/485 and DIO

●

Lockable M12 LAN and power connector

●

USB 2.0 and SATA2

●

24V/110 VDC input (optional)

●

Suspension 2.5” SATA HDD and 1 CFast™/mSATA

●

Internal 4 PCIe Mini Card slot and SIM slot

Swappable HDD/SSD

Screw type Audio

USB 2.0

Swappable CFast™/SIM

Mini card slots (bottom)

Front view

RS-232 (4-Wire)/422/485

DI/DO

RS-232

External fuse

DDR3L

EN50155

IP40

Fanless

Ext. Temp

DDR3L

HDD

EN45545

EN60950

M12 Connector

Isolation

CFast

Swappable

M12-type power input

M12-type Gigabit LAN

HDMI and VGA

Rear view

Specifications

Standard Color

Construction

CPU

System Memory

Chipset

BIOS

System I/O Outlet

Silver-Black

Aluminum extrusion and heavy-duty steel

Intel® Atom® processor E3845 (4C@1.91GHz)

DDR3L-1333, 4GB memory

SoC integrated

AMI

Rear Side

2 x GbE LAN (M12 A-coded)

4 x Isolated RS-232 (4-Wire)/422/485 (terminal)

1 x RS-232 (DB9)

1 x Isolated DI/DO (6-in/2-out)

2 x Audio (mic-in/line-out, screw type)

1 x HDMI

1 x VGA

1 x VDC power input (M12 A-coded)

4 x Antenna Opening

1 x Fuse

Front Side

2 x USB 2.0

1 x Audio (mic-in/line-out, screw type)

1 x Reset switch

1 x Remote power switch

1 x 2.5” SATA drive tray

1 x CFast™ slot + 2 x SIM card sockets

255 levels, 0 ~ 255 seconds/minutes

1 x 2.5” SATA HDD (suspension designed, HDD height

support 7/9.5/12.5/15 mm)

1 x CFast™/ 1 x mSATA

3 x PCIe Mini card with 2 x SIM slots (two front accessible)

1 x green LED for HDD active

1 x yellow LED for LAN1 active

1 x yellow LED for LAN2 active

1 x red LED for Power

Power input: 12 ~ 32 VDC, typical 24 VDC

77 ~ 137.5 VDC, typical 110 VDC

-40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD

-25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD

5% ~ 95%, non-condensing

Vibration Endurance

3 Grms with SSD & CFast™ (5 ~ 500Hz, X, Y, Z direction;

Random) (IEC 60068-2-34)

2 Grms with HDD (5 ~ 500Hz, X, Y, Z direction; Random)

Comply EN 61373 section 10 table 3 category 1 class A and

class B up to 5Grms (30ms, ±X/Y/Z direction)

244 mm (9.6") (W) x 180.5 mm (7.1") (D) x 65.1 mm (2.56") (H)

3 kg (6.61 lb)/3.8 kg (8.38 lb)

EN 50155, EN 50121 certified and EN 45545-2 compliance

Windows® 10, WE8S, WES 7, Linux

ast

Shock

Dimensions

Weight (net/gross)

Certificate

EOS support

Ordering Information

Standard

tBOX323-835-FL-DC

(P/N: E26N323100)

tBOX323-835-FL-110VDC

(P/N: E26N323102)

Fanless railway embedded system with Intel® Atom®

E3845 (4C@1.91 GHz), 4GB DDR3-1333, 2 GbE LANs (M12),

1 RS-232, 4 isolated RS-422/485 and CFast™

Fanless railway embedded system with Intel® Atom® E3845

(4C@1.91 GHz), 4GB DDR3-1333, 2 GbE LANs (M12),

1 RS-232, 4 isolated RS-422/485, and CFast™, 110 VDC input

Watchdog Timer

Storage

Expansion Interface

System Indicator

Power Supply

Operating Temperature

Humidity

Optional

2.5" SATA HDD/SSD

16GB or above

CFast™

1GB or above

3G module

Wi-Fi module

Wi-Fi & bluetooth

GPS module

M12 Gigabit LAN cable

M12 power cable

Remote switch cable

*Specifications and certifications may vary according to various options.

333

Updated Jul. 19, 2018.

* All specifications and photos are subject to change without notice.
