Data Acquisition

System Basis Chip

ZSSC1750 / ZSSC1751

Datasheet

Brief Description

The ZSSC1750 and ZSSC1751 are System Basis

Chips (SBCs) with a dual-channel ADC for battery

sensing/management in automotive, industrial, and

medical systems. The ZSSC1750 and ZSSC1751

feature an SPI interface; in addition, the ZSSC1750

has an integrated LIN 2.1 transceiver.

One of the two input channels measures the battery

current I

BAT

via the voltage drop at the external shunt

resistor. The second channel measures the battery

voltage V

BAT

and the temperature.

By simultaneously measuring V

BAT

and I

BAT

, it is

possible to determine dynamically the internal

resistance of the battery, Rdi, which is correlated

with the state-of-health (SOH) of the battery. By

integrating I

BAT

, it is possible to determine the state-

of-charge (SOC) and the state-of-function (SOF) of

the battery.

During Sleep Mode, the system makes periodic

measurements to monitor the discharge of the

battery. Measurement cycles are controlled by user

software and include various wake-up conditions.

The ZSSC1750/51 is optimized for ultra-low power

consumption drawing only 60µA or less in this mode.

Benefits

•

Integrated, precision measurement solution for

accurate prediction of battery state of health

(SOH), state of charge (SOC), or state of

function (SOF)

Robust power-on-reset (POR) concept for harsh

automotive environments

On-chip precision oscillator accuracy: ±1%

On-chip low-power oscillator

Only a few external components needed

Easy communication via SPI interface

Power supply, interrupt, and reset signals for

external microcontroller

Watchdog timer with dedicated oscillator

Industry’s smallest footprint allows minimal

module size and cost

AEC-Q100 qualified solution

Available Support

•

Evaluation Kit

Application Notes

Physical Characteristics

Features

•

Two high-precision 24-bit sigma-delta ADCs

(18-bit with no missing codes);

sample rate: 1Hz to 16kHz

On-chip voltage reference (5ppm/K typical)

Current channel



BAT

offset error: ≤ 10mA



BAT

resolution: ≤ 1mA



Programmable gain: 4 to 512



Max. differential input stage input range: ±300mV

Voltage channel



Input range: 4 to 28.8V



Voltage accuracy: ±60ppm FSR* = 1.73mV

Temperature channel



External temperature sensor (NTC)



Factory-calibrated internal temp. sensor: ±2°C

LIN 2.1/SAE J2602-1 transceiver (ZSSC1750 only)

Typical current consumption



Normal Mode: 12mA



Sleep Mode: ≤ 60µA

Operation temperature up to -40°C to +125°C

Supply voltage: 4.2 to 18V

Small footprint package: PQFN36 6x6 mm

* FSR = full-scale range.

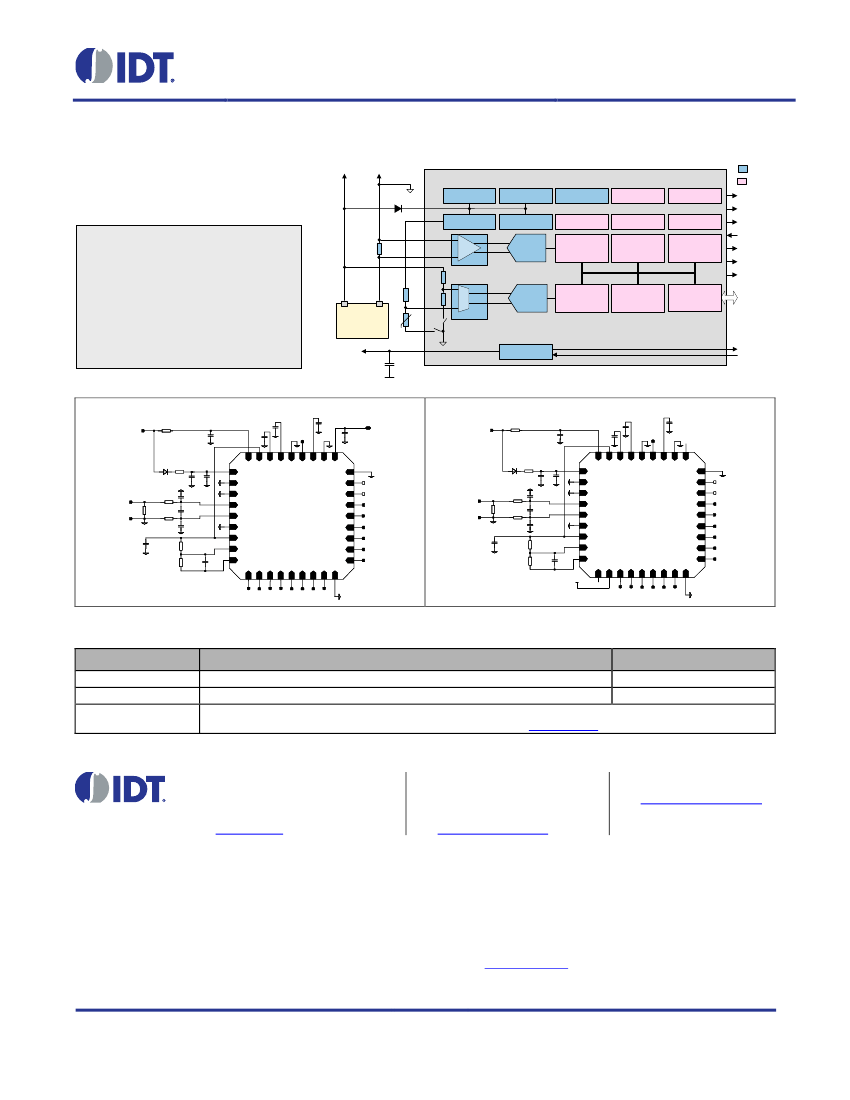

Basic ZSSC1750/51 Application Circuit

To Harness

Car Chassis Ground

VBAT

VDDE

INP

INN

VDDA

VDDP

LIN

IRQN

MCU_RSTN

MCU_CLK

3.3V, <30mA

LIN-I/F

(ZSSC1750 )

VDD

IRQ

RST

CLK (opt.)

Interface

to Host

(e.g. CAN)

shunt

NTH

NTC

ZSSC1750/51

µC

SPI

VSS

I/F

Battery

NTL

VSSA

SPI

VSSE

April 20, 2016

ZSSC1750 / ZSSC1751 Datasheet

Contents

IC Characteristics ............................................................................................................................................. 8

1.1 Absolute Maximum Ratings ....................................................................................................................... 8

1.2 Recommended Operating Conditions ....................................................................................................... 9

1.3 Electrical Parameters .............................................................................................................................. 10

1.4 Timing Parameters .................................................................................................................................. 18

2 Circuit Description .......................................................................................................................................... 21

2.1 Overview .................................................................................................................................................. 21

2.2 SBC-to-MCU Interface Pins ..................................................................................................................... 22

2.2.1 Digital I/Os ........................................................................................................................................ 23

2.2.2 External Microcontroller (MCU) Supply Pins .................................................................................... 23

2.2.3 SLEEPN Power State Indicator Pin.................................................................................................. 23

2.3 System Power States .............................................................................................................................. 24

2.3.1 Full Power State (FP) ....................................................................................................................... 24

2.3.2 Low Power State (LP) ...................................................................................................................... 24

2.3.3 Ultra Low Power State (ULP) ........................................................................................................... 25

2.3.4 OFF Power State .............................................................................................................................. 25

3 ZSSC1750/51 Functional Block Descriptions ................................................................................................ 26

3.1 Serial Peripheral Interface (SPI Slave) .................................................................................................... 26

3.1.1 SPI Protocol ...................................................................................................................................... 26

3.2 SBC Register Map (RESULT REGISTER Block and CONFIG REGISTER Block) ................................ 28

3.3 ZSSC1750/51 Clock and Reset Logic ..................................................................................................... 33

3.3.1 Clock Sources .................................................................................................................................. 33

3.3.2 Trimming the Low-Power Oscillator ................................................................................................. 34

3.3.3 Clock Trimming and Configuration Registers ................................................................................... 35

3.3.4 Resets .............................................................................................................................................. 37

3.4 SBC Watchdog Timer (WD_TIMER Block) ............................................................................................. 39

3.4.1 Watchdog Registers ......................................................................................................................... 41

3.5 SBC Sleep Timer (GP_TIMER Block) ..................................................................................................... 43

3.5.1 Sleep Timer Registers ...................................................................................................................... 44

3.6 SBC Interrupt Controller (IRQ_CTRL Block) ........................................................................................... 45

3.7 SBC Power Management Unit (SBC_PMU Block) .................................................................................. 49

3.7.1 FP State ............................................................................................................................................ 50

3.7.2 LP and ULP States ........................................................................................................................... 51

3.7.3 OFF State ......................................................................................................................................... 60

3.7.4 Registers for Power Configuration and the Discreet Current Measurement Count ......................... 61

3.8 ZSSC1750/51 ADC Unit .......................................................................................................................... 63

3.8.1 ADC Clocks ...................................................................................................................................... 64

3.8.2 ADC Data Path ................................................................................................................................. 69

3.8.3 ADC Operating Modes and Result Registers ................................................................................... 74

3.8.4 ADC Control and Conversion Timing ............................................................................................... 86

April 20, 2016

ZSSC1750 / ZSSC1751 Datasheet

3.8.5 Diagnostic Features.......................................................................................................................... 96

3.8.6 Digital Features ................................................................................................................................ 97

3.9 SBC LIN Support Logic (for ZSSC1750 only) ....................................................................................... 100

3.9.1 LIN Wakeup Detection ................................................................................................................... 100

3.9.2 TXD Timeout Detection .................................................................................................................. 100

3.9.3 LIN Short Detection ........................................................................................................................ 101

3.9.4 LIN Testing ..................................................................................................................................... 102

3.10 ZSSC1750/51 OTP (CONFIG REGISTER) ........................................................................................... 104

3.11 Miscellaneous Registers ........................................................................................................................ 105

3.12 Voltage Regulators ................................................................................................................................ 108

3.12.1 VDDE .............................................................................................................................................. 108

3.12.2 VBAT .............................................................................................................................................. 108

3.12.3 VDDA .............................................................................................................................................. 108

3.12.4 VDDL .............................................................................................................................................. 109

3.12.5 VDDP .............................................................................................................................................. 109

3.12.6 VDDC ............................................................................................................................................. 109

ESD / EMC ................................................................................................................................................... 110

4.1 Electrostatic Discharge .......................................................................................................................... 110

4.2 Power System Ripple Factor ................................................................................................................. 110

4.3 Application Circuit Examples for EMC Conformance ............................................................................ 111

Pin Configuration and Package .................................................................................................................... 112

Ordering Information .................................................................................................................................... 115

Related Documents ...................................................................................................................................... 115

Glossary ....................................................................................................................................................... 115

Document Revision History .......................................................................................................................... 116

List of Figures

Figure 1.1

Figure 1.2

Figure 1.3

Figure 2.1

Figure 2.2

Figure 2.3

Figure 3.1

Figure 3.2

Figure 3.3

Figure 3.4

Figure 3.5

Figure 3.6

Measurement Method for Determining VDDP Pin Current Capability .............................................. 17

SPI Protocol Timing .......................................................................................................................... 19

ZSSC1750/51 Power-Up and Power-Down Sequence .................................................................... 20

Functional Block Diagram ................................................................................................................. 21

ZSSC1750/51 Digital IO Interface .................................................................................................... 22

ZSSC1750/51 Power States ............................................................................................................. 24

Read and Write Burst Access to the SBC ........................................................................................ 27

Structure of the Watchdog Timer ...................................................................................................... 39

Structure of the Sleep Timer ............................................................................................................. 43

Generation of Interrupt and Wake-up ............................................................................................... 46

LP/ULP State without any Measurements ........................................................................................ 52

LP/ULP State Performing Only Current Measurements ................................................................... 54

April 20, 2016

ZSSC1750 / ZSSC1751 Datasheet

Figure 3.7

Figure 3.8

Figure 3.9

Figure 3.10

Figure 3.11

Figure 3.12

Figure 3.13

Figure 3.14

Figure 3.15

Figure 3.16

Figure 3.17

Figure 3.18

Figure 3.19

Figure 3.20

Figure 3.21

Figure 3.22

Figure 3.23

Figure 3.24

Figure 3.25

Figure 3.26

Figure 3.27

Figure 3.28

Figure 3.29

Figure 3.30

Figure 3.31

Figure 3.32

Figure 3.33

Figure 3.34

Figure 3.35

Figure 3.36

Figure 3.37

Figure 3.38

Figure 4.1

Figure 4.2

Figure 5.1

Figure 5.2

LP/ULP State Performing Current, Voltage, and Temperature Measurements

with

discCvtCnt

== 2 ..................................................................................................................... 56

LP/ULP State Performing Current, Voltage, and Temperature Measurements

with

discCvtCnt

== 5 ..................................................................................................................... 56

LP/ULP State Performing Current, Voltage, and Temperature Measurements

with

discCvtCnt

== 1 ..................................................................................................................... 57

LP/ULP State Performing Continuous Current-Only Measurements ............................................... 58

Performing Continuous Current and Voltage Measurements during LP/ULP State ......................... 60

Functional Block Diagram of the Analog Measurement Subsystem ................................................ 64

FP ADC Clocking Scheme for

sdmPos

sdmPos2

= 2;

sdmClkDivFp

= 1;

sdmChopClkDiv

= 0 ........................................................................................................................ 66

FP ADC Clocking for

sdmPos

= 1 and

sdmPos2

= 4;

sdmClkDivFp

= 1;

sdmChopClkDiv

= 0... 66

FP ADC Clocking for

sdmPos

= 3 and

sdmPos2

= 0;

sdmClkDivFp

= 1;

sdmChopClkDiv

= 0... 67

FP ADC Clocking for

sdmPos

= 0 and

sdmPos2

= 3;

sdmClkDivFp

= 1;

sdmChopClkDiv

= 0... 67

LP/ULP ADC Clocking Scheme;

sdmClkDivLp

= 5;

sdmChopClkDiv

= 0 ................................... 68

Functional Block Diagram of the Digital ADC Data Path .................................................................. 69

Data Post Correction ........................................................................................................................ 70

Data Representation through Data Post Correction including Over-Range and Overflow Levels ... 71

Common Enable for the “set overrange” and “set overflow” Interrupt Strobes for Current .............. 72

Individual SRCS ................................................................................................................................ 87

Individual MRCS (Example for Result Counter of 3) ........................................................................ 87

Continuous SRCS ............................................................................................................................. 88

Continuous MRCS (Example for Result Counter of 3) ..................................................................... 88

Stopping Continuous SRCS ............................................................................................................. 89

Stopping Continuous MRCS (Example for Result Counter of 3) ...................................................... 89

Interrupting a Continuous SRCS ...................................................................................................... 90

Interrupting a Continuous MRCS (Example for Result Counter of 3) ............................................... 90

Signal Behavior of

adcMode

............................................................................................................ 91

Timing for Current, Voltage, and Internal Temperature Measurements without Chopping for

Different Configurations of the Average Filter .................................................................................. 93

Timing for External Temperature Measurements without Chopping when

No Average Filter is Enabled ............................................................................................................ 94

Timing for Current, Voltage, and Internal Temperature Measurements using Chopping................. 95

Timing for External Temperature Measurements using Chopping ................................................... 96

Usage of Register

adcCaccTh

for the Digital ADC BIST ................................................................ 98

Bit Stream of ADC Interface Test at STO Pad ................................................................................. 99

Protection Logic of the LIN TXD Line ............................................................................................. 100

Waveform Showing the Gating Principle for Non-zero Values of

linShortDelay......................

101

Optional External Components for ZSSC1750 ............................................................................... 111

Optional External Components for ZSSC1751 ............................................................................... 111

ZSSC1750/51 PQFN36 6x6mm Package Pin-out (Top View) ....................................................... 112

Package Drawing of the ZSSC1750/51 .......................................................................................... 114

April 20, 2016

ZSSC1750 Kit V1.1 Related Products

	ZSSC1750 Kit V1.1
Description	Data conversion IC development tool Modular SSC Kit
Maker	IDT (Integrated Device Technology, Inc.)
Product Category	Data conversion IC development tools

Recommended Resources

Mains overvoltage and overcurrent protector circuit

555 automatic control circuit for ventilation fan

Automatic gain control amplifier circuit

Amplification circuit using photodiode isolation

15. Power supply circuit diagram of AST ECDI-I type VGA color display

Use microPython's help: I recently used the ypb nano board from the microPython Chinese community. When I typed the help(pyb) function in the terminal during the learning process, many functions and classes appeared. Then I ...; lehuijie MicroPython Open Source section

Temperature problems solved for you (IV) Ambient temperature monitoring: In the previous three articles, we have introduced the basic principles of temperature sensors and how to monitor circuit board temperature. In many applications, ambient air temperature monitoring is...; EEWORLD社区 TI Technology Forum

CNC power supply: Is it possible to achieve continuous frequency adjustment from 10Hz to 500KHz by using a single chip microcomputer to control a switching power supply ? Cananyone tell me if you have done it?I read a ...; 懒散的虫子 Power technology

USB programmer issues: I bought a USB programmer on Taobao, model number is LSD-FET430UIF 430,price is about 250 yuanIs it fully compatible with the 14-pin parallel port emulator interface on the PCB board?Where can I downl...; hmxushangkun Microcontroller MCU

Mini electronic music drums that take touch to the extreme: # Use your fingers to click on different parts of the drum set in the pattern to produce different music # Keep children who love music from becoming bad. The mini finger drum is small and can be plac...; soso Creative Market

Please recommend a good website for learning microcontrollers: Could someone please recommend a good website for learning microcontrollers? Thanks!...; tiandi8734 Embedded System

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
