GRF2012
Broadband Linear Gain Block
0.05 to 3.8 GHz
Product Description
GRF2012 is a broadband gain block with low noise fig-
ure and industry leading linearity designed for small cell,
wireless infrastructure and other high performance ap-
plications. It exhibits outstanding broadband NF, lineari-
ty over 700 to 3800 MHz with a single match.
Features
Reference: 5V/90mA/900 MHz
•
•
•
•
Gain: 14.8 dB
OIP3: 40.0 dBm
OP1dB: 23.0 dBm
NF: 2.7 dB
The device is operated from a supply voltage of 2.7 to
8.0 V with a selectable Iddq range of 15 to 100 mA for
optimal efficiency and linearity.
GRF2012 is internally matched to 50
Ω
at the input and
output ports, needing only external DC blocks and a bias
choke on the output.
Consult with the GRF applications engineering team for
custom tuning/evaluation board data and device s-
parameters
Reference: 8V/100mA/900 MHz
•
•
•
•
•
•
Gain: 14.9 dB
OIP3: 40.0 dBm
OP1dB: 25.0 dBm
NF: 2.8 dB
Flexible Bias
Internally Matched to
50 Ω
•
Process: GaAs pHEMT
Applications
•
•
•
•
High Performance Gain Block
Linear Driver Amplifier
Small Cells and Cellular Repeaters
IF Amplifier
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Released
GRF2012
Broadband Linear Gain Block
0.05 to 3.8 GHz
Absolute Ratings:
Parameter
Supply Voltage
RF Input Power: (Load VSWR < 2:1; V
D
: <= 8.0 volts)
Operating Temperature (Package Heat Sink)
Maximum Channel Temperature
> 10^6 Hours)
Maximum Dissipated Power
Electrostatic Discharge:
Charged Device Model:
Human Body Model:
Storage:
CDM
HBM
1500
250
V
V
(MTTF
Symbol
V
DD
P
IN MAX
T
AMB
T
MAX
P
DISS MAX
Min.
0
Max.
9.0
22
Unit
V
dBm
°C
°C
W
-40
105
170
1.0
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-65
150
1
°C
--
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF2012 landing page: Manufacturing Note—MN-
001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Released
GRF2012
Broadband Linear Gain Block
0.05 to 3.8 GHz

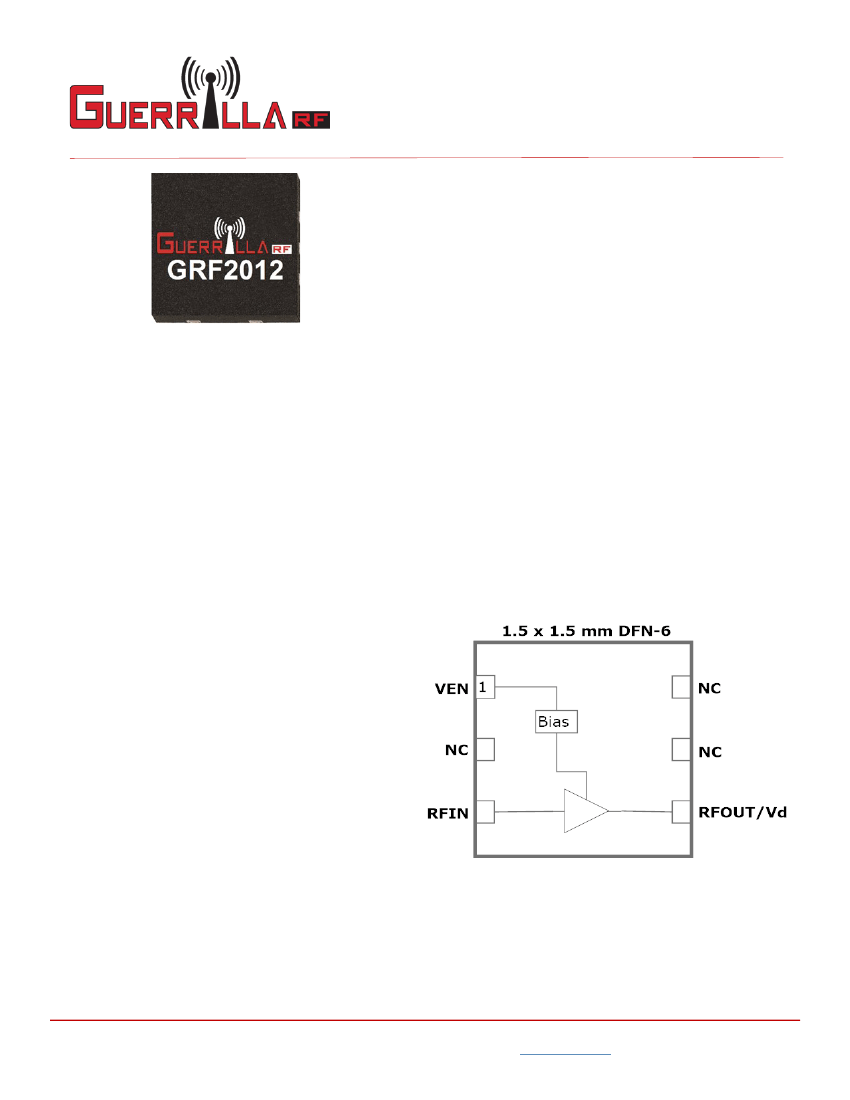

Pin Out (Top View)
Pin Assignments:
Pin
1
2
3
4
5
6
PKG
BASE
Name
V
ENABLE
NC
RF_In
RF_Out
NC
NC
Description
Enable Voltage Input
No Connect or Ground
LNA RF input
LNA RF output
No Connect or Ground
No Connect or Ground
Ground
No internal connection to die
Note
V
ENABLE
and series resistor set I
DDQ
. V
ENABLE
< =0.2 volts disables device. On
-die pull-down resistor will turn the part off if this node is allowed to float.
Internally matched 50Ω. An external DC blocking cap must be used.
Internally matched 50Ω. V
DD
must be applied through a choke to this pin
No internal connection to die
No internal connection to die
Provides DC and RF ground for LNA, as well as thermal heat sink. Recom-
mend multiple 8 mil vias beneath the package for optimal RF and thermal
performance. Refer to evaluation board top layer graphic on schematic
page.
GND
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Released
GRF2012
Broadband Linear Gain Block
0.05 to 3.8 GHz
Nominal Operating Parameters:
Parameter
Test Frequency
Gain
Evaluation Board Noise Figure
Output 3rd Order Intercept
Output 1dB Compression Power
Switching Rise Time
Switching Fall Time
Supply Current
Symbol
F
TEST
S21
NF
OIP3
OP1dB
T
RISE
T
FALL
I
DD
Specification
Min.
13.8
Typ.
900
14.8
2.7
40.0
Max.
Unit
MHz
dB
dB
dBm
dBm
ns
ns
mA
mA
Condition
V
DD
= 5.0 V, T
A
= 25°C
+2.0 dBm P
OUT
per tone at 2 MHz
Spacing (899 and 901 MHz)
21.5
23.0
200
300
90.0
Enable Current
Disabled Mode
Leakage Current
Thermal Data
Thermal Resistance: (Infra-Red Scan)
Channel Temperature @ +85 C Reference
(Package heat sink)
I
ENABLE
5.0
I
LEAKAGE
110
55
110
uA
ᵒC/W
ᵒC
V
DD
: 5.0V; V
ENABLE
: 0.0V
On standard Evaluation Board
V
DD
: 5.0 V; I
DDQ
: 90 mA; No RF;
P
DISS
: 450 mW
jc
T
CHANNEL
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc All rights reserved.
Revision Date: 08/08/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Released
GRF2012
Broadband Linear Gain Block
0.05 to 3.8 GHz

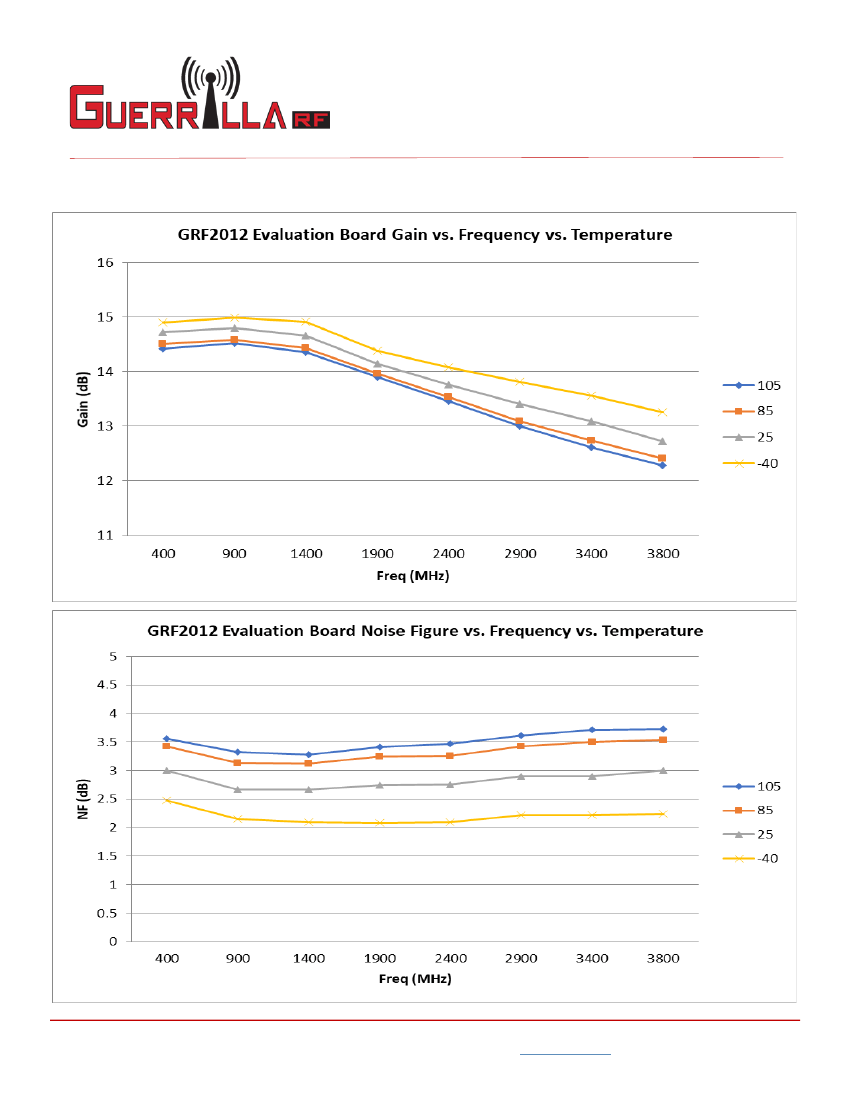

GRF2012 Evaluation Board Measured Data vs. Bias: (0.4 to 3.8 GHz Tune)
