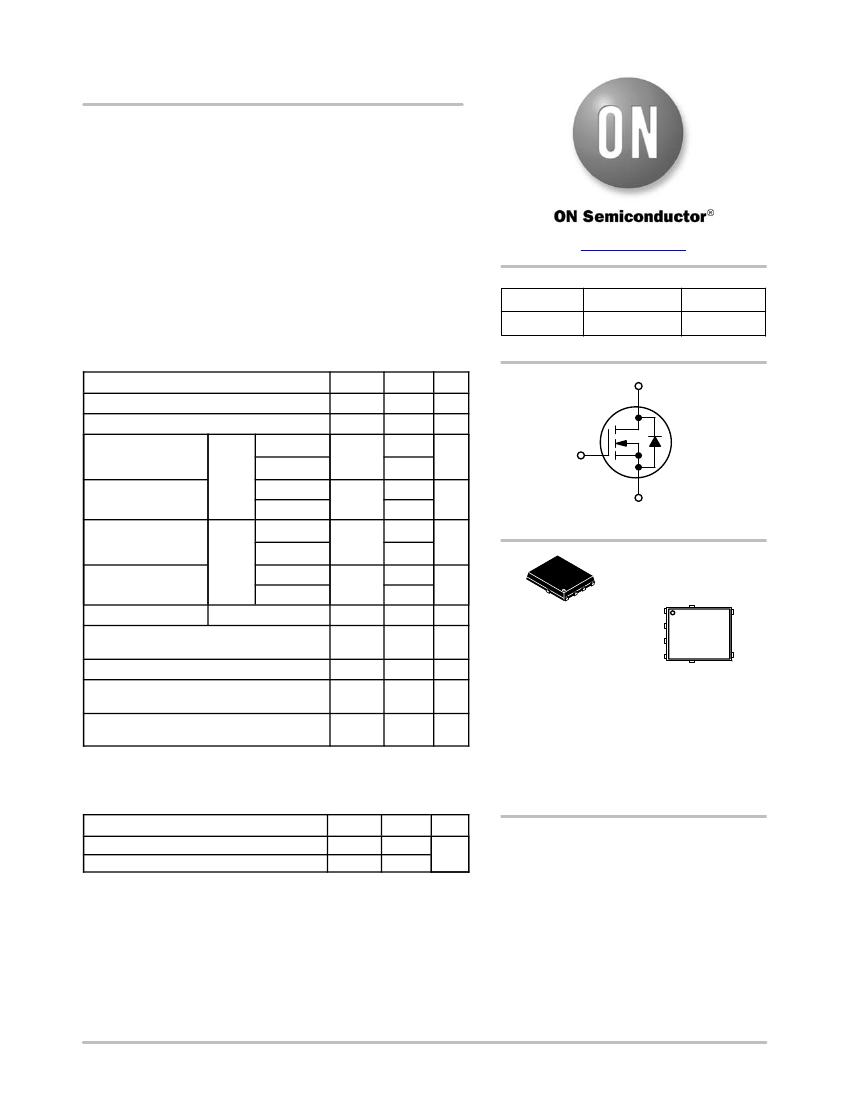

NVMFS5C426N
Power MOSFET
40 V, 1.3 mW, 235 A, Single N−Channel
Features
•
•
•
•
Small Footprint (5x6 mm) for Compact Design
Low R
DS(on)
to Minimize Conduction Losses
Low Q
G
and Capacitance to Minimize Driver Losses
NVMFS5C426NWF − Wettable Flank Option for Enhanced Optical
Inspection
•
AEC−Q101 Qualified and PPAP Capable
•
These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS
(T
J
= 25°C unless otherwise noted)
Parameter
Drain−to−Source Voltage
Gate−to−Source Voltage
Continuous Drain
Current R
qJC
(Notes 1, 3)
Power Dissipation
R
qJC
(Note 1)
Continuous Drain
Current R
qJA
(Notes 1, 2, 3)
Power Dissipation
R
qJA
(Notes 1 & 2)
Pulsed Drain Current
T
C
= 25°C
Steady
State
T
C
= 100°C
T
C
= 25°C
T
C
= 100°C
T
A
= 25°C
Steady
State
T
A
= 100°C
T
A
= 25°C
T
A
= 100°C
T
A
= 25°C, t
p
= 10
ms
I
DM
T
J
, T
stg
I
S
E
AS
T
L
P
D
I
D
P
D
Symbol
V
DSS
V
GS
I
D
Value
40
±20
235
166
128
64
41
29
3.8
1.9
900
−55 to
+ 175
122
739
260
A
°C
A
mJ
°C
W
A
W
Unit
V
V
A
www.onsemi.com
V
(BR)DSS
40 V
R
DS(ON)
MAX
1.3 mW @ 10 V
I
D
MAX
235 A
D (5,6)
G (4)
S (1,2,3)
N−CHANNEL MOSFET
MARKING
DIAGRAM
D
1
Operating Junction and Storage Temperature
Source Current (Body Diode)
Single Pulse Drain−to−Source Avalanche
Energy (I
L(pk)
= 19 A)
Lead Temperature for Soldering Purposes
(1/8″ from case for 10 s)
DFN5
(SO−8FL)
CASE 488AA
STYLE 1
S
S
S
G
D
XXXXXX
AYWZZ
D
D
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
XXXXXX = 5C426N
XXXXXX =
(NVMFS5C426N) or
XXXXXX =
426NWF
XXXXXX =
(NVMFS5C426NWF)
A
= Assembly Location
Y
= Year
W
= Work Week
ZZ
= Lot Traceability
THERMAL RESISTANCE MAXIMUM RATINGS
Parameter
Junction−to−Case − Steady State
Junction−to−Ambient − Steady State (Note 2)
Symbol
R
qJC
R
qJA
Value
1.2
39
Unit
°C/W
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 5 of this data sheet.
1. The entire application environment impacts the thermal resistance values shown,
they are not constants and are only valid for the particular conditions noted.
2. Surface−mounted on FR4 board using a 650 mm
2
, 2 oz. Cu pad.
3. Maximum current for pulses as long as 1 second is higher but is dependent
on pulse duration and duty cycle.
©
Semiconductor Components Industries, LLC, 2015
1
May, 2018 − Rev. 3
Publication Order Number:
NVMFS5C426N/D
NVMFS5C426N
ELECTRICAL CHARACTERISTICS
(T
J
= 25°C unless otherwise specified)
Parameter
OFF CHARACTERISTICS
Drain−to−Source Breakdown Voltage
Drain−to−Source Breakdown Voltage
Temperature Coefficient
Zero Gate Voltage Drain Current
V
(BR)DSS
V
(BR)DSS
/
T
J
I
DSS
V
GS
= 0 V,
V
DS
= 40 V
T
J
= 25°C
T
J
= 125°C
V
GS
= 0 V, I
D
= 250
mA
40
9.6
10
100
100
V
mV/°C
mA
nA
Symbol
Test Condition
Min
Typ
Max
Unit
Gate−to−Source Leakage Current
ON CHARACTERISTICS
(Note 4)
Gate Threshold Voltage
Threshold Temperature Coefficient
Drain−to−Source On Resistance
Forward Transconductance
I
GSS
V
DS
= 0 V, V
GS
= 20 V
V
GS(TH)
V
GS(TH)
/T
J
R
DS(on)
g
FS
V
GS
= V
DS
, I
D
= 170
mA
2.5
−8.6
3.5
V
mV/°C
V
GS
= 10 V
I
D
= 50 A
1.1
145
1.3
mW
S
V
DS
=15 V, I
D
= 50 A
CHARGES, CAPACITANCES & GATE RESISTANCE
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
Threshold Gate Charge
Gate−to−Source Charge
Gate−to−Drain Charge
Plateau Voltage
SWITCHING CHARACTERISTICS
(Note 5)
Turn−On Delay Time
Rise Time
Turn−Off Delay Time
Fall Time
DRAIN−SOURCE DIODE CHARACTERISTICS
Forward Diode Voltage
V
SD
V
GS
= 0 V,
I
S
= 50 A
T
J
= 25°C
T
J
= 125°C
0.82
0.68
63
V
GS
= 0 V, dIS/dt = 100 A/ms,
I
S
= 50 A
34
29
92
nC
ns
1.2
V
t
d(ON)
t
r
t
d(OFF)
t
f
V
GS
= 10 V, V
DS
= 20 V,
I
D
= 50 A, R
G
= 2.5
W
15
47
36
9.0
ns
C
ISS
C
OSS
C
RSS
Q
G(TOT)
Q
G(TH)
Q
GS
Q
GD
V
GP
V
GS
= 10 V, V
DS
= 20 V; I
D
= 50 A
V
GS
= 10 V, V
DS
= 20 V; I
D
= 50 A
V
GS
= 0 V, f = 1 MHz, V
DS
= 25 V
4300
2100
59
65
13
20
12
4.7
V
nC
pF
Reverse Recovery Time
Charge Time
Discharge Time
Reverse Recovery Charge
t
RR
t
a
t
b
Q
RR
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
4. Pulse Test: pulse width
v
300
ms,
duty cycle
v
2%.
5. Switching characteristics are independent of operating junction temperatures.
www.onsemi.com
2
NVMFS5C426N

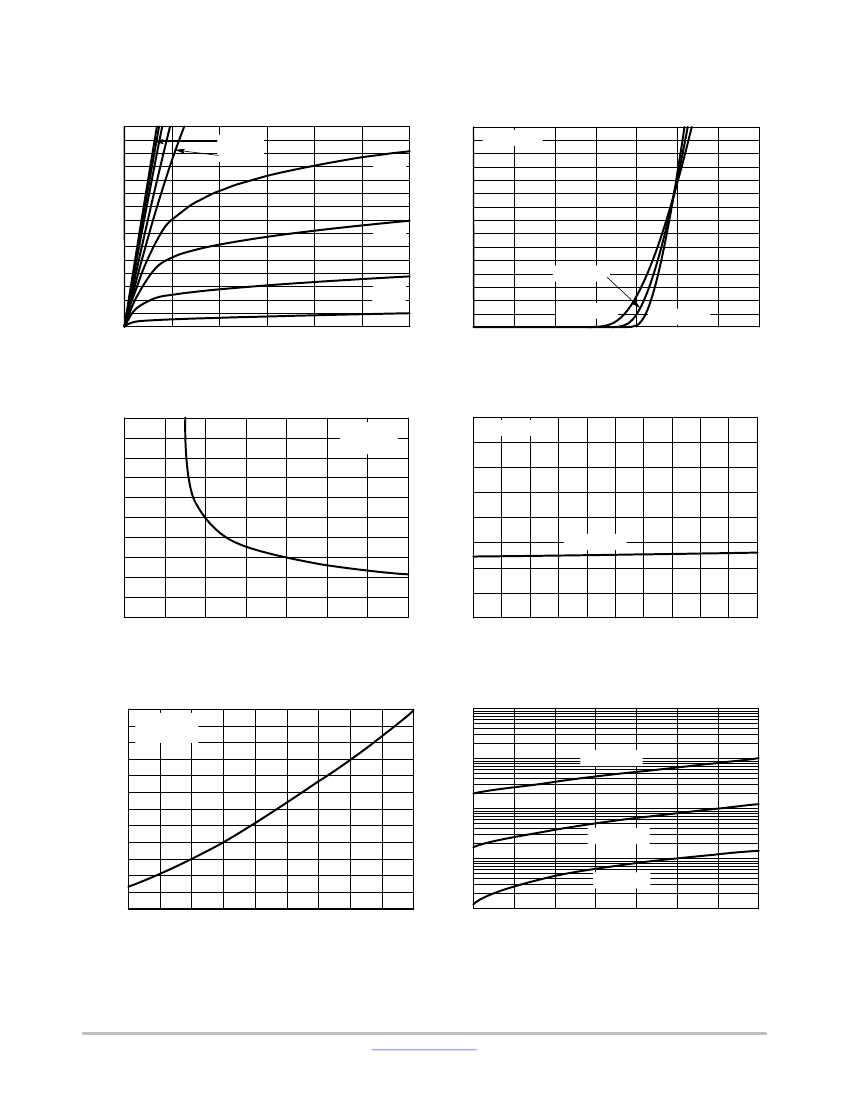

TYPICAL CHARACTERISTICS
300
280
260
240
220
200
180
160
140
120
100
80
60
40
20
0
0.0
300
280
260
240
220
200
180
160
140
120
100
80
60
40
20
0
0
10 V to
6.0 V
I
D
, DRAIN CURRENT (A)
5.2 V
V
DS
= 10 V
I
D
, DRAIN CURRENT (A)
4.8 V
T
J
= 25°C
T
J
= 125°C
1
2
3
4
4.4 V
4.0 V
0.5
1.0
1.5
2.0
2.5
3.0
T
J
= −55°C
5
6
7
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
V
GS
, GATE−TO−SOURCE VOLTAGE (V)
Figure 1. On−Region Characteristics
R
DS(on)
, DRAIN−TO−SOURCE RESISTANCE (mW)
R
DS(on)
, DRAIN−TO−SOURCE RESISTANCE (mW)
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10
T
J
= 25°C
I
D
= 50 A
2.2
Figure 2. Transfer Characteristics
T
J
= 25°C
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0
20
40
60
80
100 120 140 160 180 200
I
D
, DRAIN CURRENT (A)
V
GS
= 10 V
V
GS
, GATE−TO−SOURCE VOLTAGE (V)
Figure 3. On−Resistance vs. Gate−to−Source
Voltage
1.8
R
DS(on)
, NORMALIZED DRAIN−TO−
SOURCE RESISTANCE
1.6
1.4
1.2
1.0
0.8
0.6
−50
1.E−07
−25
0
25
50
75
100
125
150
175
V
GS
= 10 V
I
D
= 50 A
I
DSS
, LEAKAGE (A)
1.E−04
1.E−03
Figure 4. On−Resistance vs. Drain Current and
Gate Voltage
T
J
= 150°C
1.E−05
T
J
= 125°C
1.E−06
T
J
= 85°C
5
10
15
20
25
30
35
40
T
J
, JUNCTION TEMPERATURE (°C)
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
Figure 5. On−Resistance Variation with
Temperature
Figure 6. Drain−to−Source Leakage Current
vs. Voltage
www.onsemi.com
3
NVMFS5C426N
TYPICAL CHARACTERISTICS
V
GS
, GATE−TO−SOURCE VOLTAGE (V)
10000
C
ISS
C, CAPACITANCE (pF)
C
OSS
1000
C
RSS
100
V
GS
= 0 V
T
J
= 25°C
f = 1 MHz
10
0
5
10
15
20
25
30
35
40
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
10
9
8
7
6
5
4
3
2
1
0
0
10
20
30
40
50
60
Q
G
, TOTAL GATE CHARGE (nC)
V
DS
= 20 V
I
D
= 50 A
T
J
= 25°C
Q
GS
Q
GD
Q
T
Figure 7. Capacitance Variation
1000
I
S
, SOURCE CURRENT (A)
100
Figure 8. Gate−to−Source and
Drain−to−Source Voltage vs. Total Charge
V
GS
= 0 V
t, TIME (ns)
100
t
r
t
d(off)
10
t
f
1.0
V
GS
= 10 V
V
DD
= 20 V
I
D
= 50 A
10
R
G
, GATE RESISTANCE (W)
100
t
d(on)
10
T
J
= 150°C
1.0
0.3
T
J
= 125°C
0.4
0.5
0.6
T
J
= 25°C T
J
= −55°C
0.7
0.8
0.9
1.0
1
V
SD
, SOURCE−TO−DRAIN VOLTAGE (V)
Figure 9. Resistive Switching Time Variation
vs. Gate Resistance
1000
100
Figure 10. Diode Forward Voltage vs. Current
I
D
, DRAIN CURRENT (A)
100
10
ms
T
J
= 25°C
I
PEAK
, (A)
10
T
C
= 25°C
V
GS
≤
10 V
Single Pulse
R
DS(on)
Limit
Thermal Limit
Package Limit
1
10
0.5 ms
1 ms
10 ms
10
T
J
= 100°C
1
0.1
0.1
100
1
1E−4
1E−3
TIME IN AVALANCHE (s)
10E−2
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
Figure 11. Safe Operating Area
Figure 12. I
PEAK
vs. Time in Avalanche
www.onsemi.com
4
NVMFS5C426N

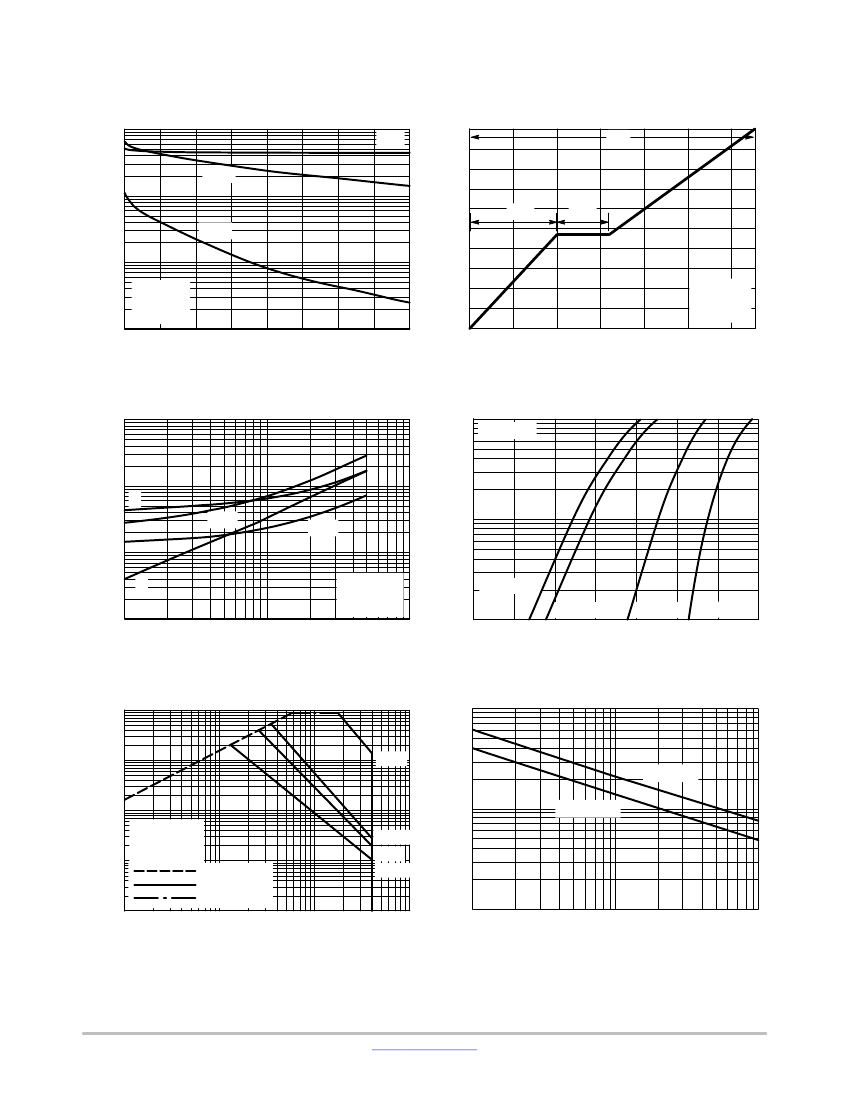

TYPICAL CHARACTERISTICS
100
50% Duty Cycle
10
R
qJA
(°C/W)
20%
10%
5%
2%
1%
1
0.1
Single Pulse
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
1
10
100
1000
PULSE TIME (sec)
Figure 13. Thermal Characteristics
DEVICE ORDERING INFORMATION
Device
NVMFS5C426NT1G
NVMFS5C426NWFT1G
NVMFS5C426NT3G
NVMFS5C426NWFT3G
NVMFS5C426NAFT1G
NVMFS5C426NWFAFT1G
Marking
5C426N
426NWF
5C426N
426NWF
5C426N
426NWF
Package
DFN5
(Pb−Free)
DFN5
(Pb−Free, Wettable Flanks)
DFN5
(Pb−Free)
DFN5
(Pb−Free, Wettable Flanks)
DFN5
(Pb−Free)
DFN5
(Pb−Free, Wettable Flanks)
Shipping
†
1500 / Tape & Reel
1500 / Tape & Reel
5000 / Tape & Reel
5000 / Tape & Reel
1500 / Tape & Reel
1500 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
www.onsemi.com
5
