Packaging Information
www.vishay.com
Vishay General Semiconductor
Packaging Information
PACKAGING ORDERING CODE
ANTI-STATIC
PREFERRED
PACKAGE CODE PACKAGE CODE
51, A
52, 52T
2D
2E, K
2M, P
53, B
54, C
5A, 5AT
5B, 5BT
5CA
57, 57T
6A
6B
9A, 9AT
61, 61T
67A
72, E
73, D
77
80
81
8W
83
84A
85A
86A
87A
89A
45, P
4W, P
96
97
98
100, V
H
I
TR
TR3
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
Bulk
SMB (DO-214AA) /SMBG (DO-215AA), 12 mm tape, 7" diameter plastic reel
SM5-8A (DO-218AB), 24 mm tape, 13" diameter plastic reel, anode towards sprocket hole
SM5-8A (DO-218AB), 24 mm tape, 13" diameter plastic reel, cathode towards sprocket hole
Tube packaging for 5KP/6KA type lead formed components
26 mm horizontal taping and ammo box packaging
52.4 mm horizontal tape, 13" diameter paper reel
SMA (DO-214AC), 12 mm tape, 13" diameter plastic reel
SMB (DO-214AA) / SMBG (DO-215AA), 12 mm tape, 13" diameter plastic reel
GF1 (DO-214BA), 12 mm tape, 13" diameter plastic reel
SMC (DO-214AB) / SMCG (DO-215AB), 16 mm tape, 7" diameter plastic reel
SlimSMA (DO-221AC), 12 mm tape, 7" diameter plastic reel
SlimSMA (DO-221AC), 12 mm tape, 13" diameter plastic reel
SMC (DO-214AB) / SMCG (DO-215AB), 16 mm tape, 13" diameter plastic reel
SMA (DO-214AC), 12 mm tape, 7" diameter plastic reel
GF1 (DO-214BA), 12 mm tape, 7" diameter plastic reel
Bulk pack for bridge and special axial-leaded formed devices
52.4 mm horizontal tape and ammo box packaging
DFS bridge, 16 mm tape, 13" diameter paper reel
MB-S (TO-269AA) bridge, 12 mm tape, 13" diameter paper reel
D
2
PAK (TO-263AB) 24 mm tape, 13" diameter reinforced hub plastic reel
D
2
PAK (TO-263AB) (wire bond) 24 mm tape, 13" diameter reinforced hub plastic reel
GL34 (DO-213AA) 8 mm tape, 13" diameter plastic reel
SMP (DO-220AA) 12 mm tape, 7" diameter plastic reel
SMP (DO-220AA) 12 mm tape, 13" diameter plastic reel
SMPC (TO-277A), 12 mm tape, 7" diameter plastic reel
SMPC (TO-277A), 12 mm tape, 13" diameter plastic reel
MicroSMP (DO-219AD), 8 mm tape, 7" diameter plastic reel
Anti-static tube packaging for Bridge and Power Pack
Anti-static tube packaging for wire bond TO-220, ITO-220, TO-262 and TO-263
GL41 (DO-213AB), 12 mm tape, 7" diameter plastic reel
GL41 (DO-213AB), 12 mm tape, 13" diameter plastic reel
GL34 (DO-213AA), 8 mm tape, 7" diameter plastic reel
MPG06 pseudo radial tape, cathode first out of ammo pack
Tape in 7" diameter plastic reel
Tape in 13" diameter plastic reel
SMA (DO-214AC), 12 mm tape, 7" diameter plastic reel
(1)
SMA (DO-214AC), 12 mm tape, 13" diameter plastic reel
(1)
PACKAGING DESCRIPTION
Notes
• “P” and bold letter denotes preferred package code
• A “T” suffix added to the packaging codes for SMA, SMB and SMC products indicates that the patented folded-frame construction is used.
This does not apply to TR and TR3 codes or T
RANS
Z
ORB®
TVS in SMA and SMB
(1)
Formerly sold by Vishay Telefunken
®
(Telefunken
®
is a registered trademark of Electro Holding GmbH)
Revision: 27-Mar-18
Document Number: 88869
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com
Vishay General Semiconductor
BULK PACKAGING
CASE TYPES
DF-M, DF-S, DFL-S
GSIB-3S
GSIB-5S, PB
GBU, BU
GBL
TO-220AB / AC, ITO-220AC / AB, TO-262AA
TO-247AD
MBS (TO-269AA)
GBL
GBPC12-35W
GBPC1, GBPC6
KBL
GBPC12-35
KBU4, 6, 8
WOG, 2WOG
GBU / BU
PREFERRED
PACKAGE
CODE
45
45
45
45
45
45, 4W
45
45
51
51
51
51
51
51
51
51
BOX SIZE
PACKAGING
INCHES
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static plastic tubes
Anti-static PVC tray
Paper box
Paper box
Anti-static PVC tray
Paper box
Anti-static PVC tray
Plastic bags
Paper tray
17.4 length
25.1 length
24.2 length
18.5 length
17.5 length
21.0 length
20.0 length
20.3 x 0.41
12.5 x 6.1 x 1.0
12.5 x 12.5 x 1.7
7.5 x 7.5 x 1.43
12.2 x 6.1 x 1.5
12.5 x 12.5 x 1.7
12.2 x 6.1 x 1.5
-
13.1 x 6.6 x 1.2
cm
44.1 length
63.9 length
61.5 length
47 length
44.5 length
53.7 length
50.8 length
51.5 x 1.04
31.7 x 15.5 x 2.5
31.7 x 31.7 x 4.3
19.0 x 19.0 x 3.6
30.9 x 15.5 x 3.8
31.7 x 31.7 x 4.3
30.9 x 15.5 x 3.8
-
33.2 x 16.8 x 3.0
EA.
50
20
20
20
20
50
30
100
400
100
100
300
100
250
100
250
QUANTITY
Revision: 27-Mar-18
Document Number: 88869
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com

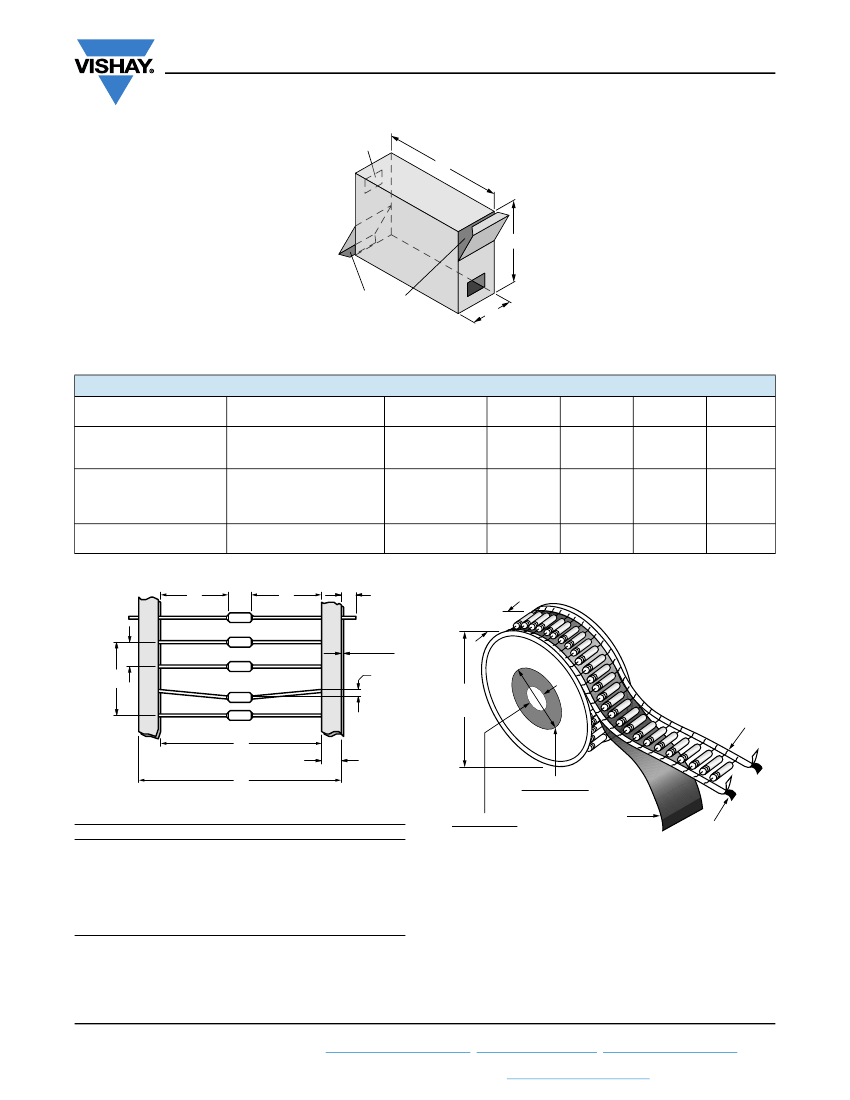

AXIAL-LEADED TAPE AND REEL PACKAGING
Inspection Hole
(Both Sides)
A
Vishay General Semiconductor
C
Ammo Pack can be Opened on Either Side,
Depending on Desired Device Polarity
B
All axial-leaded devices are packed in accordance with EIA standard RS-296-E. The diagrams given below refer to these
specifications.
TABLE 1 - AMMO PACK PACKAGING
PACKAGING
26 mm horizontal tape,
ammo pack
52 mm horizontal tape,
ammo pack
Pseudo / radial tape,
ammo pack
AVAILABLE PRODUCT
OUTLINES
DO-41(DO-204AL), MPG06
DO-15 (DO-204AC)
P300
DO-41(DO-204AL), MPG06
DO-15 (DO-204AC)
DO-201AD, GP20
P600
MPG06
PREFERRED
DIMENSION DIMENSION DIMENSION QUANTITY
PACKAGE CODE
A
B
C
BOX
53, B
53, B
53, B
73, D
73, D
73, D
73, D
100, V
9.7"
(247 mm)
10.0"
(255 mm)
13.4"
(340 mm)
1.7"
(44 mm)
3.15"
(80 mm)
1.8"
(47 mm)
3.7"
(95 mm)
4.53"
(115 mm)
7.9"
(200 mm)
3.0K
1.5K
0.75K
3.0K
2.0K
1.0K
0.3K
2.0K
|D
1
- D
2
| = 1.4 (0.055) Max. 0.8 (0.031) Max. Typ. 0.0
D
1
D
2
K
C
A
P
S
0.8 (0.031)
Max.
E
E
B
6.0 ± 0.4
T
(0.236 ± 0.0157)
W
Dimensions A, M, K, P, S and T apply to both sides
D Dia.
(Table 2)
Anode Lead
White Tape
91.9 (3.62) Dia.
50.8 (2.00) Dia.
38.1 (1.50) Dia.
14.3 (0.56) Dia.
Kraft
Paper
Cathode Lead
Colored Tape
Dimensions in millimeters (inches)
Description
Symbol
Component Pitch
A
2, 3
Inside Tape Spacing
B
2, 3
Lead to Lead Eccentricity
|D1 - D2|
-
Lead Extension
K
-
Lead Bending
E
2
Cumulative Pitch
P
3
Exposed Adhesive
S
-
Tape Width
T
-
All polarized components shall be oriented in the same direction
Fig. 1
The “C” dimension of Fig. 2 is between flanges of the component
reel and shall be 1.5 mm (0.059") to 8.00 mm (0.315") greater than
the overall taped component width “W” (Fig. 1). Where “W”
dimension is 68.2 mm (2.68") max.
Fig. 2
Revision: 27-Mar-18
Document Number: 88869
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com

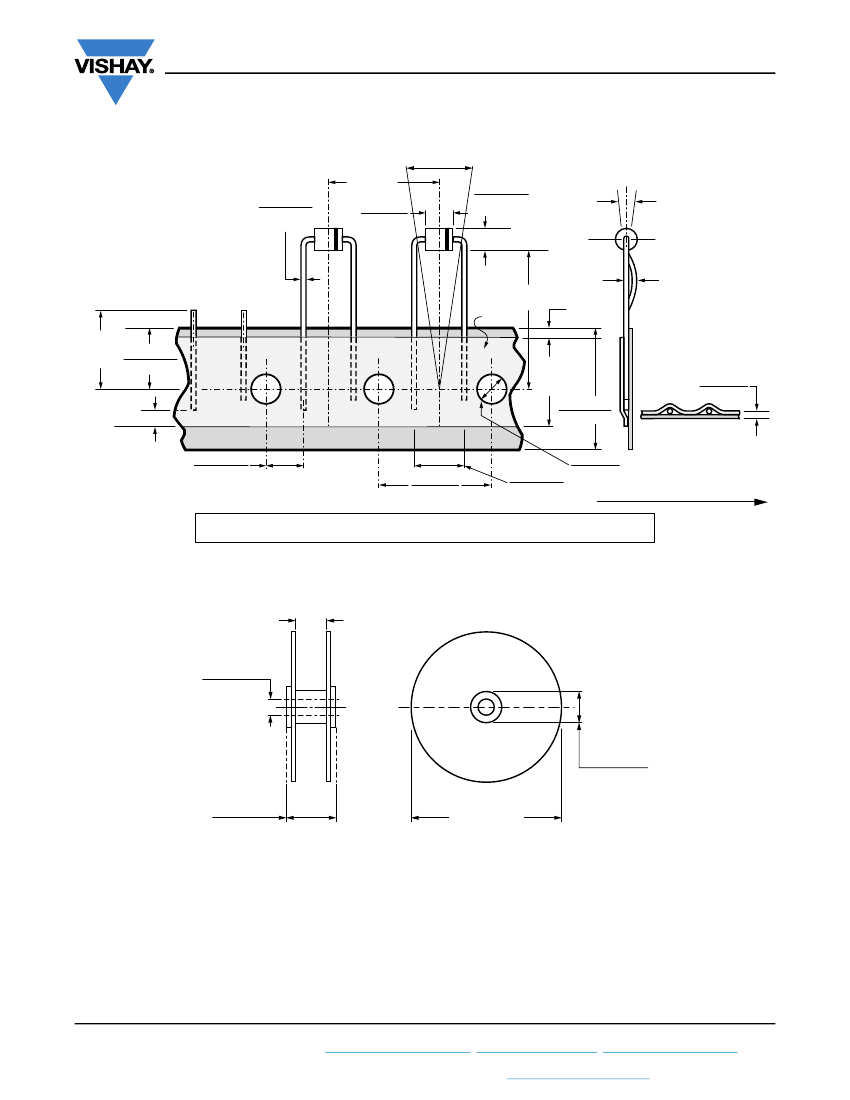

AXIAL-LEADED TAPE AND REEL PACKAGING
TABLE 2 - REEL AND AMMO PACK TAPING SPECIFICATIONS
COMPONENT
CASE TYPE
DO-15 (DO-204AC)
DO-201AD
DO-41 (DO-204AL)
DFS Surface-Mount
GF1 (DO-214BA)
GL34 (DO-213AA)
GL41 (DO-213AB)
GP10E Radial
GP10E
GP20/1.5KE
MPG06
P600
SMP (DO-220AA)
SMF (DO-219AB)
SMPD (TO-263AC) /
SMPA (DO-221BC)
MicroSMP (DO-219AD) /
MicroSMF (DO-219AC)
SMPC (TO-277A)
SMA (DO-214AC)
SMB (DO-214AA) /
SMBG (DO-215AA)
SMC (DO-214AB) /
SMCG (DO-215AB)
DO-218AB / AC
D
2
PAK (TO-263AB)
MBS (TO-269AA)
SlimSMA (DO-221AC)
SlimSMAW
SlimDPAK (TO-252AE)
FlatPAK 5 x 6
PREFERRED
PACKAGE
CODE
54, C
54, C
54, C
77
67A, H / 5CA, I
98, H / 83, I
96, H / 97, I
Fig. 5 and Fig. 6
54, C
54, C
54, C
54, C
84A, H / 85A, I
H/I
I
89A / H
86A, H / 87A, I
61, 61T, TR, H /
5A, 5AT, TR3, I
52, 52T, H / 5B,
5BT, I
57, 57T, H / 9A,
9AT, I
2D / I
81, 8W, I
80, I
6A, H / 6B, I
H, I
I
H/I
UNITS
PER REEL
EA.
4000
1400
5500
1500
1500 / 6500
2500 / 9000
1500 / 5000
2500
5500
1400
5500
800
3000 / 10 000
3000 / 10 000
2000 / 14 000
4500
1500 / 6500
1800 / 7500
750 / 3200
850 / 3500
750
800
3000
3500 / 14 000
3500 / 14 000
4500
1500 / 6000
0.500
0.200
0.395
0.200
0.395
12.7
5.0
10.0
5.0
10.0
Fig. 8
COMPONENT
PITCH
“A” Fig. 1
INCHES
0.200
0.395
0.200
mm
5.0
10.0
5.0
INSIDE TAPE
SPACING “B”
Fig. 1
INCHES
2.06
2.06
2.06
-
-
-
-
-
2.06
2.06
2.06
2.06
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
mm
52.4
52.4
52.4
-
-
-
-
-
52.4
52.4
52.4
52.4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
REEL DIMENSION
“D” Fig. 2
INCHES
13.0
13.0
13.0
13.0
7.0 / 13.0
7.0 / 13.0
7.0 / 13.0
13.0
13.0
13.0
13.0
13.0
7.0 / 13.0
7.0 / 13.0
13.0
7.0
7.0 / 13.0
7.0 / 13.0
7.0 / 13.0
7.0 / 13.0
13.0
13.0
13.0
7.0 / 13.0
7.0 / 13.0
13.0
7.0 / 13.0
mm
330
330
330
330
178 / 330
178 / 330
178 / 330
330
330
330
330
330
178 / 330
178 / 300
330
178
178 / 330
178 / 330
178 / 330
178 / 330
330
330
330
178 / 330
178 / 330
330
178 / 330
LEAD BENDING
“E” Fig. 1
INCHES
0.047
0.047
0.047
Fig. 8
Fig. 8
Fig. 8
Fig. 8
0.079
0.047
0.047
0.047
0.047
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
Fig. 8
mm
1.2
1.2
1.2
-
-
-
-
2.0
1.2
1.2
1.2
1.2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Vishay General Semiconductor
Fig. 8
Note
• Package codes, 61/5A, 52/5B are matrix-frame constructions for T
RANS
Z
ORB®
TVS in SMA and SMB only
TABLE 3 - COMPONENT AND INSIDE HORIZONTAL TAPE SPACING
COMPONENT
BODY DIAMETER
0 mm to 5 mm
(0.0" to 0.197")
0 mm to 5 mm
(0.0" to 0.197")
5.01 mm to 10 mm
(0.197" to 0.394")
COMPONENTS SPACING
A (LEAD TO LEAD)
5.0 mm ± 0.5 mm
(0.197" ± 0.020")
5.0 mm ± 0.5 mm
(0.197" ± 0.020")
10 mm ± 0.5 mm
(0.394" ± 0.020")
INSIDE TAPE
SPACING "B"
26 mm + 1.5 mm / - 0.0 mm
(1.024" + 0.059" / - 0.0")
52.4 mm + 1.5 mm / - 0.4 mm
(2.062" + 0.059" / - 0.016")
52.4 mm + 1.5 mm / - 0.4 mm
(2.062" + 0.059" / - 0.016")
Not to exceed 1.5 mm (0.059")
over 6 consecutive components
CUMULATIVE
PITCH TOLERANCE
Revision: 27-Mar-18
Document Number: 88869
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Packaging Information
www.vishay.com
DIMENSIONS
in millimeters (inches)
1.0 MAX.
(1)
(0.04)
2.54 (0.1)
2.29 (0.090)
Body DIA.
Vishay General Semiconductor
12.7 (0.50)
(Nominal)
0.66 (0.026)
0.55 (0.022)
Lead DIA.
(Center to Center)
± 1.0
(1)
(± 0.039)
3.2 (0.125)
2.9 (0.115)
1.0 (0.039) MAX.
16.0 (0.63)
MIN.
3.06 (0.118)
MAX.
Tape
11.0
(0.433) 9.75 (0.384)
MAX. 8.50 (0.335)
12.5
(0.492)
MIN.
19.0 (0.748)
17.5 (0.689)
0.6 (0.025)
0.4 (0.016)
2.0 (0.079)
MAX.
4.51 (0.178)
3.11 (0.122)
Note:
(1)
Component Alignment
13.0 (0.51)
12.4 (0.49)
4.3 (0.169)
3.7 (0.146)
5.68 (0.224)
DIA.
4.68 (0.184)
User Direction Feed
Available only for MPG06 Product in Ammo Pack in Accordance with EIA Standard RS-468-A Utilizing
0.61 mm (0.024") Diameter Leads. Maximum Cumulative Pitch Tolerance: 1.0 mm (0.039")/20 Pitch.
Fig. 3 - Pseudo Radial
RADIAL TAPE PACKAGING
“C”
Arbor Hole DIA.
30 ± 5 ID
(1.181 ± 0.197)
Core DIA.
34.9 to 102
(1.37 to 4.02)
55 (2.17) MAX.
330 (13.0) MAX.
Fig. 4 - Reel Dimensions
Notes
• “C” dimension between the reel flanges shall be governed by the overall width of the taped components and shall be 1.5 mm (0.057") to
8.0 mm (0.315") greater than the overall width
• All leaded devices are packaged in accordance with EIA standard RS-468-A specification and are available on reel or in fan fold box (ammo
pack)
• All dimensions are in millimeters and (inches)
Revision: 27-Mar-18
Document Number: 88869
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Embedded System
京公网安备 11010802033920号
EEWORLD
