Features:
Low optical
insertion loss
Cost-effective
CWDM technology
Mux/DeMux eight
wavelengths
Monitor port
available
Dual LC connectors
Color coded for
easy installation
Reliable passive
WDM technology
Scales easily for
ring networks
Low-profile
modular design
Fits in 1RU 19”
rack mount chassis
RoHS compliant

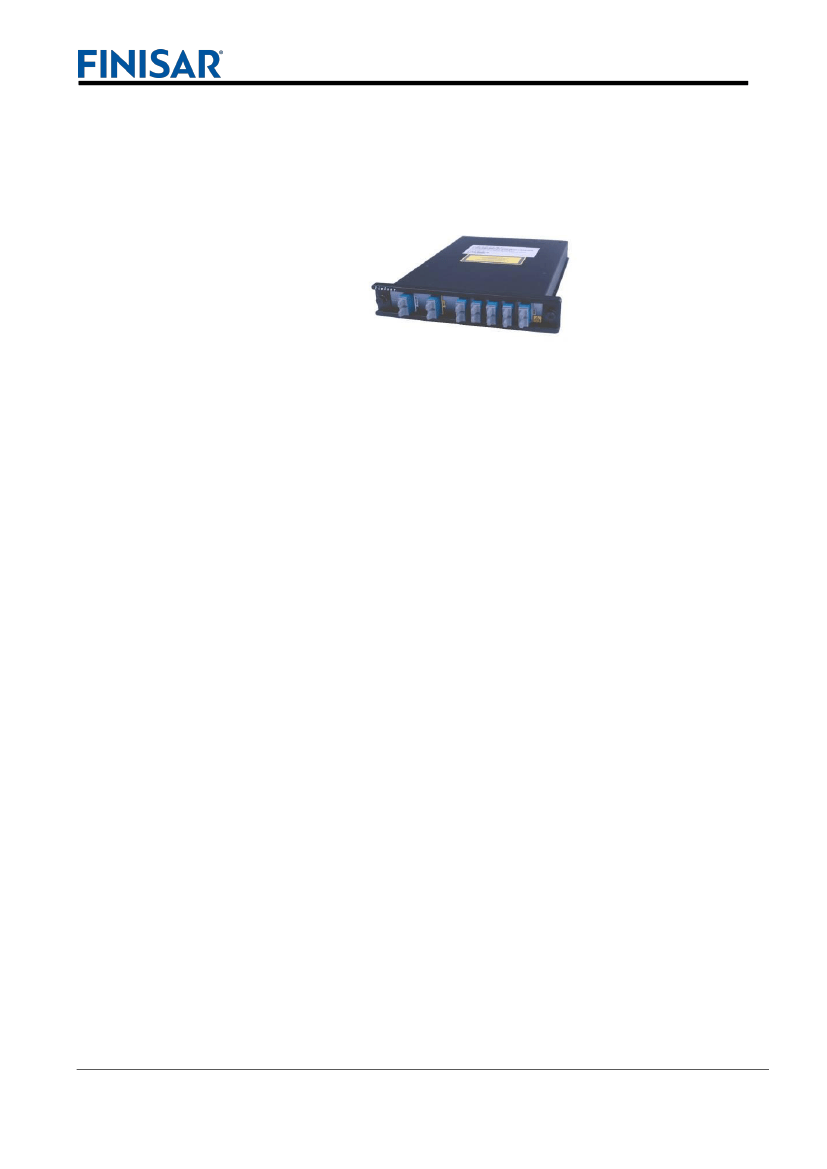

CWDM MUX/DEMUX-8
w/TAP Plug-in Module
CWDM-8 w/TAP plug-in module is a passive optical add/drop multiplexer designed for
metro access applications that represents the state of the art in fiber optics design. The
MUX/DEMUX module adds and drops eight CWDM wavelengths channels from
network traffic and passes the other channels. The module also includes a monitor port
to provide customers capability to monitor and troubleshoot networks. Finisar's unique
CWDM design maps the channels into two-fiber paths, going in opposite directions into
a network (east/west).
Added/dropped channels can be connected to any of Finisar's CWDM transceivers on
the equipment side. A grid of eight CWDM wavelengths is available from Finisar. The
CWDM plug-in module plugs into one half of a 1RU, 19" rack mount chassis for simple
installation and modularity. This Chassis based system allows a network equipment
manufacturer to add CWDM capability to any existing networks with simple pluggable
interface.
The equipment ports of the MUX/DEMUX plug-in module are color coded to match the
wavelength of Finisar's CWDM transceiver to simplify installation and troubleshooting
without having to remove the transceivers from the local equipment. This MUX/DEMUX
module delivers dramatic cost savings to network equipment manufacturers, enabling
them to develop metro access systems that are lower in cost, easier to provision and
simpler to operate.
MUX/DEMUX-8 w/TAP Plug-in Module
Specifications
Mechanical
Dimensions:
8.3” x 1.7” x 10.4”,
210mm x 43mm x 264mm,
plug-in for 1RU rack-mount
Optical
Center wavelengths:
MUX/DEMUX
-8 w/TAP Plug-in
• 1471 nm
• 1491 nm
• 1511 nm
• 1531 nm
• 1551 nm
• 1571 nm
• 1591 nm
• 1611 nm
Directivity:
≥
50 dB
Return Loss:
≥
45 dB
Passband Ripple:
≤
0.5dB
PDL:
≤
0.2dB
PMD:
≤
0.2ps
Environmental:
o
• Operating -5 to 70 C
• Relative humidity:
10 to 85%
Non-condensing
o
• Storage - 40 to 85 C
Connectors:
• Network side: 1 dual LC/PC
• Equipment side: 8 dual LC/PC
• Monitor side: 1 dual LC/PC
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar. 15 Rev. C
MUX/DEMUX-8 w/TAP Plug-in Module Parameter Specifications
Passband
Center
Wavelength
+/- 6.5 nm
Max Insertion Loss (dB)
Mux
2.2
Demux
2.2
Min Isolation (dB)
Mux
30
Demux
30
Max Insertion Loss(dB)
(Monitor Port)
Mux or Demux
23
Note:
Connector loss included.

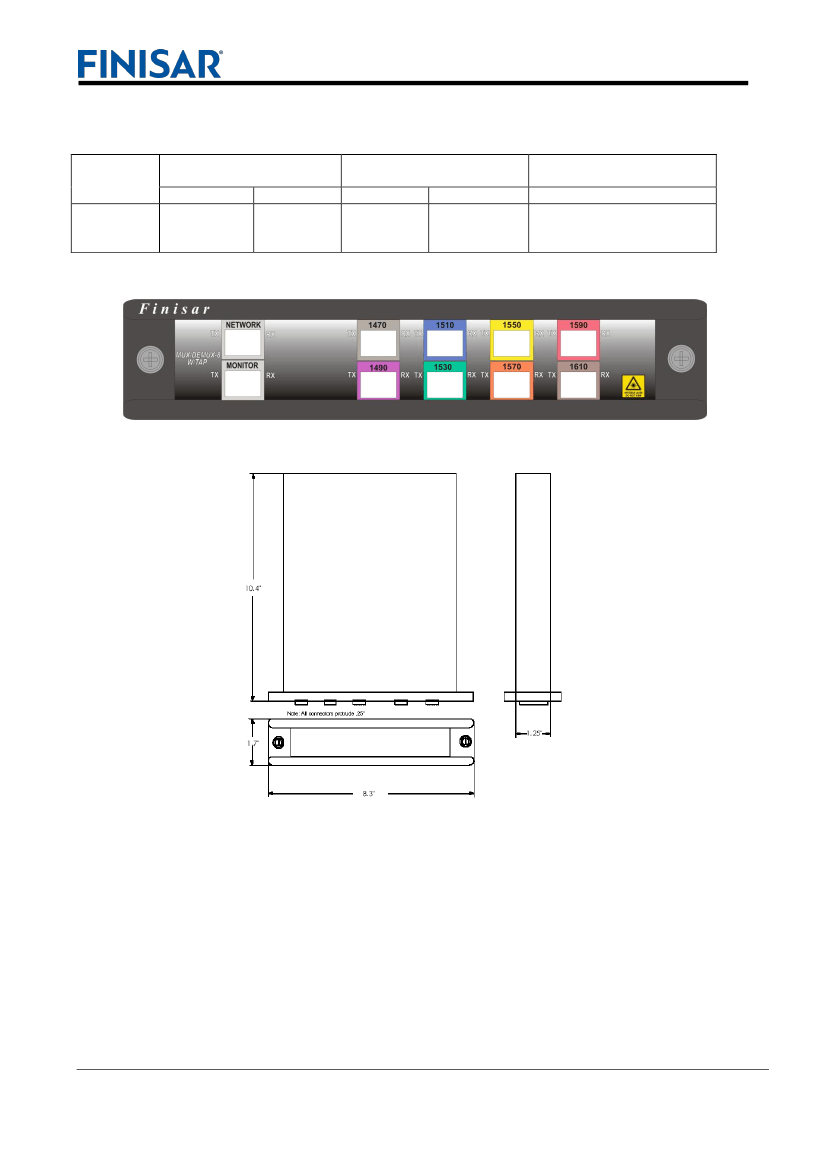

Front Panel
Dimensions
(Unit: inch)
Ordering Information
Part Number Description
FWSF-M/D-W/TAP-8-LC
8 Wavelengths MUX/DEMUX with TAP port Plug-in Module for FWSF-CHASSIS-2, LC connectors
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar. 15 Rev. C
